I-variable Cross-Section I-Section Beam

Ugongolo Lwesigaba I Oluguquguqukayo Olunqamulayo – Izixazululo Zensimbi Eyenziwe Ngokwezifiso nguShenyang Zhongda

I -Variable Cross-Section I-Section Beam evela eShenyang Zhongda inikeza ukusebenza okungenakuqhathaniswa lapho iphrojekthi yakho idinga ukulungiswa komthwalo okwenziwe kahle. Uma kuqhathaniswa nezingxenye ezivamile ezifanayo, imishayo yethu ethambile, eyakhiwe ngensimbi ye-Q345C ephansi ene-alloy enobukhulu bewebhu obusukela ku-6 kuya ku-36 mm, yehlisa isisindo sensimbi ngo-20 kuya ku-30%. Njengoba sinamandla okukhiqiza ngonyaka angamathani angu-80,000, siqinisekisa yonke imishayo ngewaranti yeminyaka eyi-11 futhi senza ukuhlolwa kwe-ultrasonic okungu-100% ngaphambi kokuthunyelwa kwamanye amazwe. Amandla okudonsa okungenani angama-448 MPa, okwanelisa amazinga ebhuloho lamazwe ngamazwe kanye ne-ASTM A572 Grade 50. Isukela ku-20-50m ithunyelwa ezinsukwini ezingama-20-25, kuyilapho izixazululo ezisesitokweni zifika zingakapheli izinsuku ezi-3.

Product Incazelo

Ibanga elibanzi liyisici esisodwa nje sobunzima bakho besakhiwo; esinye ukwenza ngokuhlakanipha.

Inkinga eqhubekayo yokulahlwa kwezinto ezibonakalayo ezingxenyeni ezivamile ezigoqwayo ixazululwa yi-I-beams yethu eguquguqukayo yokujula. Sikusiza ekunciphiseni izindleko ngaphandle kokudela amandla ngokunciphisa i-web lapho izikhathi zokugoba ziphansi khona.

Izindlela zokushisela i-arc ezivame kakhulu noma ezingaphansi kwamanzi zisetshenziswa ukudala lezi zinsika. Ukuze kugcinwe ama-engeli athambile ngaphansi kokubekezelelana okungu-±2mm, yonke ingxenye ilawulwa ngokuqinile. Umphumela? Isici sesakhiwo esivumelana nokusatshalaliswa komthwalo wakho kunokukusunduzela ekubeni unjiniyela ongaphezu kovamile.

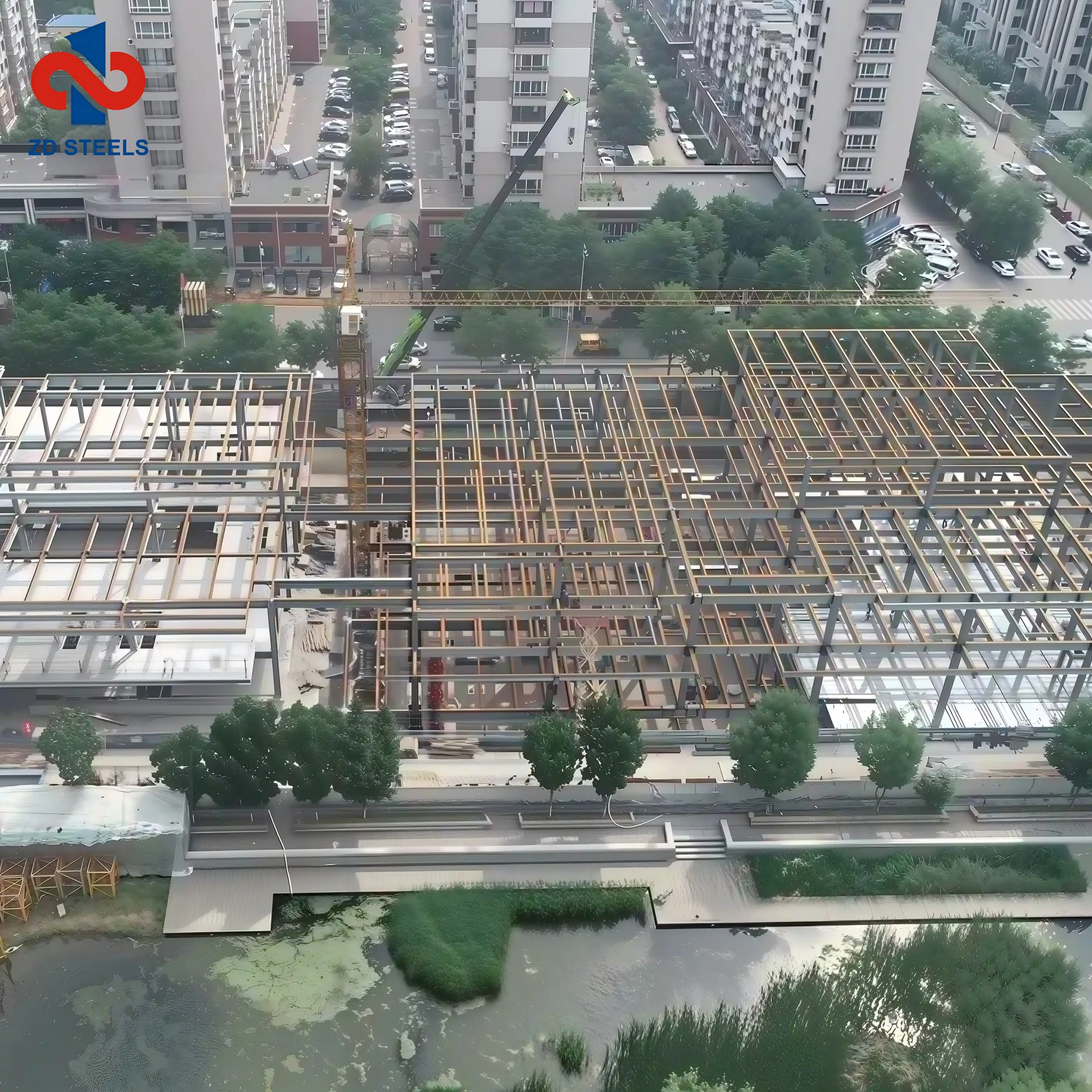

Lezi zingodo zinikeza ukuguquguquka okudingekayo emiklamo yezakhiwo eyinkimbinkimbi, okwenza zifaneleke kakhulu ophahleni lwesikhungo sokubonisa, amabhuloho abahamba ngezinyawo, kanye nezindawo zokugcina izimpahla zohlaka lwesango.



I-variable Cross-Section I-Section Beam



Izinzuzo zomkhiqizo

Kungani ukhetha ikhambi lethu?

✓ Ukusebenza Kahle Kwezinto Ezibonakalayo

Nciphisa ukusetshenziswa kwensimbi okuphelele kufikela ku-30% ngenkathi ugcina umthamo ogcwele womthwalo. Lokhu kusho ukuthi izindleko zokuhamba nezesisekelo ziphansi.

✓ Isilinganiso Esithuthukisiwe Samandla-kuya-Esisindoni

Ukubekwa kwezinto ezigxilile ezindaweni ezixinene kakhulu kusho ukuthi uthola ukusebenza okuphezulu ngekhilogramu ngayinye yensimbi.

✓ Ukusekelwa Kobunjiniyela Okwenziwe Ngokwezifiso

Ithimba lethu lokuklama elihlanganiswe ne-BIM lisebenzisana nawe kusukela emqondweni kuya ekufakweni. Sithuthukisa yonke i-engeli ethambile ngokusekelwe ku-load case yakho ethile.

✓ Ukuguquka Okusheshayo

Sisebenzisa indawo yokukhiqiza engamamitha-skwele angu-75,000 kanye nezintambo zokushisela ezenzakalelayo, siletha ama-oda enziwe ngokwezifiso ezinsukwini ezingu-20-25—okushesha ngo-20% kunesilinganiso semboni.

✓ Ukuthembeka Okuqinisekisiwe

Sisekelwa ukubamba iqhaza kumaphrojekthi angaphezu kuka-60 abalulekile okuhlanganisa neShenyang Dongta Bridge enamathani angu-18,000. Izinga lokugcinwa kwamakhasimende ethu limi ku-70%.

✓ Ukuthobela Umthetho Komhlaba Wonke

Kwenziwe ngokwezindinganiso ze-AISC 360, i-Eurocode 3, kanye ne-GB50017. Kunikezwe imibhalo ephelele ehlanganisa imidwebo yobuchwepheshe ye-MTC kanye nesiNgisi.

Ukucaciswa Kwezobuchwepheshe Nokwenza Ngokwezifiso

Ukukhiqiza Nokulawula Ikhwalithi

Yini eyenza ifektri yethu ihluke?

Isizinda Sokukhiqiza esingu-120,000 m²

Isikhungo sethu eShenyang Economic Development Zone sinezindawo ezilandelayo:

· Umthamo wekhreni elingamathani angu-50 wokuphakamisa izinto ezisindayo

· Imishini yokugoqa amapuleti engamathani angu-1200 yokugoba ngokunembile

· Izinhlelo zokubhoboza ze-CNC ezine-axis ezintathu ezinokunemba okungu-±0.1mm

 Iphrothokholi Yekhwalithi Yezigaba Ezinhlanu

1. Ukuqinisekiswa Kwezinto Ezibalulekile: Izitifiketi Zokuhlolwa Kwemishini ezifakazela ukuqina komthelela we-Charpy V-Notch kanye namandla okukhiqiza zifakiwe kuqoqo ngalinye.

2. Ubuqotho Bokushisela: Ukuhlolwa kwe-ultrasonic okungu-100% kwenziwa kuyo yonke i-web-to-flange junction. Amaphutha e-radiographic awabekezeleleki.

3. Ukulawula Okulinganayo: Ngemva kokushisela, izinhlelo zokulinganisa ezenzakalelayo zihlola ukuqondeka, ukuthambekela kwe-flange, kanye nama-engeli athambile.

4. Ikhwalithi Yomphezulu: Ukuhlolwa kobukhulu befilimu eyomile kanye nokuqhuma kwesihlabathi kuze kube yizinga le-Sa2.5 kuqinisekisa ukumelana nokugqwala iminyaka engaphezu kwengu-11.

5. Ukuhlolwa Komthwalo: Ukuze kuqinisekiswe ukuthi ukusebenza kudlula izidingo zomklamo, ukuhlolwa okubhubhisayo kwenziwa kumasampula angahleliwe.

izitifiketi

· Ukuphathwa Kwekhwalithi ye-ISO 9001:2015

· ISO 14001:2015 Ukuphathwa Kwemvelo

· ISO 45001:2018 Impilo Nokuphepha Emsebenzini

· Isiqu Sobungcweti Sesakhiwo Sensimbi Sekilasi I

Ukubamba kwethu iqhaza kumakomidi ezindinganiso ze-China Steel Structure Association kuqinisekisa ukuthi yonke i -Variable Cross-Section I-Section Beam ibonisa imikhuba ehamba phambili embonini.

Amacala Ephrojekthi / Izindaba Zempumelelo

Ukwandiswa komgwaqo iJingha Expressway (2021)

Kwahlinzekwa amathani angu-4,200 ezinsimbi ze-I ezinciphile ukuze kwakhiwe amabhuloho angaphezulu. Ikhasimende longe u-$340,000 ngenkathi lilandela imithetho eqinile yokuzamazama komhlaba ngenxa yomklamo wokujula oguquguqukayo, owasebenzisa insimbi engaphansi ngo-28% kunezilinganiso zokuqala zesigaba esifanayo.

Indawo Yokugcina Izimpahla eShenyang Industrial Park (2022)

Kwalethwa ozimele besango abangu-150 abanobunzulu bewebhu obunciphayo kusukela ku-1100mm kuya ku-450mm kusetshenziswa imisebe engu-40m-span. Ukufakwa kwaqedwa ezinsukwini ezingu-18 ngaphambi kwesikhathi esibekiwe ngenxa yokulungiswa kwethu okunembile kwebholithi nembobo.

Isakhiwo Sokusekela Imishini Yezimayini (2023)

Kwenziwe imishayo eyenziwe ngokwezifiso yozimele besiteshi sokuqhekeza ezimweni ezinzima kakhulu. Isixazululo sethu sensimbi esishintshashintshayo sisuse isidingo sokulungiswa okuqhubekayo ezindaweni zangaphandle ezinzima.

La maphrojekthi abonisa ikhono lethu lokusingatha izinkontileka ezinkulu ze-EPC ezinezidingo zobunjiniyela eziyinkimbinkimbi.

Ukuthobelana Nezitifiketi

Ukuvunyelwa kwemithetho yephrojekthi yakho kuncike ekulandelweni kwezindinganiso ezingaqinisekiswa. Sihlinzeka:

Izitifiketi Zezinto Ezibalulekile

· Izitifiketi Zokuhlolwa Zohlobo lwe-3.1 Mill ze-EN 10204

· Ukuhambisana kwe-ASTM A572 Grade 50

· Ukumaka kwe-CE kwamaphrojekthi aseYurophu

Imibhalo Yokuhlola

· Imibiko yokuhlolwa kwe-Ultrasonic (Isigaba V se-ASME)

· Imiphumela yokuhlolwa komthelela we-Charpy emazingeni okushisa acacisiwe

· Idatha yokuhlola ukujiya kokumboza kanye nokunamathela

Izindinganiso Zomhlaba Wonke Zihlanganisiwe

· I-AISC 360 (e-USA)

· EN 1090-2 (iNhlangano YaseYurophu)

· Ikhodi Yokushisela ye-AWS D1.1

· I-JIS G3106 (eJapane)

Yonke imibhalo inikezwa ngesiNgisi futhi ilandeleka ngokugcwele ukuze isekele ukuvunyelwa kwakho kokungenisa kanye nokuhlolwa kwephrojekthi.

imibuzo ejwayelekile ukubuzwa

Umbuzo 1: Ingabe i-Variable Cross-Section I-Section Beam ibiza kakhulu ukuyenza kune-H-beam ejwayelekile?

A: Nakuba izindleko zomsebenzi wokushisela ziphakeme kancane, ukwehla kwesisindo sensimbi okungu-20–30% kuvame ukwehlisa izindleko zakho zephrojekthi. Uphinde wonge izindleko zokuhamba kanye nesisekelo.

UMBUZO 2: Ubhekana kanjani nokugoba kwe-lateral-torsional?

A: Sihlanganisa ama-braces amadolo kanye ne-purlin stays ngezikhathi ezibalwe ngokwezindinganiso zokuklama ze-AISC/Eurocode. Ithimba lethu lobunjiniyela linikeza izakhiwo eziningiliziwe zokusekela nge-oda ngalinye.

Umbuzo 3: Ingabe le misebe ingafakwa i-hot-dip galvanized?

A: Yebo. Siphatha ngokucophelela ukujiya kwewebhu kanye nokucindezeleka kokushisela ukuze sivimbele ukuphazamiseka kokushisa ngesikhathi senqubo yokucwilisa. Xhumana nethimba lethu ukuthola izidingo ezithile zephrojekthi.

UMBUZO 4: Yisiphi isilinganiso esiphezulu se-taper esinconywayo?

A: Ngokuvamile, ukuthambeka okungu-1:10 kulungele ukusebenza kahle kokushisela kanye nokuqina kwesakhiwo. Ama-taper aqinile angenzeka kodwa adinga ukuqinisekiswa okwengeziwe kobunjiniyela.

I-Q5: Yiluphi uxhaso lwangemva kokuthengisa olunikezayo?

A: Konke ukuthunyelwa kufaka phakathi izincwadi zokufaka ezinemininingwane, imininingwane ye-torque yokuxhumeka okunamabholidi, kanye newaranti yokulwa nokugqwala yeminyaka eyi-10-25 kuye ngohlelo lwakho lokumboza olukhethile.

Umbuzo 6: Ungawusekela yini amaphrojekthi aphesheya kwezilwandle?

A: Impela. Silethe izingxenye zamaphrojekthi e-Belt and Road Initiative ngokuhambisana ne-EN 1090 kanye ne-AWS D1.1 ephelele. Ithimba lethu lokuthumela kwamanye amazwe lisingatha zonke izidingo zemibhalo.

Xhumana nathi

Ukulungele ukwenza ngcono iphrojekthi yakho elandelayo ngezixazululo zensimbi ezihlakaniphile ezine- Variable Cross-Section I-Section Beam?
