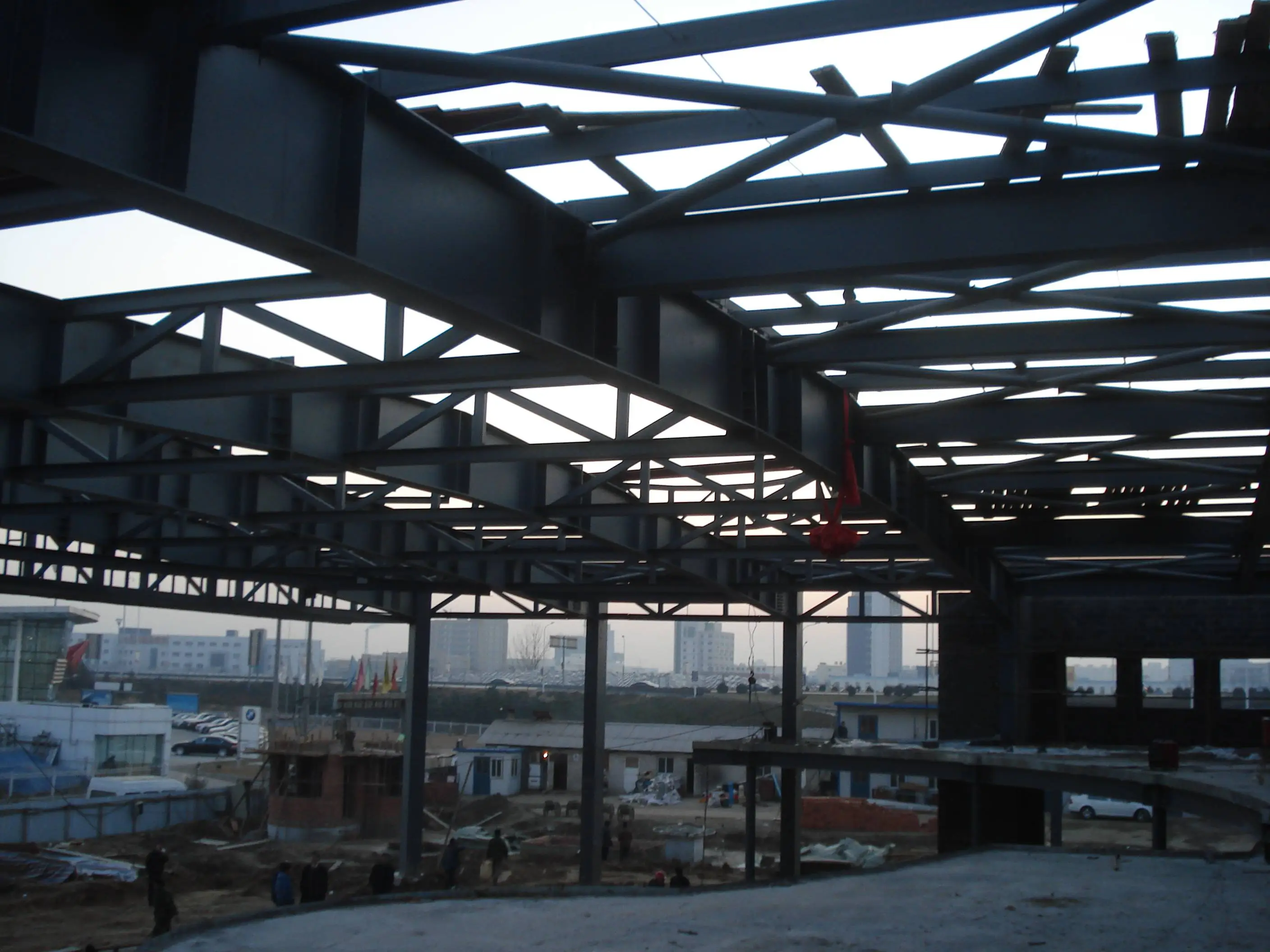

grid structures
Grid Size: The grid size is determined by the structural span, load, and building function, generally ranging from 1.5 to 4 meters. Smaller grids are suitable for large spans or where roof flatness is critical; larger grids are used for buildings with smaller loads and moderate spans, reducing the number of members and lowering costs.
Member Cross-Section: Members are typically constructed of steel pipes, with common diameters ranging from 60 to 250 mm and wall thicknesses of 3 to 12 mm. Based on a stress analysis, the appropriate combination of pipe diameter and wall thickness is selected to ensure the member has sufficient strength, stability, and rigidity to meet the structural load-bearing requirements.
Rise: Rise is typically 1/10 to 1/15 of the span. A reasonable rise optimizes the structural load-bearing performance, distributes internal forces more evenly, and improves overall structural stability. It also influences the architectural spatial design and roof drainage.
II. Product Advantages
Excellent Spatial Load-Bearing Performance: The grid structure is a three-dimensional load-bearing system. Each member works in concert to effectively transfer loads to the supports, ensuring uniform load distribution. It can span large spaces and is suitable for large-scale buildings such as stadiums, exhibition halls, and large factories.
Beautiful and Diverse Designs: Regular or irregular grid patterns can be formed, and combined with different roofing materials, a variety of architectural appearances can be created to meet diverse architectural design needs and add a unique artistic charm to the building.
Simple and Efficient Construction: Members and nodes are mostly prefabricated in the factory, ensuring high quality control. On-site installation mainly involves member assembly, resulting in a fast construction process, effectively shortening the construction period and minimizing the impact of construction on the surrounding environment.
III. Selling Points of Concern to Buyers
Economic Efficiency: By optimizing design parameters such as grid size and member cross-section, steel usage is optimally controlled, reducing costs while ensuring structural safety. Furthermore, the rapid construction schedule reduces labor and equipment rental expenses, thereby improving the overall economic benefits of the project. Customized Service: Based on the buyer's building function, site conditions, budget, and other requirements, we provide tailored grid structure designs, including different grid formats, node configurations, and material selections to meet individual needs. Quality and After-Sales Guarantee: Design and construction strictly adhere to international and industry standards, with strict quality control at every stage, from raw material procurement to component processing and on-site installation. We provide comprehensive after-sales service, including regular follow-up visits, maintenance guidance, and timely resolution of any problems that arise during use, ensuring peace of mind for buyers.
Grid Structures: Versatile Solutions for Your Construction Needs
At Shenyang Zhongda Steel Structure Engineering Co., Ltd., we're proud to be a leading manufacturer and supplier of high-quality grid structures. We stand out in the field because of our modern production tools, all-in-one solutions, and skilled, expert staff. We can give you reliable products that are also easy to change to fit the needs of your project because we have been in business for more than 15 years.
Product Description
Our products are made to last, be flexible, and be easy to set up. These modular systems are made up of steel pieces that are all connected to each other. This makes a strong frame that can be used for many jobs. We offer a wide range of the products, including:
- Space frame systems
- Truss grid structures
- Lattice beam designs
- Modular grid panels
Each grid structure is carefully made from high-quality steel, which guarantees that it can hold a lot of weight and work well for a long time. Our structures can cover big areas without the need for supports in the middle, giving you clear, unblocked areas for your projects.
Why Choose Us?
- Customizable designs to fit your specific needs
- Rapid assembly and installation
- Cost-effective solutions for large-scale projects
- Excellent strength-to-weight ratio
- Corrosion-resistant finishes available
Function & Application
Our products offer versatile solutions across multiple industries. They're commonly used in:
- Industrial warehouses and storage facilities
- Exhibition halls and sports arenas
- Airport terminals and transportation hubs
- Solar panel support systems
- Architectural features in commercial buildings
Because our grid structures are both useful and nice to look at, they are a great choice for modern building projects.
Production Process
We employ state-of-the-art technology in our grid structure production:
- Computer-aided design and engineering
- Precision cutting and shaping of steel components
- Quality welding and assembly
- Surface treatment and finishing
- Rigorous quality control inspections
This process ensures consistent quality and adherence to international standards.
OEM & ODM Services
We can make the products as either OEM (Original Equipment Manufacturer) or ODM (Original Design Manufacturer) items. You can give our experienced team specifics to work with, or they can make plans from scratch to fit your needs. We are proud of the fact that all of our OEM and ODM projects are flexible, new, and well-thought-out.
Packaging and Delivery
Our products are carefully packaged to ensure safe transportation. We offer various shipping options to meet your timeline and budget requirements.
Qualification of Company
Shenyang Zhongda Steel Structure Engineering Co., Ltd. holds a First-Class Steel Structure Engineering Qualification from China's Ministry of Housing and Urban-Rural Development. We adhere to strict quality control measures and international standards, ensuring reliable and compliant products for your projects.
FAQs
Q: What is the maximum span for your products?
A: Our products can span up to 100 meters without intermediate supports, depending on the specific design and load requirements.
Q: Are your products suitable for seismic zones?
A: Yes, we can design and manufacture products that meet seismic design standards for various regions.
Q: What is the typical lead time for a custom grid structure project?
A: Lead times vary based on project complexity and size, but typically range from 4-12 weeks.
Q: Can you provide installation support for your products?
A: Yes, we offer technical support and can arrange on-site installation services if required.
Q: Do you offer warranties on your products?
A: We provide warranties on our products, with terms varying based on the specific project and application.
Contact & Support
Ready to discuss your grid structure needs? Contact our expert team today at postmaster@zd-steels.com for personalized support and solutions. We're here to help bring your construction vision to life with our innovative grid structures.
