prefab steel warehouse

Core Parameters
Steel Type: Q235 or Q345 steel is primarily used for the frame. Q235 offers excellent workability and weldability, is reasonably priced, and is suitable for general load-bearing requirements. Q345, with its higher strength, is suitable for large-span, heavy-load areas, such as those housing heavy-duty racking or operating large loading and unloading equipment, ensuring structural stability and safety. The steel must meet appropriate mechanical performance standards, including yield strength and tensile strength.

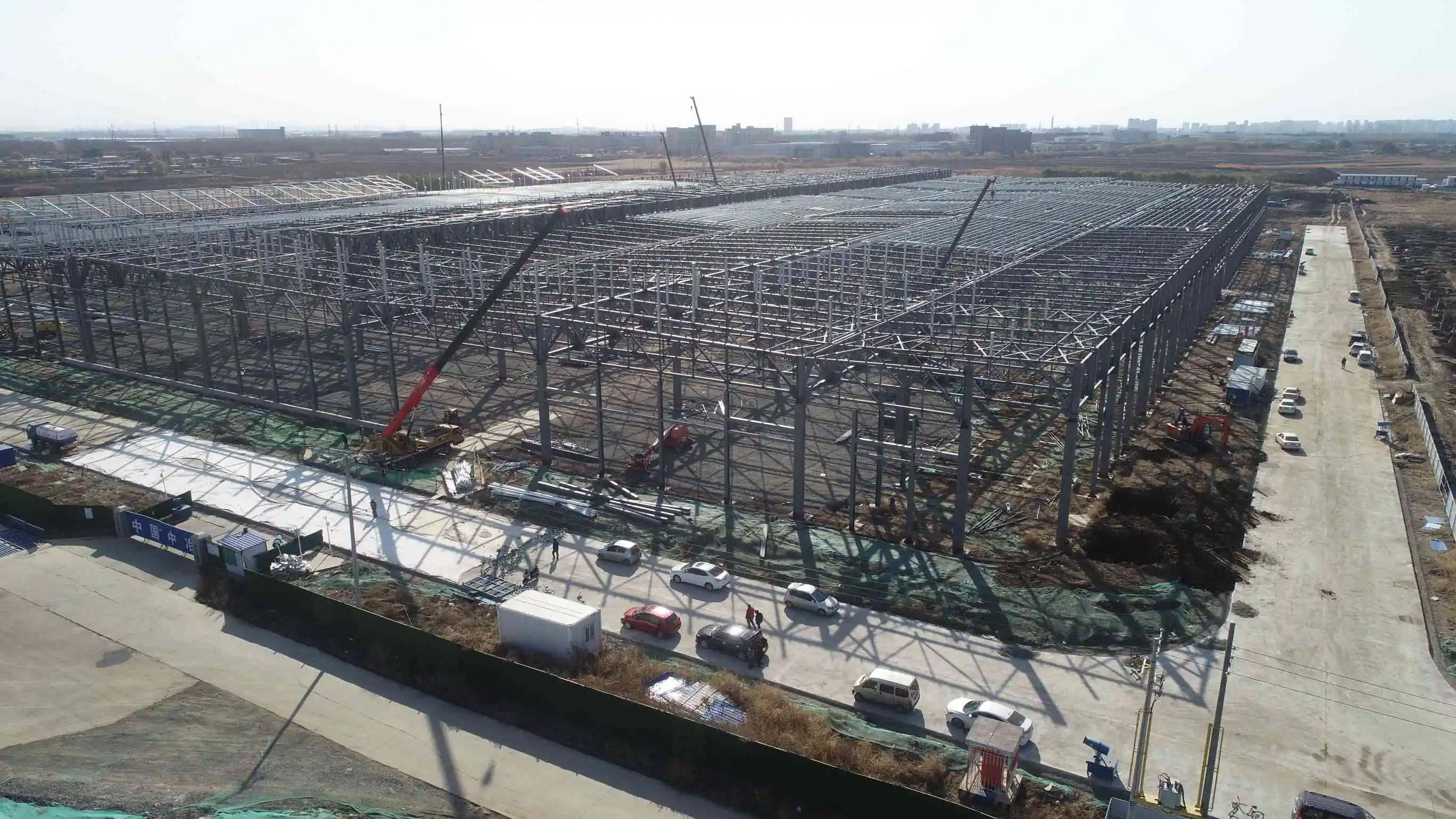

Structural Form: Portal frames are commonly used due to their excellent mechanical properties, high space utilization, and outstanding economic efficiency, effectively providing ample space. For prefabricated steel warehouses with extra-large spans, trusses or grid structures may be employed to enhance the structure's load-bearing capacity and span capability, meeting specific requirements.
Dimensions: Widths generally range from 15 to 60 meters, with lengths flexibly customizable based on site conditions and actual storage needs, without strict restrictions. Heights are typically 4 to 10 meters, with the specific height determined by factors such as the type of goods stored and the available space for handling equipment. For example, for general cargo storage handled by a small forklift, a height of 4-6 meters may be sufficient. However, for large machinery and equipment handled by a gantry crane, a height of 6-10 meters or even higher may be required.
Enclosure System: Roofs and walls are often constructed of color-coated steel sheets. Typically 0.4-0.8mm thick, these sheets offer excellent waterproofing, thermal insulation, and corrosion resistance, effectively protecting the warehouse's internal environment. For warehouses requiring higher insulation requirements, sandwich color-coated steel sheets can be used. Core materials typically range from 50-150mm thick, with polystyrene and polyurethane being common. These sandwich panels significantly improve insulation and reduce energy consumption.
Product Advantages

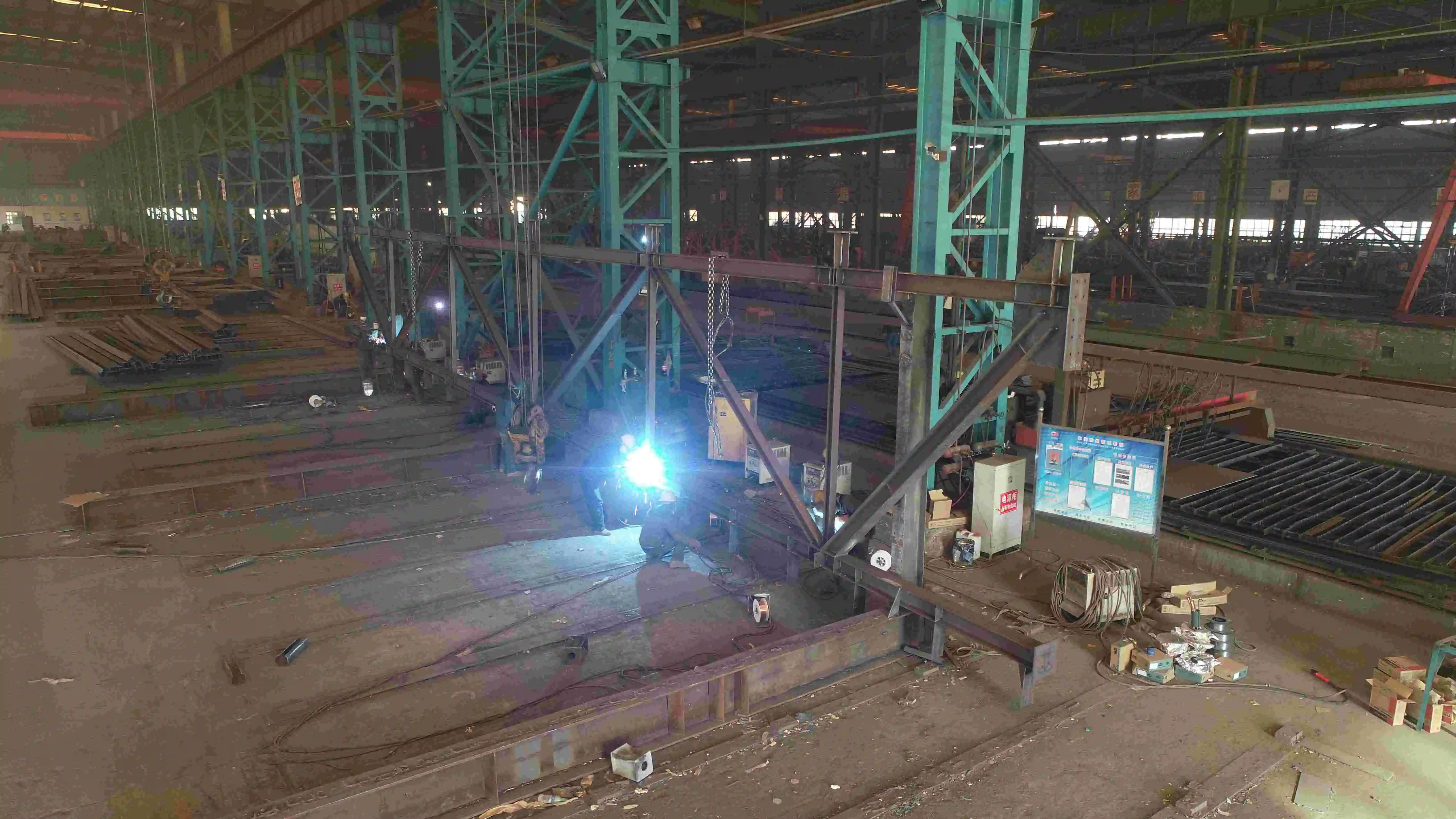

Short Construction Time: All components are prefabricated in the factory with high precision. Once transported to the site, they can be quickly erected through simple assembly. Compared to traditional construction methods, this significantly shortens the construction timeline, typically saving 30%-50%. This allows warehouses to be operational more quickly, reducing construction time and costs, which is crucial for warehousing projects that need to be operational urgently. High Space Utilization: The rational structural design, spacious interior space, and relatively few columns minimize storage space usage. The wide span design allows for flexible layout, facilitating the installation of large shelves and the passage of handling equipment, effectively improving space utilization and meeting the storage needs of diverse goods. Cost-Effectiveness: Factory-prefabricated production enables scalability, reducing material loss and production costs. Furthermore, the short construction period reduces labor costs and equipment rental costs. Furthermore, the steel used in prefabricated steel warehouses is recyclable and retains a residual value after the warehouse's lifespan, further enhancing cost-effectiveness. Flexibility and Scalability: The design and layout can be flexibly adapted to varying site conditions and storage requirements. If the need for expansion arises later, prefabricated steel warehouses can be easily expanded by simply adding the necessary components, without requiring major structural modifications, thus offering excellent scalability.
Buyer-Critical Selling Points
Customized Service: We provide tailored design solutions based on buyers' specific needs, such as warehouse usage (general goods storage, refrigerated goods, etc.), site shape and size, and budget constraints. From structural selection and sizing to enclosure system configuration, we fully meet buyers' individual requirements, ensuring the optimal balance between practicality and cost-effectiveness.
Quality Assurance: Design, production, and installation strictly adhere to international and industry standards. Strict quality control and inspection are implemented at every stage, from steel procurement and component processing to on-site assembly. Our professional construction team and quality supervision personnel ensure the reliability of prefabricated steel warehouses, providing buyers with long-term quality assurance and after-sales service, including regular visits, maintenance guidance, and problem resolution, ensuring peace of mind.
Fast Delivery: Our efficient prefabrication production process and professional installation team ensure fast delivery. Once buyers place an order, warehouse construction can be completed and operational in a short period of time, meeting their urgent storage needs and seizing market opportunities. At the same time, fast delivery also helps buyers reduce the additional costs incurred by waiting for warehouse construction.
