Advanced Power Plant Steel Structure Design Improves Stability in Harsh Conditions

When engineers and procurement managers look for structural solutions in energy infrastructure, the stakes are exceptionally high. A well-engineered power plant steel structure must support thousands of tons of mechanical equipment, resist seismic forces, manage thermal expansion, and endure decades of harsh operating conditions without compromise. At Zhongda, we have built our reputation since 2004 by delivering precisely these solutions — frameworks that perform reliably where others fall short.

Understanding Power Plant Steel Structures and Their Design Standards

Heavy industrial frames in Power Plant Steel Structures are a lot more complicated than those in regular business steel buildings. They hold different types of equipment, like boiler towers, turbine rooms, flue gas desulfurization systems, and air-cooled condenser platforms, and each one has its own specific structural needs.

Design compliance starts with codes that are known all over the world. The ASTM A572 Grade 50, EN 1090-2 (Execution Class 3 or 4), and AISC 360 standards must be met by all structural parts. These standards control the quality of the weld, the accuracy of the measurements, and the strength of the structure over a 50-year period.

International Compliance and Material Standards

Based on the type of load, common grades like Q355B/C/D/E (GB standard) and S355JR (EN standard) are chosen. Key mechanical markers, such as yield strength, tensile strength, elongation, and impact toughness, are carefully set to match the different loading situations and locations of structures in the building.

Steel Grade Selection for Load-Bearing Performance

It's important to choose the right load correctly. When designing, teams have to think about three types of loads: dead loads (like building weight and fixed equipment), live loads (like practical use standards), and environmental loads (like wind pressure, snow buildup, and seismic forces). This method of combining loads for multiple scenarios makes sure that the structure is safe in all possible working situations.

Load Combination Planning

Design teams ensure that the Power Plant Steel Structure is evaluated under integrated load scenarios. By combining dead, live, and environmental pressures, engineers verify the framework's stability across all possible working conditions, from peak operational vibration to extreme weather events.

Key Benefits of Advanced Steel Structure Designs in Power Plants

Engineers and project owners often want to know why Power Plant Steel Structure steel works better in power generation environments than reinforced concrete. The answer lies in a mix of measurable performance gains and real-world construction cost savings.

Here are some of the main structural benefits that modern heavy-duty frames offer in Power Plant Steel Structures:

• Seismic Ductility and Dynamic Load Resistance: During earthquakes, steel frames are much better at absorbing and redistributing energy than concrete frames. High-strength friction-grip bolts and tuned mass dampers are built in to get rid of vibrations from engines and generators that are turning, which stops damage from resonance.
• Corrosion Resistance in Harsh Environments: A two-part protection system with hot-dip galvanizing (HDG) and a fluorocarbon topcoat meets ISO 12944 C5-M standards for sites near the coast or with a lot of moisture. Zhongda's own -60°C Weathering Steel Anti-corrosion Technology makes this performance even better in harsh environments.
• Modular Construction Speed: Industry standards say that prefabricated steel modules cut EPC project timelines by 20–30% compared to cast concrete. Large-scale modularization of pipe racks and air tubes cuts down on the time needed for high-altitude welding and on-site work.

These benefits directly lead to less downtime, lower lifetime costs, and faster grid connection, all of which are important for EPC contractors and power plant producers who have to meet tight deadlines.

Innovative Engineering and Materials Enhancing Steel Structure Performance

Today's structural engineering for Power Plant Steel Structures goes far beyond simple drawings and calculations done by hand. Today, digital and material technologies that are very advanced are used by project teams at every stage.

Finite Element Analysis and CAD Modeling

At Zhongda, structural analysis uses both finite element analysis (FEA) and 3D building information modeling (BIM). This lets engineers simulate how loads are distributed, find stress concentrations, and fine-tune cross-section dimensions before the building process starts. This process cuts down on waste while making sure safety margins are met.

High-Strength and Weather-Resistant Steel Applications

Heavy H-beams and box columns are often used in boiler support grids to hold up parts under pressure that are over 10,000 tons while allowing controlled downward heat expansion to happen. Specialized sliding bearings and slotted hole links allow for thermal movement without affecting the security of the side-to-side movement. This feature directly stops long-term fatigue cracking.

Real-Time Structural Health Monitoring

More and more new Power Plant Steel Structures are coming with sensor-based structure health tracking systems. In real time, these systems measure things like movement, sound, and the rate of corrosion. This lets operations teams know about problems early on, before they become expensive failures. Our engineering team plans how to integrate monitoring right into the original layout of the structure.

Procurement Considerations for Power Plant Steel Structures

It takes more than just checking material specs to find the right Power Plant Steel Structure provider. Professionals in procurement need a partner with certifications that can be checked, a track record of making things, and a lot of project management experience.

Verifying Supplier Qualifications

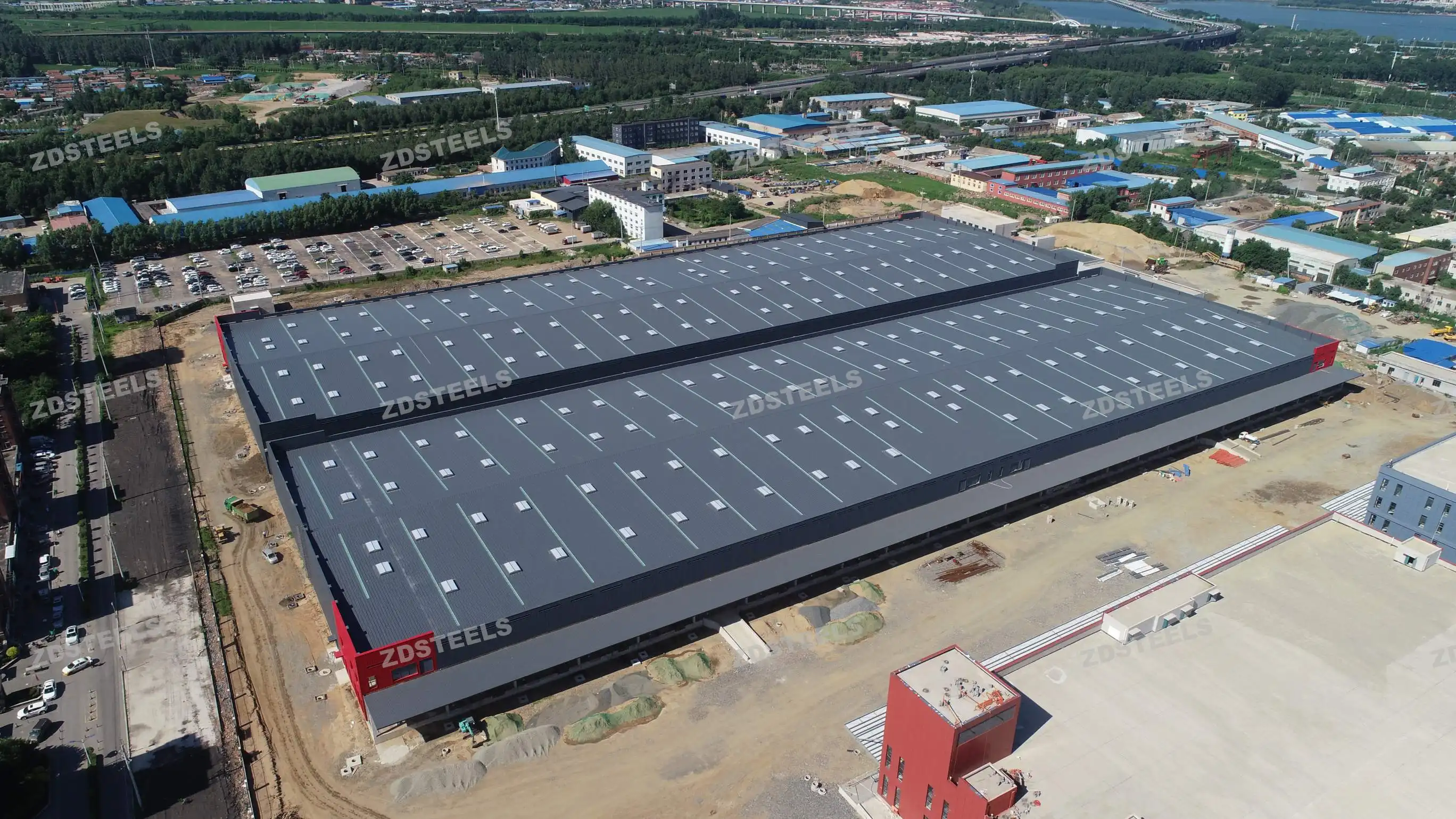

Zhongda has been certified with ISO 9001, ISO 14001, OHSAS 45001, and EN 1090. The Ministry of Housing and Urban-Rural Development of China has also given them the First-Class Steel Structure Engineering Qualification. Our 120,000 m² facility can produce 60,000 tons of goods every year, and we have more than 100 qualified engineers working there.

Custom Fabrication and OEM/ODM Capabilities

Each Power Plant Steel Structure project has its own site limitations, tool setups, and rules that must be followed. We offer both OEM and ODM services, and we can work from models provided by the client or come up with our own designs based on project briefs. When we cut through very thick plates, we can achieve dimensional limits of ±0.2mm, which is very precise and needed for big crane girder parts and column base connections.

Procurement Process and Risk Mitigation

We have a structured process for buying things: initial consultation and needs gathering, basic design and feasibility study, thorough structural analysis, 3D models and documentation, and ongoing cooperation through fabrication and installation. This organized method lowers the risk of change orders and keeps projects on track.

Maintenance and Longevity Strategies for Power Plant Steel Structures

When it comes to getting the most out of a well-built Power Plant Steel Structure, it only works at its best when it is regularly maintained.

Routine Inspection and Corrosion Monitoring

The first step in any repair program is to check the connections, welds, coatings, and bearings once a year to make sure they are solid and in good shape. To catch coating degradation early, corrosion monitoring should follow NACE SP0188 guidelines, especially in FGD system areas where acidic condensate builds up.

Preventive Maintenance and Personnel Training

It is recommended that scheduled bolt re-torquing, paint touch-up programs, and vibration isolation checks on machinery platforms stop the wear and tear that causes unexpected outages. If someone is certified to AWS D1.1 or ISO 9606-1 standards for any kind of field welding, the quality of the repair will match what was intended by the original design.

Retrofitting and Lifecycle Extension

According to published case studies, older Power Plant Steel Structures built to older codes can often be improved with modern high-strength gusset plates, extra diagonal bracing, or corrosion-barrier covering. This can add 15–25 years to their service life. As a full-service package, Zhongda offers on-site evaluation, engineering documents, and custom-made replacement parts.

Conclusion

Building infrastructure for power generation requires precise structural engineering that leaves no room for error. Advanced frameworks that use the right steel grade, accurate load combination analysis, corrosion-resistant protective systems, and BIM-driven prefabrication give operators and developers the stability they need. Every part of a Power Plant Steel Structure, from boiler towers to turbine halls, has to work reliably even after decades of changing temperatures, shifting loads, and environmental stress. Because Zhongda has worked on projects around the world for 20 years, we have a lot of technical knowledge that makes us a reliable partner for engineers, EPC contractors, and buying teams that can't risk structural compromise.

FAQ

How does a power plant steel framework handle vibration from rotating machinery?

High-strength friction-grip bolts and tuned mass dampers inside the Power Plant Steel Structure get rid of energy and stop turbines and generators from resonating.

What anti-corrosion solution is standard for coastal power plant structures?

The usual way to do things in this business is to use a duplex system with hot-dip galvanizing and a fluorocarbon finish that meets ISO 12944 C5-M standards.

Can boiler support structures accommodate thermal expansion?

Yes. Specialized slide bearings and slotted hole connections make it possible to move things in a controlled way in the direction of heat expansion without lowering the resistance to side loads.

What welding certifications apply to power plant structural work?

All of the welders must be certified by AWS D1.1 or ISO 9606-1, and the thick-plate joints' Weld Procedure Specifications must be backed up by Procedure Qualification Records.

How does modular steel construction reduce EPC timelines?

When compared to cast-in-place concrete, prefabricated modules are put together off-site under controlled conditions and then installed on-site with little high-altitude welding. This cuts the total construction time by 20–30%.

Partner with Zhongda for Your Next Power Plant Steel Structure Project

Heavy industrial frames made by Zhongda have been sent to Russia, Australia, Vietnam, and other places. As a Power Plant Steel Structure maker with a long history, we offer qualified technical knowledge, the ability to produce up to 60,000 tons, and full process support from design to installation. Get in touch with our engineering team right away to talk about the details of your project. To get a professional advice, go to zd-steels.com or email us at Ava@zd-steels.com.

References

1. American Institute of Steel Construction (AISC). Steel Construction Manual, 16th Edition. AISC, 2023.

2. European Committee for Standardization. EN 1090-2: Technical Requirements for Steel Structures. CEN, 2018.

3. NACE International. SP0188: Discontinuity (Holiday) Testing of Protective Coatings. NACE, 2006.

4. American Welding Society. AWS D1.1/D1.1M: Structural Welding Code — Steel. AWS, 2020.

5. International Organization for Standardization. ISO 12944-5: Paints and Varnishes — Corrosion Protection of Steel Structures by Protective Paint Systems. ISO, 2019.

6. Gorenc, B., Tinyou, R., & Syam, A. Steel Designer's Handbook, 8th Edition. UNSW Press, 2012.
