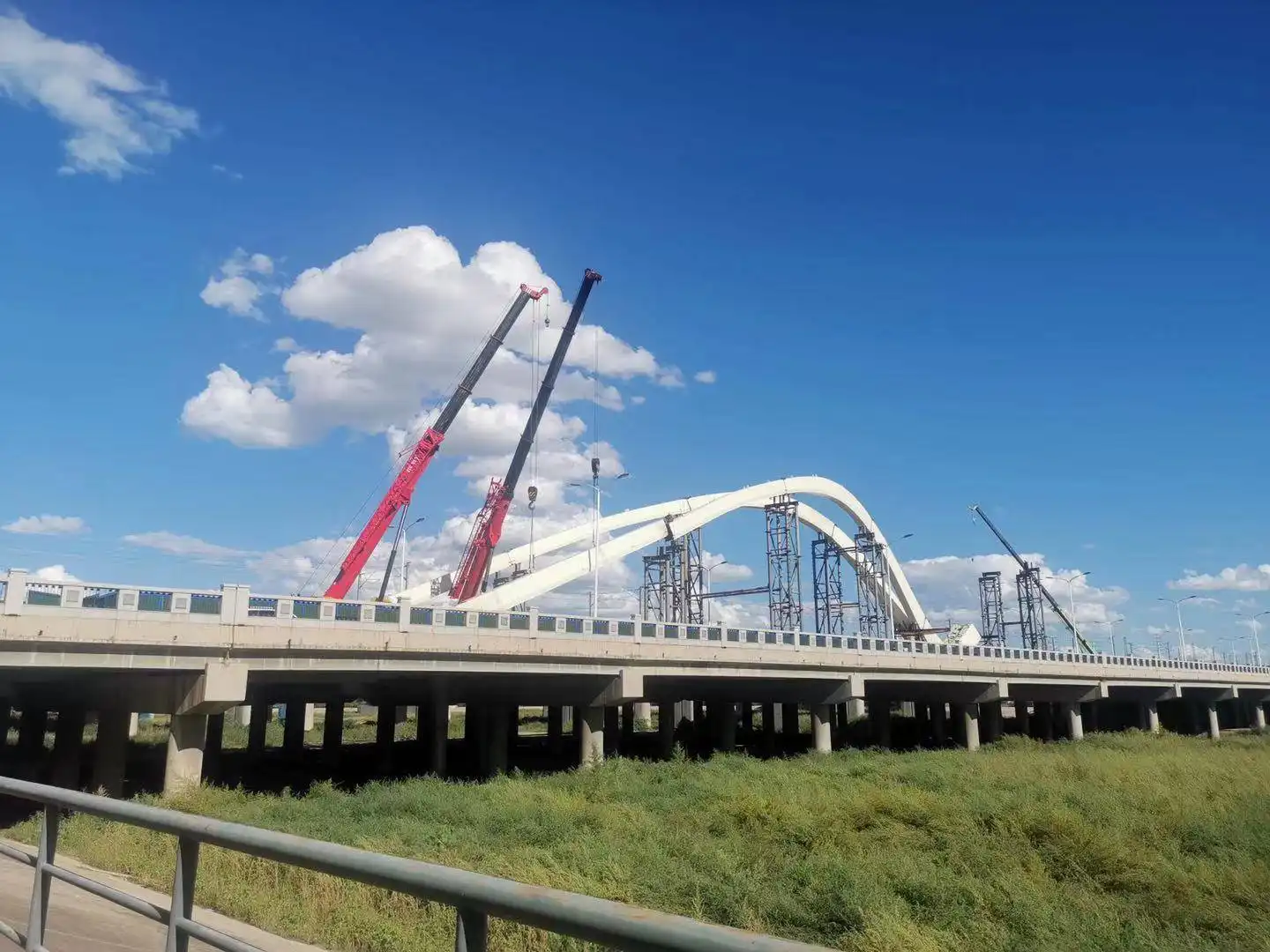

The Anatomy of a Wind and Earthquake Resistant Cable-Stayed Bridge

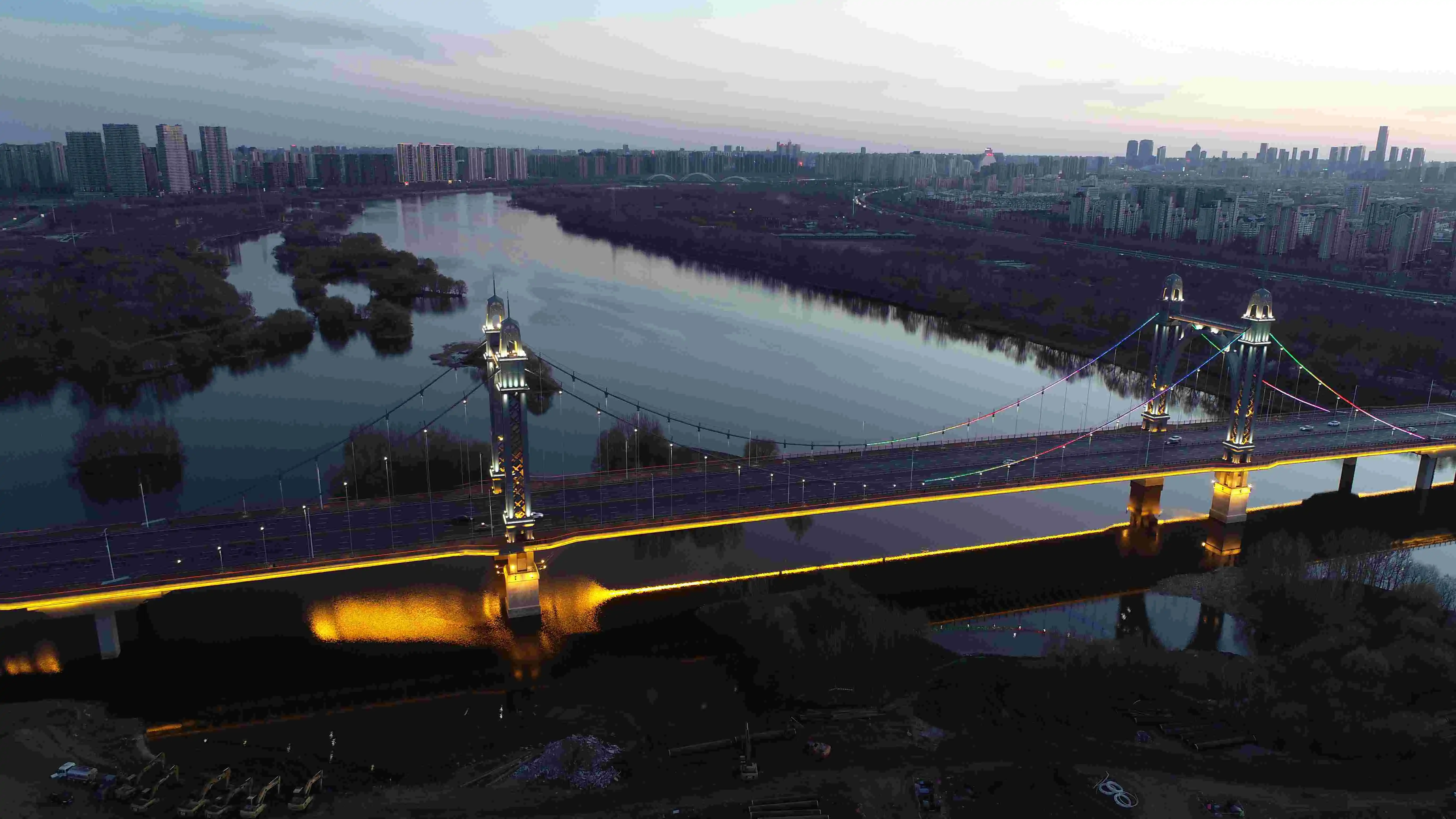

Tower Design: Strength Meets Flexibility
At the heart of a cable-stayed bridge's resilience is its tower design. Shenyang Zhongda utilizes Q420qE steel for these critical components, a high-performance material known for its exceptional yield strength and corrosion resistance. The towers, typically ranging from 60 to 120mm in plate thickness, are engineered to maintain a vertical error tolerance of ≤1/4000, ensuring optimal load distribution and stability.
The tower's shape plays a crucial role in wind resistance. Many modern designs feature a streamlined, aerodynamic profile that reduces wind drag and minimizes vortex shedding - a phenomenon that can induce dangerous oscillations. Some towers incorporate openings or slots to further disrupt wind flow and reduce lateral forces.
In seismic events, the tower's flexibility becomes a key asset. While rigid enough to support the bridge's weight, the tower can flex slightly during an earthquake, dissipating energy and reducing the overall stress on the structure. This controlled flexibility is a hallmark of Zhongda's engineering approach, balancing strength with adaptability to create structures that can withstand nature's most formidable challenges.
Cable System: The Bridge's Dynamic Backbone
The cable system is the defining feature of a steel cable-stayed bridge, and it's instrumental in resisting both wind and seismic forces. Shenyang Zhongda employs state-of-the-art OVM250 anchorage systems paired with Φ7mm galvanized steel wire that complies with EN 10138 standards. This combination provides exceptional tensile strength and fatigue resistance.
In high winds, the cables act as a dynamic support system. Their arrangement allows the deck to move slightly, dissipating wind energy through controlled oscillations. This flexibility prevents the buildup of dangerous resonant frequencies that could potentially damage the structure.
During an earthquake, the cable system becomes even more critical. The cables' ability to redistribute loads quickly helps mitigate the effects of seismic waves. As the ground moves, the cables work in concert with the tower and deck to absorb and dissipate energy, preventing catastrophic failures.
Moreover, the redundancy built into the cable system enhances overall structural resilience. Even if individual cables are damaged, the bridge can still maintain its integrity, a crucial safety feature in extreme events.
Deck Design: Aerodynamics and Load Distribution
The bridge deck is where vehicles travel, but it's also a critical component in the structure's wind and earthquake resistance. Zhongda's engineers employ advanced computational fluid dynamics (CFD) modeling to optimize deck designs for aerodynamic performance.
Many modern cable-stayed bridges feature streamlined box girder decks. These designs minimize wind resistance and reduce the likelihood of flutter - a dangerous oscillation that can occur when wind and deck movement interact. Some decks incorporate wind fairings or vents to further improve aerodynamic performance.
In earthquake scenarios, the deck's role is equally important. Its weight and stiffness contribute to the bridge's overall mass and damping characteristics, which influence how the structure responds to seismic waves. The deck's connection to the towers and cables allows for controlled movement during an earthquake, helping to dissipate energy and prevent damage.
Zhongda's expertise in heavy bridges and complex infrastructure projects ensures that each deck is optimized for its specific environmental conditions, balancing aerodynamic performance with seismic resilience.
Advanced Technologies for Enhanced Resilience
Seismic Isolation Systems: LRB800 Bearings
One of the most significant advancements in bridge engineering for earthquake resistance is the implementation of seismic isolation systems. Shenyang Zhongda incorporates LRB800 type isolation bearings in their cable-stayed bridge designs, capable of reducing seismic response by up to 40%.
These lead-rubber bearings act as a buffer between the bridge's superstructure and its foundations. During an earthquake, they allow controlled horizontal movement, effectively decoupling the bridge from the ground motion. This isolation dramatically reduces the seismic forces transmitted to the structure, protecting critical components from damage.
The LRB800 bearings are designed to provide both flexibility and damping. The lead core deforms plastically under severe shaking, dissipating energy, while the rubber provides the necessary elasticity to return the bridge to its original position once the shaking subsides. This combination of properties ensures that the bridge can withstand multiple seismic events without losing its protective capabilities.
Wind Mitigation Techniques: Aerodynamic Enhancements
Beyond basic aerodynamic shaping, Zhongda employs several advanced techniques to enhance wind resistance in their steel cable-stayed bridges. These include:
- Tuned Mass Dampers (TMDs): These devices, often installed within the bridge deck or towers, counteract wind-induced vibrations by moving out of phase with the structure's oscillations.
- Vortex Shedding Mitigation: Special fairings or surface treatments on cables and structural elements disrupt the formation of von Kármán vortices, reducing wind-induced vibrations.
- Active Control Systems: In some cases, computer-controlled actuators can be used to counteract wind forces in real-time, providing an additional layer of protection during extreme weather events.
Corrosion Protection: Ensuring Long-Term Resilience
A bridge's ability to resist wind and earthquakes over time depends on maintaining its structural integrity. Zhongda's innovative corrosion protection system plays a crucial role in this long-term resilience. Their bridges feature a dual-layer protection system:
- PE Outer Sheath: A durable polyethylene outer layer provides the first line of defense against environmental factors.
- Graphene Inner Coating: An advanced graphene-based coating offers superior corrosion resistance and enhances the steel's mechanical properties.
This system boasts a 53-year UV resistance, ensuring that the bridge's critical components remain protected from degradation for decades. By preserving the structural integrity of the steel elements, this corrosion protection system maintains the bridge's ability to resist wind and seismic forces throughout its lifespan.
Monitoring and Maintenance: Ensuring Long-Term Performance
Advanced Inspection Technologies
Maintaining a cable-stayed bridge's ability to resist wind and earthquakes requires ongoing monitoring and inspection. Shenyang Zhongda employs cutting-edge technologies to ensure their bridges perform optimally throughout their lifespan:
- 3D Coordinate Detection: Using high-precision total stations with 0.5″ accuracy, engineers can detect even minute shifts in the bridge's geometry. This allows for early identification of potential issues before they become critical.
- Structural Health Monitoring Systems: Embedded sensors throughout the bridge continuously monitor strain, vibration, and other key parameters. This real-time data helps engineers assess the bridge's performance during wind events or after seismic activity.
- Drone Inspections: Unmanned aerial vehicles equipped with high-resolution cameras and LiDAR sensors can access hard-to-reach areas of the bridge, providing detailed visual and structural information without the need for complex scaffolding or lane closures.
Preventative Maintenance Strategies
Zhongda's approach to steel cable-stayed bridge maintenance goes beyond reactive repairs, focusing on preventative strategies that maintain the structure's resilience:
- Cable Tension Monitoring: Regular checks and adjustments of cable tensions ensure optimal load distribution and vibration characteristics.
- Bearing Inspection and Replacement: Seismic isolation bearings are regularly inspected and replaced as needed to maintain their protective capabilities.
- Corrosion Protection Renewal: The advanced PE and graphene protection system is periodically assessed and renewed to maintain its effectiveness.
Adaptive Management: Learning from Performance Data
The wealth of data collected from monitoring systems allows for adaptive management of the bridge over time. Zhongda's engineers analyze this information to:
- Refine Structural Models: Actual performance data is used to improve computer models, enhancing the accuracy of future designs.
- Optimize Maintenance Schedules: By understanding how different components wear over time, maintenance can be scheduled more efficiently, reducing costs and minimizing disruptions.
- Enhance Future Designs: Lessons learned from existing bridges inform the development of even more resilient structures, pushing the boundaries of what's possible in bridge engineering.
Conclusion
Steel cable-stayed bridges represent the pinnacle of modern structural engineering, combining innovative design principles with advanced materials to create structures that can withstand the most challenging environmental forces. Through a combination of flexible yet strong cable systems, aerodynamic designs, and sophisticated isolation technologies, these bridges demonstrate remarkable resilience against both wind and seismic events. As exemplified by Shenyang Zhongda's Q420qE steel cable-stayed bridges, ongoing advancements in materials, design, and monitoring technologies continue to push the boundaries of what's possible in bridge engineering, ensuring safer, more durable infrastructure for generations to come.
