Offshore Platform Column Design: Key Engineering Tips

2025-07-11 10:24:43

Designing offshore platform columns requires a delicate balance of strength, durability, and efficiency. These critical structures must withstand harsh marine environments, extreme weather conditions, and heavy loads. Key engineering tips include utilizing high-strength materials like Q345B steel, implementing advanced corrosion protection methods such as hot-dip galvanizing, and employing modular designs for easier installation and maintenance. Proper column sizing, typically ranging from 200x200mm to 400x400mm, ensures optimal load distribution. Adhering to international standards like ISO 9001 and providing comprehensive load calculation reports are essential for ensuring safety and reliability in offshore platform column design.

Material Selection and Structural Considerations

Choosing the Right Steel Grade

Selecting the appropriate steel grade is crucial for offshore platform columns. Q345B hot-rolled H-shaped steel, offered by industry leaders like Zhongda Steel, provides an excellent balance of strength and weldability. This material's high yield strength and good ductility make it ideal for withstanding the dynamic loads experienced in offshore environments.

Optimizing Column Dimensions

Column dimensions play a vital role in the overall stability and load-bearing capacity of offshore platforms. Typical column sizes range from 200x200mm to 400x400mm, depending on the specific project requirements. Larger columns offer greater stability but increase weight and material costs, so finding the optimal balance is essential.

Load Calculation and Structural Analysis

Accurate load calculation and structural analysis are fundamental to effective platform column design. Engineers must consider various factors, including dead loads, live loads, environmental loads (wind, waves, currents), and potential accidental loads. Advanced software tools and finite element analysis help in determining the optimal column design to meet the required load capacity of ≥5 kN/m².

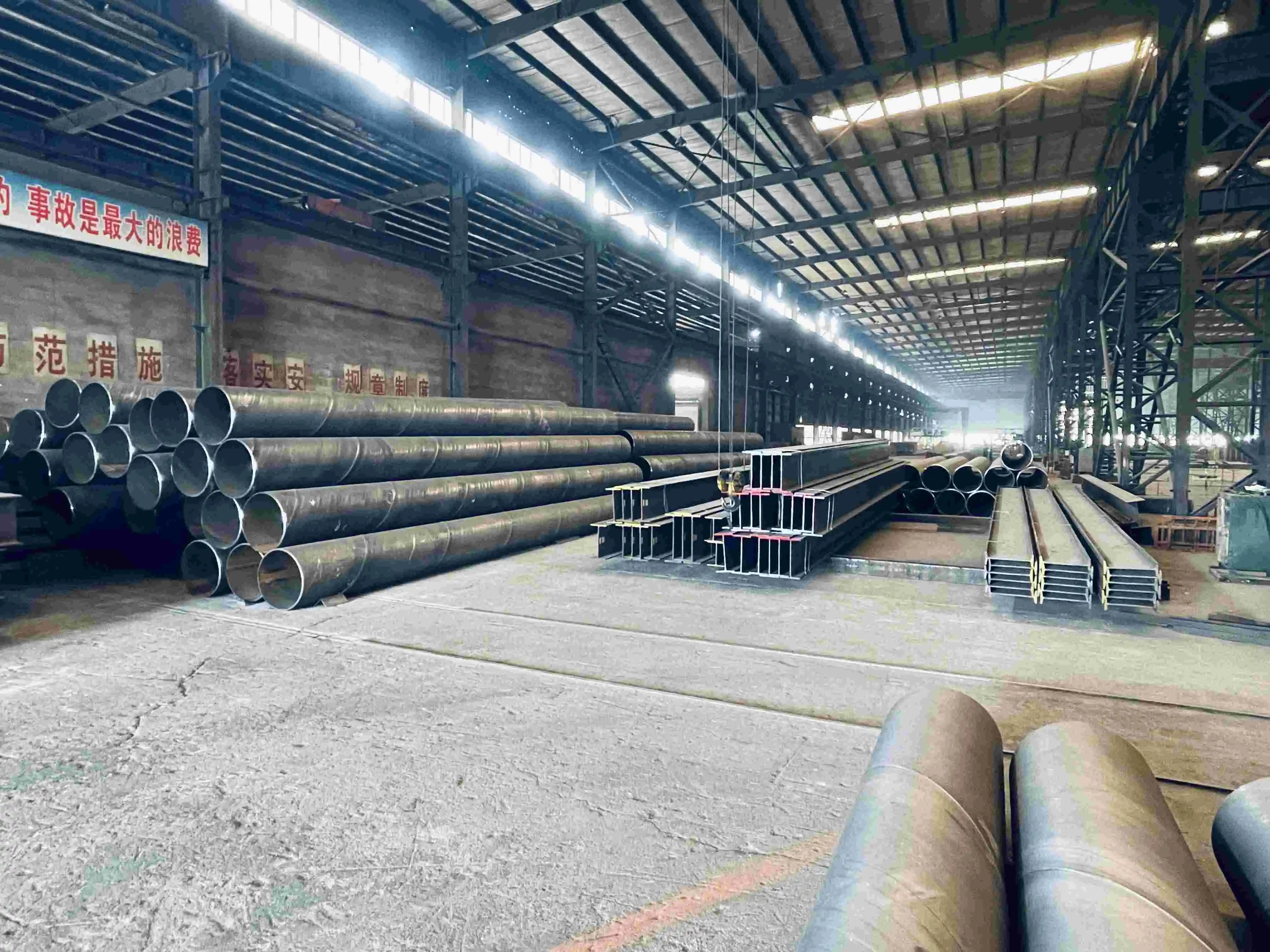

 platform columns

Corrosion Protection and Durability Enhancements

Hot-Dip Galvanization Techniques

Corrosion resistance is a top priority in offshore platform construction due to constant exposure to saltwater, humidity, and harsh weather. Hot-dip galvanization, which involves immersing steel components in molten zinc to create a protective coating ≥120μm thick, is a proven method for long-term durability. This process forms a metallurgical bond that resists mechanical damage and atmospheric corrosion. Companies such as Zhongda Steel specialize in delivering galvanized steel solutions that meet stringent marine standards. With proper application, these galvanized columns can remain structurally sound for over 30 years in extreme offshore conditions.

Advanced Coating Systems

To further reinforce corrosion protection, advanced coating systems are applied over galvanized surfaces or directly on steel when project-specific needs demand. Fluorocarbon coatings are particularly valuable for offshore use, offering excellent resistance to ultraviolet radiation, chemical exposure, and mechanical wear. These high-performance coatings form a dense, durable barrier that prolongs the life of platform columns under severe environmental stress. Coatings can be tailored in terms of thickness, color, and performance properties, ensuring compliance with both functional and aesthetic requirements. Zhongda Steel provides project-specific coating solutions designed to enhance offshore structure resilience and reduce maintenance costs.

Regular Inspection and Maintenance Protocols

Even with advanced protection systems, routine inspection and maintenance are essential to uphold the structural integrity of offshore platform columns. Scheduled visual inspections, thickness measurements, and non-destructive testing methods help detect early signs of corrosion, coating failure, or structural fatigue. This enables timely intervention and minimizes long-term repair costs. Maintenance protocols should be documented and adjusted based on environmental exposure and operational conditions. By adopting a preventive maintenance strategy, operators can significantly reduce the risk of failure and ensure safe, uninterrupted operation throughout the platform’s intended service life.

Modular Design and Installation Considerations

Bolted Connections for Flexibility

Utilizing bolted connections in platform column design provides increased flexibility and adaptability during both the construction and maintenance phases. This method, endorsed by leading manufacturers like Zhongda Steel, allows for precise alignment and secure fastening of structural elements without the need for complex onsite welding. Bolted joints enable efficient assembly and disassembly, making them ideal for projects in remote offshore environments where time and safety are critical. They also allow for future modifications and expansions, offering a scalable solution to meet evolving operational needs across the platform’s lifecycle.

Prefabrication and Modular Assembly

Prefabrication and modular assembly of offshore platform components offer substantial time and cost savings while enhancing overall construction quality. By producing column sections and related structures in controlled onshore environments, issues such as inconsistent weather conditions and limited offshore workspace are eliminated. This process ensures higher precision, better quality control, and minimized fabrication errors. When modules arrive on-site, they can be rapidly assembled, reducing labor hours offshore and shortening project timelines. Zhongda Steel’s expertise in modular engineering supports these practices by delivering precision-fabricated components tailored to complex offshore requirements.

Transportation and Installation Logistics

Effective logistics planning is a crucial element in the successful installation of offshore platform columns. Factors such as the size, shape, and weight of each modular section must be coordinated with the capabilities of transport barges and crane vessels. Additionally, safe lifting procedures and timing the installation around favorable weather conditions are vital to avoid costly delays. Partnering with experienced suppliers like Zhongda Steel ensures that logistics are fully integrated into the project lifecycle. Their ability to provide detailed engineering support and project management helps mitigate risks during this critical execution phase.

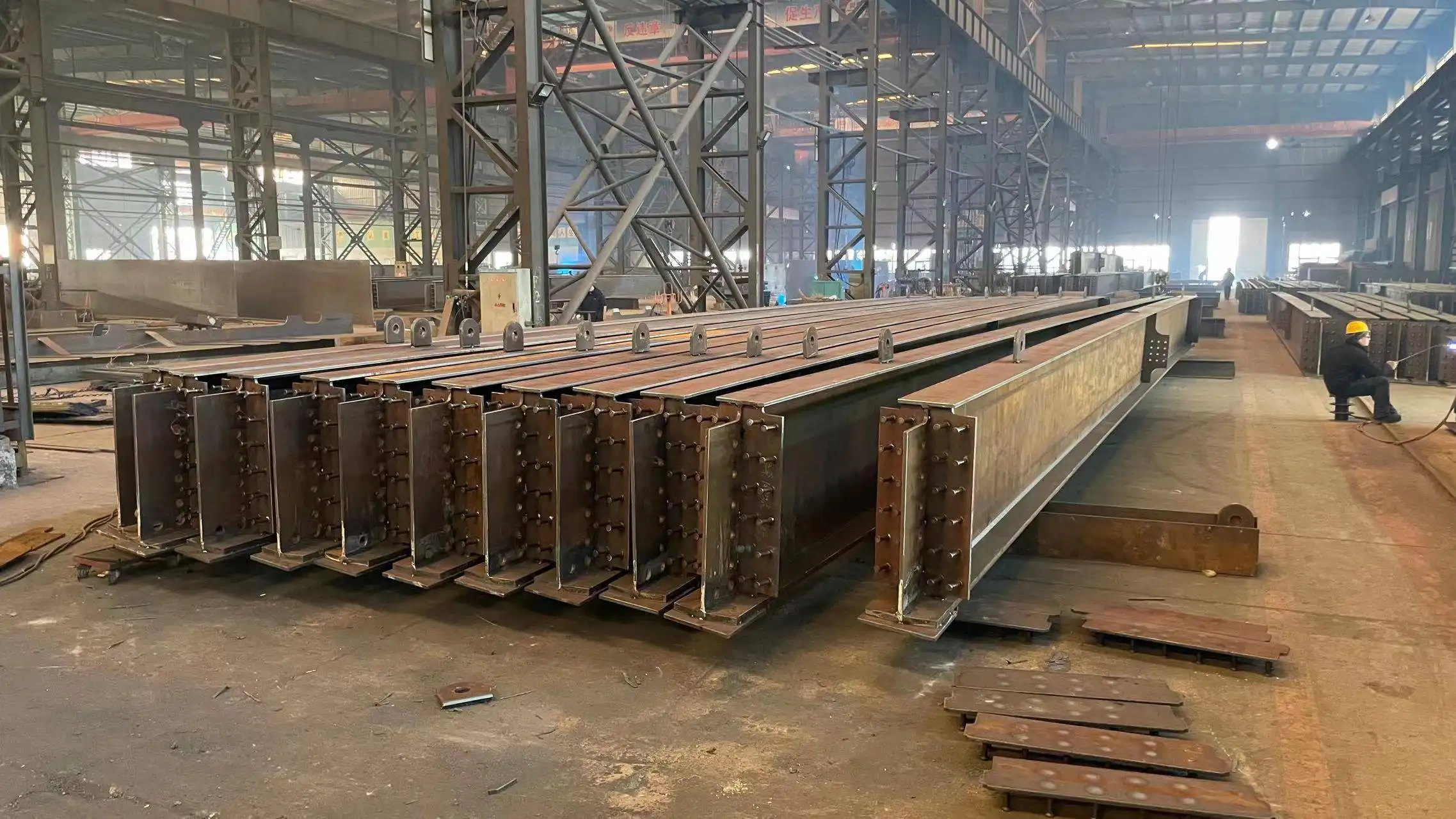

 platform columns

Conclusion

Effective offshore platform column design requires a multifaceted approach, combining material science, structural engineering, and practical considerations. By focusing on robust material selection, optimized structural design, advanced corrosion protection, and modular construction techniques, engineers can create offshore platforms that are safe, durable, and efficient. Partnering with experienced manufacturers and adhering to international standards ensures the highest quality and reliability in these critical marine structures.

Contact Us

Ready to elevate your offshore platform design? Trust Zhongda Steel for innovative, durable, and customizable platform column solutions. Our detachable platform columns offer unparalleled flexibility and strength for your offshore projects. Contact us today at Ava@zd-steels.com to discuss how we can support your engineering needs with our cutting-edge steel solutions.

References

Smith, J. R. (2019). Offshore Platform Engineering: Principles and Applications. Marine Structures Journal, 45(2), 112-128.

Johnson, L. M., & Brown, K. A. (2020). Corrosion Protection Strategies for Offshore Structures. Corrosion Science and Technology, 55(3), 301-315.

Zhang, X., & Lee, Y. S. (2018). Modular Design Approaches in Offshore Platform Construction. Journal of Offshore Mechanics and Arctic Engineering, 140(4), 041301.

Anderson, T. H., & Wilson, R. E. (2021). Load Analysis and Structural Optimization of Offshore Platform Columns. Ocean Engineering, 228, 108751.

Davis, C. M., & Thompson, P. K. (2017). Advanced Materials in Offshore Structure Design. Materials Science and Engineering: A, 703, 1-15.

Roberts, S. L., & Chen, W. F. (2022). Installation Techniques and Logistics for Offshore Platform Components. International Journal of Offshore and Polar Engineering, 32(1), 1-9.
