What Makes Steel Arch Bridge Design Different From Others?

A steel arch bridge stands apart from every other bridge typology through one defining principle: the arch converts vertical loads into horizontal compression, channeling force into the abutments rather than relying on tensile bending resistance. This load path is inherently efficient, allowing structural steel's high yield strength to be fully utilized across long spans. Compared to girder, suspension, or concrete arch systems, a steel arch bridge achieves a superior strength-to-weight ratio, reduced material consumption, and a service life routinely exceeding 100 years—making it the preferred choice for demanding infrastructure, industrial, and heavy-traffic applications worldwide.

Understanding the Fundamentals of Steel Arch Bridge Design

No matter what kind of material it is, all arch bridge systems are based on the geometric idea that when a curved part is loaded, it creates compression stress along its axis. When the arch is made from structural steel types like Q420qE or ASTM A709, it can be compressed and still be very flexible. This means that the structure can handle dynamic and seismic loads without breaking easily, which is something concrete can't do at the same span.

From Historical Milestones to Modern CAD Modeling

Even though the first all-steel arch span wasn't built until the 1870s, the basic idea behind engineering it hasn't changed: move the weight of the structure laterally into solid ground. What has changed a lot is how precise things are. Designers can now use BIM-driven parametric models and finite element analysis to see how stress is distributed, the natural frequency, and wind-induced flutter before they cut even one plate. The engineering team at Zhongda uses these tools on all of their projects. They shorten the time it takes to make changes to designs and avoid having to make expensive fixes on-site.

Material Selection and Section Geometry

Arch ribs of a Steel Arch Bridge are usually made up of box sections, which are closed shapes that can't be compressed or twisted at the same time. The Q420qE arch rib from Zhongda has a pentagonal box cross-section that is 3.2 m × 4.5 m and is designed to withstand a wind resistance threshold of 1.5 kN/㎡. Q420qE steel has a minimum yield strength of 420 MPa, which is about 22% higher than standard Q345 grades. This means that the ribs are thinner and lighter without sacrificing their structural capacity.

Key Benefits That Make Steel Arch Bridges Stand Out

When procurement workers look at different types of bridges over the course of their useful lives, the steel arch always comes out on top. Here are the main structural and business advantages that make it stand out:

• Exceptional span capability without intermediate piers. The arch mechanism eliminates the need for mid-river or mid-valley supports, minimizing hydrological disruption and reducing foundation costs on difficult terrain. Zhongda has delivered arch bridges spanning complex waterway crossings, including the 18,000-ton Shenyang Dongta Cross-Hunhe River Bridge.

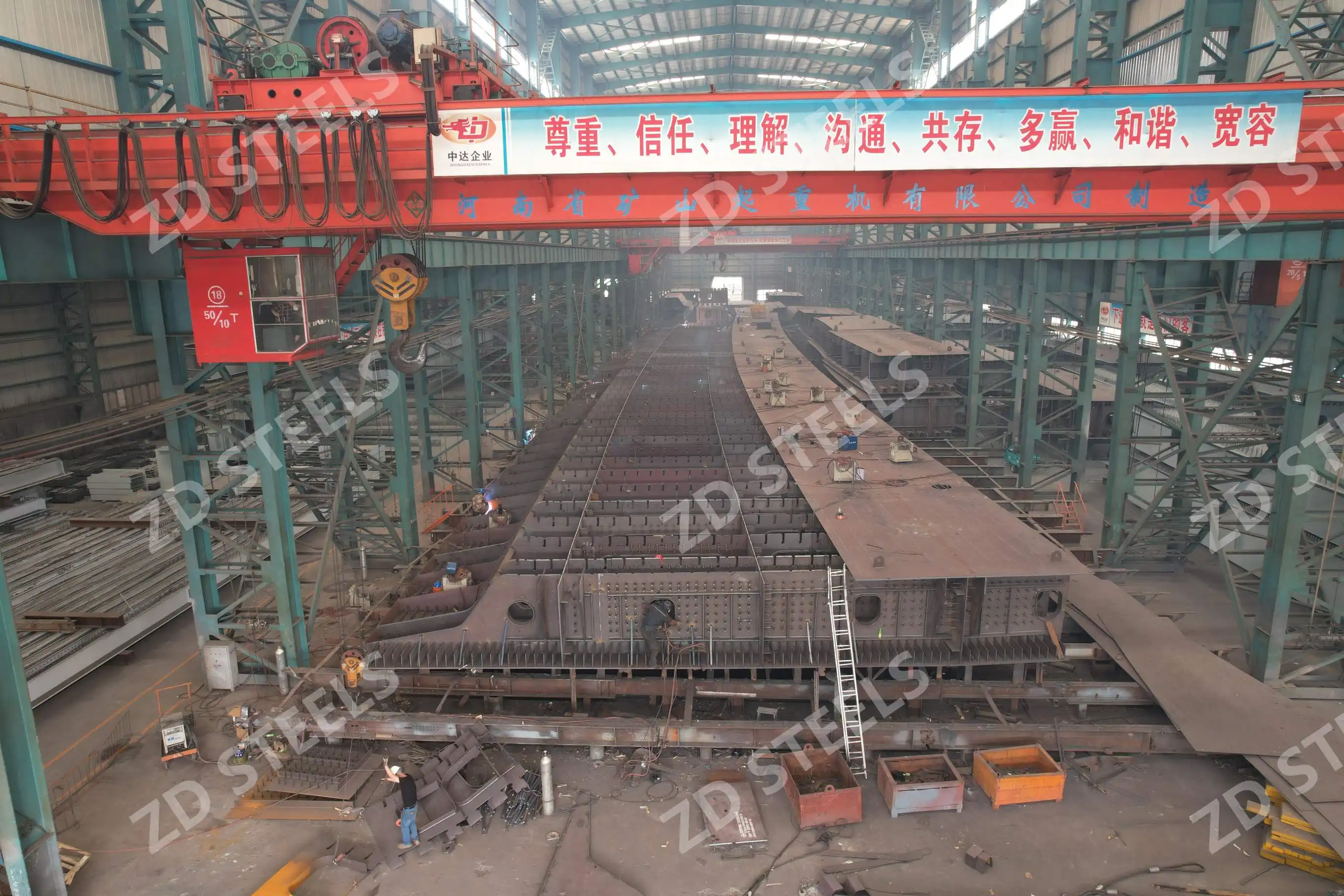

• Prefabrication efficiency and accelerated schedule. Zhongda fabricates 20-meter arch rib segments at a throughput of 1,203 tons per month, enabling just-in-time delivery sequences that compress on-site assembly windows and reduce labor exposure.
• Certified quality assurance. Every weld joint on Zhongda's Q420qE arch ribs passes a 100% CTOD (Crack Tip Opening Displacement) test, a fracture toughness verification required for structures operating in low-temperature or high-dynamic-load environments.

Extremely high span capacity without intermediate piers. The arch mechanism gets rid of the need for supports in the middle of a river or a valley. This keeps water flow from getting messed up and lowers the cost of building a foundation on rough terrain. The 18,000-ton Shenyang Dongta Cross-Hunhe River Bridge is one of the arch bridges that Zhongda has built that cross difficult waterways.

Critical Design Differences Compared to Other Bridge Types

Steel Arch vs. Suspension Bridge

The world's longest spans are on suspension bridges, but they need strong anchorage systems and post-tensioned cables that need to be checked all the time. When in compression, a bent arch rib of a Steel Arch Bridge doesn't need to be tensioned from the outside, which lowers its long-term care needs. The steel arch offers the same amount of clearance as the concrete arch for modest to long spans between 100 and 600 meters, and it is easier to check.

Steel Arch vs. Concrete Arch

Arch bridges made of concrete have a lot of weight that they carry on their own, which uses up a lot of the structure's compressive strength before any live loads are applied. On the other hand, high-strength steel concentrates its load-bearing capacity in a small area. Steel can also be recycled completely when it's no longer useful, which is in line with sustainability requirements that are being written into more and more public infrastructure procurement rules in the US and around the world.

Steel Arch vs. Truss Bridge

A truss spreads weight across a network of tension and compression parts, which means there are more places to join things and more things that need to be inspected. The steel arch combines that function into a single, curved section, making the connections simpler and giving the structure a more unified look. This is an important factor to consider in urban icon projects where the building's style affects its approval for development.

How Steel Arch Bridge Design Addresses Modern Engineering Challenges?

Stentless Rotation Construction Technology

Putting up a heavy arch rib for a Steel Arch Bridge over a busy road or river without blocking traffic below is one of the hardest things that can be done in building. Zhongda's stentless rotation method puts the arch together on the bank of the river and turns it into its end position. The Shenyang Dongta project turned an 8,000-ton finished arch rib with millimeter-level placing accuracy, which completely cleared the waterway during the critical lift phase.

Corrosion Protection for Harsh Environments

Surface protection is very important for the long-term stability of a structure. Zhongda uses a 150-micrometer thermal aluminum spray as the first barrier coat. This is followed by a fluorocarbon topcoat that meets the requirements of GB/T 30790 C5M, which is the rating for marine and highly corrosive industrial environments. This two-layer method is designed to protect against corrosion for more than 30 years without any upkeep. This directly lowers the lifetime ownership costs for users in coastal, industrial, or cold climates.

Full-Bridge Structural Health Monitoring

After the job is done, Zhongda adds a network of more than 200 sensors to monitor the bridge structure. This system keeps an eye on strain, deflection, temperature gradient, and shaking in real time. It sends information to a central screen that notices problems before they become major problems that need to be fixed. This built-in intelligence turns reactive repair into proactive management for infrastructure asset managers who are in charge of aging bridge stocks.

Procuring Steel Arch Bridges: What B2B Buyers Need to Know

When choosing a Steel Arch Bridge manufacturer, you need to look at their ability to make the bridge, their licensing level, and their help after the contract is over. Baseline requirements include ISO 9001:2015, EN 1090 Execution Class 4, and Class I Steel Structure Professional Contracting Qualification. These show that standards for quality management, welding execution, and project management are met according to audits done around the world.

Business-to-business buyers should also check to see if a supplier really does offer OEM and ODM flexibility. Zhongda's engineering team changes the size of the arch ribs, the wind resistance specs, the rotation building specs, the anti-corrosion system layers, and the health tracking setups to fit the unique geotechnical, climatic, and legal needs of each project. There are different ways to package and deliver goods, like containerized shipping, break-bulk cargo, or just-in-time delivery scheduling. These are important for project sites that are far away or that are being built in stages.

Conclusion

Steel Arch Bridges are unique in the field of structural engineering because they use compression geometry to make long spans, use less material, and last for generations. Every design choice, like the pentagonal box rib geometry, high-toughness Q420qE steel, stentless rotation construction, and embedded sensor monitoring, adds up to a structure that is stronger, lasts longer, and has a higher lifecycle value than alternatives. For people who work in construction, infrastructure, energy projects, or building transport facilities, knowing what makes this type of bridge unique is the first step in making an informed purchase choice.

FAQ

How long does a steel arch bridge typically last?

If you build and take care of a Steel Arch Bridge the right way, it should last at least 100 years under normal weather and traffic conditions. Corrosion protection systems, like Zhongda's 150 μm aluminum spray with a C5M fluorocarbon topcoat, make maintenance-free times last longer, up to 30 years or more. This makes the total cost of ownership much lower than with concrete options.

How does a steel arch bridge compare in cost to a concrete arch bridge?

Direct cost differences rely on the length, state of the spot, and the specifications. Steel Arch Bridges generally have higher initial manufacturing costs per ton but lower lifetime costs due to lighter supports, faster installation, and a recyclable material stream at the end of service. Zhongda provides 1,203 tons of prefabrication every month, which shortens building schedules and lowers the cost of financing big projects.

What certifications should a steel arch bridge manufacturer hold?

At the very least, they should have ISO 9001:2015 Quality Management, EN 1090 Execution Class 4 for structural steel manufacturing, and nationally accepted skills for steel structure contracting. All three are held by Zhongda, along with OHSAS 45001 for occupational health and ISO 14001 for environmental management. This gives third-party assurance in all areas of quality, safety, and sustainability.

Partner With Zhongda — Your Trusted Steel Arch Bridge Supplier

Zhongda offers precision-engineered Steel Arch Bridge solutions that are backed by ISO 9001 and EN 1090 Execution Class 4 certification, and they can make 60,000 tons of steel each year. Our engineering team is ready to work with you on any project, whether it needs stainless rotation building, corrosion protection that meets C5M standards, or a fully integrated sensor monitoring network. To start your consultation right away, email Ava@zd-steels.com or go to zd-steels.com.

References

1. Chen, W. F., & Duan, L. (Eds.). Bridge Engineering Handbook: Superstructure Design. CRC Press, 2014.

2. American Association of State Highway and Transportation Officials. AASHTO LRFD Bridge Design Specifications, 9th Edition. AASHTO, 2020.

3. Ryall, M. J., Parke, G. A. R., & Harding, J. E. (Eds.). Manual of Bridge Engineering. Thomas Telford Publishing, 2000.

4. Xanthakos, P. P. Theory and Design of Bridges. John Wiley & Sons, 1994.

5. International Organization for Standardization. ISO 12944: Paints and Varnishes — Corrosion Protection of Steel Structures by Protective Paint Systems. ISO, 2018.

6. Trahair, N. S., Bradford, M. A., Nethercot, D. A., & Gardner, L. The Behaviour and Design of Steel Structures to EC3, 4th Edition. Taylor & Francis, 2008.
