Arch Steel Bridge: Engineering Excellence by Shenyang Zhongda

Shenyang Zhongda Steel Structure Engineering Co., Ltd. is your premier arch steel bridge manufacturer and supplier. Our cutting-edge technology, vertically integrated capabilities, and unwavering commitment to quality make us the ideal partner for your infrastructure projects. Zhongda's products offer unparalleled strength, durability, and aesthetic appeal.

Product Description

Our products represent the pinnacle of modern bridge engineering. Designed to withstand extreme conditions while providing a visually striking addition to any landscape, these bridges are perfect for spanning wide rivers, deep valleys, and challenging terrains. Each product is custom-engineered to meet specific project requirements, ensuring optimal performance and longevity.

Key features of our products include:

High load-bearing capacity for heavy traffic and freight

Weathering steel construction for enhanced corrosion resistance

Innovative stentless rotation construction technology

Full-bridge health monitoring systems for real-time structural analysis

Compliance with international standards including EN 1090, AWS, and JIS

Product Advantages

Superior Load-Bearing Performance

Your project benefits from our advanced structural engineering. The curving arch design effectively converts vertical loads into horizontal thrust when it is in compression. This design reduces environmental effect while preserving remarkable structural integrity by doing away with the necessity for intermediate piers in vast waterways or steep valleys.

Technology for Accelerated Construction

We are aware of the time constraints you face. Quick on-site assembly is made possible by our modular prefabrication method. Compared to conventional approaches, the stentless rotation method reduces construction time by 20–30% by enabling full arch installation without temporary falsework. Your project adheres to the strictest safety regulations while remaining on schedule.

Seismic Resilience & Durability

In high-seismic zones, you need confidence in structural performance. Steel's inherent ductility allows the arch steel bridge to dissipate energy effectively during seismic events. We integrate seismic isolation bearings at abutments, decoupling the bridge from ground motion and ensuring safety for users.

Extended Maintenance Cycles

Your operational costs matter. Our advanced C5-M coating systems and weathering steel options extend major maintenance intervals to 25-30 years. The 150μm aluminum spray coating combined with fluorocarbon topcoat provides superior corrosion resistance, even in coastal or industrial environments.

Architectural Impact

Beyond functionality, you want structures that enhance your community. Our arch steel bridge designs deliver striking visual appeal, making them ideal for urban landmark projects where city branding is as important as traffic throughput. The elegant curved profiles reduce wind resistance while creating memorable skylines.

Technical Specifications & Customization

Manufacturing & Quality Control

State-of-the-Art Production Facility

Your components are manufactured in our 75,000 m² advanced production facility in Shenyang Economic and Technological Development Zone. Our workshop features 50-ton crane capacity and high-end equipment including 1200-ton plate rolling machines that shape complex arch geometries with precision.

CNC Precision Fabrication

We employ 3-axis CNC drilling systems delivering ±0.1mm tolerance accuracy. This precision ensures perfect alignment during field assembly, eliminating costly fit-up issues. Our CNC cutting equipment handles ultra-thick plates up to 300mm, accommodating the most demanding structural requirements.

Comprehensive Quality Assurance

Every project undergoes rigorous inspection protocols:

· Material Verification: 100% mill test certificates and chemical composition analysis

· Welding Quality: To guarantee that there are no internal defects, all primary tension welds are subjected to ultrasonic testing (UT) and radiographic testing (RT), with 100% CTOD testing on key connections.

· Geometric Accuracy: Curved segments fulfill precise specifications thanks to 3D laser scanning and BIM-to-Field verification.

· Coating Performance: Corrosion protection solutions are validated by Dry Film Thickness (DFT) testing and pull-off adhesion tests (ISO 4624).

· Pre-Assembly Validation: Mandatory shop fitting of arch segments before shipment eliminates field assembly risks

Structural Health Monitoring

We offer integrated monitoring systems with 200+ sensors for full-bridge performance tracking. This technology provides real-time data on strain, displacement, and environmental factors, giving you confidence in long-term structural integrity.

Certified Management Systems

Our operations are certified to ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Safety) standards. We hold Class I Steel Structure Professional Contracting Qualification, demonstrating our capability to handle the most complex projects.

Project Cases

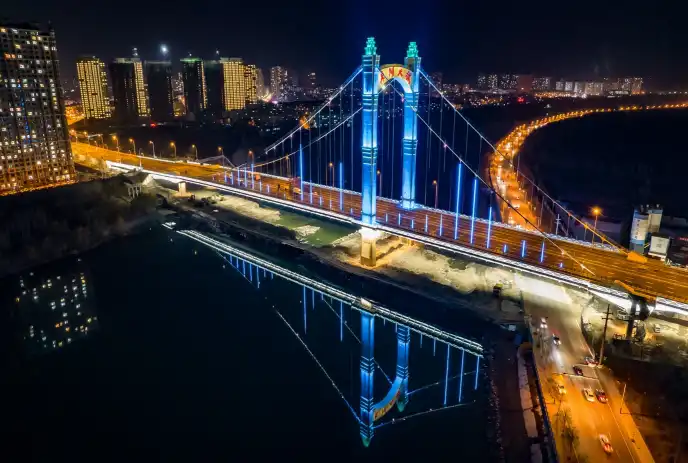

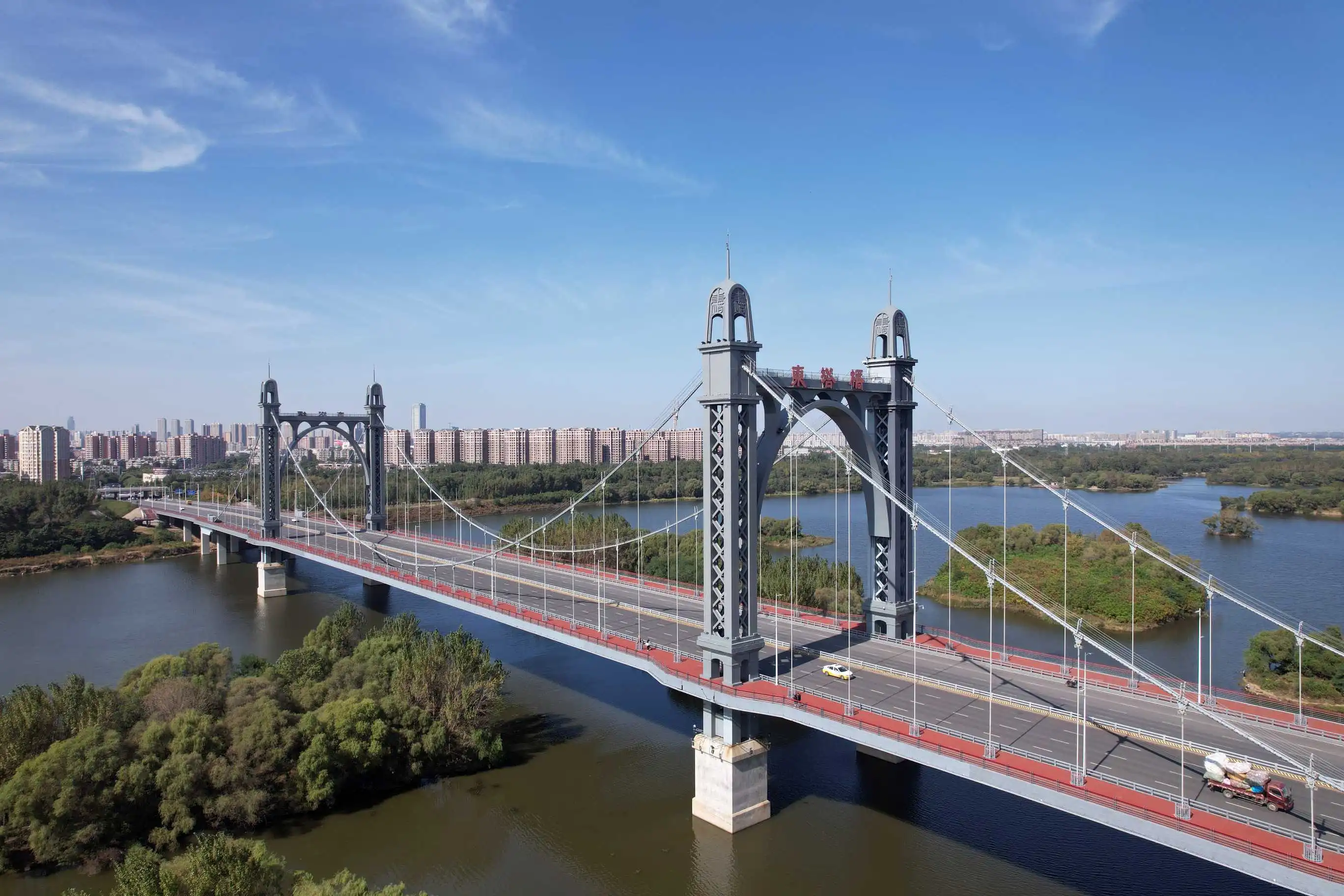

Shenyang Dongta Cross-Hunhe River Bridge

Our landmark achievement showcases our capabilities at scale. This 18,000-ton steel structure crossing represents one of the largest bridge projects in Northeast China. The project demonstrated our expertise in heavy bridge engineering, complex logistics coordination, and precision fabrication for critical infrastructure.

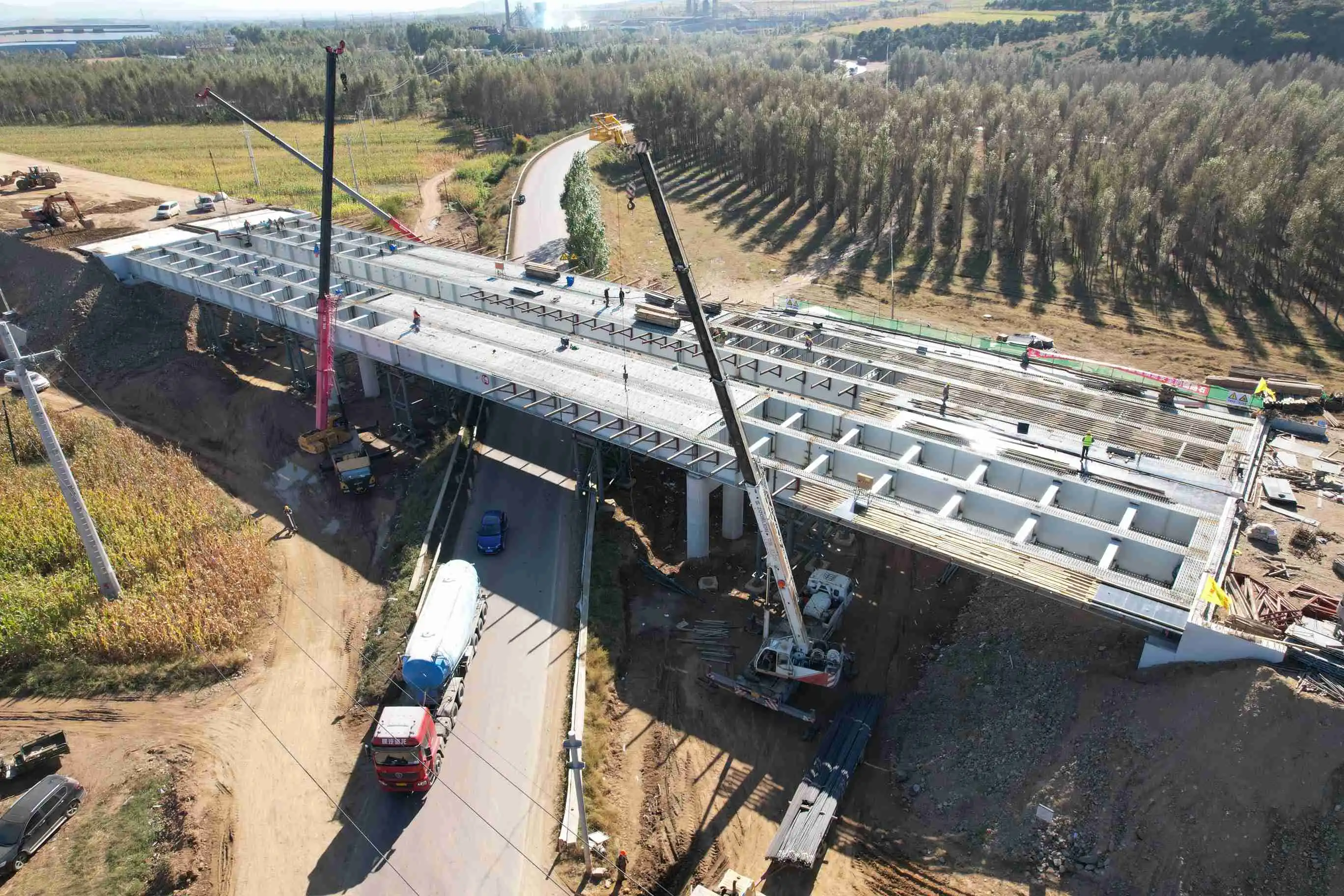

Jingha Expressway Expansion Projects

For this crucial traffic corridor, we have successfully delivered several bridge structures. These projects have to follow strict highway design guidelines, have quick construction timetables, and cause as little disturbance to traffic as possible. Our prefabricated method preserved outstanding quality standards while cutting down on the amount of time needed for on-site building.

Industry Collaborations

China State Construction Engineering Corporation, China Railway Group Limited, and China Metallurgical Group Corporation are just a few of the significant EPC contractors we are pleased to work with. These business titans have faith in our engineering prowess and dependability, as seen by our 70% client retention rate.

Compliance & Certifications

Quality Management Certifications

· ISO 9001:2015 Quality Management System

· ISO 14001:2015 Environmental Management System

· ISO 45001:2018 Occupational Health & Safety Management System

Professional Qualifications

· Class I Steel Structure Professional Contracting Qualification

· National High-Tech Enterprise designation (since 2004)

· Member of China Steel Structure Association

Technical Standards Compliance

Our arch steel bridge systems meet international standards including:

· AASHTO LRFD Bridge Design Specifications (USA)

· Eurocode 3 (EN 1993) for steel structures

· AWS D1.1 welding standards

· EN 1090 structural steel fabrication

· ISO 12944 corrosion protection standards

· GB/T 30790 Chinese national standards for protective coatings

Documentation Support

We provide comprehensive technical documentation for every project, including Material Test Certificates (MTC), detailed inspection reports, English technical drawings, and full traceability records for international project requirements.

Frequently Asked Questions

Q：How does a structural bridge handle thermal expansion?

A：We design sophisticated expansion joints and pot/spherical bearings into every system. These components allow for longitudinal movement and rotation while maintaining the structural arch action, accommodating temperature fluctuations without compromising integrity.

Q：What maintenance does your bridge system require?

A：With our modern C5-M coatings or weathering steel options, major maintenance intervals extend to 25-30 years. You'll only need annual visual inspections focused on drainage and joint integrity, significantly reducing lifecycle costs.

Q：Can your designs work in high-seismic zones?

A：Absolutely. Steel's inherent ductility allows effective energy dissipation during seismic events. We integrate seismic isolation bearings at abutments to decouple the bridge from ground motion, ensuring safety even in extreme conditions.

Q：What if our site has poor soil conditions?

A：We can implement tied-arch configurations where a tension member connects the arch ends. This design contains thrust within the superstructure itself, allowing installation on standard vertical foundations without requiring specialized ground treatment.

Q：How long does fabrication and delivery take?

A：Our 1200-ton monthly production capacity allows us to maintain efficient schedules. Typical lead times range from 3-6 months depending on project complexity, with our optimized workflows reducing timelines by 20-30% compared to traditional approaches.

Q：Do you provide installation support?

A：Yes. Our integrated EPC capability includes design, fabrication, and installation support. We can provide on-site technical guidance or full turnkey installation depending on your project requirements.

Contact Us

Ready to discuss your arch steel bridge project requirements? Our engineering team is here to help you develop the optimal solution for your specific application.
