Can Steel Cable-stayed Bridges Reduce the Need for Intermediate Piers?

Yes — and the answer carries real weight for infrastructure engineers and procurement managers. A Steel Cable-stayed Bridge transfers deck loads directly to tall pylons through a network of high-tension stay cables, which means the structural system itself eliminates the dependency on frequent intermediate supports. Spans ranging from 200 to 800 meters become achievable without mid-river or mid-span piers. This capability is not theoretical; it is proven across major river crossings and urban viaducts globally, making cable-stayed steel structures one of the most cost-efficient choices for long-span infrastructure today.

Understanding Steel Cable-stayed Bridges and Intermediate Piers

What Makes a Cable-stayed System Different

There are three main parts to a cable-stayed bridge: the deck, one or more pylons, and angled stay cables. The cables go from the deck to the tops of the pylons. They then compress the tower foundations to spread the live and dead loads. This setup is very different from arch or suspension bridges, where loads move in longer, less straight lines and need more vertical supports every so often along the span.

The Role of Intermediate Piers in Conventional Bridges

Traditional beam and truss bridges use props every 40 to 80 meters to keep the structure from bending too much. When these piers cross waterways, they block navigation routes, hurt aquatic environments, and make it harder for water to move. In urban corridors, each pier needs its own base, which makes an already complicated job more expensive, takes longer to complete, and causes problems for the community.

How Cable Systems Redistribute Loads

In a cable-stayed design, the fan or harp cable arrangement makes an internal force system that balances itself. The downward forces on the deck are balanced by the tension in the wires, and the net compression is absorbed by the tower. When this system is properly designed and built with high-quality structural steel, spans of 400 meters or more can be built without a single intermediate pier. This keeps waterways clear and minimizes urban footprints.

Design Principles and Construction Factors That Influence Pier Requirements

Pylon Height and Cable Arrangement

When pylons are taller, cable angles are shallower. This makes the horizontal component of cable force stronger and calls for stiffer deck sections. On the other hand, shallower cable angles from pylons that are only slightly taller move more vertical load per cable. Engineers choose the shape of a tower based on its span, the conditions of the ground, and how it looks. Zhongda's Q420qE cable towers are made with plate thicknesses ranging from 60 to 120 mm and have been checked to make sure they are vertically accurate within a 1/4000 error tolerance. This ensures geometric precision that has a direct effect on the balance of cable force.

High-Performance Steel and Modular Fabrication

The choice of material determines the span's goals. Q420qE steel has a yield strength of 420 MPa and great low-temperature toughness. This lets deck parts be smaller and lighter, which lowers dead load and is one of the main reasons why piers can be moved farther apart or taken out completely. Modular shop fabrication, which is based on BIM-based digital design, lets parts come to the site already put together. This cuts down on the time it takes to put things together and the need for temporary supports that often require more piers to be placed during construction.

Real-World Case Evidence

The Shenyang Dongta Cross-Hunhe River Steel Cable-stayed Bridge built by Zhongda was made of 18,000 tons of steel. The cable-stayed design kept the usable waterway width without any piers in the middle of the river. The pier-reduction ideas used in projects for China Railroad, CSCEC, and CCCC are the same: long clear spans are achieved through cable geometry and steel grade instead of a dense row of foundations.

Advantages and Challenges of Reducing Intermediate Piers

Less piers mean direct, measurable cost savings over the course of the project. Here are the main benefits that buying managers always look for:

• Lower foundation costs: Each pier eliminated removes deep-pile or caisson work, excavation, formwork, and curing time, often saving weeks and significant budget per foundation.
• Reduced environmental impact: Fewer in-water structures mean less sediment disruption, smaller protected-zone permitting requirements, and faster regulatory approval in ecologically sensitive corridors.
• Faster construction schedule: Zhongda's production process — from CNC cutting through assembly, welding, and surface treatment — achieves a 20–30% lead-time reduction compared to industry norms, which compounds with the schedule savings of fewer pier placements.
• Simplified long-term inspection: Maintaining two pylon foundations is operationally simpler than maintaining twelve pier bases in a river or busy highway median.

Long-term inspections have been made easier: In a river or busy highway center, it is easier to take care of two pylon supports than twelve pier bases.

When EPC contractors and government engineering clients talk about lifecycle costs during value-engineering reviews, these benefits can help solve their problems.

Comparison: Steel Cable-stayed Bridges vs. Other Bridge Types in Pier Usage

Steel vs. Concrete Cable-stayed Designs

Concrete cable-stayed bridges have the same shape of cables, but they have a lot more dead weight on them. When the deck mass is higher, each cable has to carry more weight, which means that the pylon sections need to be bigger and the foundations need to be heavier. Steel decks, on the other hand, cut down on dead weight by 30 to 50 percent, which directly supports longer spans without piers.

Steel Cable-stayed vs. Suspension Bridges

Suspension Steel Cable-stayed Bridges have the largest lengths in the world, but they need big mooring blocks at each end and usually can't be built shorter than 600 meters. Cable-stayed bridges can span 200 to 800 m without having to dig holes for anchors, which work as a secret "foundation pier" at each end. They are also more cost-effective.

Steel Cable-stayed vs. Arch Bridges

Arch bridges move weight by compressing the arch rib. This works for medium spans but needs either solid approach viaducts or thrust-absorbing foundations at the arch springing points. When the ground is soft or wet, these thrust supports cost the same as middle piers. Steel cable-stayed systems don't allow any horizontal thrust, which makes them better for places with weak soil like river deltas or seaside ports.

Procurement and Supplier Insights for Steel Cable-stayed Bridge Projects

The success or failure of a pier-reduction plan depends on how well the manufacturer is chosen. A good provider should have experience with long-span steel buildings, be able to show that their materials are traceable according to EN 1090 or something similar, and be able to handle heavy parts without sacrificing quality.

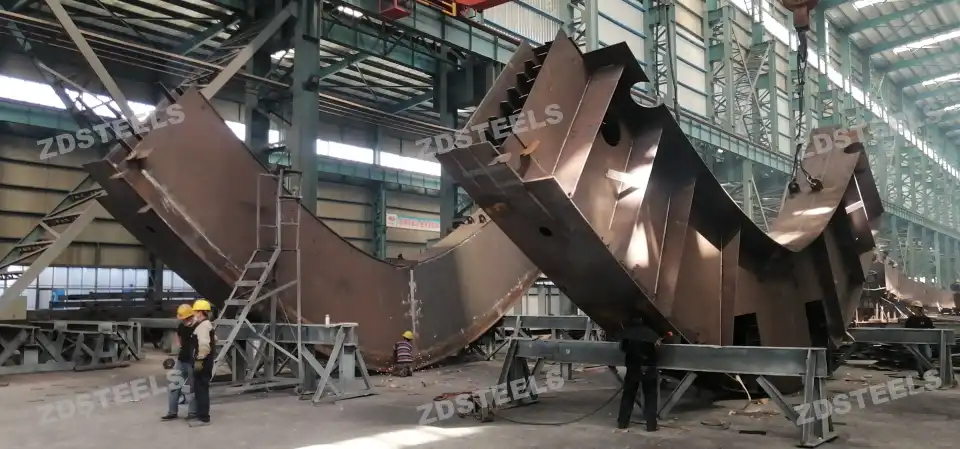

Zhongda is certified in accordance with EN 1090, AWS, and JIS standards and has ISO 9001, ISO 14001, and ISO 45001 marks. They also have a Class I Steel Structure Professional Contracting Qualification. The 120,000 m² plant in Shenyang has a 50-ton crane and can produce 60,000 tons of steel each year. It can handle the heavy plates that are needed for long-span bridge parts.

Before putting in a bid, buyers should ask for mill certificates for the steel grade they want, standards for the welding process for full-penetration joints, and records of cable-tension testing. By comparing these between bidders, you can tell the difference between suppliers who are qualified and those who only show paper credentials.

Conclusion

It is possible to cut down on intermediate piers in long-span crossings, and this is often the better structural and financial choice. High-quality steel, precision-fabricated pylons, and designed stay-cable assemblies are used to build cable-stayed Steel Cable-stayed Bridge systems that can carry loads across spans that would need more than one mid-span base. There are real engineering challenges, but they can be met with the right design team and fabrication partner. Pier reduction should be at the top of the value-engineering list for infrastructure developers, EPC contractors, and procurement managers who are planning the next river crossing or urban bridge.

FAQ

1. How do cable-stayed bridges achieve long spans without intermediate piers?

Stay cables transfer deck loads directly to the pylon through tension, creating an internal force equilibrium that spans hundreds of meters without additional vertical supports. The structural efficiency comes from the straight load path: deck to cable to pylon to foundation.

2. Does removing intermediate piers increase maintenance costs?

Not in the long run. Fewer pier foundations mean fewer substructure inspection points, reduced exposure to scour, and less underwater maintenance work. Pylon-based systems concentrate inspection at two known locations rather than across a distributed pier line.

3. What steel grade is best suited for pier-reduction designs?

High-strength grades such as Q420qE, S460, or equivalent ASTM A709 grades allow thinner, lighter deck sections, which is the primary lever for extending spans without additional piers.

4. How does seismic performance factor into pier reduction?

With fewer distributed supports, the dynamic behavior of the bridge concentrates at the pylons. Seismic isolation bearings, such as the LRB800 type used in Zhongda's system, absorb earthquake energy before it reaches the superstructure, reducing overall seismic response by up to 40%.

5. What corrosion protection is standard for stay cables?

Industry-standard protection layers include galvanized high-tensile wire, internal wax or grease fill, and a dual-layer HDPE or PE outer sheath. Zhongda adds a graphene inner coating with a 53-year UV resistance rating, extending service life beyond typical specifications.

Partner with Zhongda for Your Next Steel Cable-Stayed Bridge Project

As a trusted producer and provider of Steel Cable-stayed Bridges, Zhongda is ready to help you with your project. Our Q420qE bridge systems have 53-year rust protection, LRB800 earthquake bearings, and can span 200 to 800 m. They are certified by ISO 9001, 14001, and 15001, and they also meet EN 1090 standards. Get in touch with our engineering team right away at Ava@zd-steels.com to talk about your span needs.

References

1. Gimsing, N. J., & Georgakis, C. T. Cable Supported Bridges: Concept and Design. Wiley, 2012.

2. Podolny, W., & Scalzi, J. B. Construction and Design of Cable-Stayed Bridges. Wiley, 1986.

3. Virlogeux, M. "Recent Evolution of Cable-Stayed Bridges." Engineering Structures, Elsevier, 1999.

4. Structurae International Database of Civil and Structural Engineering. "Shenyang Dongta Bridge Project Documentation." Structurae, 2017.

5. American Association of State Highway and Transportation Officials. AASHTO LRFD Bridge Design Specifications, 9th Edition. AASHTO, 2020.

6. European Committee for Standardization. EN 1090-2: Execution of Steel Structures and Aluminium Structures. CEN, 2018.
