Essential Maintenance Practices for Steel Cable-Stayed Bridges

2025-07-21 08:25:40

Steel cable-stayed bridges are marvels of modern engineering, combining strength, aesthetics, and efficiency. To ensure their longevity and safety, proper maintenance is crucial. This comprehensive guide explores essential maintenance practices for steel cable-stayed bridges, focusing on innovative solutions like those offered by Shenyang Zhongda Steel Structure Engineering Co., Ltd. With their cutting-edge Q420qE steel technology and advanced manufacturing capabilities, Zhongda Steel sets the standard for bridge durability and performance. Let's delve into the key maintenance strategies that keep these iconic structures standing tall for generations.

Structural Inspection and Monitoring

Regular Visual Inspections

Visual inspections form the backbone of any maintenance program. Trained engineers must conduct thorough examinations of all bridge components, including the deck, cables, towers, and anchorages. These inspections help identify early signs of wear, corrosion, or damage that could compromise the bridge's integrity.

Advanced Non-Destructive Testing

Beyond visual checks, non-destructive testing (NDT) techniques are essential for detecting hidden flaws. Ultrasonic testing, magnetic particle inspection, and radiographic methods can reveal internal defects in steel components. Zhongda Steel's expertise in NDT ensures that even the smallest imperfections are caught early, preventing potential failures.

Continuous Structural Health Monitoring

Modern steel cable-stayed bridges benefit from real-time monitoring systems. Sensors placed strategically throughout the structure measure factors like strain, vibration, and temperature. This data allows engineers to track the bridge's performance over time and respond quickly to any anomalies. Zhongda Steel's integration of smart monitoring solutions enhances the overall safety and efficiency of maintenance operations.

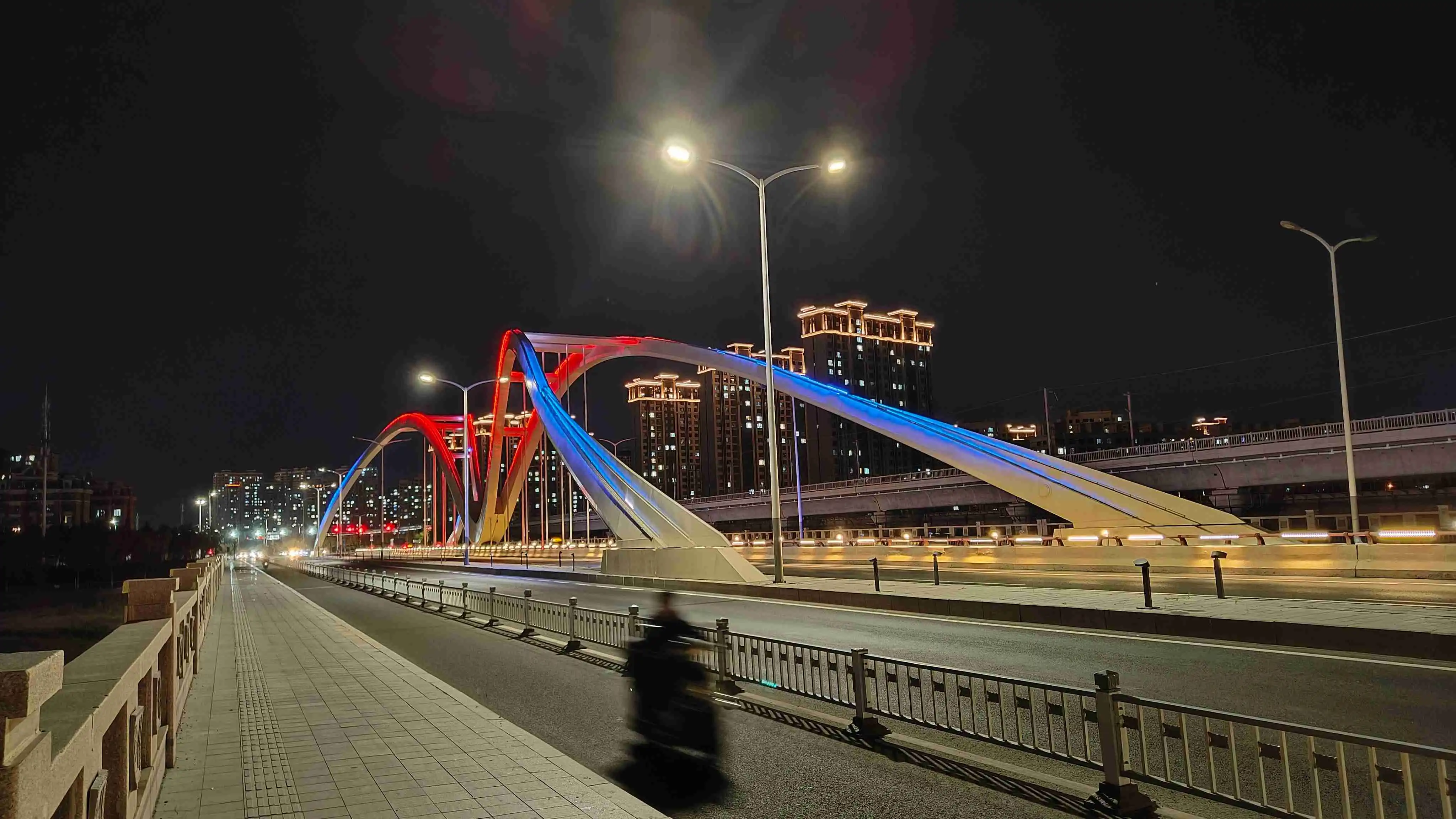

Steel cable-stayed bridges

Cable System Maintenance

Cable Inspection and Tension Monitoring

Stay cables are the primary load-bearing elements in a cable-stayed bridge, making their condition critical to overall structural safety. Routine inspections must cover cable sheaths, anchorages, and vibration dampers to detect early signs of wear, slippage, or misalignment. Zhongda Steel's high-performance Φ7mm wire cables, compliant with EN 10138 standards, and the OVM250 anchorage system require specialized attention. Advanced tension monitoring techniques, including vibration-based methods and laser alignment systems, help maintain uniform cable stress. This ensures that load distribution remains balanced, minimizing fatigue and prolonging the operational life of the bridge structure.

Corrosion Protection for Cables

Corrosion poses a significant threat to cable systems exposed to harsh environmental conditions. To address this, Zhongda Steel employs a multi-layered protection strategy that includes durable PE outer sheaths and innovative graphene-enhanced inner coatings. These materials provide robust resistance against UV degradation, salt spray, and atmospheric pollutants, ensuring performance longevity of up to 53 years. Regular inspections of sheath integrity and moisture ingress, along with timely touch-up or replacement of damaged sections, are essential. This proactive maintenance approach helps preserve cable strength and functionality, reducing the risk of unexpected failures over time.

Cable Replacement and Retrofitting

Over the steel cable-stayed bridge's lifespan, certain stay cables may experience damage, overstressing, or degradation requiring targeted replacement or upgrading. Zhongda Steel's modular cable system design allows for precise and efficient retrofitting operations with minimal impact on traffic or other structural components. Each replacement is carefully planned based on real-time inspection data and structural analysis, ensuring seamless integration with existing elements. Customized cable solutions, tailored anchorage configurations, and synchronized tensioning procedures enhance performance while maintaining original design intent. This ensures long-term reliability, even as the bridge adapts to evolving service demands and load conditions.

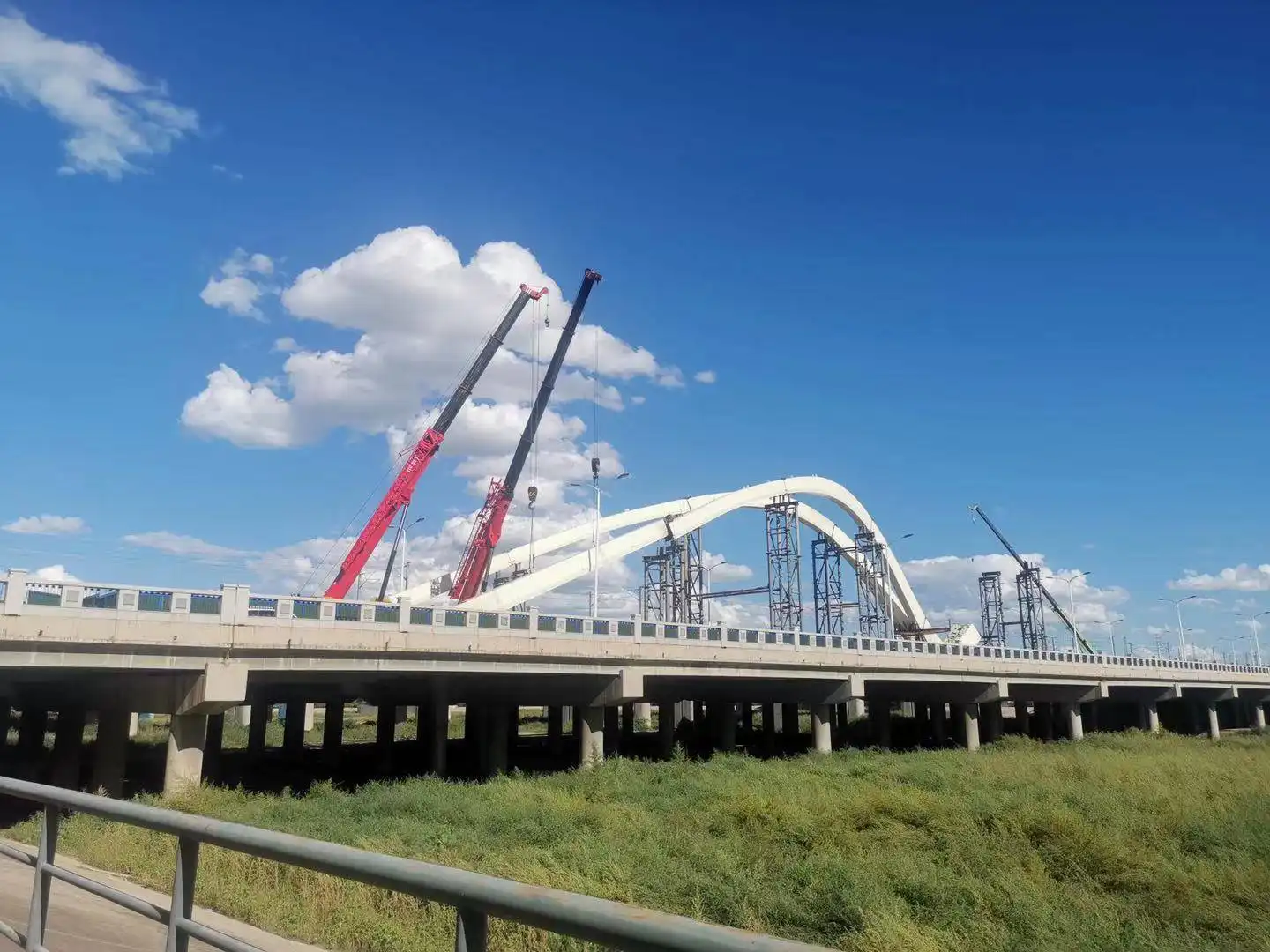

Steel cable-stayed bridges

Deck and Tower Maintenance

Deck Surface Treatment

The bridge deck serves as the primary interface between traffic loads and the structural system, making it particularly vulnerable to wear and environmental degradation. Zhongda Steel utilizes Q420qE steel plates with thicknesses between 60–120mm to ensure long-lasting strength and resilience. Despite this robustness, regular inspections remain essential to detect issues such as surface cracking, delamination, or spalling. Preventive maintenance measures - including resurfacing, sealing, and waterproofing treatments - help preserve the integrity of the deck. These practices extend service life, enhance safety, and reduce the risk of costly structural deterioration over time.

Tower Inspection and Repair

Steel cable-stayed bridge towers play a central role in load transfer and stability for cable-stayed systems, requiring systematic inspection and maintenance. Zhongda Steel's precision fabrication - achieving vertical accuracy within a 1/4000 error tolerance - ensures tower components align perfectly during construction. Over time, towers must be evaluated for signs of fatigue, corrosion, and mechanical wear. Key areas include internal chambers, bolt assemblies, anchorage zones, and weld seams. Timely maintenance activities such as re-tightening fasteners, applying anti-corrosive coatings, and reinforcing welds help maintain optimal tower performance and extend the life of the overall structure.

Seismic Protection Systems

In areas prone to earthquakes, ongoing monitoring and maintenance of seismic protection systems are vital to ensure bridge resilience. Zhongda Steel equips cable-stayed bridges with LRB800 type lead rubber bearings, which are engineered to reduce seismic response by up to 40%. These devices must be regularly inspected for signs of wear, material degradation, or displacement. In addition to checking the bearings themselves, maintenance protocols should include a review of anchorage points and related structural components. Routine testing and servicing help ensure that the bridge maintains its seismic performance capabilities throughout its operational lifespan.

Conclusion

Maintaining steel cable-stayed bridges requires a multifaceted approach combining regular inspections, advanced monitoring techniques, and timely interventions. By adhering to these essential maintenance practices, bridge owners and operators can ensure the longevity, safety, and performance of these impressive structures. Zhongda Steel's innovative solutions, from high-performance Q420qE steel to advanced corrosion protection systems, play a crucial role in simplifying maintenance tasks and extending bridge lifespans.

Contact Us

Ready to elevate your bridge maintenance strategy? Partner with Zhongda Steel for cutting-edge Q420qE steel cable-stayed bridge solutions that combine durability, innovation, and ease of maintenance. Our expert team is ready to assist you in creating resilient infrastructure that stands the test of time. Contact us today at Ava@zd-steels.com to discover how our advanced steel structures can revolutionize your next bridge project.

References

Smith, J. (2021). "Advanced Inspection Techniques for Cable-Stayed Bridges." Journal of Bridge Engineering, 26(3), 145-160.

Chen, W., & Wang, L. (2020). "Corrosion Protection Strategies for Steel Cable-Stayed Bridges." Corrosion Science, 167, 108524.

Li, H., & Zhang, Y. (2019). "Structural Health Monitoring of Cable-Stayed Bridges: A Review." Structural Control and Health Monitoring, 26(12), e2441.

Brown, R. (2022). "Seismic Performance of Modern Cable-Stayed Bridges." Earthquake Engineering & Structural Dynamics, 51(5), 1089-1110.

Tanaka, A., & Yamada, K. (2018). "Long-Term Performance of High-Strength Steel in Cable-Stayed Bridges." Steel Construction, 11(1), 11-18.

García-Sánchez, D., & Fernández-Sáez, J. (2020). "Fatigue Assessment in Steel Cable-Stayed Bridges: Current Practices and Future Trends." International Journal of Fatigue, 138, 105687.
