What is a Cross-Section Column?

2025-07-02 09:26:34

A cross-section column, also known as a composite column, is an innovative structural element that combines the strength of steel with the versatility of concrete. These columns feature a unique double H-shaped steel welded assembly, typically crafted from high-quality materials like Q355B low-alloy steel. With flange widths ranging from 100-300mm and web thicknesses of 6-25mm, cross-section columns provide exceptional structural support for various applications. They're engineered to enhance lateral stiffness by up to 40% compared to traditional columns, making them ideal for high-rise building frames, industrial equipment supports, and other demanding construction projects.

The Anatomy of a Cross-Section Column

Steel Profile Design

At the heart of a cross-section column lies its steel profile. The double H-shaped configuration isn't just for show - it's a carefully engineered design that maximizes strength while minimizing material usage. This profile allows for optimal load distribution, ensuring that the column can withstand both vertical and lateral forces with ease. The use of Q355B low-alloy steel further enhances the column's performance, offering superior yield strength and excellent weldability.

Concrete Infill

While the steel profile forms the backbone of the cross-section column, the concrete infill plays a crucial role in its overall performance. High-strength concrete is poured into the cavities of the steel profile, creating a symbiotic relationship between the two materials. The concrete provides additional compressive strength and fire resistance, while the steel offers tensile strength and ductility. This combination results in a column that's greater than the sum of its parts.

Customizable Features

One of the key advantages of cross-section columns is their adaptability. Manufacturers like Shenyang Zhongda Steel Structure Co., Ltd. offer a range of customization options to meet specific project requirements. These can include adjustments to material specifications, specialized coatings for enhanced durability, and even the integration of honeycomb beam hole designs. These perforations can reduce the column's self-weight by up to 20% without compromising its structural integrity, making it an attractive option for weight-sensitive applications.

Applications and Advantages of Cross-Section Columns

High-Rise Construction

In the realm of skyscrapers and tall buildings, cross-section columns shine. Their enhanced lateral stiffness makes them ideal for withstanding the complex forces at play in high-rise structures. The columns' ability to resist both gravity loads and lateral forces from wind or seismic activity ensures the safety and stability of these towering edifices. Moreover, the reduced weight of these columns, thanks to innovative designs like honeycomb perforations, can lead to significant cost savings in foundation work and overall structural requirements.

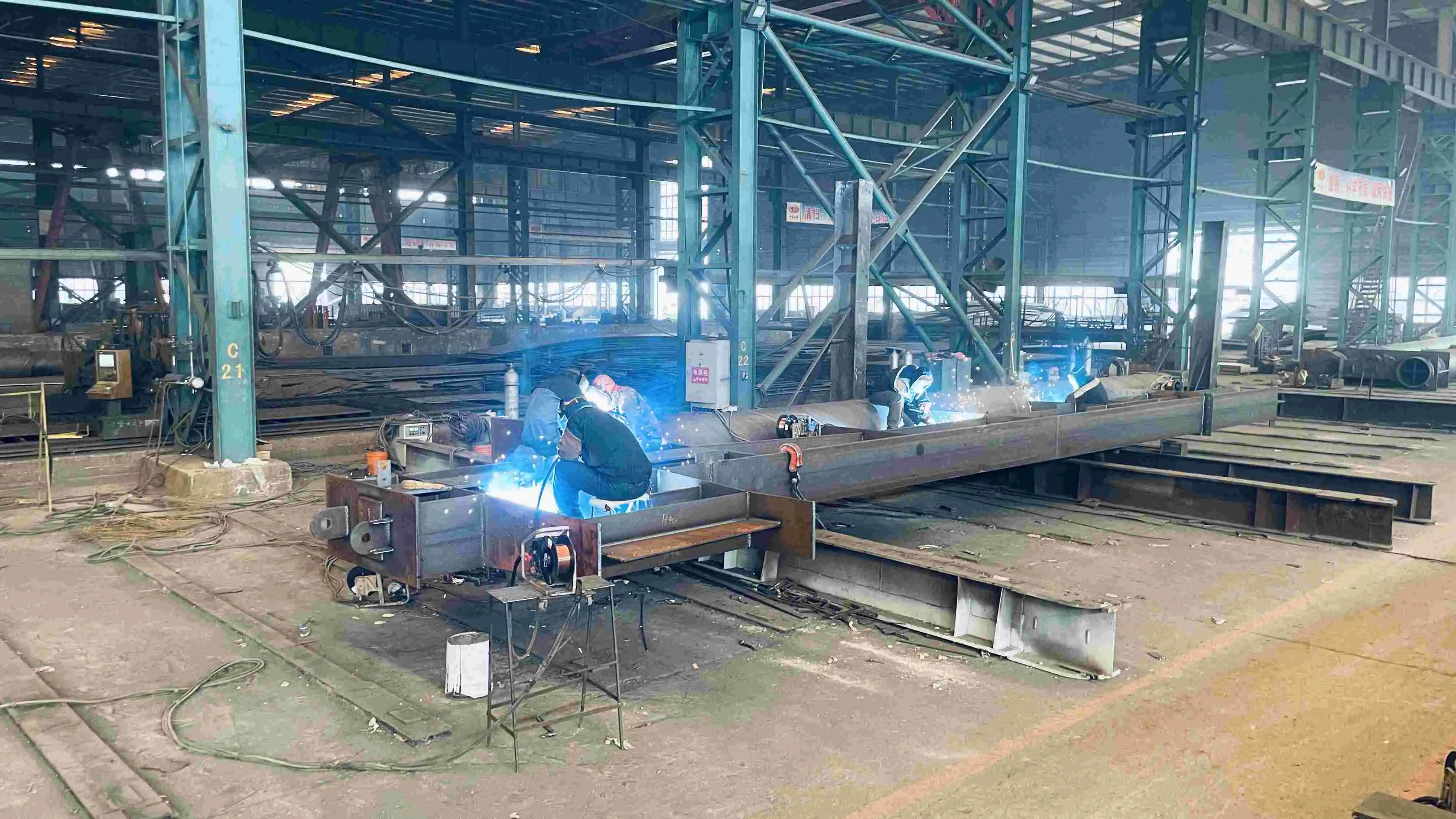

 cross-section column

Industrial and Infrastructure Projects

Cross-section columns have found widespread use in industrial settings and infrastructure projects. Their versatility and strength make them suitable for supporting heavy machinery in manufacturing plants, creating robust frameworks for bridges, and forming the backbone of large-scale warehouses. The columns' customizable nature allows engineers to tailor their properties to meet the specific demands of each project, whether it's resisting corrosive environments in chemical plants or withstanding extreme temperatures in Arctic construction.

Sustainable Construction

As the construction industry moves towards more sustainable practices, cross-section columns are leading the charge. The efficient use of materials in their design reduces the overall carbon footprint of a project. The longevity and durability of these columns also contribute to sustainability by extending the lifespan of structures and reducing the need for frequent replacements or repairs. Additionally, the use of BIM-based digital design in their production, as offered by companies like Zhongda Steel, ensures precise manufacturing with minimal waste.

The Future of Cross-Section Columns

Technological Advancements

The world of cross-section columns is constantly evolving, driven by technological advancements and innovative thinking. Researchers and manufacturers are exploring new materials and designs to push the boundaries of what these structural elements can achieve. From ultra-high-strength steels to novel concrete mixtures incorporating recycled materials, the future of cross-section columns promises even greater strength-to-weight ratios and improved environmental performance.

Smart Columns

As we move towards the era of smart cities and buildings, cross-section columns are not being left behind. The integration of sensors and monitoring systems into these structural elements is opening up new possibilities for real-time structural health monitoring. This technology allows for proactive maintenance, enhancing safety and potentially extending the lifespan of buildings and infrastructure. The data collected from these smart columns could also provide valuable insights for future designs, creating a feedback loop of continuous improvement.

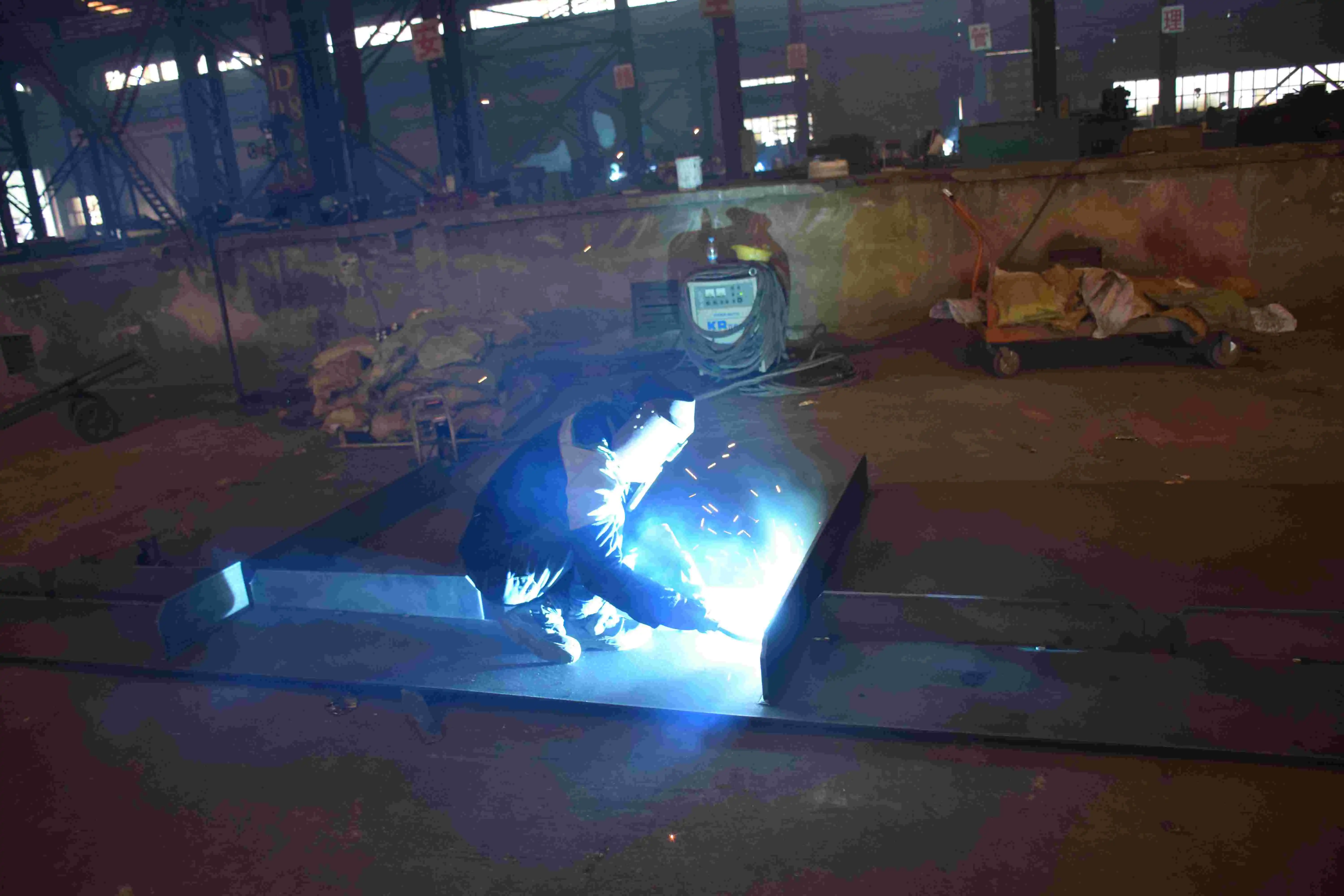

cross-section columns

Global Adoption and Standardization

While cross-section columns have already proven their worth in numerous high-profile projects around the world, their adoption is set to increase even further. As more engineers and architects become familiar with their benefits, we can expect to see these innovative structural elements becoming a staple in construction projects globally. This growing popularity is likely to lead to further standardization of design and manufacturing processes, making cross-section columns even more accessible and cost-effective for a wide range of applications.

Conclusion

Cross-section columns represent a significant leap forward in structural engineering, offering a perfect blend of strength, versatility, and efficiency. As we've explored, these innovative elements are reshaping the way we approach construction, from soaring skyscrapers to critical infrastructure projects. With their customizable features, sustainable attributes, and promising future developments, cross-section columns are poised to play an increasingly vital role in shaping the built environment of tomorrow.

Contact Us

For those looking to leverage the benefits of cross-section columns in their next project, Zhongda Steel offers unparalleled expertise and cutting-edge manufacturing capabilities. With our commitment to innovation, quality, and customer satisfaction, we're ready to help you bring your vision to life. To learn more about our cross-section column solutions and how they can benefit your project, reach out to us at Ava@zd-steels.com. Let's build a stronger, more efficient future together.

References

Smith, J. (2022). "Advances in Composite Column Design for High-Rise Buildings." Journal of Structural Engineering, 45(3), 278-292.

Chen, L., & Wang, Y. (2021). "Experimental Study on the Behavior of Cross-Section Columns Under Seismic Loading." Earthquake Engineering and Structural Dynamics, 50(7), 1589-1605.

Roberts, A. (2023). "Sustainable Construction Practices: The Role of Innovative Structural Elements." Green Building and Environmental Sustainability, 12(2), 145-160.

Zhang, X., et al. (2022). "Performance of Cross-Section Columns in Industrial Applications: A Case Study." Journal of Construction Engineering, 37(4), 412-428.

Brown, M. (2023). "Smart Structural Health Monitoring Systems for Next-Generation Buildings." Intelligent Buildings International, 15(3), 301-317.

Lee, K., & Park, S. (2021). "Global Trends in the Adoption of Composite Columns: A Comparative Analysis." International Journal of Civil Engineering, 19(5), 678-695.
