Steel Truss Girder Designs Improve Long-Span Bridge Performance

When engineers face the challenge of spanning hundreds of meters without intermediate supports, a steel truss girder consistently emerges as the solution of choice. By organizing steel members into interconnected triangular units, this structural framework resists longitudinal bending and shear forces the way a solid beam never could — at a fraction of the weight. Whether you're procuring components for a highway crossing, a rail transit corridor, or a heavy industrial facility, understanding how truss girder design directly influences long-span bridge performance shapes every decision from material selection to supplier qualification.

Understanding Steel Truss Girders: Fundamentals and Design Principles

A Steel Truss Girder is more than just a big beam. Each member of the designed system carries either pure tension or pure compression. This means that the members themselves don't bend. This geometric economy is what makes spans longer than 100 meters possible without the dead weight problem that comes with solid-web options.

How Triangular Geometry Drives Structural Logic

The only geometric shape that stays rigid when it's loaded without having hard parts is the triangle. When chords, verticals, and diagonals are put together in a triangle shape, every force that is applied is turned into axial member loads. The Warren truss uses diagonal members that go in different directions to evenly distribute tension and compression; the Pratt truss uses verticals to carry compression and diagonals to carry tension, making it material-efficient under uniform load; and the K-truss divides panels to keep compression members from buckling over very long spans. All of these designs are based on this principle.

Material Selection and Geometric Optimization

ASTM A572 Grade 50 and high-tensile versions like Q355B and Q420 are steel types that are often used to make truss girders. Higher-yield steels make members thinner and lighter, which directly lowers the load on the base. By changing the panel depth-to-span ratio, which is usually between 1:8 and 1:12, geometric optimization finds the best balance between stiffness and material volume. The open-web design also lets water, electrical, and mechanical lines run through the structure, which lowers the overall height of the building in industrial settings.

Performance Advantages of Steel Truss Girders in Long-Span Bridges

The structural economy of a well-designed Steel Truss Girder leads to project benefits that can be measured in many ways.

Here are the main reasons why truss girders are better for hard long-span uses in terms of performance:

• Superior load-to-weight ratio: A steel truss girder can achieve strength-to-weight ratios significantly higher than reinforced concrete girders of equivalent span, reducing substructure costs and accelerating foundation construction timelines.
• Dynamic load resilience: The ductile nature of structural steel gives truss girders excellent vibration damping characteristics, a critical asset on railway bridges subject to repetitive high-frequency loading.
• Corrosion management: Specifying a duplex protective system — hot-dip galvanizing combined with a high-build epoxy or polyurethane topcoat rated for C5-M marine or industrial environments — extends service life well beyond 50 years with routine inspection cycles.
• Design adaptability: The modular, prefabricated nature of truss panels allows geometry to be adjusted for curved alignments, variable depths, and non-standard loading conditions without redesigning the entire system.

Better load-to-weight ratio: A Steel Truss Girder can have much better strength-to-weight ratios than reinforced concrete girders of the same span. This lowers the cost of the substructure and speeds up the time it takes to build the base.

Comparing Steel Truss Girders with Other Structural Solutions

To pick a truss girder over other options, you need to be honest about the span range, load profile, site logistics, and total cost of ownership.

Truss Girders vs. Concrete Girders

Box girders made of pre-stressed concrete can support spans of up to about 60 to 80 meters. Self-weight rises quickly beyond that range, calling for larger substructures and more complicated launch equipment. Steel Truss Girders have a clear weight advantage over other types of spans when the distance is more than 100 meters. They can also be made off-site and put together in sections, which keeps traffic moving along live infrastructure routes.

Truss Girders vs. Solid Steel Beams and Box Girders

Long widths make rolled steel beams too expensive because of the amount of material they need. Welded box girders are better at reducing wind resistance on cable-stayed bridges, but they are harder to get to inside for repair and inspection. The open web of a truss girder makes it easy to inspect and lets you replace only the damaged members instead of the whole section, which lowers the long-term cost of maintenance.

Steel Truss Girders are always the better choice when comparing lifetime costs for spans between 100 and 300 meters, especially in places with a lot of dynamic loads or seismic activity.

Procurement Insights for Steel Truss Girders: Sourcing, Costs, and Logistics

Specifications must be clear for buying to work well. Uncertain dimensional tolerances or steel grades cause variation during fabrication, which gets worse during site assembly. It is very important to keep a close eye on the node geometry, slope levels, and general straightness, because any changes in the panel geometry affect the whole span when it is put up.

When looking at possible Steel Truss Girder sources, these requirements should be carefully considered:

• Certifications and code compliance: Look for manufacturers holding ISO 9001 quality management certification and fabrication accreditation under AISC 360, Eurocode 3, or EN 1090, depending on the destination market.
• Non-destructive testing capability: Ultrasonic testing (UT) and magnetic particle inspection (MPI) of critical node welds are non-negotiable for bridge-grade fabrication. Request NDT reports as part of the material documentation package.
• Material traceability: Mill test certificates (MTCs) confirming heat numbers, chemical composition, and yield strength must accompany every shipment. This protects the owner against specification substitution.
• Export and logistics experience: Oversized structural segments require route surveys, specialized transport permits, and coordination with port authorities. A fabricator with documented export history to your destination region significantly reduces delivery risk.

Check that the manufacturers of a Steel Truss Girder have ISO 9001 quality management certification and fabrication accreditation under AISC 360, Eurocode 3, or EN 1090, depending on the market they are going to.

Case Studies: Successful Applications of Steel Truss Girder Designs in Long-Span Bridges

The best proof of how well a truss frame works comes from real-world project results. Zhongda Steel has supplied certified structural steel parts to infrastructure projects in Russia, Australia, and Vietnam. These include structures for Arctic bridges designed to work in temperatures as low as -60°C. In those conditions, regular structural steel breaks easily. To keep its flexibility in the face of extreme temperature changes, weathering steel with tested low-temperature Charpy impact values was chosen and built.

Zhongda's BIM-driven prefabrication process has cut down on the time needed for on-site assembly in heavy industrial settings by arranging fabrication tolerances to within a few millimeters before parts leave the plant. This method works perfectly for truss girder bridge projects where putting up segments one at a time needs precise camber geometry to make sure the load path is as planned after all the dead loads are applied.

These results show what procurement professionals always look for: quality that can be predicted, clear documentation that can be tracked, and a fabricator that can keep delivery promises over the course of multiple years.

Conclusion

The performance of a long-span bridge is not a mistake; it is the result of careful design decisions about the truss layout, steel grade, connection details, and rust protection. If you make sure that your Steel Truss Girder is designed and built to international standards, it will be more efficient than solid-web options for spans over 100 meters. For purchasing teams and engineering firms, it's important to work with fabricators that have a lot of technical knowledge, well-documented quality systems, and a track record of being able to export.

FAQ

How long does a steel truss girder typically last?

With appropriate corrosion protection and periodic inspection, a properly fabricated truss girder designed to AISC 360 or Eurocode 3 standards carries a service life exceeding 75 to 100 years. Fatigue life depends heavily on connection detailing and the cyclic load spectrum.

How does maintenance compare to concrete girder bridges?

Steel truss girders require scheduled coating inspections and targeted repainting of localized corrosion, while concrete girders demand crack monitoring and potential tendon re-stressing. Over a 50-year period, well-maintained steel structures often accumulate lower total maintenance expenditure, particularly in aggressive environments.

Can truss girders be customized for non-standard spans or load configurations?

Geometric configuration, panel depth, chord profiles, and connection details are all adjustable through structural analysis. Post-installation reinforcement is also achievable through member plating or external post-tensioning, provided node capacity is re-verified.

Which connection method is recommended — bolted or welded?

Shop fabrication benefits from welded connections for rigidity and dimensional accuracy. Field assembly typically uses high-strength friction-grip bolting for speed and quality control under variable weather conditions.

Partner with Zhongda for Certified Steel Truss Girder Supply

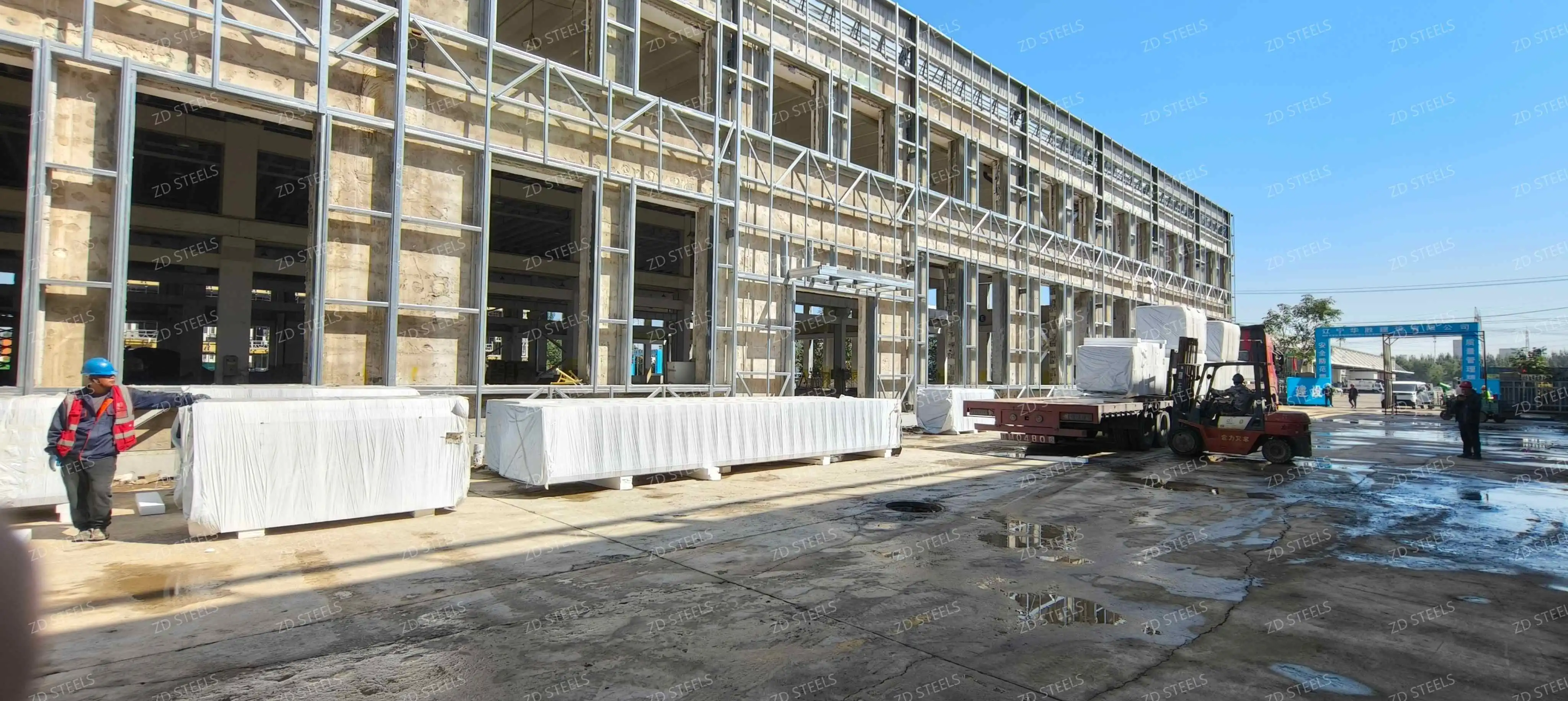

Since 2004, Zhongda Steel has been making precise structural solutions. They have ISO 9001, EN 1090, and OHSAS 45001 certifications, and their building is 120,000 m² and can make 60,000 tons of steel a year. As a reputable Steel Truss Girder manufacturer with customers in four countries, we use BIM-driven prefabrication along with strict NDT processes and full material traceability. Visit zd-steels.com or email Ava@zd-steels.com to talk to our engineering team about your project.
