Variable Cross-Section I-Section Beam

Variable Cross-Section I-Section Beam – Custom Steel Solutions by Shenyang Zhongda

The Variable Cross-Section I-Section Beam from Shenyang Zhongda offers unparalleled performance when your project requires precisely engineered load optimization. Compared to conventional uniform sections, our tapered beams, which are constructed from Q345C low-alloy steel with web thicknesses ranging from 6 to 36 mm, lower steel weight by 20 to 30%. With an annual production capacity of 80,000 tons, we guarantee every beam with an 11-year warranty and do 100% ultrasonic testing prior to export. Tensile strength is at least 448 MPa, which satisfies international bridge standards and ASTM A572 Grade 50. Custom spans from 20–50m ship in 20–25 days, while in-stock solutions come within 3 days.

Product Description

Spanning distance is only one aspect of your structural difficulty; another is doing it wisely.

The persistent issue of material waste in conventional hot-rolled sections is resolved by our variable depth I-beams. We assist you in reducing expenses without sacrificing strength by tapering the web where bending moments are lower.

High-frequency or submerged arc welding methods are used to create these beams. To keep taper angles under ±2mm tolerance, every component is subjected to strict dimensional control. The outcome? A structural element that adapts to your load distribution rather than pushing you to over-engineer.

These beams offer the flexibility required for intricate architectural designs, making them ideal for exposition center roofs, pedestrian bridges, and portal frame warehouses.

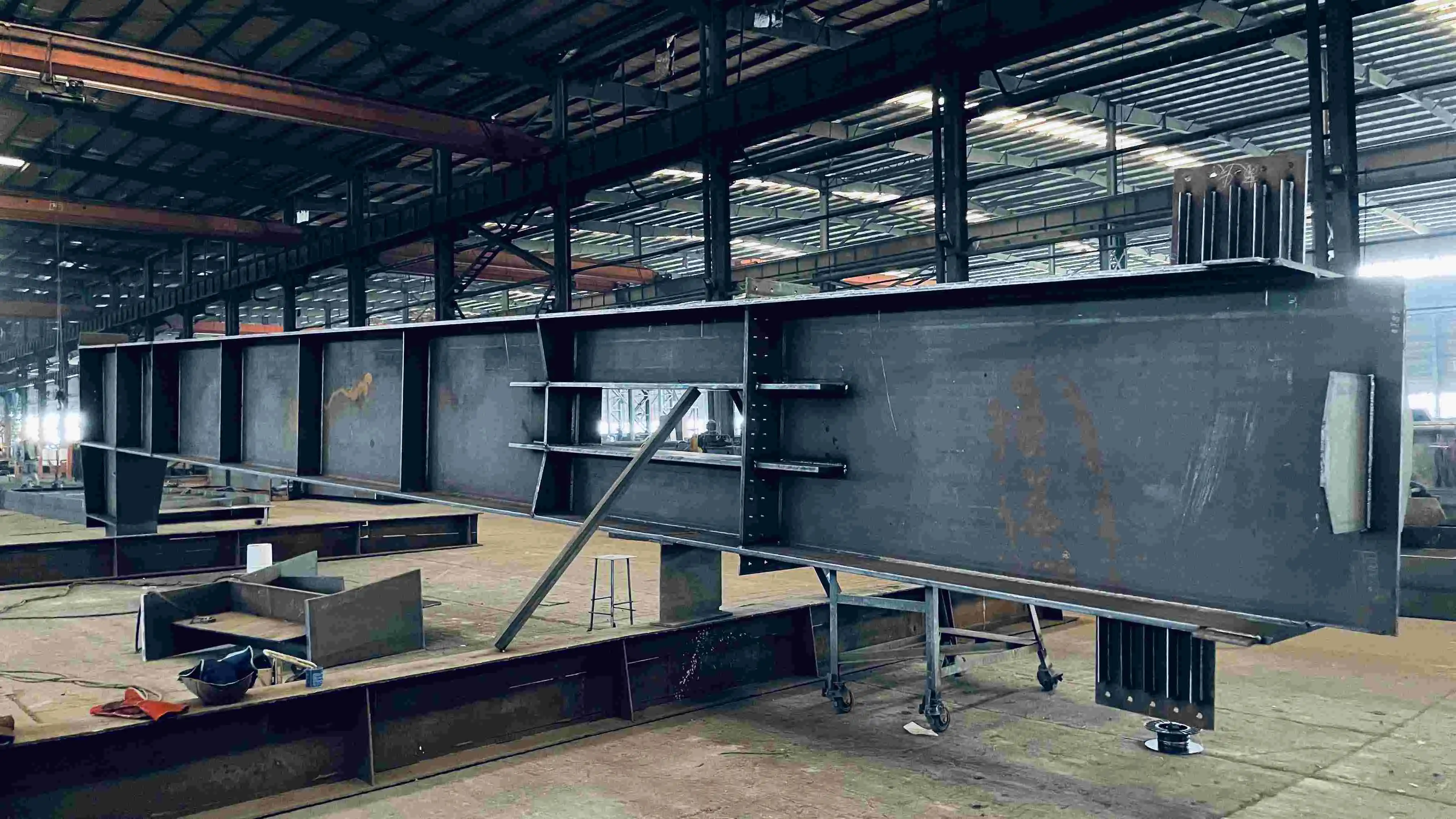

Variable Cross-Section I-Section Beam



Product Advantages

Why choose our solution?

✓ Material Efficiency

Reduce total steel consumption by up to 30% while maintaining full load capacity. This translates directly to lower transportation and foundation costs.

✓ Enhanced Strength-to-Weight Ratio

Concentrated material placement at high-stress zones means you get maximum performance per kilogram of steel.

✓ Custom Engineering Support

Our BIM-integrated design team collaborates with you from concept to installation. We optimize every taper angle based on your specific load case.

✓ Fast Turnaround

Leveraging 75,000 m² of production space and automated welding lines, we deliver custom orders in 20–25 days—20% faster than industry average.

✓ Proven Reliability

Backed by participation in 60+ landmark projects including the 18,000-ton Shenyang Dongta Bridge. Our client retention rate stands at 70%.

✓ Global Compliance

Manufactured to AISC 360, Eurocode 3, and GB50017 standards. Full documentation including MTC and English technical drawings provided.

Technical Specifications & Customization

Manufacturing & Quality Control

What sets our factory apart?

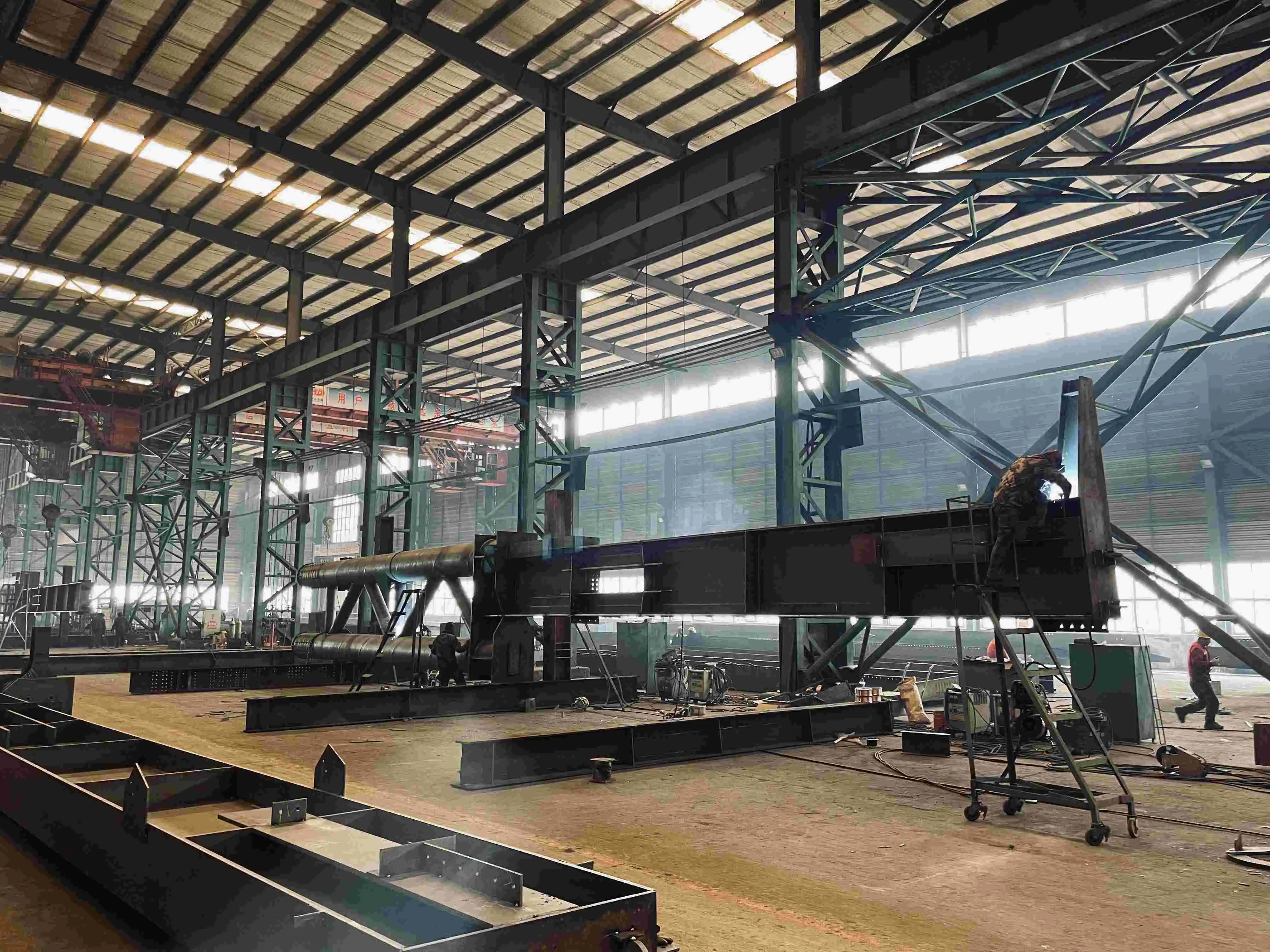

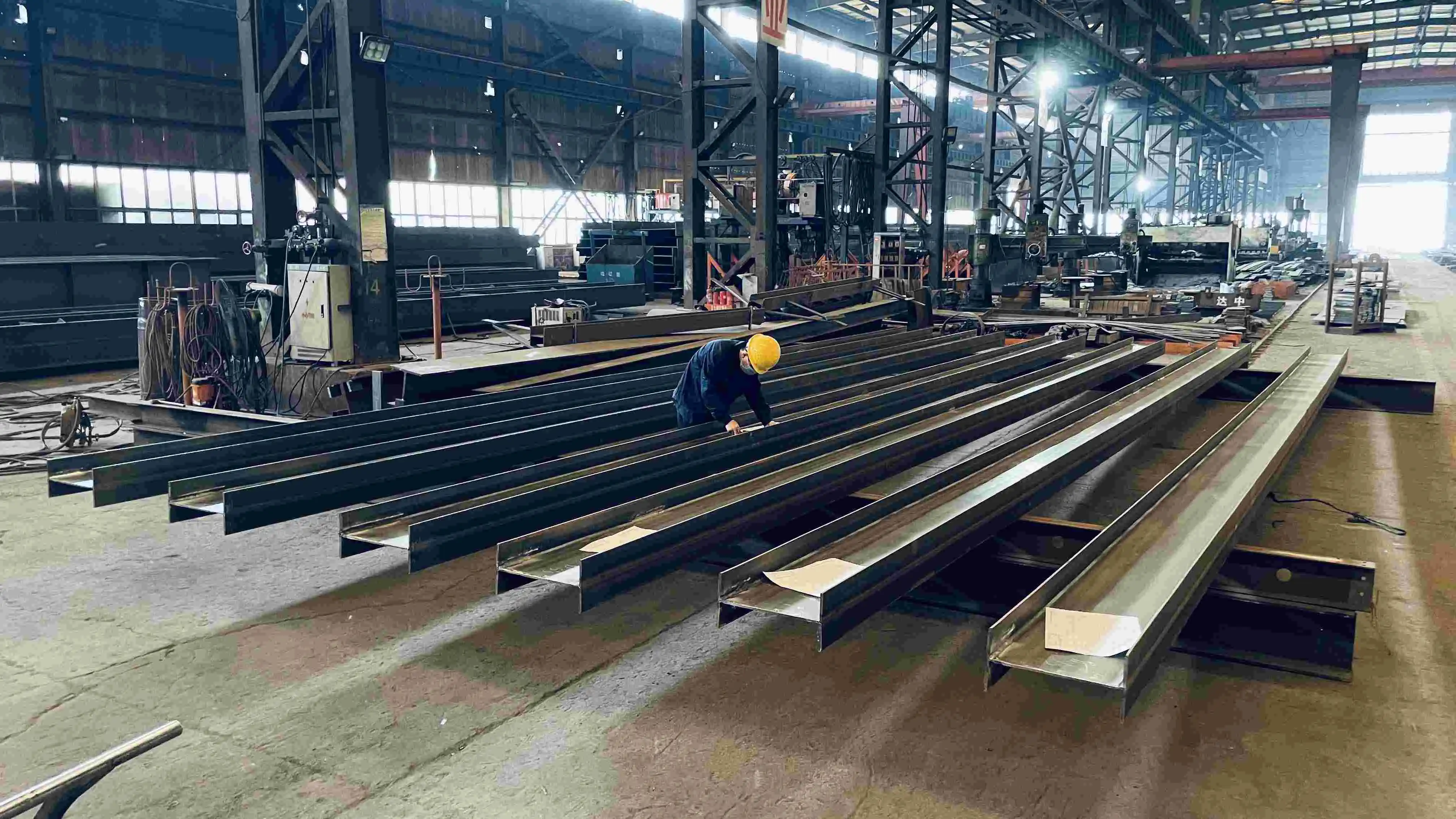

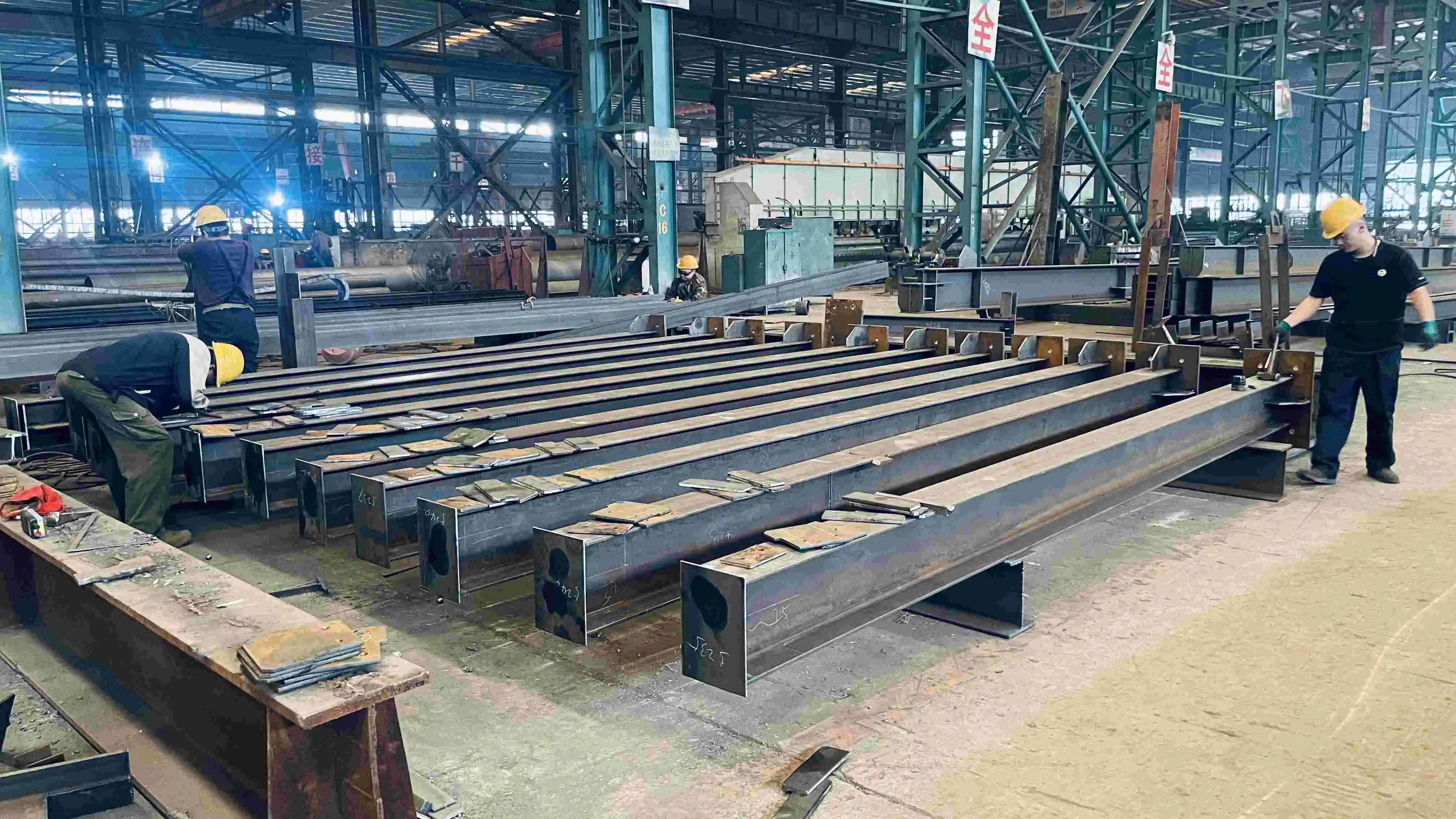

120,000 m² Production Base

Our facility in Shenyang Economic Development Zone houses:

· 50-ton crane capacity for heavy lifting

· 1200-ton plate rolling machines for precise curving

· 3-axis CNC drilling systems with ±0.1mm precision

 Five-Stage Quality Protocol

1. Material Verification: Mill Test Certificates attesting to Charpy V-Notch impact toughness and yield strength are included with every batch.

2. Weld Integrity: 100% ultrasonic testing is performed on each web-to-flange junction. Radiographic defects are not tolerated.

3. Dimensional Control: After welding, automated measurement systems check straightness, flange tilt, and taper angles.

4. Surface Quality: Dry Film Thickness testing and sandblasting to Sa2.5 grade guarantee corrosion resistance for more than 11 years.

5. Load Testing: To validate that performance surpasses design requirements, destructive testing is conducted to random samples.

Certifications

· ISO 9001:2015 Quality Management

· ISO 14001:2015 Environmental Management

· ISO 45001:2018 Occupational Health & Safety

· Class I Steel Structure Professional Contracting Qualification

Our participation in China Steel Structure Association standards committees ensures every Variable Cross-Section I-Section Beam reflects industry-leading practices.

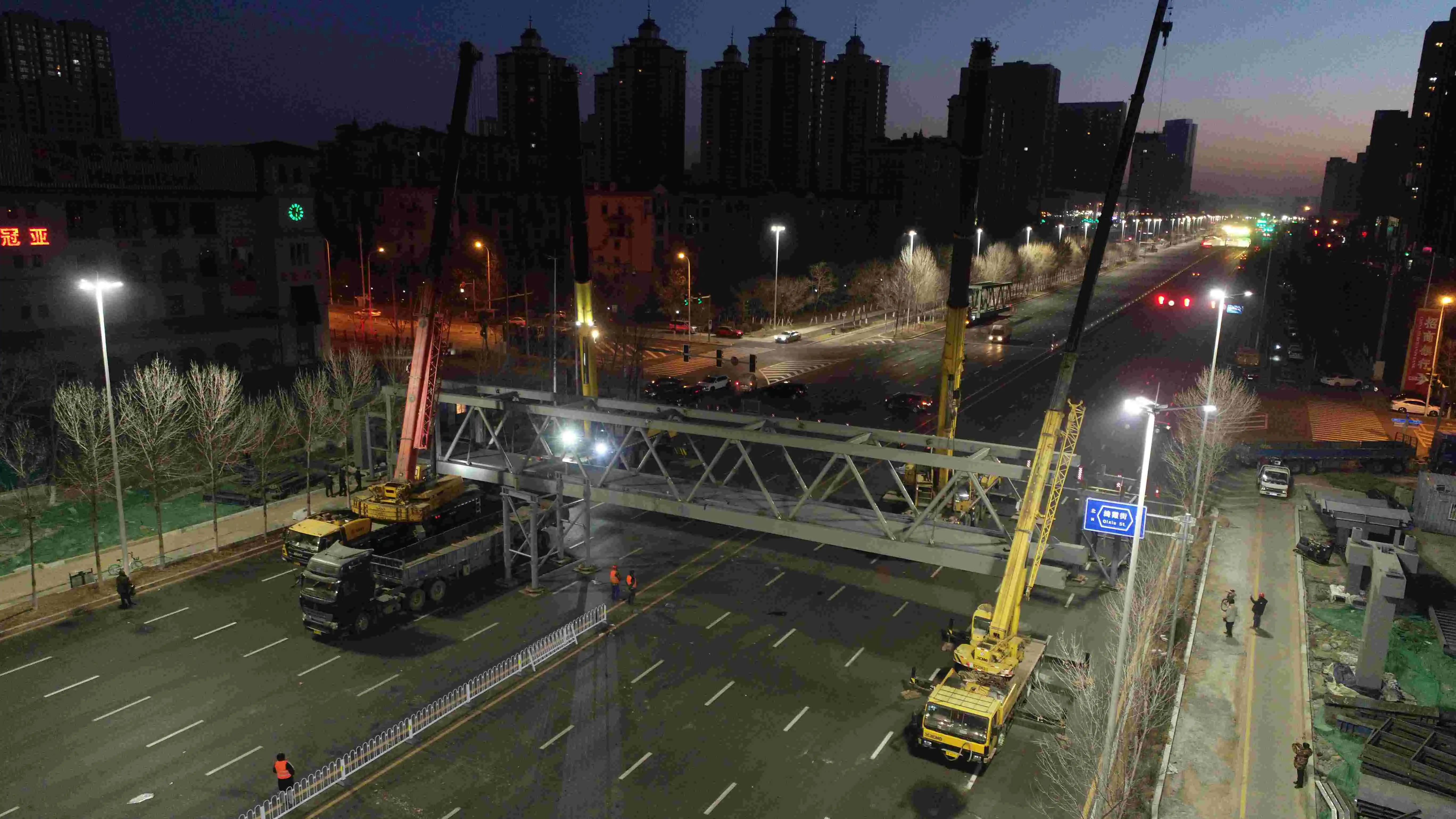

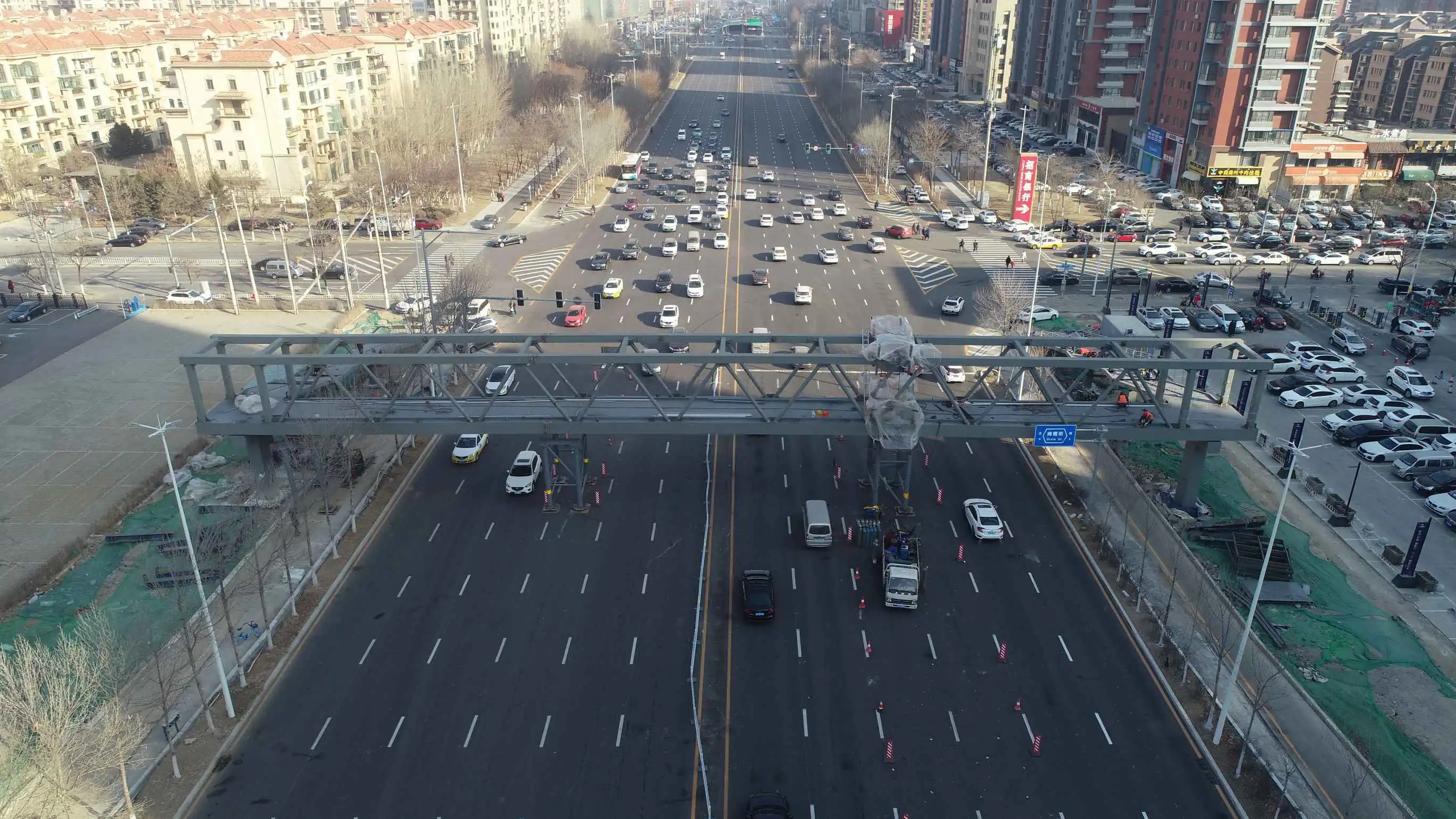

Project Cases / Success Stories

Extension of the Jingha Expressway (2021)

4,200 tons of tapered I-beams were supplied for the construction of overhead bridges. The customer saved $340,000 while adhering to stringent seismic regulations because to the variable depth design, which used 28% less steel than the original uniform-section estimates.

Warehouse Complex in Shenyang Industrial Park (2022)

150 portal frames with web depths tapering from 1100mm to 450mm were delivered utilizing 40m-span beams. Installation completed 18 days ahead of schedule thanks to our precision bolt-hole alignment.

Mining Equipment Support Structure (2023)

Fabricated custom beams for crusher station frames in extreme-load conditions. Our weathering steel solution eliminated the need for ongoing maintenance in harsh outdoor environments.

These projects demonstrate our capability to handle large-scale EPC contracts with complex engineering requirements.

Compliance & Certifications

Your project's regulatory approval depends on verifiable standards compliance. We provide:

Material Certifications

· EN 10204 Type 3.1 Mill Test Certificates

· ASTM A572 Grade 50 conformity

· CE marking for European projects

Testing Documentation

· Ultrasonic testing reports (ASME Section V)

· Charpy impact test results at specified temperatures

· Coating thickness and adhesion test data

International Standards Met

· AISC 360 (USA)

· EN 1090-2 (European Union)

· AWS D1.1 Welding Code

· JIS G3106 (Japan)

All documentation is provided in English with full traceability to support your import clearance and project audits.

Frequently Asked Questions

Q1: Is a Variable Cross-Section I-Section Beam more expensive to fabricate than a standard H-beam?

A: While welding labor costs are slightly higher, the 20–30% reduction in steel weight typically lowers your total project cost. You also save on transportation and foundation expenses.

Q2: How do you handle lateral-torsional buckling?

A: We integrate knee braces and purlin stays at calculated intervals per AISC/Eurocode design standards. Our engineering team provides detailed bracing layouts with every order.

Q3: Can these beams be hot-dip galvanized?

A: Yes. We carefully manage web thickness and welding stress to prevent thermal distortion during the dipping process. Consult our team for specific project requirements.

Q4: What is the maximum taper ratio recommended?

A: Generally, a slope of 1:10 is ideal for welding efficiency and structural stability. Steeper tapers are possible but require additional engineering validation.

Q5: What after-sales support do you provide?

A: Every shipment includes detailed installation manuals, torque specifications for bolted connections, and a 10–25 year anti-corrosion warranty depending on your chosen coating system.

Q6: Can you support overseas projects?

A: Absolutely. We've delivered components for Belt and Road Initiative projects with full EN 1090 and AWS D1.1 compliance. Our export team handles all documentation requirements.

Contact Us

Ready to optimize your next project with intelligent steel solutions featuring Variable Cross-Section I-Section Beam?

Email:  Ava@zd-steels.com
