Galvanized Circular Tube Lattice Column

Galvanized Circular Tube Lattice Column Product Description

Our Galvanized Circular Tube Lattice Column performs very well when your project requires both corrosion resistance and structural efficiency. At Shenyang Zhongda Steel Structure Engineering Co., Ltd., we manufacture these high-performance vertical assemblies using ASTM A500 seamless steel pipes (diameter 114-508mm, wall thickness 5-30mm) with API 5L anti-corrosion certification. Our cutting-edge gas-shielded welding method decreases residual stress by 32%, and hot-dip galvanization produces zinc coatings that are thicker than 85μm and last for more than 50 years without the need for maintenance. With a 3-axis CNC drilling precision of ±0.1mm and an annual production capacity of 80,000 tons, we guarantee compressive strength ≥345MPa for every component. In-stock items ship within 3 days; custom solutions deliver in 25 days.



Galvanized Circular Tube Lattice Columns

.



Product Advantages

Better Ratio of Strength to Weight

Our lattice arrangement maximizes structural efficiency by producing a space frame effect. Compared to solid columns, you can reduce overall weight by up to 30% while still achieving a higher load-bearing capability.A

Outstanding Resistance to Wind

A low drag coefficient (Cd = 0.6-1.2) is provided by the circular cross-section design. This means your structure experiences significantly less wind load, reducing foundation requirements and construction costs..

360-Degree Corrosion Protection

We don't just coat the exterior. Strategic vent and drain holes allow molten zinc to coat interior surfaces during hot-dip galvanization, protecting your investment from inside out.

Precision Engineering

Our CNC cutting systems handle ultra-thick plates up to 300mm with exact accuracy. Every intersection weld undergoes ultrasonic testing to ensure zero penetration defects.

Rapid Deployment

Factory trial assembly verifies all bolt-hole alignments before shipment. This eliminates costly on-site rectification and accelerates your project timeline by 20-30%.

Chemical Environment Ready

With API 5L certification, our columns withstand aggressive industrial and coastal atmospheres. Salt spray testing validates performance in saline environments.

Technical Specifications & Customization

Manufacturing & Quality Control

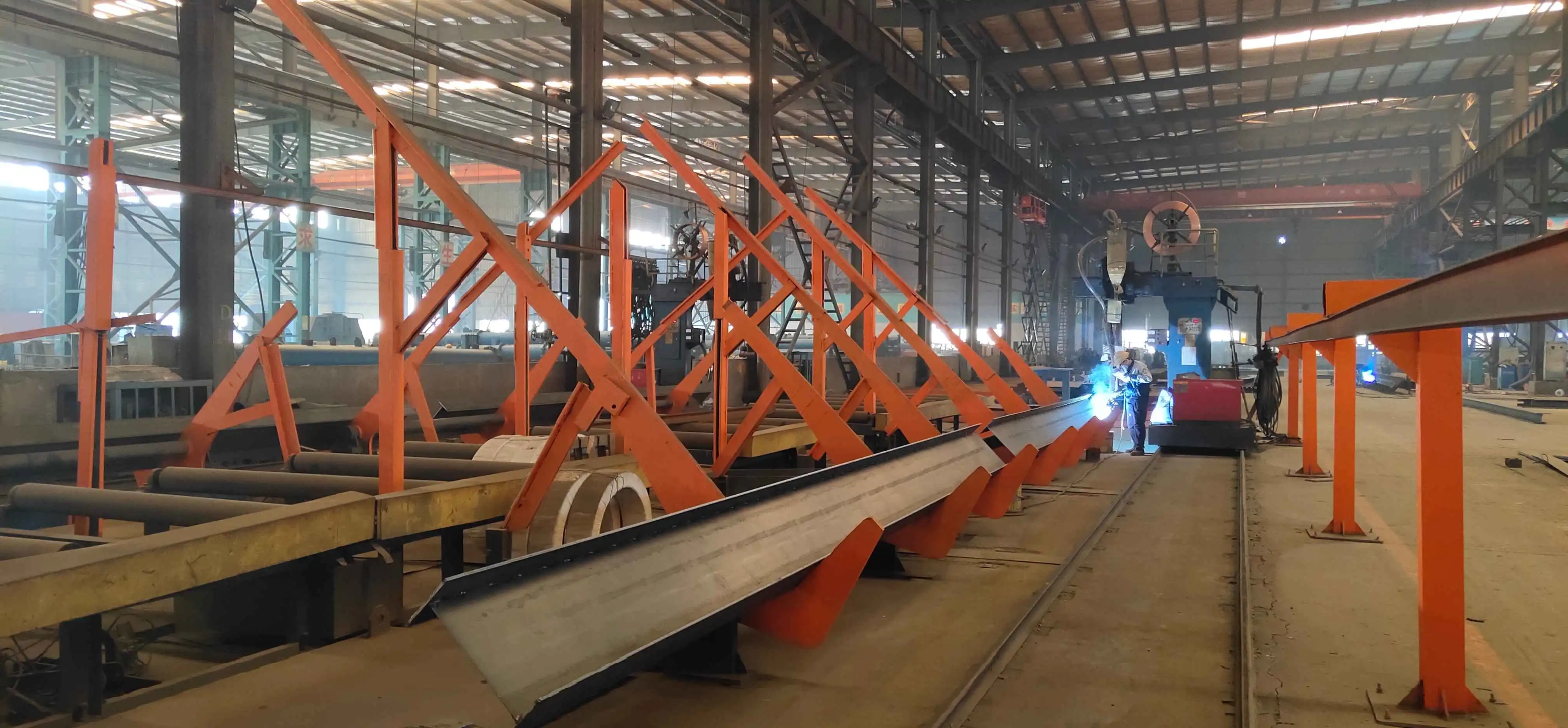

World-Class Production Facility

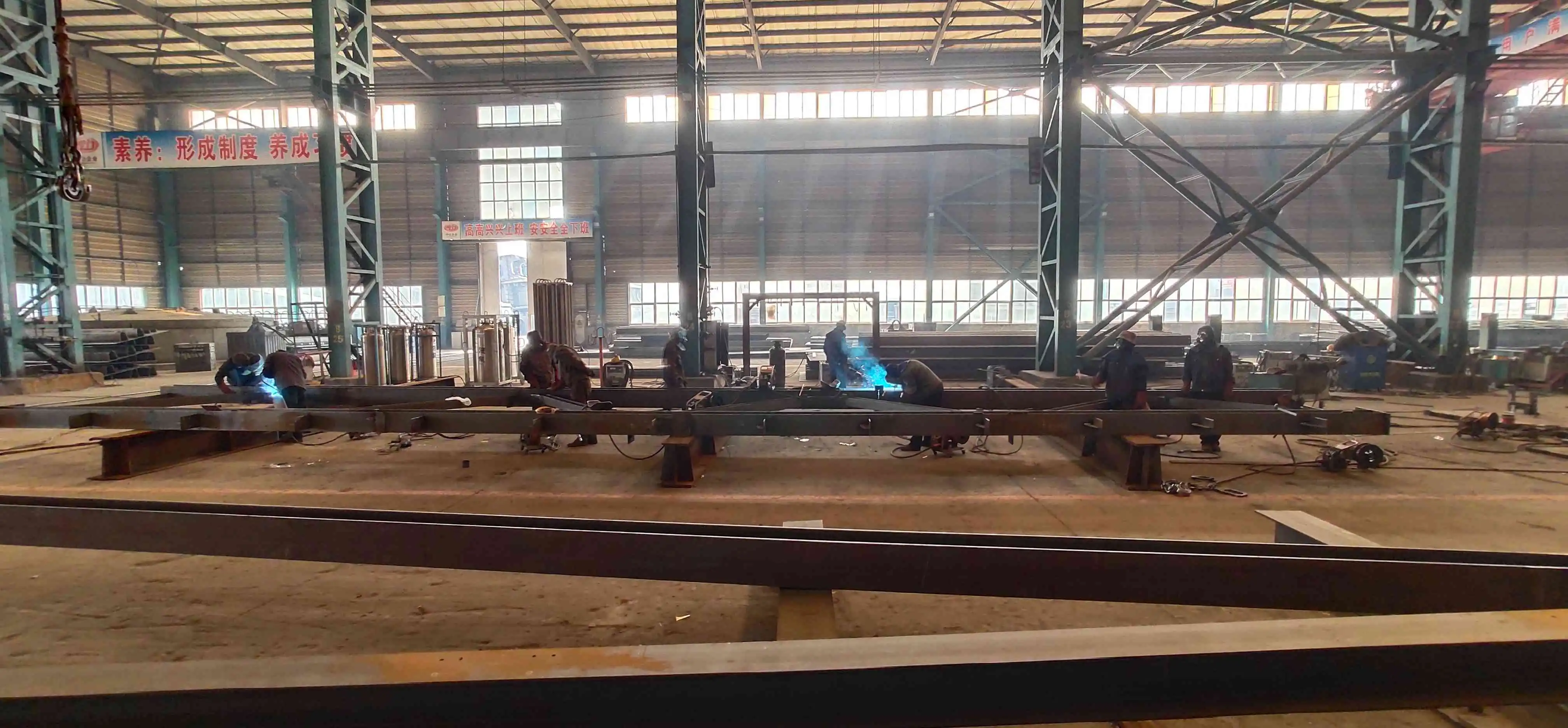

Our 75,000m² manufacturing plant in Shenyang Economic and Technological Development Zone operates with 50T crane capacity and automated welding production lines. We process 80,000 tons of steel structures annually with consistent quality.

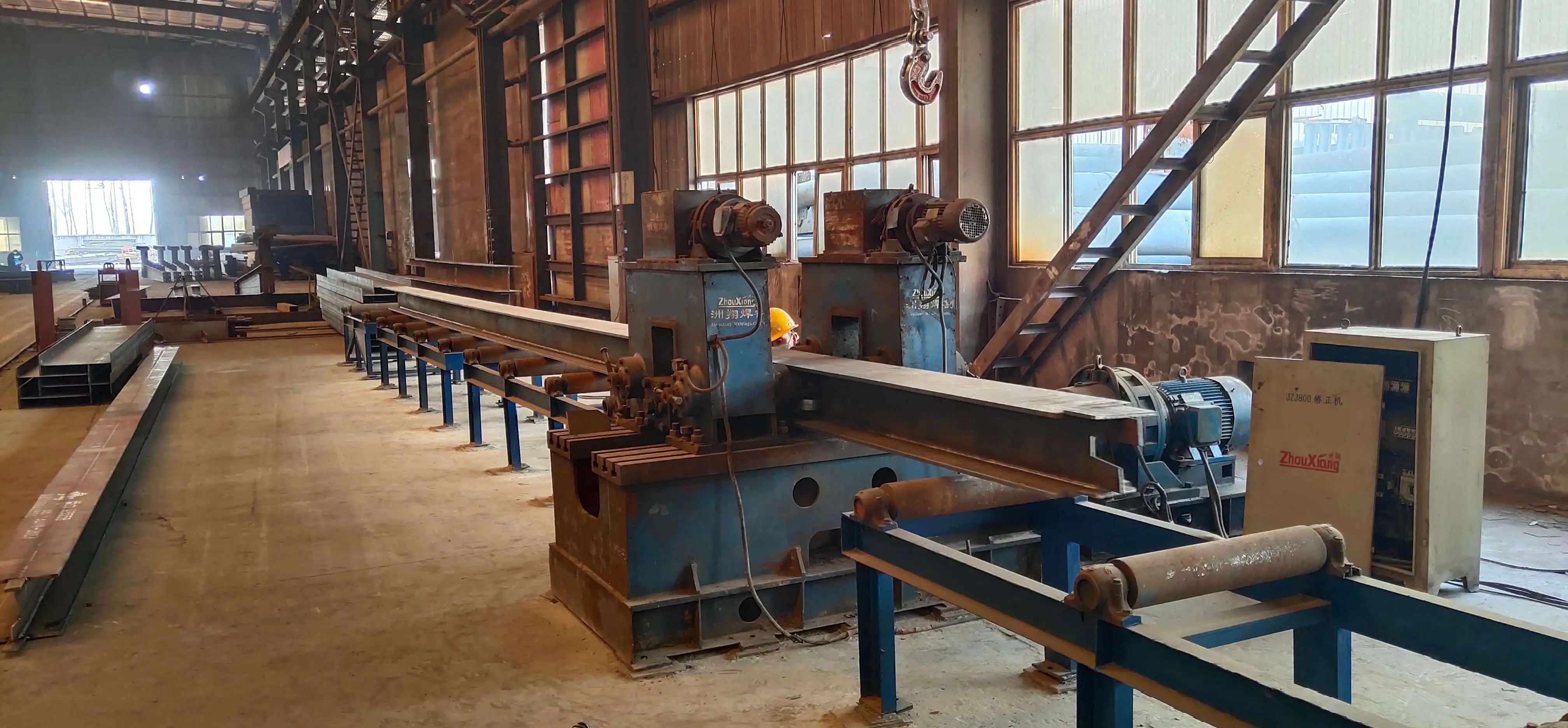

Advanced Equipment Arsenal

· 3-axis CNC drilling systems deliver ±0.1mm precision for perfect bolt alignment

· 1200-ton plate rolling machines handle complex curvature requirements

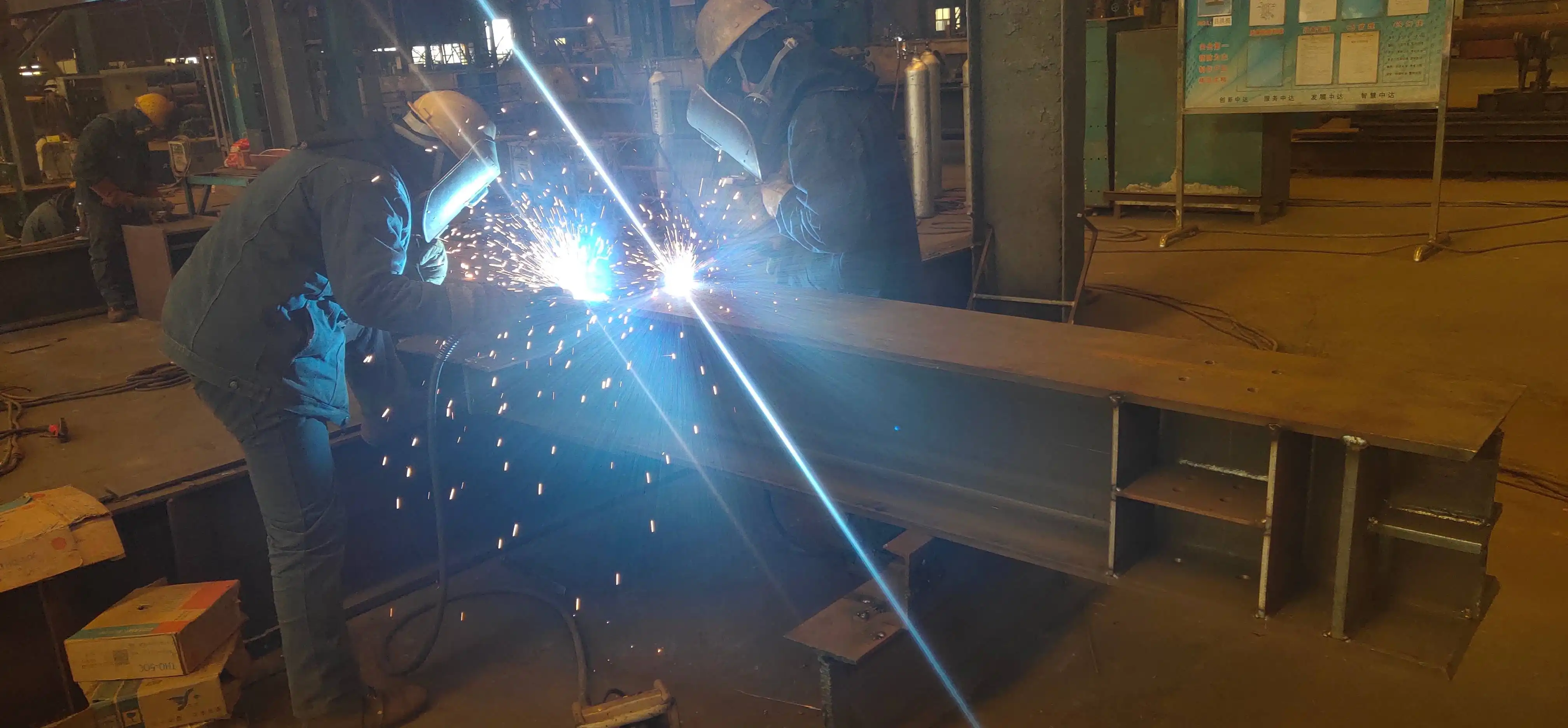

· Gas-shielded welding stations reduce residual stress by 32%

· CNC cutting handles ultra-thick plates up to 300mm

Rigorous Quality Inspection Protocol

Every Galvanized Circular Tube Lattice Column undergoes our five-stage quality assurance:

1. Weld Integrity Testing: Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI) on all intersection welds

2. Dimensional Verification: Laser tracker systems check verticality and section alignment

3. Coating Analysis: Electromagnetic gauges verify zinc thickness per ASTM A123

4. Trial Assembly: Pre-connection at factory ensures on-site installation efficiency

5. Durability Validation: Salt spray testing simulates decades of environmental exposure

International Certifications

· ISO 9001 / ISO 14001 / ISO 45001 certified management systems

· Class I Steel Structure Professional Contracting Qualification

· EN 1090 (EU), AWS D1.1 (USA), JIS (Japan) compliance

· API 5L anti-corrosion certification

Project Cases / Success Stories

Jingha Expressway Expansion Project

We supplied lattice column supports for this major transportation infrastructure upgrade. Our components withstood rigorous inspection by China State Construction Engineering Corporation, with installation completed 22% faster than scheduled due to our pre-verified bolt connections.

Shenyang Industrial Park Pipe Rack System

For a petrochemical facility requiring high chemical resistance, we delivered 180 custom Galvanized Circular Tube Lattice Columns ranging from 12m to 24m height. The project operated in a corrosive environment, where our zinc coating analysis showed zero degradation after 3 years of service.

Heavy Equipment Manufacturing Plant

China Metallurgical Group Corporation selected our lattice columns for their new 45,000m² facility. The circular tube design reduced wind load calculations by 28%, allowing for lighter foundations and significant cost savings.

​​​​​​​​​​​​​​

​​​​​​​

Compliance & Certifications

Our manufacturing processes and products meet rigorous international standards:

· ISO 9001:2015 - Quality Management Systems

· ISO 14001:2015 - Environmental Management

· ISO 45001:2018 - Occupational Health & Safety

· EN 1090 - Execution of Steel Structures (European Standard)

· AWS D1.1 - Structural Welding Code (American Welding Society)

· ASTM A123 - Zinc Coating Specification

· API 5L - Line Pipe Corrosion Resistance

· AISC 360-16 - Specification for Structural Steel Buildings

We provide complete documentation including Material Test Certificates (MTC), inspection reports, and English technical drawings for all international projects.

Frequently Asked Questions

Q: Why choose circular tubes over angle steel for lattice columns?

A: Circular tubes provide superior aerodynamic performance and 360-degree torsional resistance. You'll achieve significant material savings in high-wind zones while maintaining structural integrity.

Q: How do you prevent internal corrosion in the tubes?

A: During hot-dip galvanization, we strategically place vent and drain holes to allow molten zinc complete interior access. This provides total immersion protection, not just surface coating.

Q: What's the expected service life?

A: In C3 environments (urban/industrial), you can expect 50+ years before first maintenance. Our salt spray testing validates this longevity prediction.

Q: Can these columns work in seismic zones?

A: Absolutely. We customize the lattice configuration and tube wall thickness to meet specific ductility requirements. Our BIM-based design optimizes seismic performance for your project location.

Q: How do you handle site-welding damage to galvanization?

A: Any field modifications require repair using high-purity zinc-rich primers or thermal zinc spraying. We provide detailed repair specifications with every shipment.

Q: What industries commonly use these columns?

A: Power transmission towers, telecommunication infrastructure, petrochemical pipe racks, sports stadiums, airport terminals, and bridge support systems all benefit from this structural solution.

Q: Do you offer installation support?

A: Yes. As a Class I Steel Structure Professional Contractor, we provide complete EPC solutions including design, fabrication, installation, and maintenance services.

Contact Us

Ready to discuss your project requirements? Our engineering team at Shenyang Zhongda Steel Structure Engineering Co., Ltd. is here to help you optimize your structural design with our Galvanized Circular Tube Lattice Column solutions.

Get in touch today: Ava@zd-steels.com
