Q355B Welded H-Section Lattice Column

Q355B Welded H-Section Lattice Column – Enterprise-Grade Structural Solutions

Our Q355B Welded H-Section Lattice Column offers proven performance when your project requires both remarkable load-bearing capacity and material efficiency. Each column, which is produced at our 75,000 m² plant with an annual capacity of 80,000 tons, has precision-welded lacing plates and Q355B low-alloy steel with a yield strength of at least 355 MPa. With axial load capacity exceeding 2000kN and column heights ranging from 200-600mm, these lattice columns save you 50% construction time compared to concrete alternatives. Our CNC drilling systems maintain ±0.1mm precision while automated welding lines ensure consistent quality across every component. We offer seismically certified structures with a typical lead time of 20 days, supported by CE and EN 10025 certifications.

Product Description

Our lattice columns solve the challenge of supporting massive vertical loads without excessive material consumption. The design combines H-section steel chords with strategically placed lacing plates, creating superior torsional rigidity for tall structures.

You get high strength-to-weight performance. The lattice configuration optimizes the slenderness ratio, preventing global buckling while maintaining lightweight construction requirements.

The Q355B material grade provides 50% higher yield strength than standard Q235 steel. This means smaller cross-sections and reduced overall weight for your projects.

Each column undergoes symmetrical welding sequences. This critical process cancels thermal shrinkage stresses, preventing warping and ensuring straightness within 1/1000 of length.

Whether you're building deep foundation pit supports or high-rise building columns, you receive structures engineered for real-world performance.



Q355B Welded H-Section Lattice Column



Product Advantages

Superior Load-Bearing Efficiency

You achieve axial capacities exceeding 2000kN while using significantly less material than solid sections of equal weight. The lattice design maximizes moment of inertia, giving you structural efficiency where it matters most.

Accelerated Construction Timeline

Save 50% construction time versus traditional concrete columns. Our modular design reduces on-site installation complexity and labor costs dramatically.

Enhanced Seismic Performance

The lattice structure provides excellent energy dissipation during seismic events. When detailed according to seismic codes, you get high ductility and reliable performance in earthquake-prone zones.

Optimized for Dynamic Loads

Perfect for workshops with heavy-tonnage overhead cranes. The lateral stiffness resists dynamic braking loads that would compromise lesser structures.

Weather-Resistant Design

Our lattice configuration reduces wind drag on tall structures while maintaining stability. This makes the columns ideal for bridge piers and transmission towers in exposed environments.

Cost-Effective Customization

You can specify column combinations and anti-corrosion treatments tailored to your project conditions. Hot-dip galvanizing or epoxy coating options ensure long-term durability per ISO 12944 standards.

Technical Specifications & Customization

Customization Capabilities:

·Column combination configurations for complex load scenarios

·Base plate dimensions and anchor bolt layouts

·Surface treatments for corrosive or remote environments

·Special welding procedures for sub-zero construction

·BIM-integrated design documentation in English

Manufacturing & Quality Control

State-of-the-Art Fabrication

Our 120,000 m² facility in Shenyang Economic and Technological Development Zone houses advanced equipment specifically configured for lattice column production. You benefit from 50T crane capacity workshops and 1200-ton plate rolling machines that handle the most demanding specifications.

Precision Welding Systems

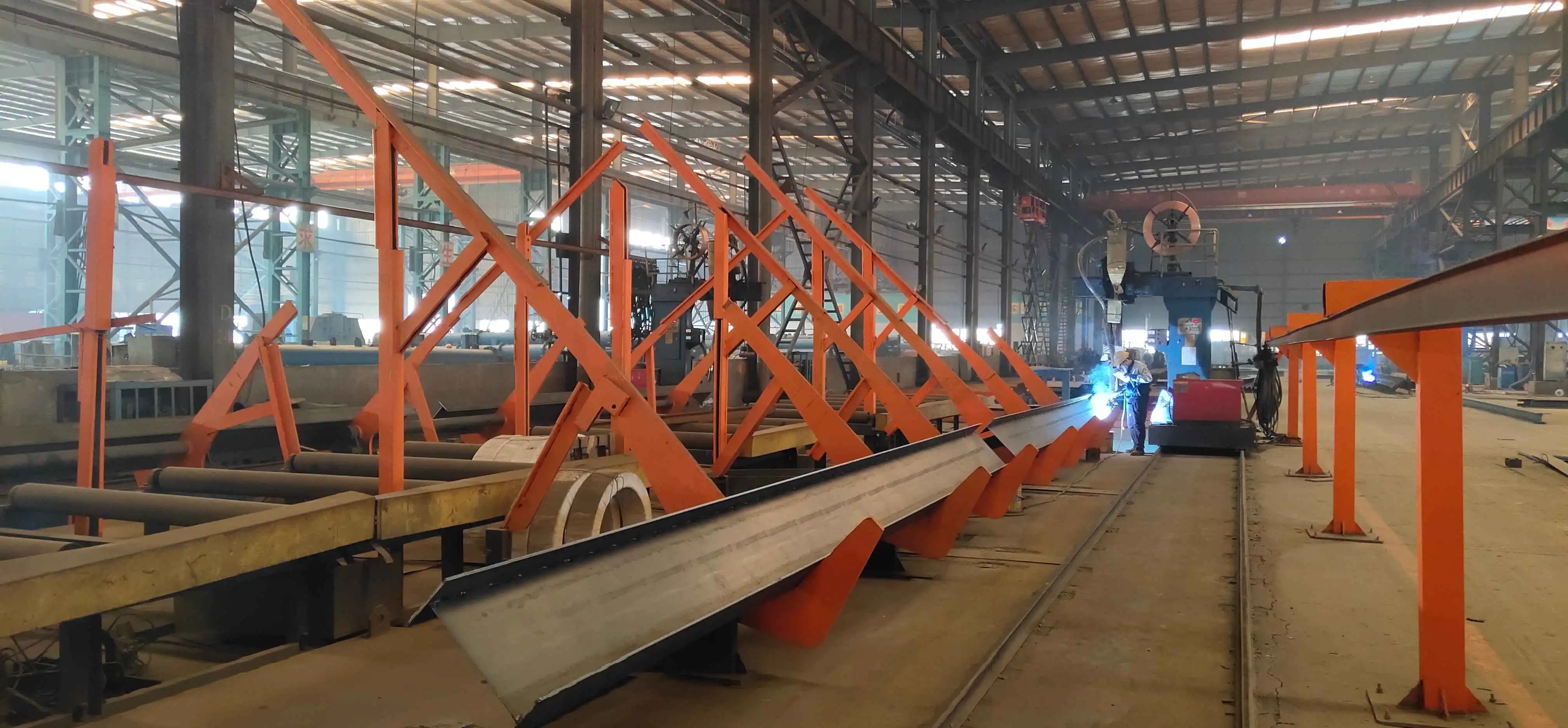

Automated welding production lines execute symmetrical welding sequences that prevent thermal distortion. Our welders follow AWS D1.1 procedures, ensuring consistent penetration and zero-defect connectivity on every chord-to-lacing joint.

Multi-Stage Inspection Protocol

Material Verification

Every steel batch undergoes tensile testing and impact testing at 0°C. You receive Material Test Certificates (MTC) confirming Q355B grade compliance with carbon equivalent (Ceq) optimized for crack resistance.

Weld Quality Assurance

·Ultrasonic Testing (UT) and Radiographic Testing (RT) on all butt welds

·Magnetic Particle Testing (MT) for fillet welds between lacing bars and chords

·100% visual inspection per GB 50205 construction standards

Dimensional Accuracy

CNC drilling systems maintain ±0.1mm precision across thousands of connection points. Our quality team verifies straightness tolerances and base plate perpendicularity before any column leaves the facility.

Coating Verification

When you order anti-corrosion treatments, we measure coating thickness at multiple points, ensuring compliance with your specified protection level.

ISO Triple Certification

Our operations maintain ISO 9001, ISO 14001, and ISO 45001 certifications. This integrated management system ensures consistent quality while minimizing environmental impact and protecting worker safety.

Project Cases

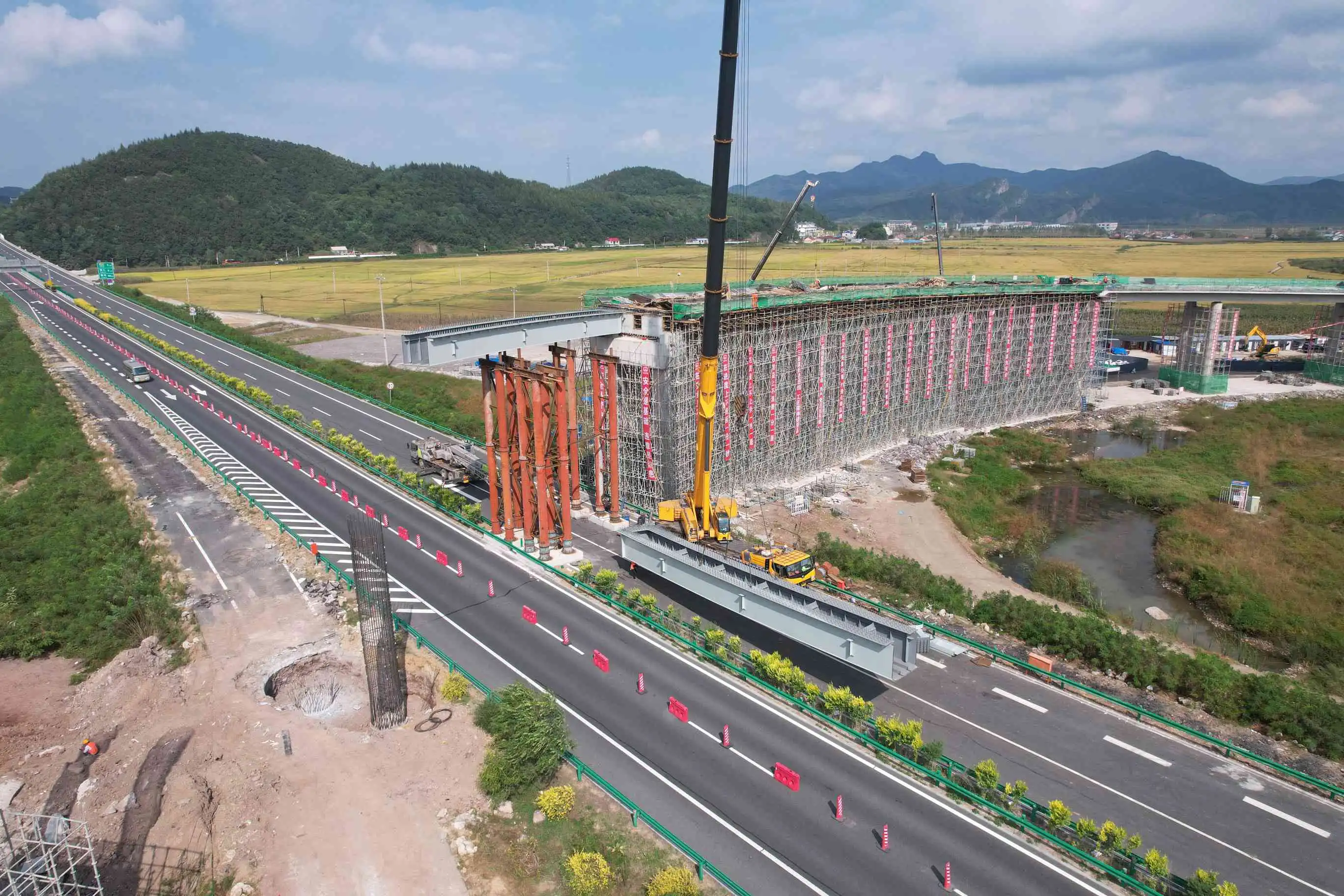

Shenyang Dongta Cross-Hunhe River Bridge

Our team fabricated and installed 18,000 tons of structural steel for this landmark bridge project. The Q355B Welded H-Section Lattice Column components served as temporary support towers during the swivel construction phase, demonstrating exceptional stability under complex load scenarios.

Jingha Expressway Expansion Projects

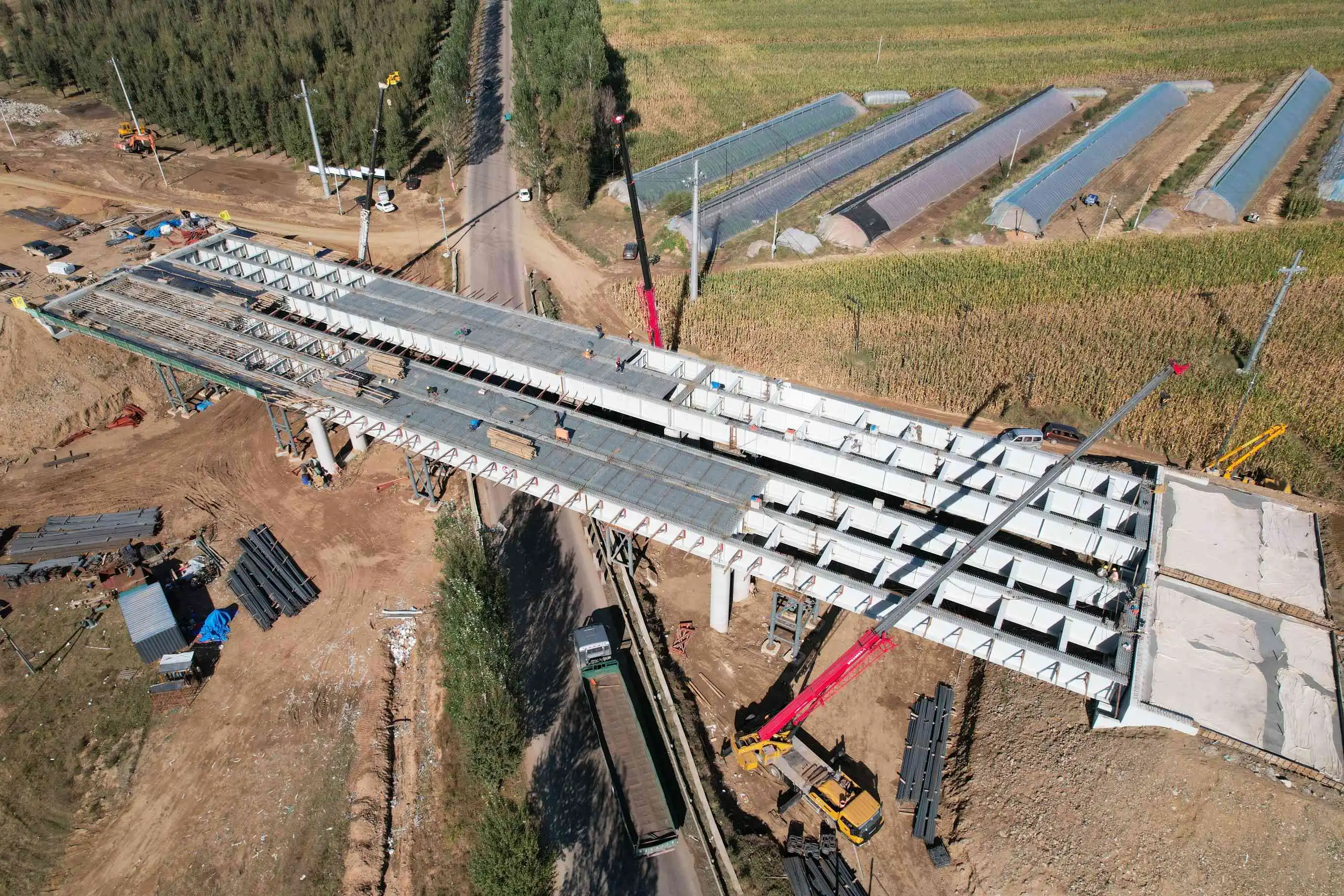

Multiple highway infrastructure projects utilized our lattice columns for bridge piers in challenging terrains. The reduced wind drag design proved critical in exposed high-wind locations where solid sections would have required impractical foundation reinforcement.

Heavy Industrial Workshop Facilities

For workshops housing 100-ton overhead cranes, we delivered custom lattice columns that resist dynamic braking loads while maintaining clear span requirements. These facilities operate in China State Construction Engineering Corporation and China Railway Group Limited projects.

Power Transmission Infrastructure

Remote high-voltage tower installations benefited from our lattice design's height-to-weight optimization. The structures minimize steel usage while meeting stringent stability requirements in corrosive coastal environments.



Compliance & Certifications

International Standards

·EN 1090: European structural steel execution certification

·EN 10025: Material compliance for structural steels

·CE Marking: European Conformity declaration

·AWS D1.1: American Welding Society structural welding code compliance

Chinese Standards

·GB/T 1591: Low-alloy high-strength structural steel specifications

·GB 50205: Code for acceptance of construction quality of steel structures

·GB 50017: Design code for steel structures with seismic provisions

Management Systems

·ISO 9001: Quality Management

·ISO 14001: Environmental Management

·ISO 45001: Occupational Health and Safety

Seismic Verification

Each column design includes seismic verification reports confirming energy dissipation capacity and ductility performance in earthquake zones.

Documentation Package

You receive complete English technical documentation including material certificates, inspection reports, fabrication drawings, and installation guidelines.

FAQ

Q: Why should I choose Q355B over Q235 for my lattice columns?

A: Q355B provides 50% higher yield strength, allowing you to use smaller cross-sections and achieve significant weight reduction. This translates to lower foundation costs and easier transportation, especially for tall structures where material savings compound.

Q: How does the lacing angle affect my column's performance?

A: We maintain angles between 45° and 60° to ensure optimal shear transfer without inducing excessive secondary stresses. This range balances load distribution efficiency with weld accessibility during fabrication.

Q: Can these columns withstand seismic activity?

A: Yes. The lattice structure provides excellent energy dissipation and high ductility when detailed according to seismic codes. We supply seismic verification reports with every order for earthquake-prone regions.

Q: What's your quality control process for weld integrity?

A: We perform Ultrasonic Testing and Radiographic Testing on butt welds, plus Magnetic Particle Testing on fillet welds. Our symmetrical welding sequence prevents thermal warping, ensuring straightness within 1/1000 of length.

Q: How long does delivery take for custom specifications?

A: Standard production requires 20 days. If you need special anti-corrosion treatments like hot-dip galvanizing, add 5 days. We'll provide a detailed timeline based on your specific requirements.

Contact Us

Ready to optimize your next structural project with enterprise-grade Q355B Welded H-Section Lattice Column? Our engineering team at Shenyang Zhongda Steel Structure Engineering Co., Ltd. is ready to discuss your specific requirements..
