Variable Cross-Section Welded Steel Beam

Variable Cross-Section Welded Steel Beam - Enterprise-Grade Structural Solutions Product Description

Our Variable Cross-Section Welded Steel Beam performs very well when your project requires optimal efficiency without sacrificing strength. These tapered beams, which are produced in our state-of-the-art 75,000 m² facility, preserve greater load-bearing capacity while reducing structural weight by 15–30% when compared to standard H-beams. Before being shipped, every beam, which is made of Q345C low-alloy steel with web thicknesses ranging from 6 to 36 mm, is subjected to 100% ultrasonic testing. With CNC cutting technologies that process plates up to 300mm thick with ±0.1mm precision, we can produce up to 80,000 tons per year. We have successfully supplied these optimized beams to over 60 landmark projects, including bridge systems spanning 20 to 50 meters, with automated submerged arc welding lines and a tested 10-year warranty.



Variable Cross-Section Welded Steel Beams



Product Advantages

Weight Optimization & Cost Efficiency

You'll immediately notice the difference in your project budget. Our Variable Cross-Section Welded Steel Beam removes excess material from low-stress zones, cutting steel consumption by up to 30%. This translates directly to lower foundation requirements and reduced transportation costs.

Superior Structural Performance

The tapered design aligns perfectly with your actual bending moment distribution. You get maximum stiffness exactly where loads peak, particularly at support points. This engineering precision enhances stability in high-vibration environments like bridge applications.

Advanced Manufacturing Precision

Your beams benefit from our 3-axis CNC drilling systems and automated welding technology. We maintain precise web tapering through CNC plasma cutting. Our 1200-ton plate rolling machines ensure consistent quality across every custom specification.

Rapid Project Delivery

Time matters in your construction schedule. We deliver custom Variable Cross-Section Welded Steel Beam orders in 20-25 days. In-stock standard profiles ship within just 3 days, keeping your project timeline on track.

Reduced Carbon Footprint

Your sustainability goals align with our green construction approach. Lower steel consumption means fewer emissions during production and transportation. You're choosing an environmentally responsible solution without sacrificing performance.

Versatile Application Range

From large-span portal frames exceeding 30 meters to heavy-duty bridge girders and architectural cantilevers, these beams adapt to your most challenging requirements. The tapering profile manages massive wind loads while delivering modern aesthetics.

Technical Specifications & Customization

Manufacturing & Quality Control

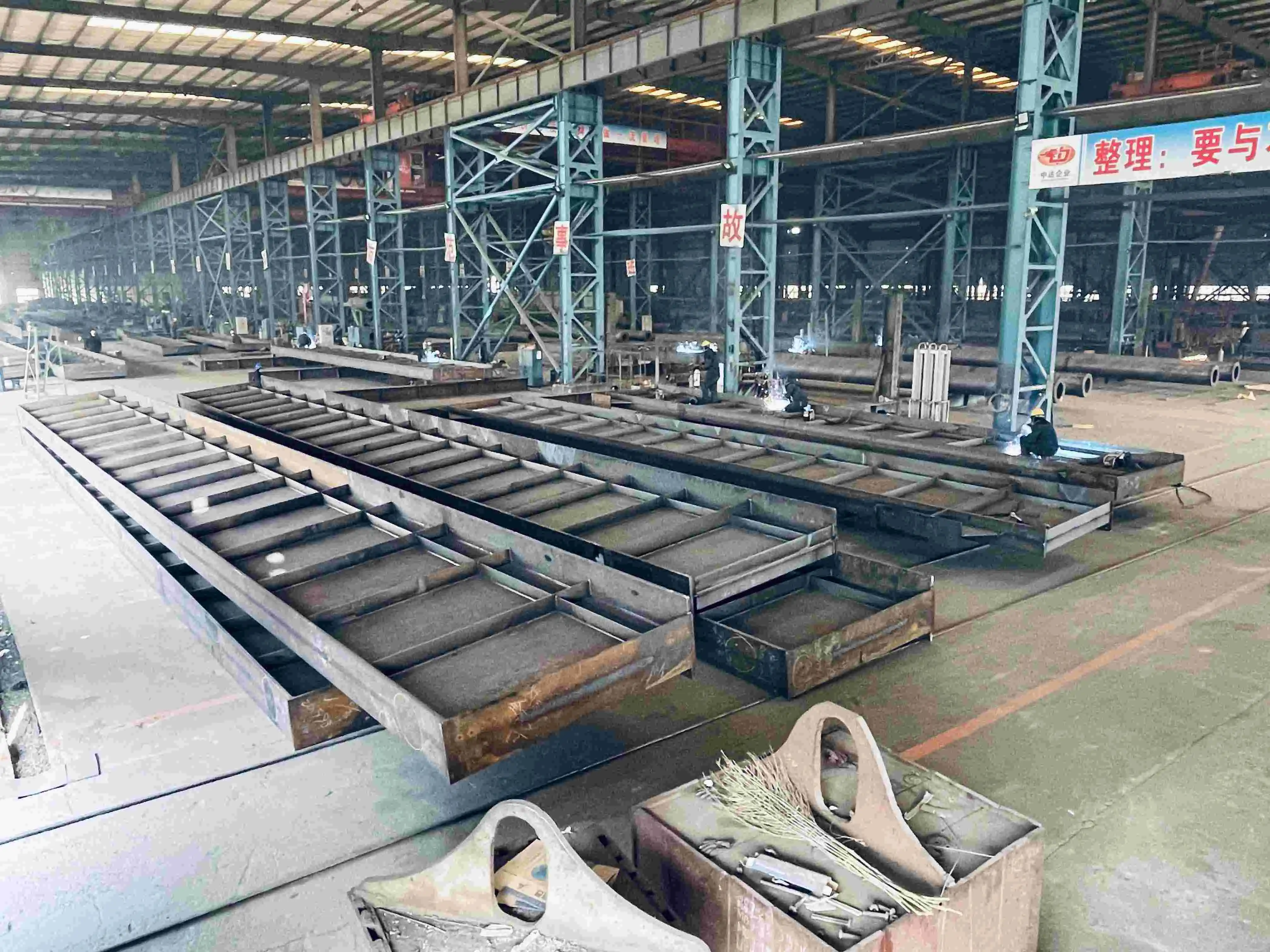

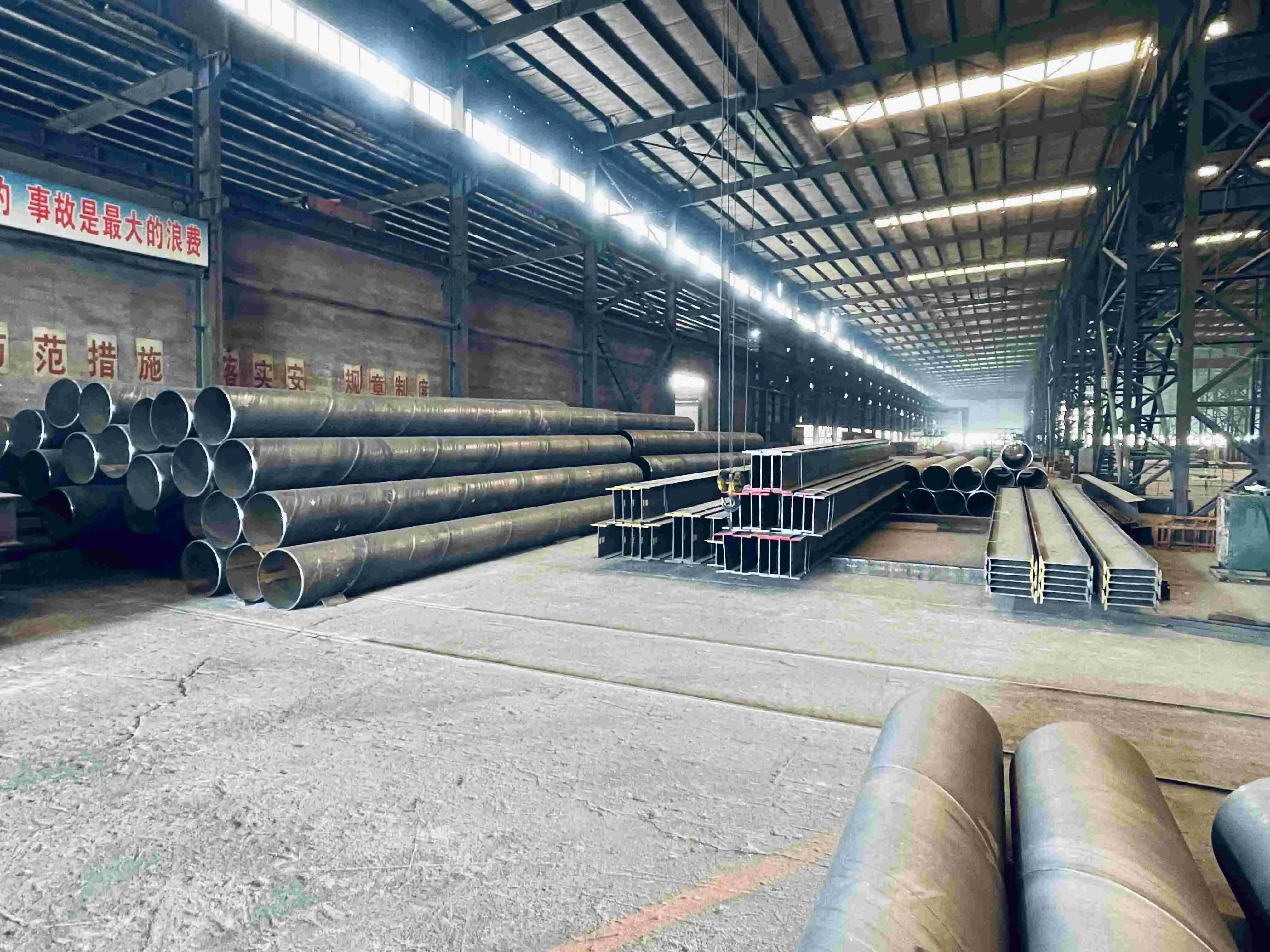

State-of-the-Art Production Facility

Your beams are manufactured in our 120,000 m² facility equipped with 50-ton crane capacity. Our automated production lines integrate BIM-based digital design for full lifecycle management, ensuring every dimension matches your engineering requirements.

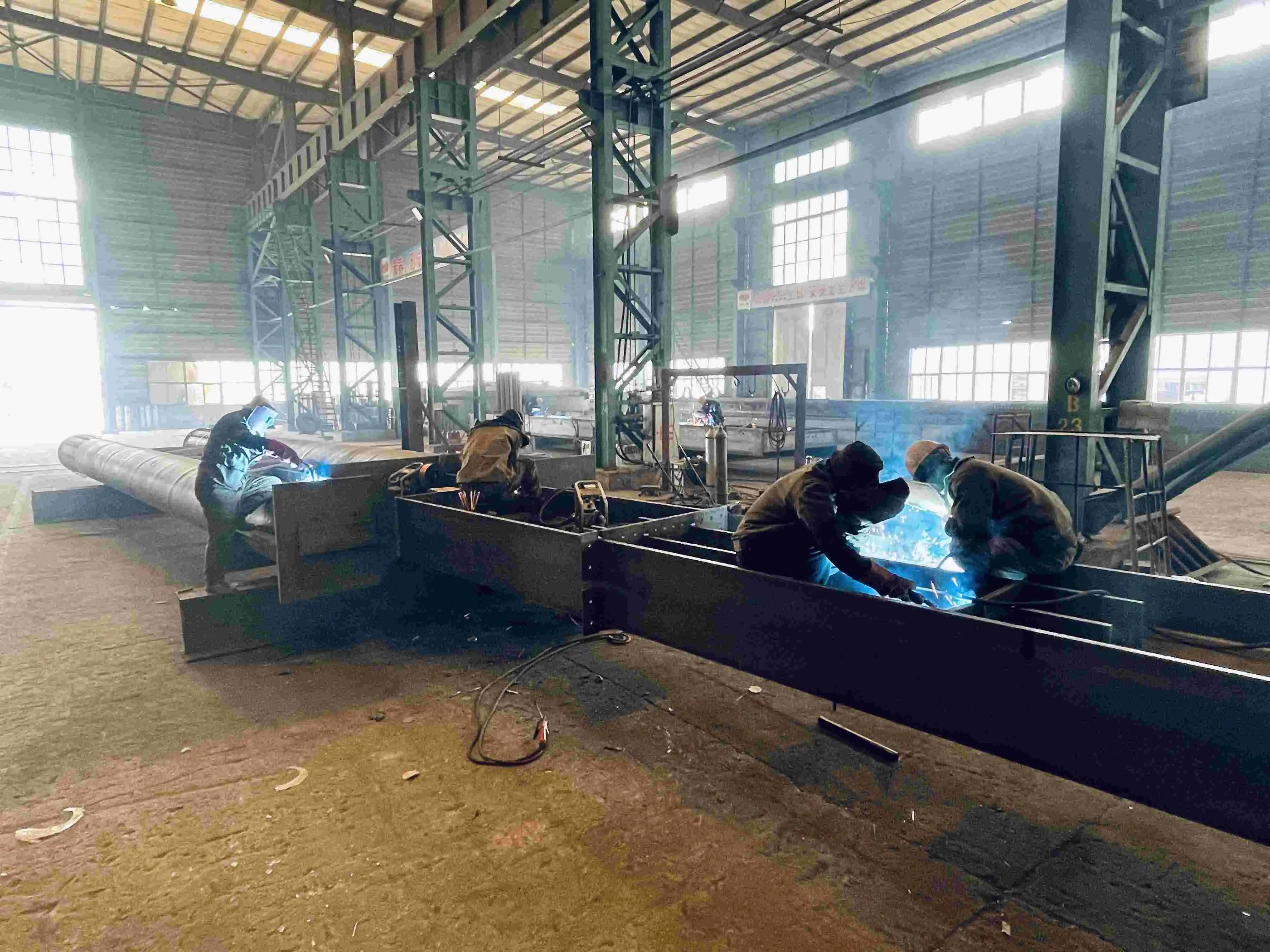

Precision Fabrication Process

We deploy specialized hydraulic jigs during welding to counteract thermal stresses in non-uniform shapes. Symmetrical SAW welding sequences prevent deformation, maintaining structural integrity across all taper transition zones.

Multi-Stage Inspection Protocol

Dimensional Verification: Every beam undergoes web depth variation and flange parallelism checks at transition zones using laser measurement systems.

Non-Destructive Testing: 100% ultrasonic testing (UT) detects internal defects. Magnetic Particle Inspection (MPI) examines web-to-flange fillet welds for surface discontinuities.

Trial Assembly: Final verification includes test fitting to ensure variable angles align perfectly with connecting members, eliminating on-site installation risks.

Surface Quality: We verify Sa2.5 sandblasting cleanliness and measure Dry Film Thickness (DFT) of anti-corrosive coatings to guarantee long-term durability.

Quality Certifications

Our ISO 9001, ISO 14001, and ISO 45001 certified management systems ensure consistent quality. Every shipment includes Material Test Certificates (MTC), inspection reports, and English technical drawings for seamless project documentation.

Project Cases

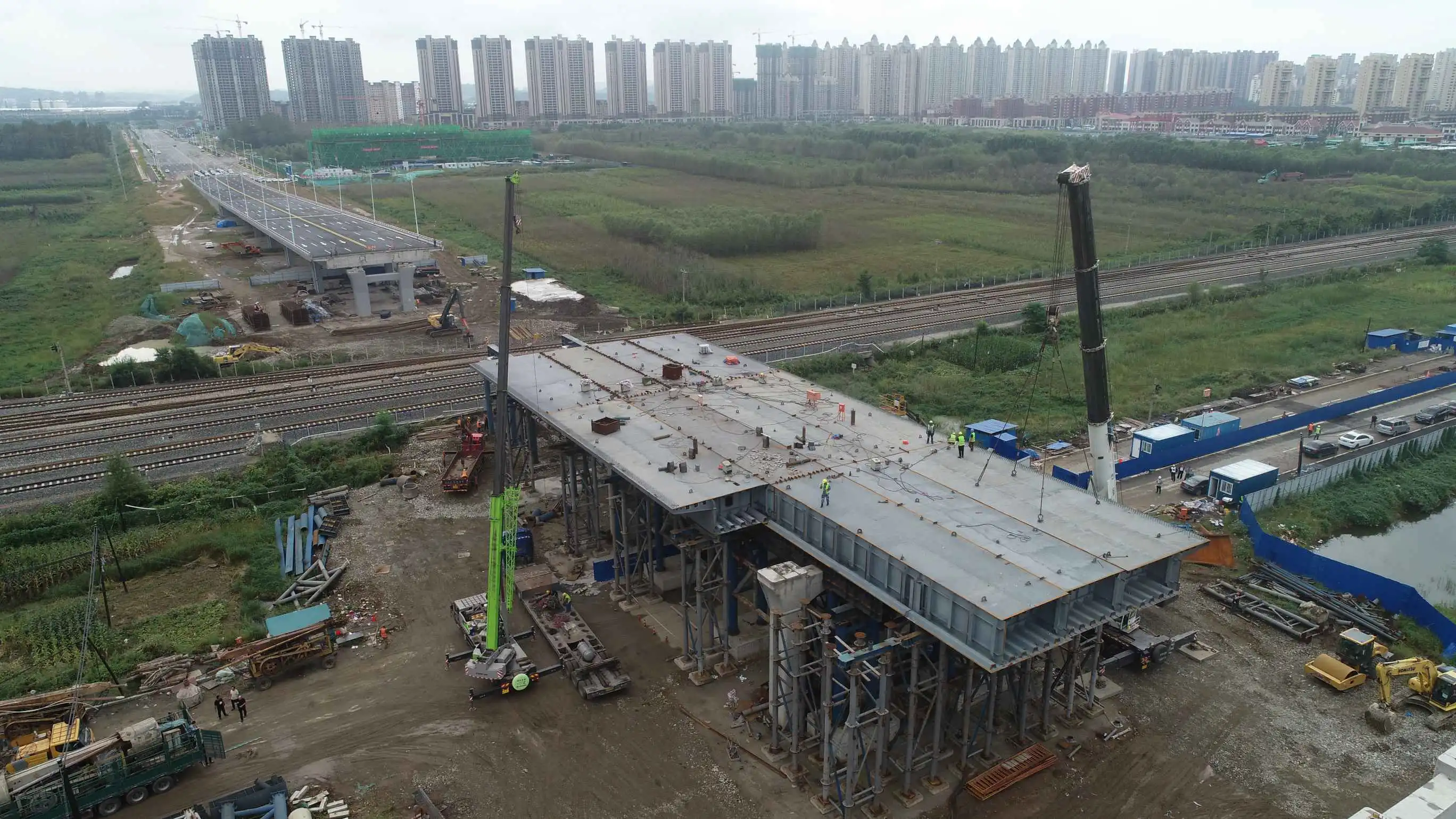

Shenyang Dongta Cross-Hunhe River Bridge

We fabricated 18,000 tons of specialized steel components for this landmark infrastructure project. Our tapered beam systems handled peak shear forces at support points while reducing overall structural weight, enabling faster construction and lower foundation costs.

Jingha Expressway Expansion

Variable cross-section beams provided the optimal solution for multiple overpass structures. The design achieved clear spans exceeding 35 meters, eliminating intermediate supports and maintaining traffic flow during construction.

Industrial Logistics Centers

We've delivered portal frame systems to major distribution facilities across Northeast China. The tapered profile allowed spans beyond 30 meters without internal columns, maximizing storage volume for our clients while reducing steel consumption by 25%.

Compliance & Certifications

Your project compliance is guaranteed through our comprehensive certification portfolio:

· ISO 9001:2015 – Quality Management Systems

· ISO 14001:2015 – Environmental Management

· ISO 45001:2018 – Occupational Health & Safety

· National High-Tech Enterprise – Recognized innovation capability

· Class I Steel Structure Professional Contracting Qualification

· China Steel Structure Association Member

We meet your global project requirements with complete documentation while adhering to international standards such as EN 1090 (EU), AWS D1.1 (USA), and JIS (Japan).

FAQ

Q1: In tapered sections, how can welding deformation be avoided?

A: To combat heat stresses, we employ symmetrical SAW welding sequences and customized hydraulic jigs. Our automated solutions minimize distortion across non-uniform shapes by maintaining constant heat input.

Q2: What is the highest taper ratio you are able to create?

A: Slopes that provide steady stress flow without localized buckling are usually maintained. Certain ratios are determined by design codes such as Eurocode or AISC. To maximize the taper profile, our engineering team assesses each project.

Q3: Are these beams suitable for high-seismic zones?

A: Absolutely. Their reduced mass decreases seismic inertial forces, making them safer than heavier uniform beams. We've successfully supplied structures in seismic regions with proper ductile detailing.

Q4: How do you ensure weld joint durability?

A: Every joint undergoes AWS-certified inspections. We apply post-weld stress relief when required. Our 10-year warranty reflects our confidence in weld quality and long-term performance.

Q5: Does the tapered shape increase transportation costs?

A: Not typically. The tapering often allows for efficient nesting during loading, which can actually optimize shipping volume compared to standard beams. We coordinate with logistics partners to minimize your freight expenses.

Q6: Can you provide English documentation for international projects?

A: Yes. We supply complete Material Test Certificates, NDT reports, and English technical drawings. Our export team has supported Belt and Road Initiative projects with full compliance documentation.

Contact Us

Ready to optimize your structural design with our Variable Cross-Section Welded Steel Beam solutions? Our engineering team is here to discuss your specific project requirements.
