 Platform Column – Heavy-Duty Structural Support for Industrial Platforms

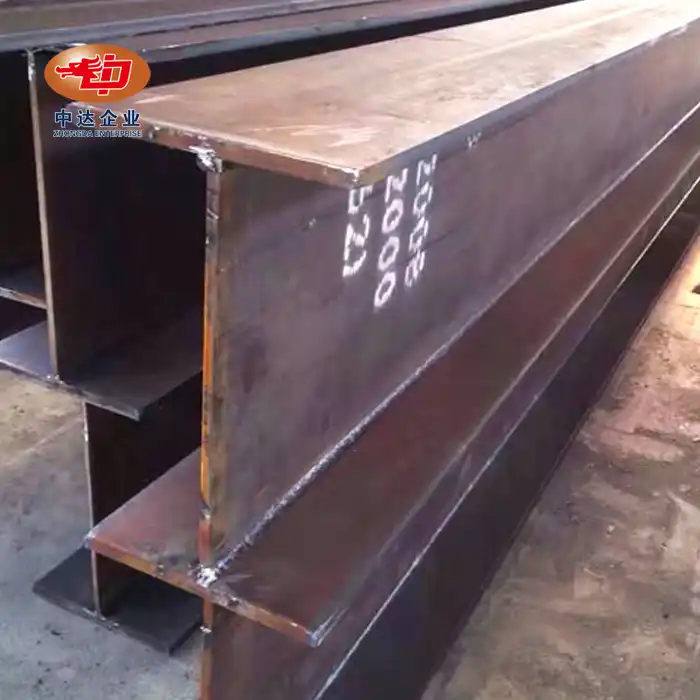

A Platform Column from Shenyang Zhongda offers enterprise-grade performance when you require dependable vertical support for equipment staging areas, storage mezzanines, or elevated work zones. Our structural support systems are built from hot-rolled Q345B H-shaped steel with sections ranging from 200×200mm to 400×400mm, engineered to bear uniform loads ≥5 kN/m² across beam spans up to 12 meters. We guarantee that every column satisfies stringent dimensional tolerances and load-testing compliance thanks to our ISO 9001 accreditation, over 80,000 tons of annual fabrication capacity, and ±0.1mm CNC drilling precision. Our columns provide unparalleled stability for your vital infrastructure, supported by 20 years of extensive project execution knowledge and cutting-edge NDT inspection techniques.

Product Description

Heavy equipment staging structures, multi-tier mezzanines, and elevated industrial platforms are all supported by this precisely constructed vertical load-bearing section.

It will be extremely useful when you need to:

• Make the most of vertical space in manufacturing plants, warehouses, and logistical hubs.
• When handling dynamic loads from heavy machinery, conveyors, and forklifts, make sure the structure is intact.
• Permit modular expansion for rapidly changing manufacturing layouts.
• Meet strict safety norms such as OSHA, Eurocode 3, and AISC standards

Our vertical load-bearing supports act as the primary conduit transferring gravity and lateral forces from your platform deck directly to the foundation. It eliminates instability risks associated with temporary supports while optimizing floor space with high-clearance spans beneath.

You get a tested, certified solution that adapts to your operational demands—whether you're building petrochemical access platforms, data center infrastructure tiers, or high-throughput logistics mezzanines.



Platform Column



Product Advantages

1. Superior Load-Bearing with Precision Engineering

Hot-rolled Q345B steel with yield strengths more than 345 MPa is used in our Platform Column systems. Perfect fit during bolted assembly is ensured by the ±0.1mm hole alignment tolerances achieved by CNC drilling. This precision lowers on-site changes by up to 70%.

2. Quick Assembly of Modules

Each column may be installed in less than 30 minutes thanks to pre-engineered bolt-on connections. During facility upgrades or seasonal expansions, you reduce production downtime and save labor costs.

3. Resistance to Corrosion Over Time

Hot-dip galvanizing with zinc coating ≥120μm provides 30 years of weather resistance in industrial, coastal, or high-humidity environments. Optional fluorocarbon coating adds UV protection for outdoor applications.

4. Lateral and Seismic Stability

During seismic events, integrated base plates are intended to dissipate energy in a regulated manner. Our engineering team optimizes slenderness ratios to prevent buckling, even for columns longer than four meters without intermediate bracing.

5. Full Compliance & Traceability

Every column ships with load calculation reports, Material Test Certificates (MTC), and inspection documentation complying with ISO 9001, EN 1090, and AWS D1.1 requirements. This guarantees smooth acceptance from your insurers and safety inspectors.

6. Tailoring for Complicated Environments

We tailor column sections, base plate designs, and coating systems to your specific load requirements, environmental conditions, and integration with existing structures. Clash-free installation is guaranteed by BIM-based design.

Specifications & Customization

Manufacturing & Quality Control

Advanced Fabrication Infrastructure

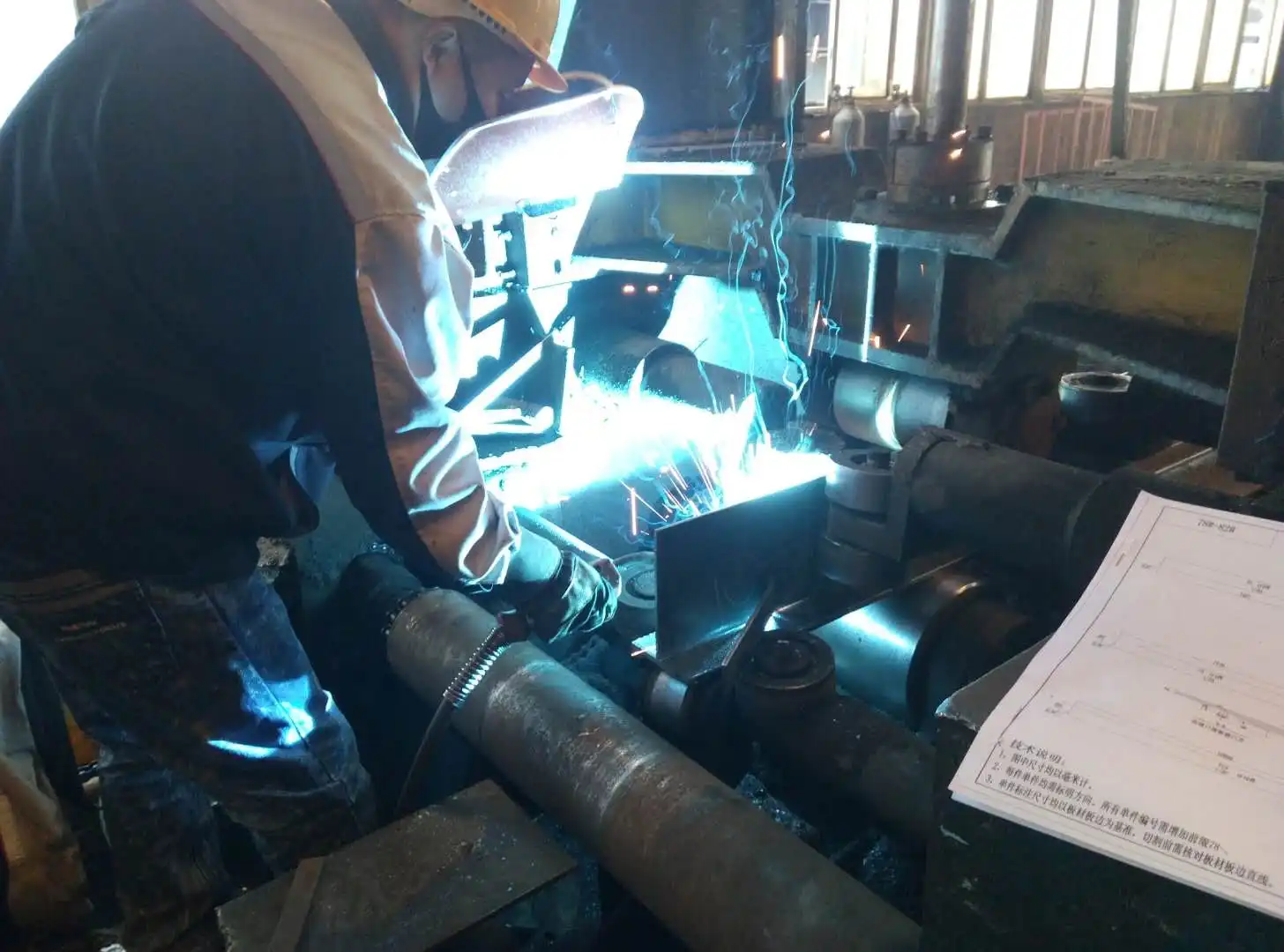

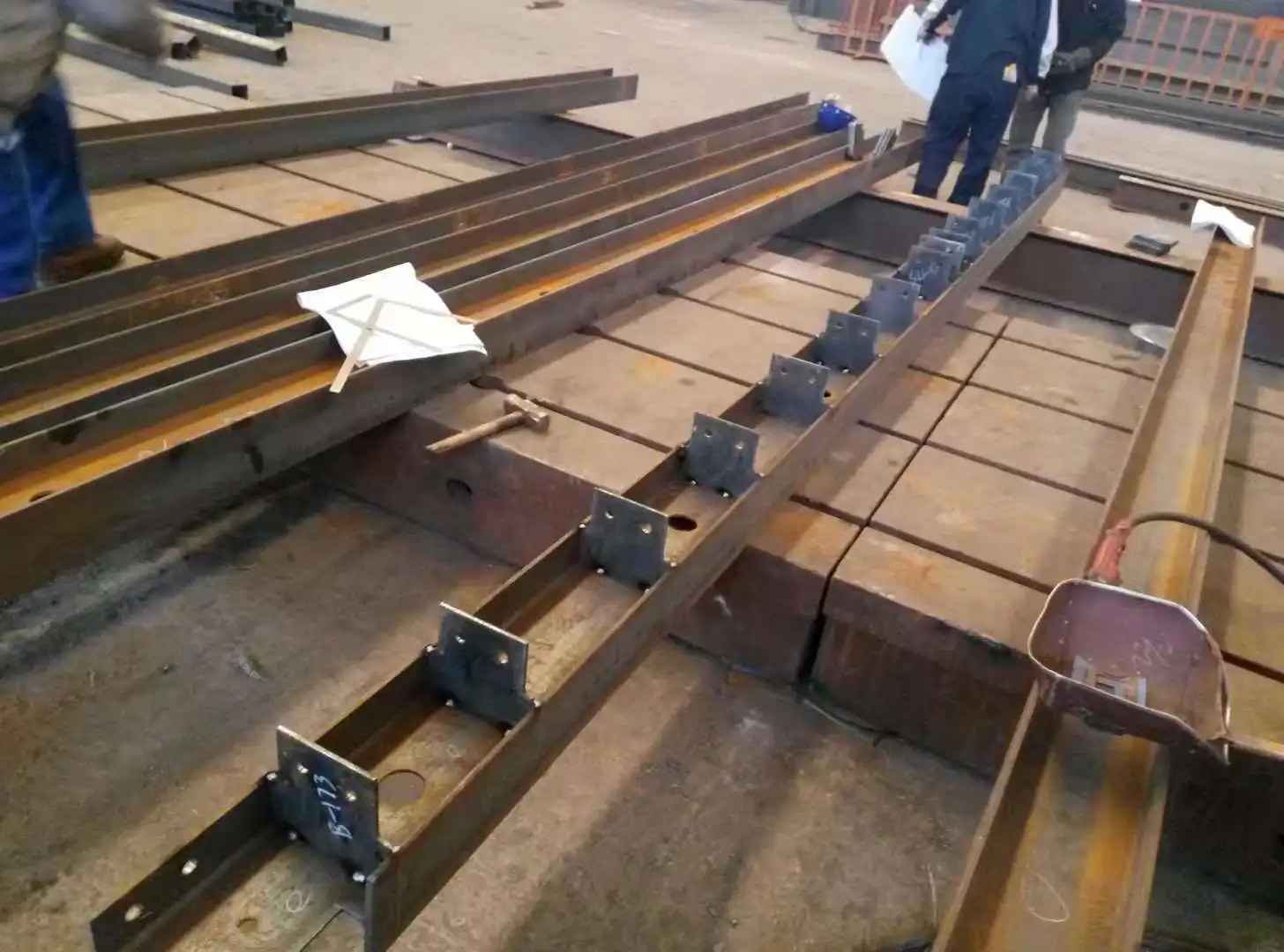

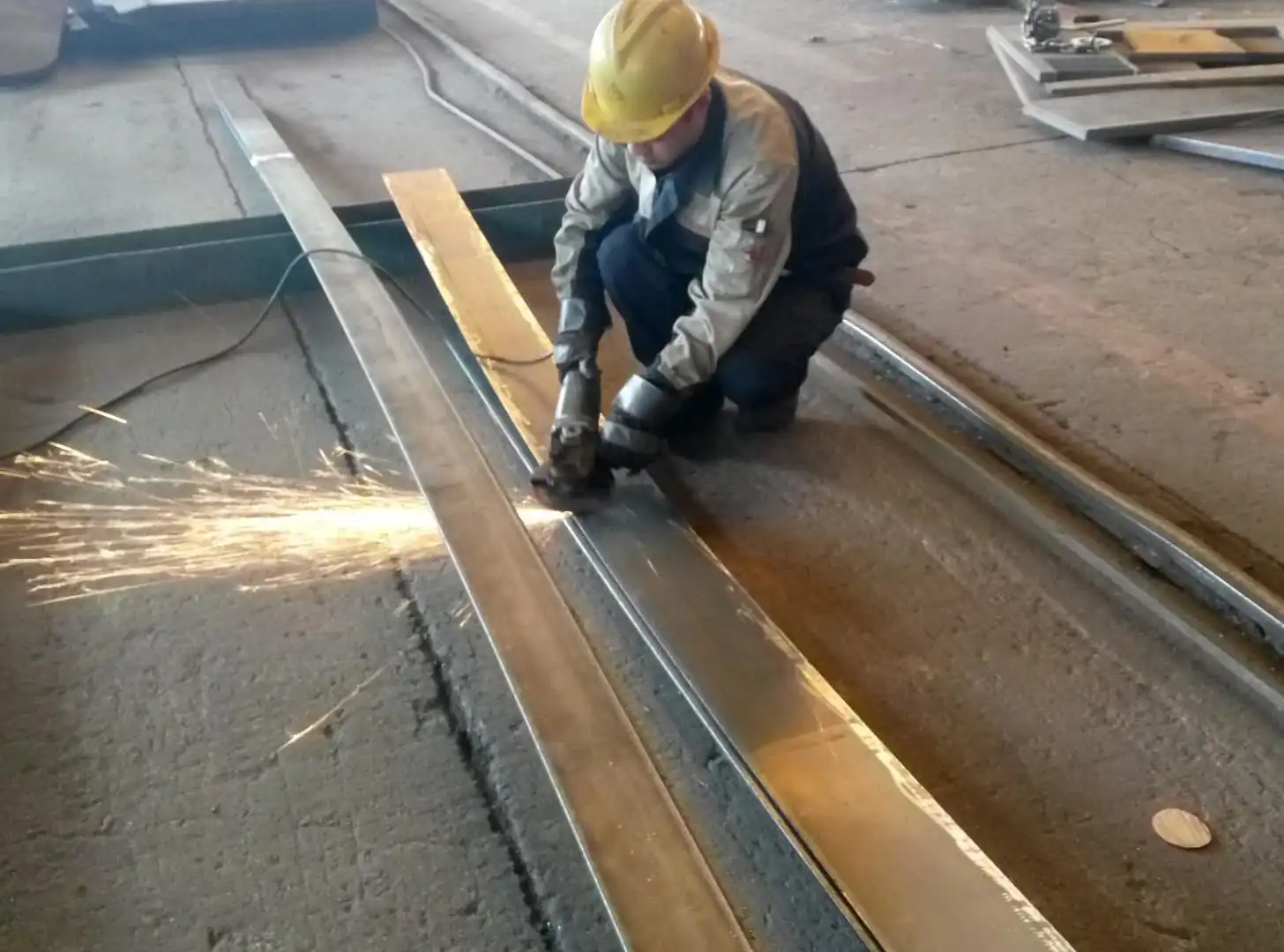

We have 1200-ton plate rolling equipment and 50-ton crane systems at our 75,000-square-meter plant. CNC cutting processes ultra-thick plates up to 300mm, while automated welding lines ensure consistent seam quality across thousands of units annually.

Rigorous Inspection Protocols

Every Platform Column undergoes:

· Non-Destructive Testing (NDT): Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI) detect subsurface weld flaws

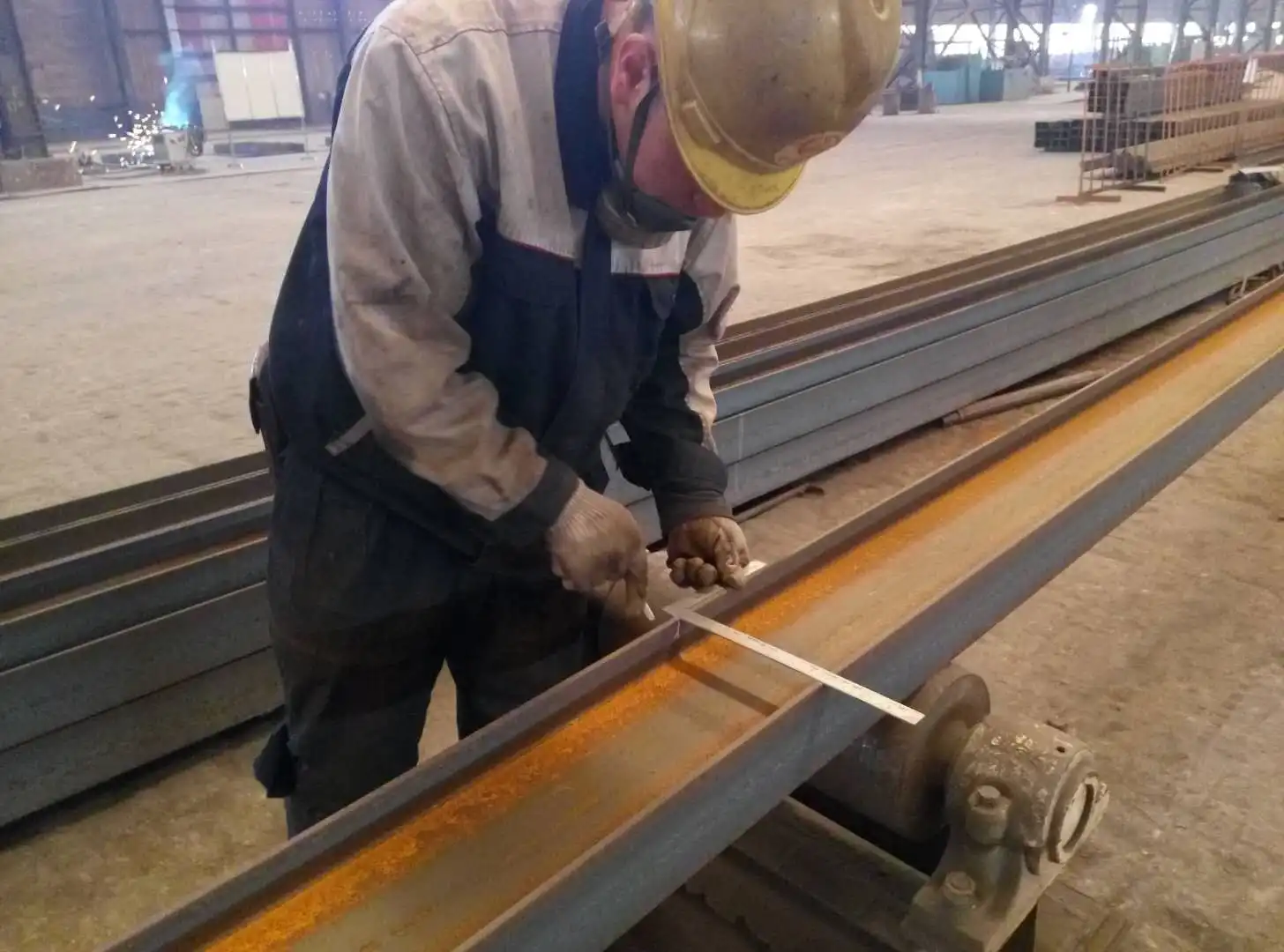

· Dimensional Verification: Laser scanning confirms verticality and hole alignment against CAD specifications

· Load Testing: Physical verification ensures deflection remains within L/360 or L/240 limits per AISC standards

· Coating Measurement: Dry Film Thickness (DFT) gauges validate galvanization integrity

ISO-Certified Management System

Our ISO 9001, ISO 14001, and ISO 45001 certifications guarantee consistent quality, environmental responsibility, and worker safety across every production phase.

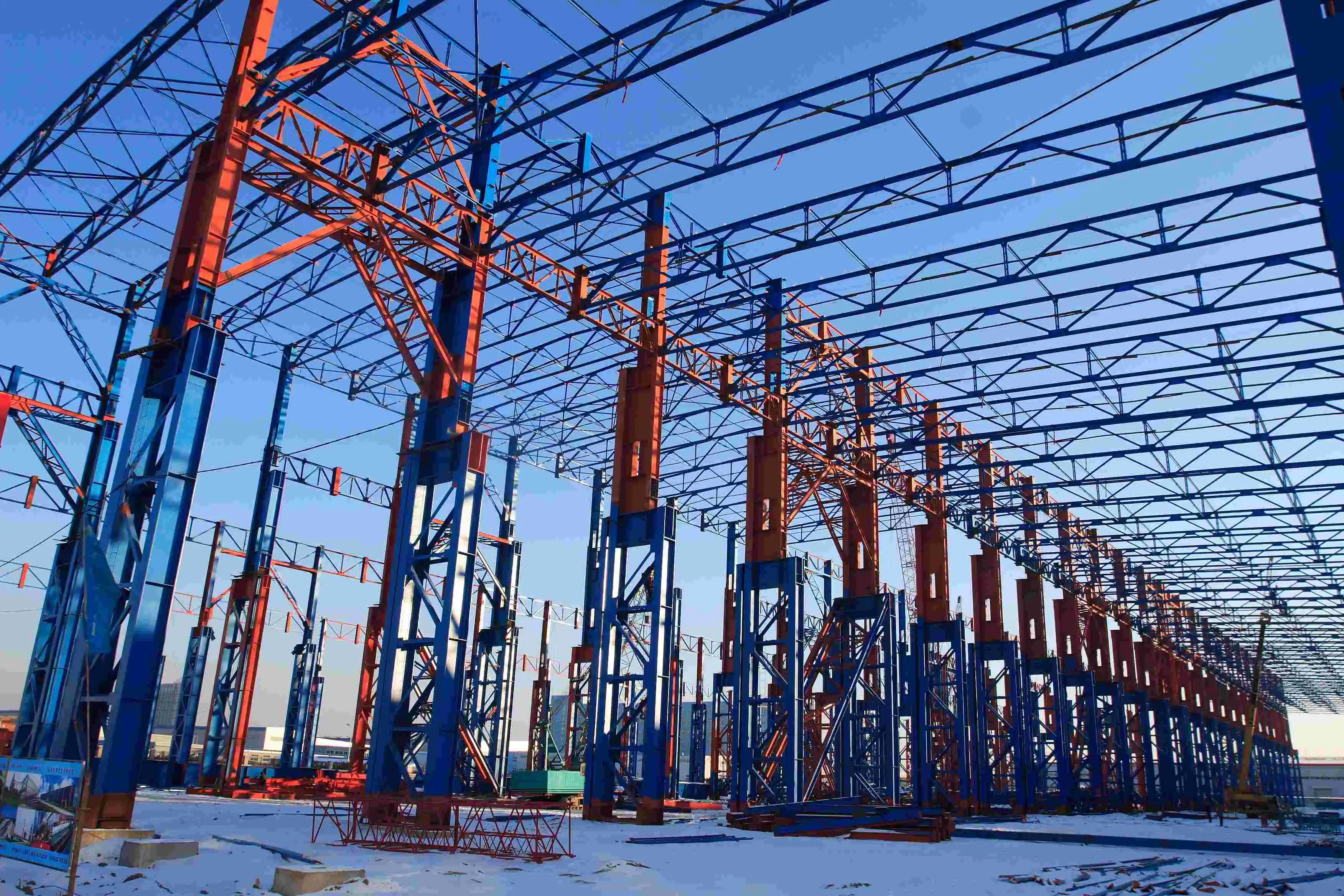

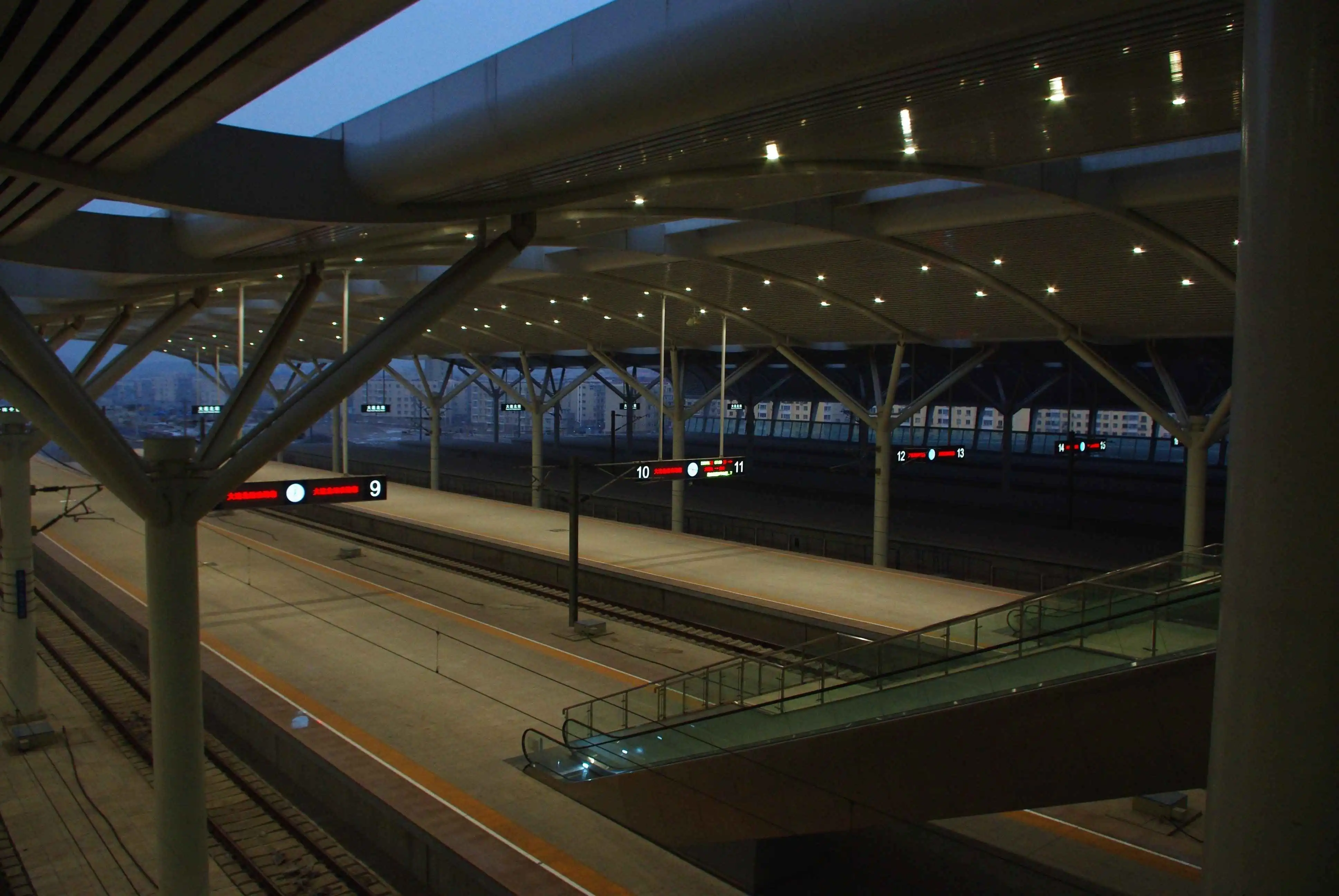

Project Cases

Case 1: Mezzanine for High-Throughput Logistics

Customer: Top e-commerce fulfillment facility

Challenge: Support a 4,500 m² multi-tier storage system with constant conveyor vibration

120 specially designed Platform Column units (300 x 300 mm) with seismic base plates were deployed as a solution.

Result: 20% faster installation vs. welded alternatives; zero deflection issues after 18 months of 24/7 operation

Case 2: Walkway for Petrochemical Maintenance

Client: Southeast Asian coastal refinery

Problem: Severe corrosion from chemical exposure and seawater spray

The recommended weathering steel structural post with a duplex coating (zinc + epoxy) is the solution.

Result: Passed C5-M environmental rating; 30-year service life forecast certified by third-party auditors

Case 3: Data Center Cable Management Tier

Client: Tier III data center operator

Challenge: Elevated cable trays requiring non-conductive coatings and ±0.5mm alignment

Solution: Precision-machined columns with electrostatic powder coating

Result: Achieved required verticality; reduced electromagnetic interference risk





Compliance & Certifications

·ISO 9001:2015 – Quality Management System

·ISO 14001:2015 – Environmental Management System

·ISO 45001:2018 – Occupational Health & Safety

·EN 1090 – Structural Steel Fabrication (EU compliance)

·AWS D1.1 – Structural Welding Code (USA)

·Load Calculation Reports – Verified by third-party structural engineers

·Material Test Certificates (MTC) – Traceable steel sourcing

We support Belt and Road Initiative projects with full English documentation and international standard compliance.

FAQ

Q1: What is the maximum height these vertical load-bearing supports can reach without lateral bracing?

A: This depends on the slenderness ratio and axial load. Typically, heights over 4 meters require intermediate bracing or increased section modulus. Our engineering team provides free consultation to optimize your design.

Q2: How is seismic compliance handled?

A: We use specialized base plate designs with high-strength anchor bolts that allow controlled energy dissipation during seismic events. Compliance reports are available upon request.

Q3: Are these vertical load-bearing supports suitable for outdoor use in maritime settings?

A: Yes. For 30 years of corrosion resistance, we use C5-M rated hot-dip galvanization or duplex coating methods made especially for high-humidity or maritime situations.

Q4: How long does an installation usually take?

A conventional column can frequently be secured in less than 30 minutes thanks to pre-engineered bolt-on connectors, thus reducing site downtime.

Q5: Are your columns fire-rated?

A: Standard steel columns require the application of intumescent paint or fire-rated cladding to achieve 1-hour to 4-hour fire resistance ratings. We offer these as optional treatments.

Q6: Do you provide load testing documentation?

A: Absolutely. Every order includes load calculation reports and optional physical load testing per AISC or Eurocode 3 standards.

Contact Us

Ready to elevate your facility with dependable Platform Column solutions?

Our engineering team is here to discuss your specific load requirements, environmental conditions, and customization needs.
