Angle Steel with Tie Plates Lattice Column
2. Certifications: CE, EN 10025. Seismic design verification report for earthquake - resistance.
3. Custom services: Supports column combinations, customizable galvanized anti - corrosion.
4. Delivery: Standard 20 days, special anti - corrosion +5 days.
5. Applications: Deep foundation pit supports, high - rise building columns. Axial load capacity ≥2000kN.
6. Cost: Saves 51% construction time vs. concrete. Modular design cuts installation costs.
Angle Steel with Tie Plates Lattice Column - Enterprise-Grade Structural Solutions
Product Description
Our Angle Steel with Tie Plates Lattice Column offers proven performance when your project requires outstanding load-bearing capacity without the burden of excessive weight. This innovative structural system, produced by Shenyang Zhongda Steel Structure Co., Ltd., achieves an axial load capacity of more than 2000kN by combining precision-welded tie plates with Q355B high-strength steel angles. You are getting enterprise-grade structural members supported by 20 years of manufacturing expertise, with column heights ranging from 200mm to 600mm and tie plate spacing kept at ≤500mm intervals. Our 75,000 m² production facility processes 80,000 tons annually with ±0.1mm CNC drilling precision, ensuring every column meets EN 1090 and AWS D1.1 international standards.
You'll appreciate the efficiency: our Tie Plates Lattice Column design reduces installation time by 51% compared to traditional concrete solutions, directly impacting your project timeline and labor costs.
Product Advantages
Superior Structural Efficiency
Your engineering challenges require smart material usage. Our lattice design maximizes the radius of gyration relative to cross-sectional area, giving you higher stiffness-to-weight ratios than solid-web alternatives. This means you're using less steel to achieve the same—or better—structural performance.
Accelerated Project Delivery
Time is money on your construction site. The prefabricated nature of our columns means faster on-site assembly. You can bolt segments together in space-constrained environments without heavy lifting equipment or extensive scaffolding.
Cost Optimization
We understand budget pressures. Our system reduces material costs while maintaining structural integrity. The open lattice configuration also minimizes wind resistance—critical for tall structures—reducing foundation requirements and overall structural loads.
Enhanced Durability
Your structures face harsh conditions. Our hot-dip galvanizing process (minimum 85 microns) ensures superior corrosion resistance. The open lattice design allows easy inspection and maintenance access, extending service life and reducing lifecycle costs.
Design Flexibility
Every project is unique. Our 3-axis CNC systems and 1200-ton plate rolling machines enable complex custom configurations. Whether you need specific connection details, non-standard heights, or special anti-corrosion treatments, we adapt to your requirements.
Seismic Resilience
Safety can't be compromised. Our columns come with seismic design verification reports, demonstrating proven energy dissipation and redundancy in earthquake-prone zones—protecting your investment and occupants.
Technical Specifications & Customization
|
Parameter |
Standard Range |
Customization Options |
|
Base Material |
Q355B, Q235B |
ASTM A36, A572 Grade 50, EN S355 |
|
Column Height |
200mm - 600mm |
Up to 800mm (custom fabrication) |
|
Tie Plate Spacing |
≤500mm |
300mm - 600mm (per design requirements) |
|
Axial Load Capacity |
≥2000kN |
Calculated per project specifications |
|
Welding Standards |
AWS D1.1, EN 1011 |
JIS standards available |
|
Surface Treatment |
Hot-dip galvanizing (85μm+) |
Epoxy coating, weathering steel options |
|
Dimensional Tolerance |
L/1000 straightness |
Enhanced tolerance ±0.05mm available |
|
Connection Type |
Bolted or welded |
Hybrid connection systems |
|
Processing Capacity |
Plates up to 300mm thickness |
Ultra-thick plate specialty processing |
|
Standard Delivery |
20 working days |
Express 15-day options for urgent projects |
|
Anti-Corrosion Lead Time |
+5 days |
Specialized coatings +7-10 days |
|
Compliance Standards |
EN 10025, GB 50017, AISC 360 |
Customer-specified international standards |
Manufacturing & Quality Control
Advanced Production Infrastructure

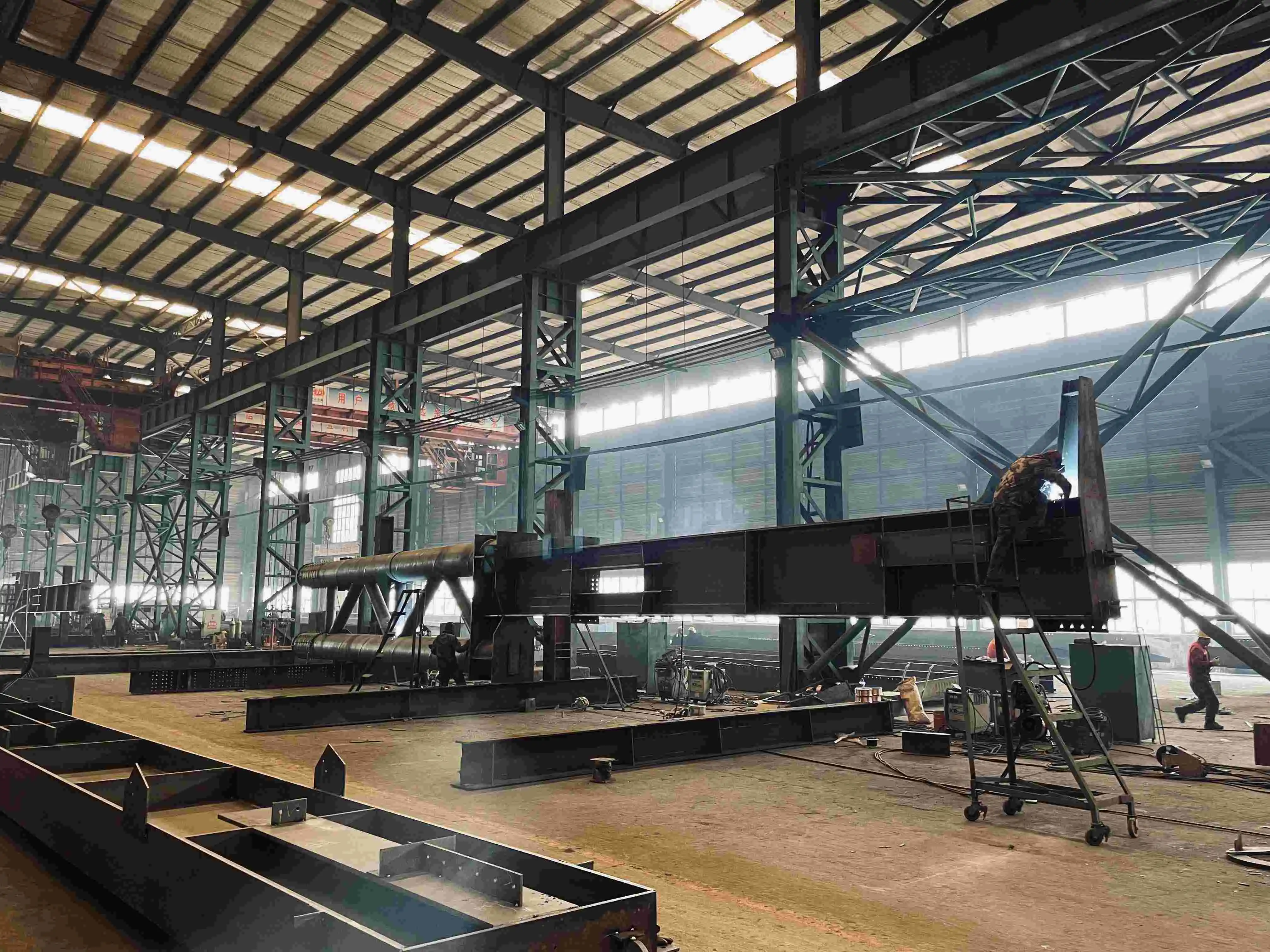

You're partnering with a facility that means business. Our 120,000 m² campus houses cutting-edge equipment including 50-ton crane capacity workshops, automated welding lines, and CNC cutting systems that handle ultra-thick plates up to 300mm. This isn't just capability—it's your assurance of precision and consistency.
Multi-Layer Quality Verification
Material Traceability: Every batch comes with full Mill Test Certificates (MTC) documenting chemical composition and mechanical properties. You'll know exactly what you're getting.

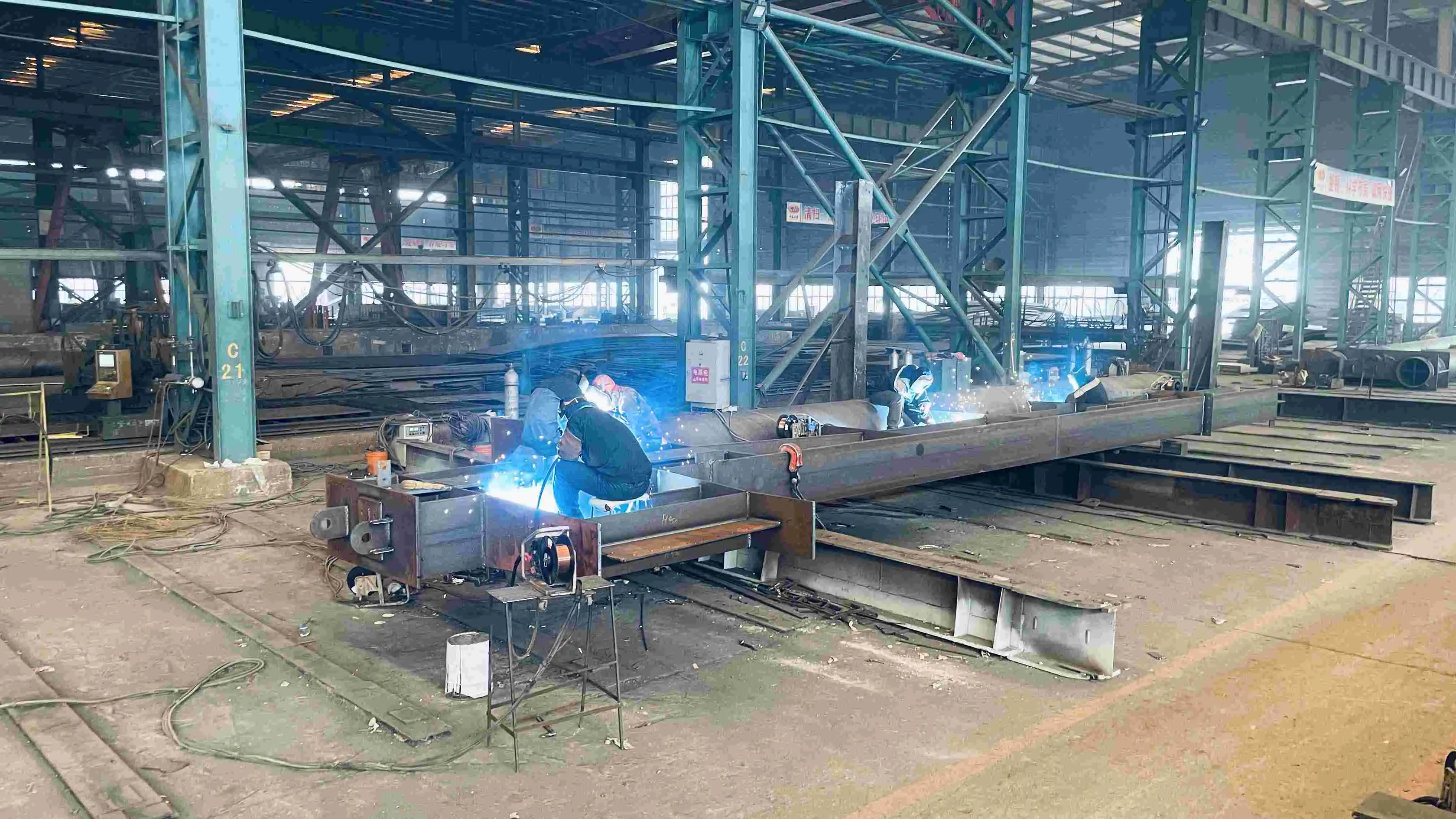

Welding Integrity Testing: We employ Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI) on all critical welds between tie plates and angle members. This eliminates cold joints, porosity, and hidden defects before they reach your site.
Dimensional Precision: Our three-axis CNC drilling systems maintain ±0.1mm accuracy. We verify column straightness (L/1000 tolerance), tie plate positioning, and overall geometry using laser measurement systems.
Coating Quality Assurance: For galvanized products, we conduct PosiTector gauge testing and adhesion hammer tests per ASTM A123 and ISO 1461 standards. You're getting corrosion protection that lasts decades, not years.
International Certification Framework
Our ISO 9001, ISO 14001, and ISO 45001 certified management systems ensure consistent quality across every order. We maintain compliance with EN 1090 (EU), AWS D1.1 (USA), and JIS (Japan) standards, providing the documentation you need for international projects.

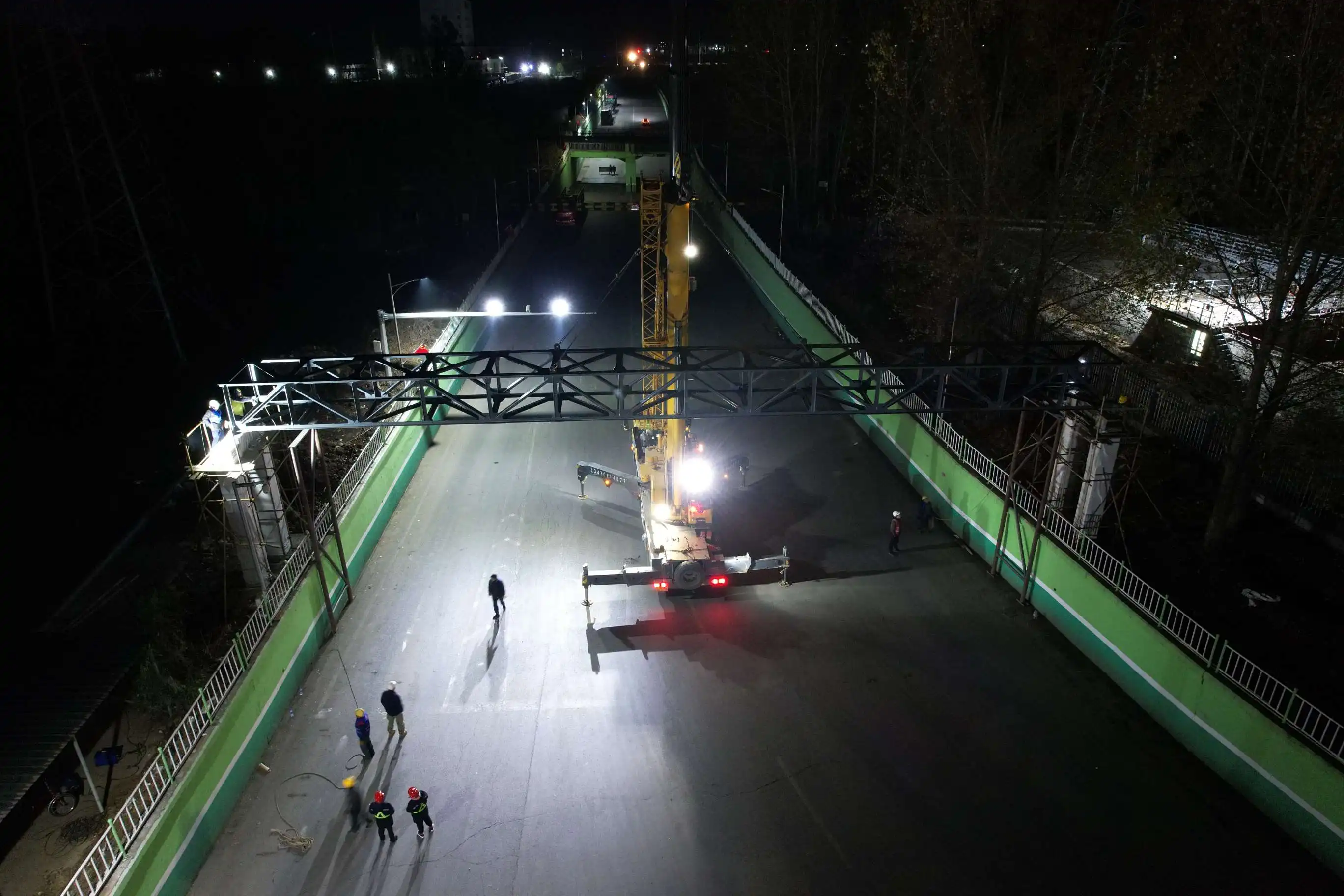

Project Cases
Heavy Industrial Infrastructure

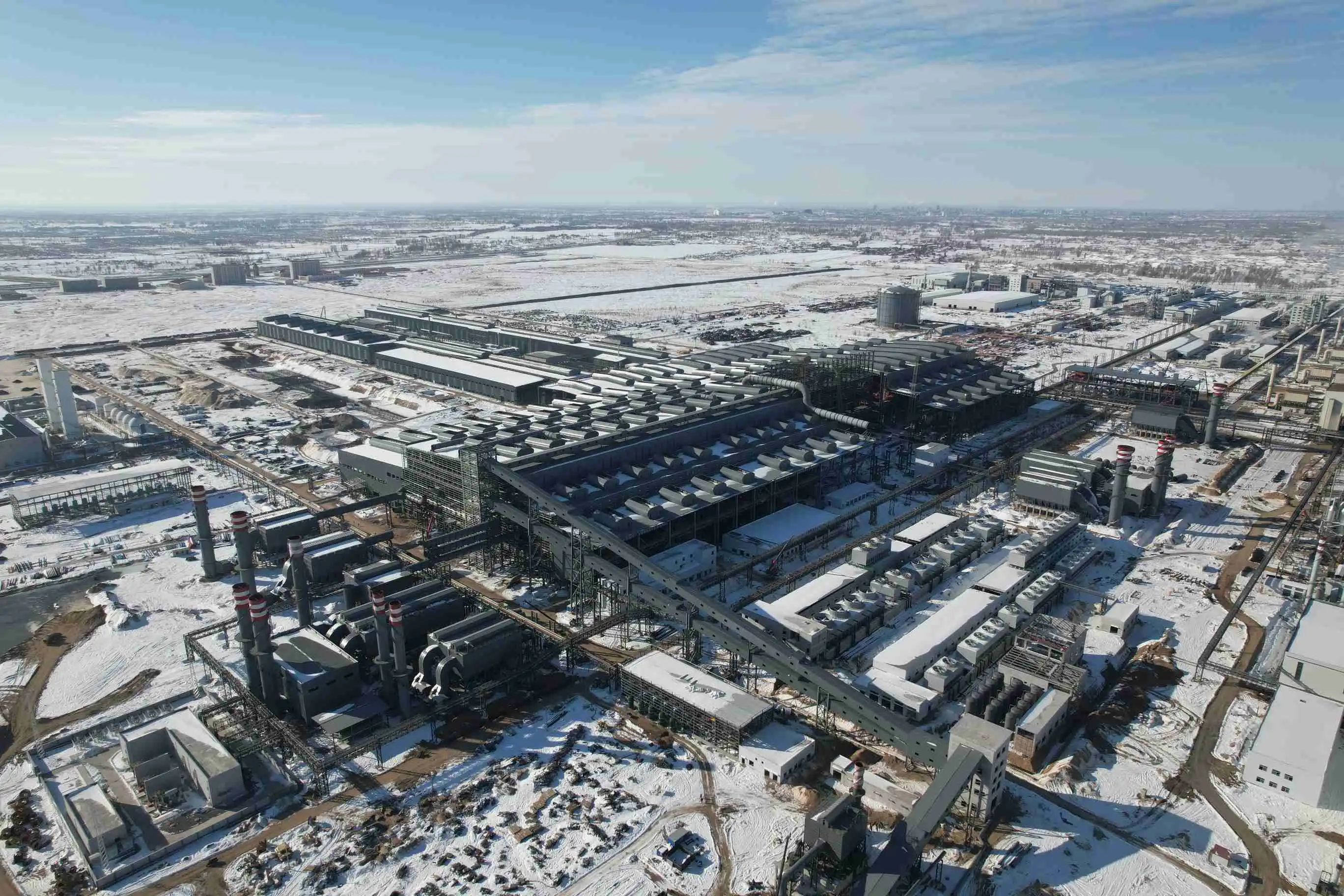

We've delivered Angle Steel with Tie Plates Lattice Column systems for major EPC contractors including China State Construction Engineering Corporation and China Railway Group Limited. Our columns have supported complex pipe rack systems in petrochemical facilities where thermal expansion and seismic forces demand exceptional torsional rigidity.
Bridge Engineering Applications
As part of the 18,000-ton Shenyang Dongta Cross-Hunhe River Bridge project, our structural components demonstrated the load-bearing efficiency and fabrication precision required for landmark infrastructure. This experience translates directly to your critical-path projects.
Transportation Infrastructure Expansion
During the Jingha Expressway expansion, our prefabricated lattice columns reduced on-site installation time by 30%, keeping the project on schedule despite challenging site conditions. Your timeline benefits from this proven track record.
Compliance & Certifications
We hold Class I Steel Structure Professional Contracting Qualification—the highest grade in China. Our certifications include:
- ISO 9001:2015 - Quality Management Systems
- ISO 14001:2015 - Environmental Management
- ISO 45001:2018 - Occupational Health & Safety
- EN 1090 Execution Class - European structural steel fabrication
- CE Marking - European Conformity
- National High-Tech Enterprise designation from the Chinese government
- Member of China Steel Structure Association
These aren't just plaques on the wall—they're your guarantee of rigorous process control and international standards compliance.
FAQ
Q: Why choose tie plates over continuous lacing bars for my column design?
A: Tie plates simplify fabrication and provide robust shear resistance at specific intervals, making them ideal for medium-height applications. They're also easier to inspect and maintain. For very high slenderness ratios, we can recommend lacing alternatives based on your specific load conditions.
Q: How do you calculate the effective length for buckling analysis?
A: We account for the slenderness of individual angle segments between tie plates to ensure local buckling doesn't occur before the column reaches its global design load. Our engineering team provides full calculations per AISC 360 or Eurocode 3 requirements.
Q: What's the recommended tie plate spacing for my application?
A: According to design codes, the slenderness ratio of a single angle between plates shouldn't exceed 75% of the entire column's governing slenderness ratio. We optimize this spacing based on your specific load conditions and height requirements.
Q: Can these columns perform in seismic zones?
A: Absolutely. Our columns provide excellent energy dissipation and structural redundancy when connections are designed for ductility. We provide seismic design verification reports for earthquake-prone regions.
Q: How do you manage corrosion at the plate-angle interface?
A: Our hot-dip galvanizing process ensures complete coverage, including overlap zones. For critical applications, we offer additional sealing treatments and inspection protocols.
Q: What's your typical lead time for custom configurations?
A: Standard configurations ship within 20 working days. Custom designs with special anti-corrosion treatments require 25 days. We offer expedited 15-day production for urgent projects.
Q: Do you provide installation support?
A: Yes. Our services include installation guidance, on-site technical support, and full documentation packages with English technical drawings for international projects.
Contact Us
Ready to discuss your Angle Steel with Tie Plates Lattice Column requirements? Our engineering team is here to help optimize your structural solution.
