Variable Cross-Section Steel Beam - Engineered for Maximum Efficiency

Our Variable Cross-Section Steel Beam is just what you need when your project requires material optimization without sacrificing structural integrity. These tapered structural members, made by Shenyang Zhongda Steel Structure Co., Ltd., have a tensile strength of at least 448 MPa and are made of Q345C low-alloy steel with varied web depths ranging from 6 to 36 mm. Our 80,000-ton yearly manufacturing capacity, 100% ultrasonic testing methodology, and CNC precise fabrication (±0.1mm accuracy) will all benefit you. Our engineering team reduces steel consumption by 20-35% compared to standard prismatic beams while maintaining full compliance with ASTM A572 Grade 50 and AWS D1.1 standards. You are working with a National High-Tech Enterprise that offers a 12-year warranty and personalized delivery in about 20 to 25 days.

Product Description

Variable Cross-Section Steel Beam is not your ordinary structural component. It's a smart engineering solution where the beam depth changes strategically along its length to match your project's actual load distribution.

Think of it this way: Why use the same beam thickness where stress is low?

Our tapered beams align perfectly with bending moment diagrams. This means you get maximum strength exactly where you need it—typically at support points—while reducing unnecessary weight in low-stress zones.

You're looking at serious advantages here:

· 20-35% lighter than traditional I-beams

· Lower foundation loads

· Reduced carbon footprint

· Faster installation times

We fabricate these beams using high-frequency or submerged arc welding. Each unit undergoes rigorous quality checks before reaching your site. Whether you're building a stadium roof or a long-span bridge, these beams adapt to your specific engineering challenges.

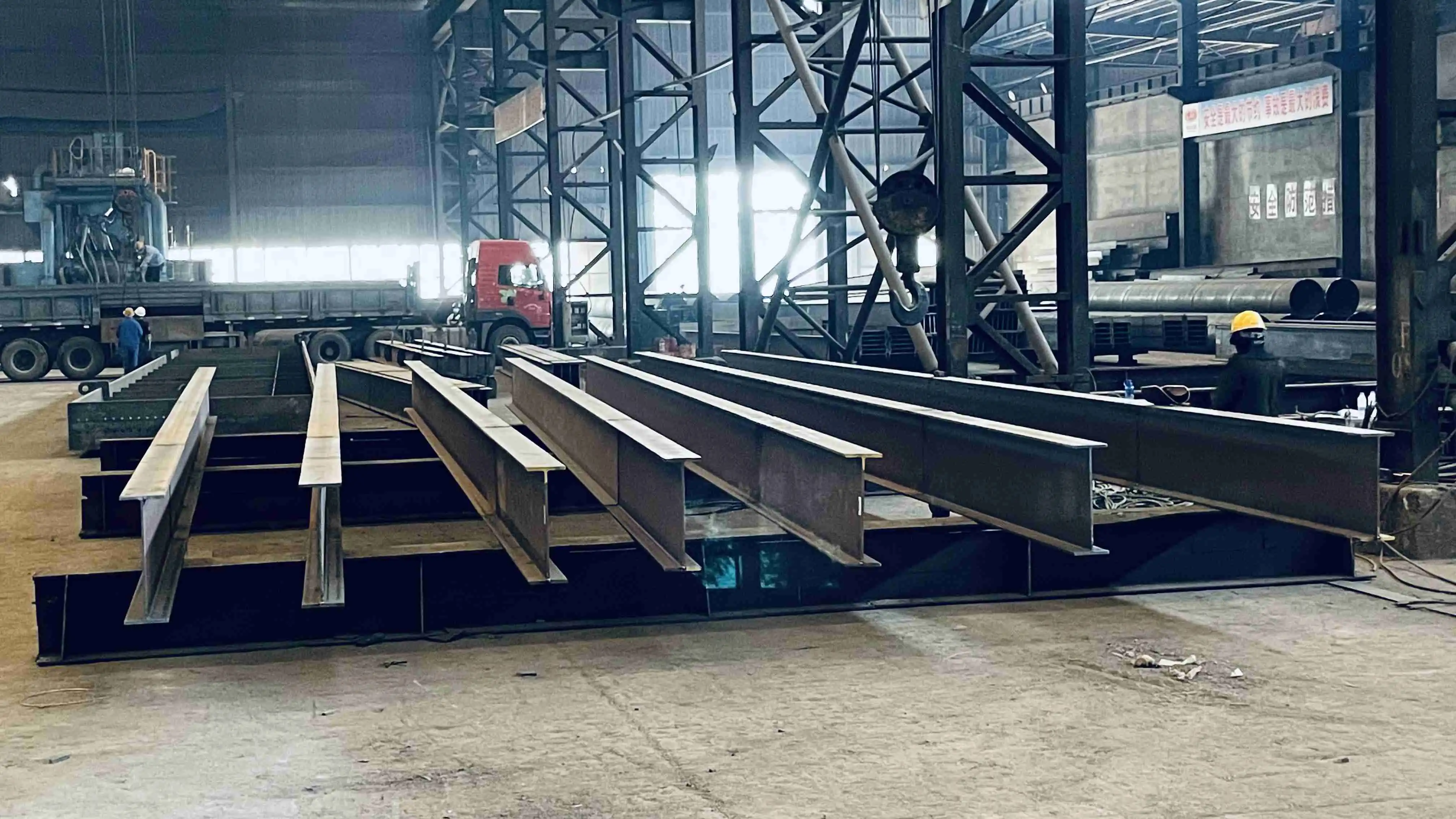

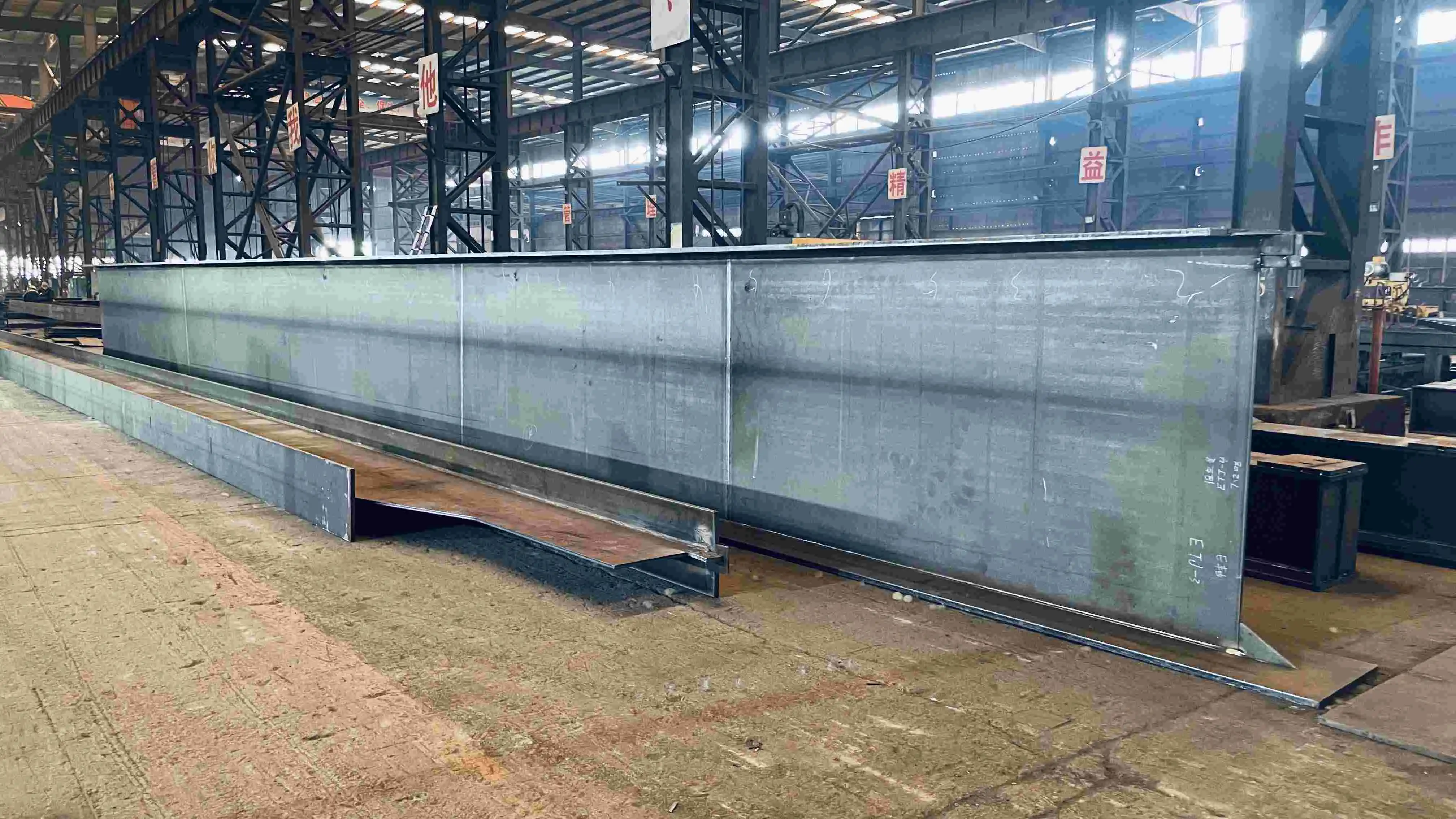

Variable Cross-Section Steel Beam



Product Advantages

Material Efficiency That Impacts Your Bottom Line

You don't need to pay for steel you don't use. Our variable section design eliminates material waste in low-moment regions. This translates directly to cost savings on your procurement budget.

Superior Structural Performance

The tapered profile isn't just about saving weight. It actually improves your structure's behavior:

· Reduced seismic loads due to lower mass

· Better vibration control in dynamic applications

· Enhanced stability in long-span configurations

Aesthetic Flexibility

Your clients will notice the difference. The sleek, tapered profile creates visual appeal in exposed steelwork applications. Airports, exhibition centers, and modern industrial facilities benefit from this architectural advantage.

Faster Project Completion

Lighter beams mean:

· Smaller cranes required

· Quicker installation

· Lower labor costs

· Reduced site congestion

Environmental Responsibility

Each beam you specify contributes to sustainability goals. Less steel means lower embodied carbon—a critical factor in green building certifications.

Specifications & Customization

Manufacturing & Quality Control

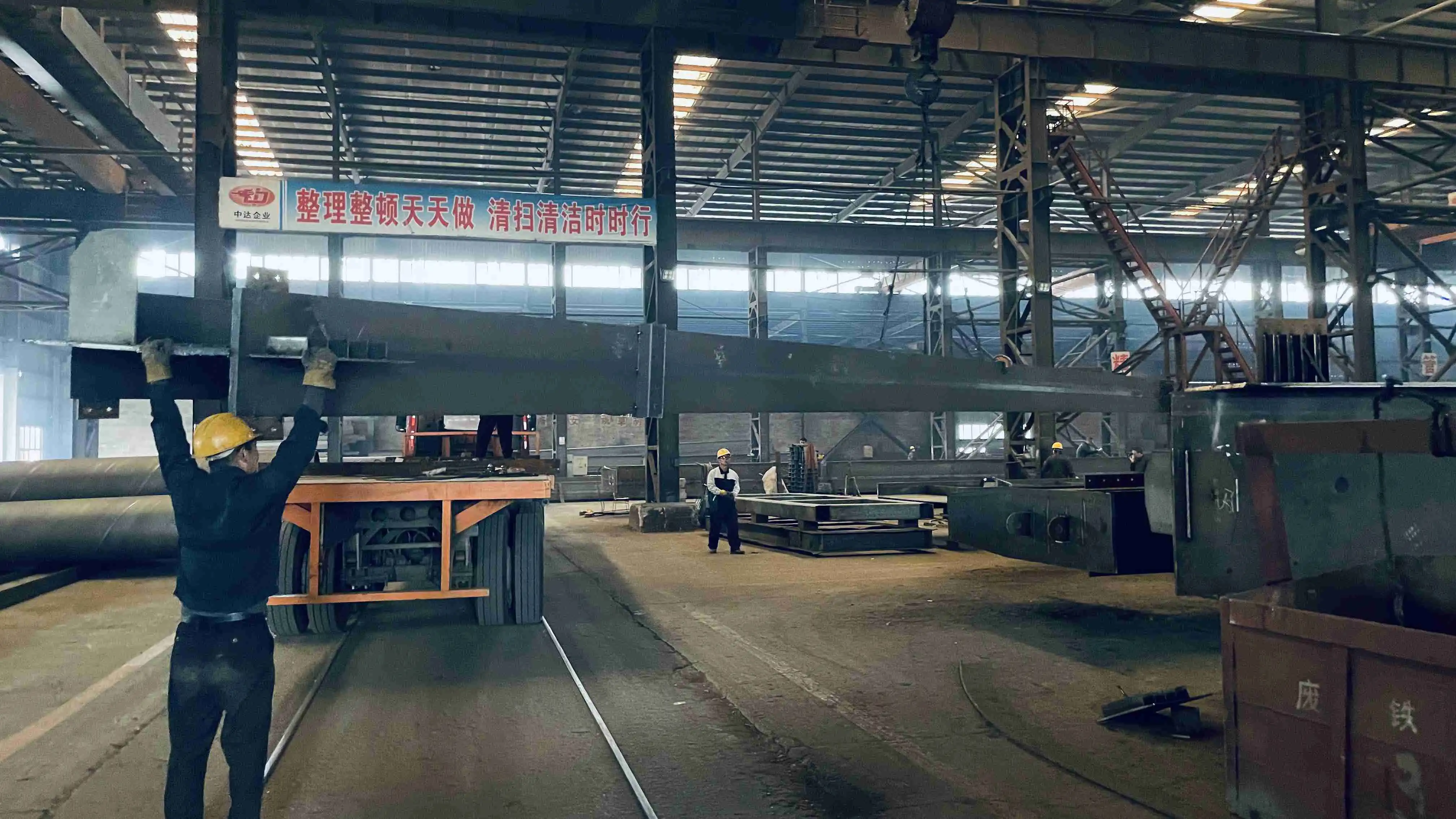

World-Class Production Facility

Our 75,000 m² manufacturing plant in Shenyang operates with precision you can rely on. We're not just fabricators—we're engineering partners.

Equipment highlights:

· CNC cutting systems handle ultra-thick plates up to 300mm

· 3-axis CNC drilling achieves ±0.1mm precision

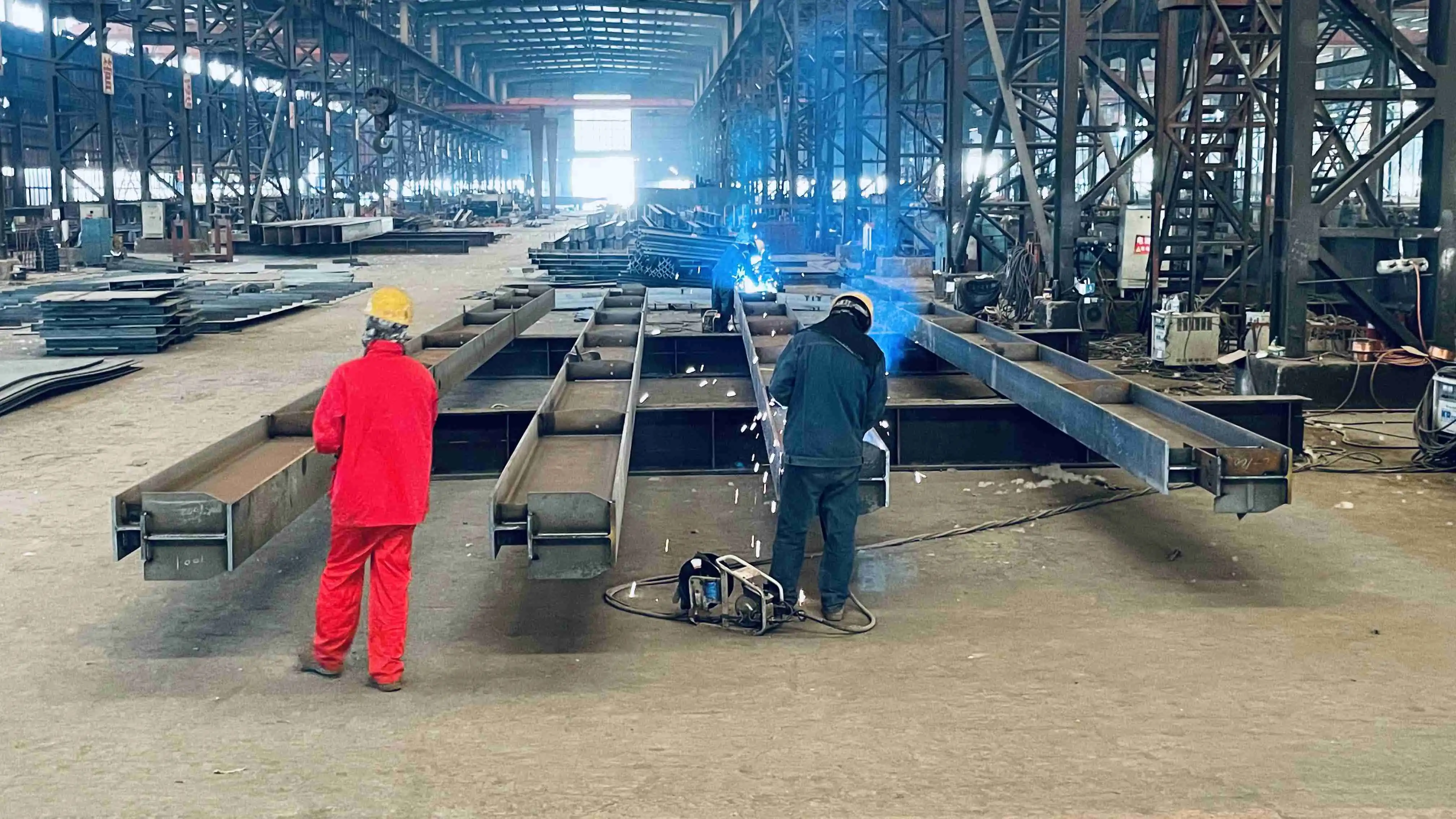

· Automated welding lines ensure consistent quality

· 1200-ton plate rolling machines create complex geometries

· 50-ton crane capacity for heavy component handling

Rigorous Quality Protocols

Quality isn't negotiable. Every beam undergoes multiple inspection stages:

1. Raw Material Verification

· Mill test certificates reviewed

· Chemical composition analysis

· Mechanical property testing

2. In-Process Inspection

· Dimensional checks at each fabrication stage

· Weld quality monitoring

· Geometric tolerance verification

3. Final Quality Assurance

· 100% ultrasonic testing of critical welds

· Residual stress analysis

· Surface coating thickness measurement

· Load test documentation

4. Certification Package

· Material traceability records

· NDT reports (UT/RT)

· Dimensional inspection reports

· English technical drawings

International Standards Compliance

We manufacture to global specifications:

· ISO 9001 Quality Management

· ISO 14001 Environmental Management

· ISO 45001 Occupational Health & Safety

· EN 1090 (European structural steel)

· AWS D1.1 (Welding standards)

· AISC 360 (Building specifications)

You receive full documentation for customs clearance and project compliance.

Project Cases

Large-Span Industrial Facility - Automotive Manufacturing Plant

Challenge: Client needed 45-meter clear spans without internal columns for assembly line flexibility.

Solution: We supplied 28 custom Variable Cross-Section Steel Beams with maximum depth at column connections (1800mm) tapering to 900mm at mid-span.

Results:

· 32% steel weight reduction vs. prismatic alternative

· Foundation load decreased by 28%

· Installation completed 6 days ahead of schedule

Exhibition Center Roof Structure

Project Scope: Cantilevered roof design requiring both structural efficiency and architectural elegance.

Our Contribution: Engineered tapered beams with exposed weathering steel finish, creating visual impact while managing complex load distributions.

Key Benefits:

· Reduced wind load resistance

· Self-supporting spans up to 38 meters

· Zero maintenance coating requirements

Bridge Rehabilitation Project

Application: Replacement girders for continuous span bridge serving heavy industrial traffic.

Technical Approach: Variable depth girders matched negative moment demands at piers while optimizing mid-span sections.

Performance Metrics:

· Increased load capacity by 40%

· Extended service life to 75+ years

· Seismic resilience improved through mass reduction

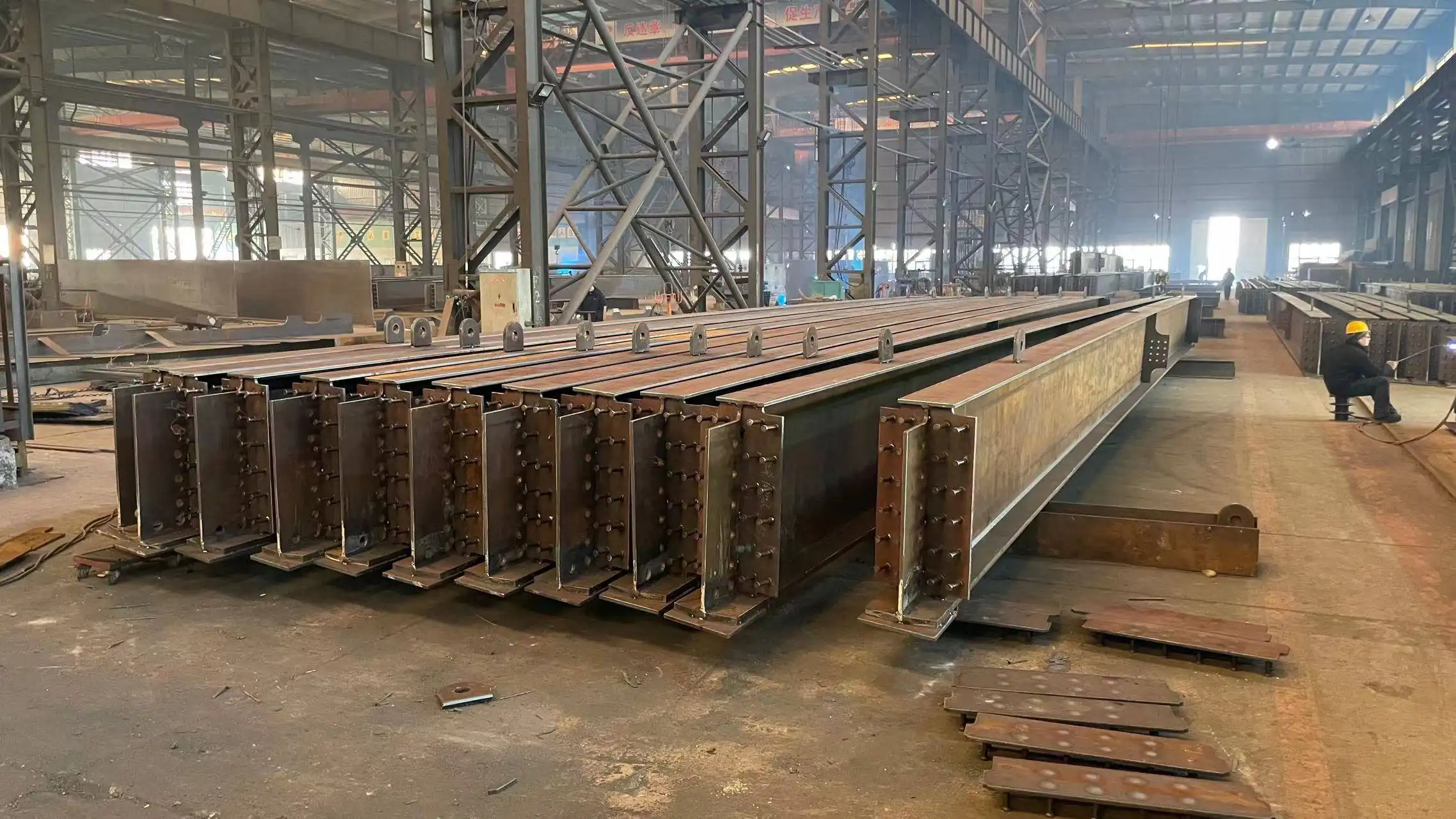

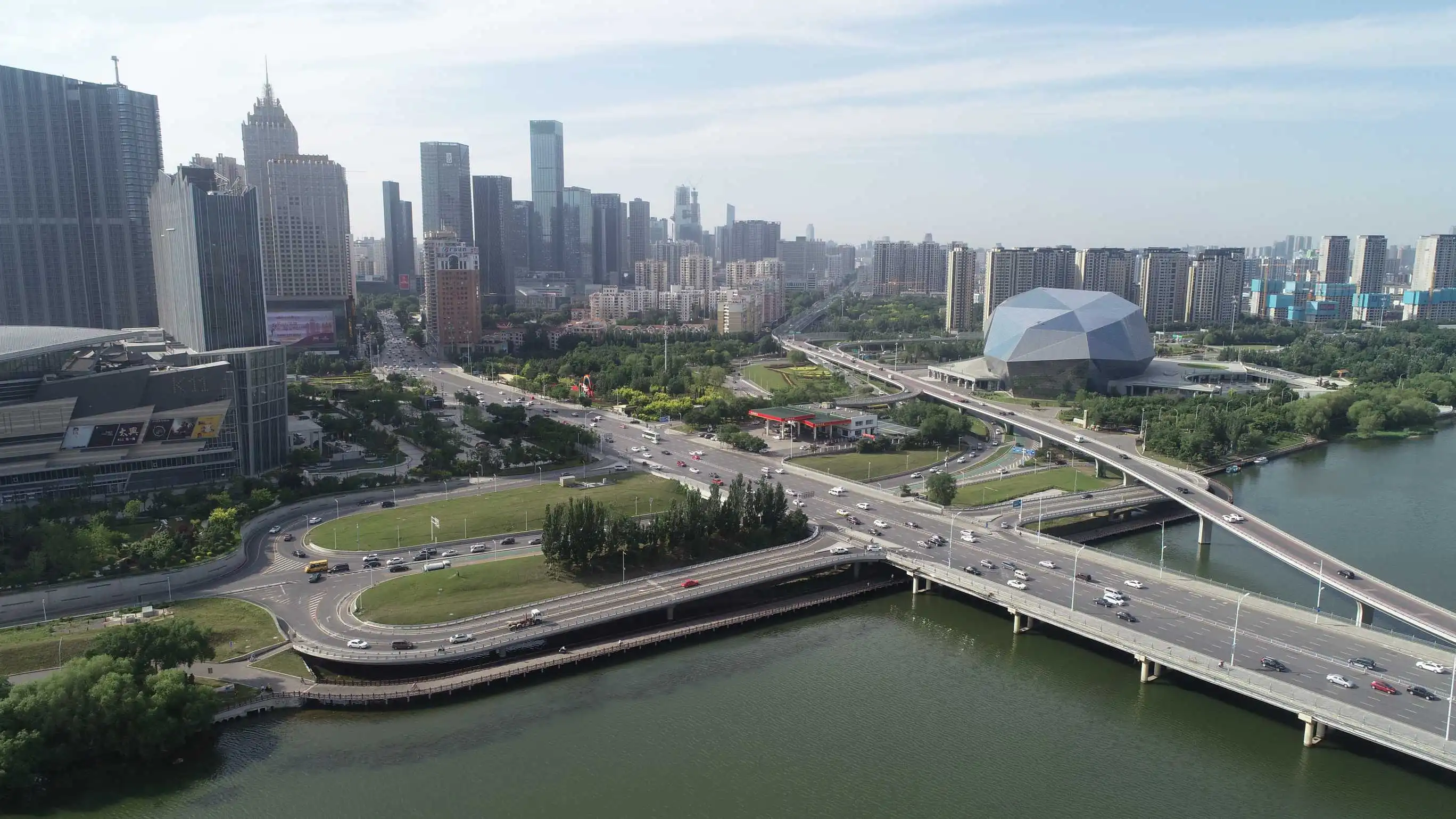

Cases



Compliance & Certifications

Shenyang Zhongda Steel Structure Co., Ltd. maintains comprehensive certifications ensuring your project meets regulatory requirements:

· National High-Tech Enterprise designation (China)

· Class I Steel Structure Professional Contracting Qualification

· Member of China Steel Structure Association

· ISO 9001:2015 Quality Management System

· ISO 14001:2015 Environmental Management System

· ISO 45001:2018 Occupational Health & Safety

· ASTM A572 Grade 50 material compliance

· AWS D1.1 welding certification

· EN 1090 Execution Class 3 (for European markets)

All products ship with complete material traceability documentation and third-party inspection reports upon request.

FAQ

Q: How do Variable Cross-Section Steel Beams compare in cost to standard beams?

A: You will usually save 20–30% on the overall project cost, even though fabrication prices are a little higher because of specialized welding. Smaller foundations, less material tonnage, and cheaper transportation costs all contribute to the savings.

Q: Is it possible for these beams to function in seismically active areas?

A: Definitely. Because their lower mass results in less seismic force acting on your entire structure, they are frequently chosen in seismically active areas. To confirm performance under dynamic loads, we employ Finite Element Analysis (FEA).

Q: What's your maximum custom span capability?

A: We regularly produce beams up to 50 meters. For longer spans, we engineer spliced sections with field-bolted connections. Our technical team will review your specific requirements.

Q: How do you prevent lateral-torsional buckling in tapered sections?

A: We calculate lateral bracing intervals based on the varying stiffness along the beam length. Our designs include intermediate bracing points and, where needed, web stiffeners at transition zones.

Q: What's included in your 12-year warranty?

A: Our warranty covers structural integrity, weld quality, and dimensional stability. We provide documented inspection records and offer technical support throughout your building's service life.

Contact Us

Ready to optimize your next project with engineered steel solutions?

Our technical team is available to discuss your specific requirements for Variable Cross-Section Steel Beam, provide preliminary engineering analysis, and deliver competitive quotations.

Get in touch today:  Ava@zd-steels.com
