6.5-Meter Cantilever Steel Canopy: No Columns, Just Steel and Shade

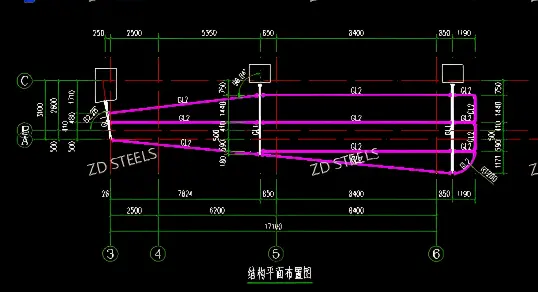

Cantilever steel canopies extend from building walls without front columns, keeping entrances clear and dry. Below is data from an actual entrance canopy drawing.

Basic Specs

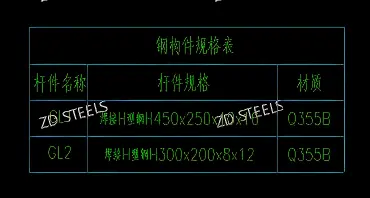

Member Schedule

表格

Advantages

1. No front columns — open entrance, no obstacles for pedestrians or vehicles
2. Clean look — minimalist steel frame, modern architectural appearance
3. Fast installation — bolted to wall embed plate, no foundation needed
4. Custom length — any length along facade, modular design
5. Durable structure — welded H steel, 50+ year service life

Disadvantages / Limitations

1. Depth increases with span — 6.5 m overhang needs deep H450 main beam
2. High moment at wall — connection to building must handle large cantilever moment
3. Not for very long spans — beyond 8 m, need back-span or column support
4. Wall load transfer — building structure must be designed for canopy loads
5. Wind uplift critical — canopies catch wind, need strong anchor design

Typical Applications

1. Building entrance canopies — hotel, office, hospital main entrance
2. Loading dock canopies — warehouse loading bay cover
3. Walkway canopies — covered walk between buildings
4. Vehicle entrance canopies — car drop-off porte-cochère
5. Station & transit shelters — bus stop, rail platform cover

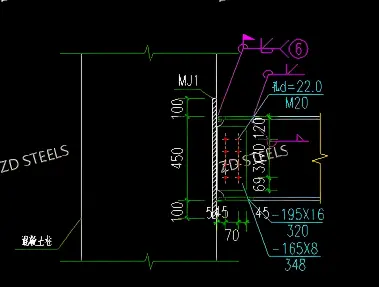

Connection Details

• Wall connection: embedded plate MJ1 in concrete wall/column
• Bolts: M20, 22 mm hole, 8 bolts per connection
• End plate: 16 mm thick, welded to beam end
• Stiffeners: 8 mm rib plates at beam end
