Design and Engineering: The Foundation of Steel Box Girder Construction
Structural Analysis and Optimization
The journey of a steel box girder begins long before any metal is cut. Engineers utilize advanced computer modeling and finite element analysis to design structures that can withstand immense loads while minimizing material usage. This process involves careful consideration of factors such as span length, expected traffic loads, and environmental conditions. Zhongda Steel's engineering team employs state-of-the-art BIM (Building Information Modeling) technology to create precise 3D models, ensuring every component fits perfectly and performs optimally.
Material Selection and Specification
Choosing the right steel grade is crucial for the longevity and performance of box girders. High-strength low-alloy (HSLA) steels, such as Q345D and Q420D, are often selected for their superior strength-to-weight ratio and excellent weldability. Weathering steel, a specialty of Zhongda Steel, is increasingly popular for its self-protecting patina that eliminates the need for painting and reduces long-term maintenance costs. The selection process also considers factors like fracture toughness and fatigue resistance, especially for bridges in extreme climates.
Cross-Section Design
The cross-sectional design of a steel box girder is a delicate balance between structural efficiency and constructability. Engineers at Zhongda Steel have perfected the art of variable cross-section design, with heights ranging from 1.25 to 8 meters. This flexibility allows for optimal material distribution, reducing weight by up to 20% compared to traditional designs. The incorporation of corrugated steel webs further enhances the strength-to-weight ratio, enabling longer spans and more elegant bridge designs.
Fabrication Process: Precision Manufacturing of Steel Box Girders
Plate Preparation and Cutting
The fabrication process begins with the careful selection and preparation of steel plates. Zhongda Steel's advanced facility utilizes CNC plasma cutting machines capable of processing ultra-thick plates with a precision of ±0.2mm. This level of accuracy ensures that each component fits perfectly during assembly, reducing the need for on-site adjustments and speeding up the construction process.
Welding and Assembly

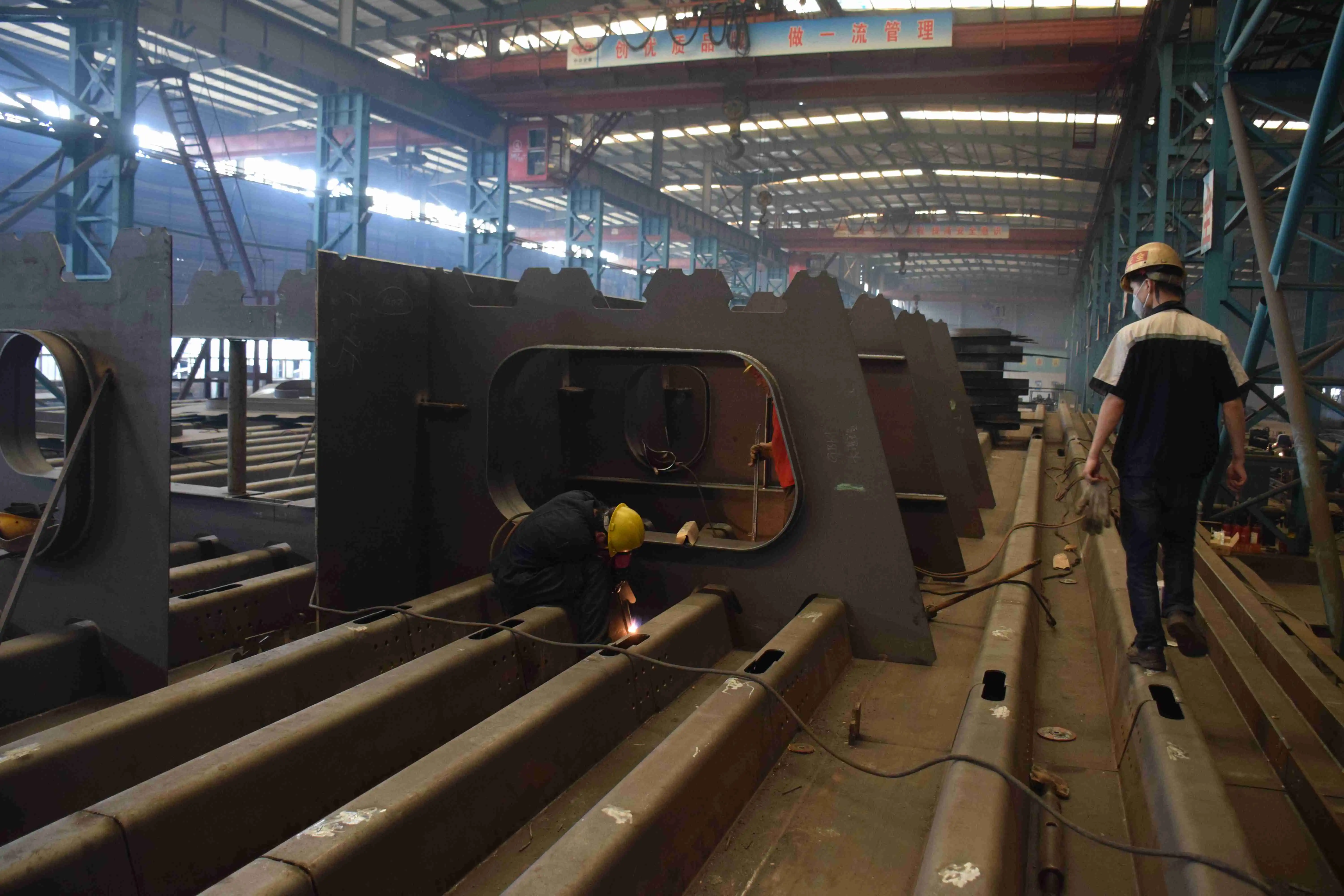

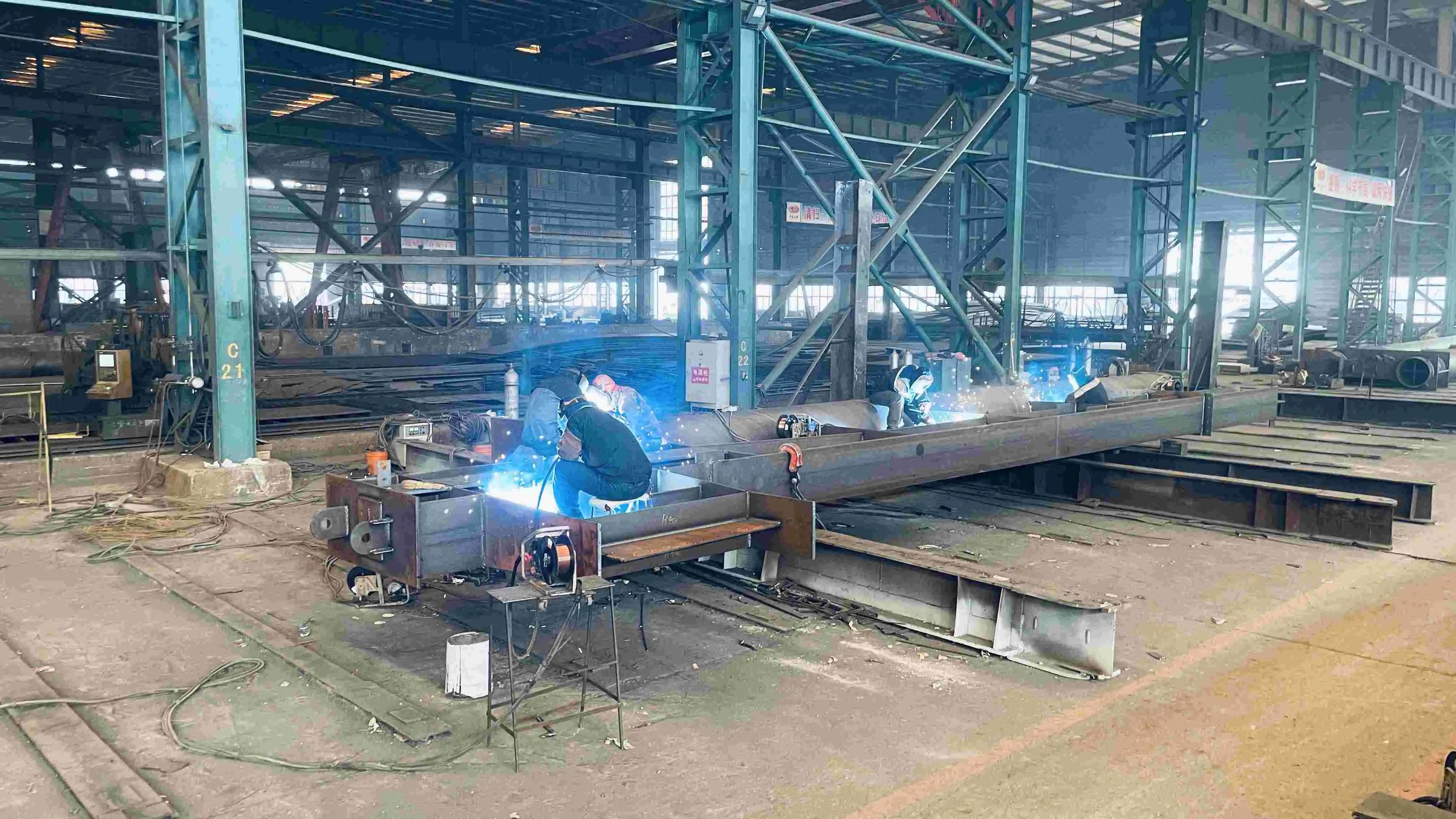

Welding is perhaps the most critical stage in box girder fabrication. Zhongda Steel employs a combination of automated and manual welding techniques to ensure the highest quality joints. Robotic welding systems are used for long, straight seams, while skilled welders handle more complex connections. All welds undergo rigorous non-destructive testing, including ultrasonic and magnetic particle inspection, to guarantee structural integrity.
Surface Treatment and Corrosion Protection
Corrosion protection is essential for the longevity of steel box girders. Zhongda Steel offers a double-layer protection system that combines hot-dip galvanizing with high-performance coatings. For weathering steel girders, a specialized treatment ensures the rapid formation of the protective patina. These measures provide a service life of 33 years or more, even in aggressive environments.
Transportation and Installation: Bringing Steel Box Girders to Life
Prefabrication and Segmentation
To enhance efficiency and ensure consistent quality, Zhongda Steel adopts a prefabrication strategy for steel box girders, producing segments ranging from 12 to 30 meters in length. These modular units are manufactured in controlled factory settings, allowing for precise fabrication and stringent quality assurance. Temporary stiffeners, bracing, and pre-installed lifting points are incorporated to facilitate safe handling and transport. By reducing the amount of work required on-site, this segmented approach helps mitigate construction risks, improve scheduling predictability, and support faster project execution across various civil infrastructure and bridge-building projects.
Transportation Logistics
Transporting large and heavy steel box girder sections is a complex process that requires meticulous coordination and the use of specialized trailers, cranes, and handling systems. Zhongda Steel collaborates with experienced logistics providers to assess route feasibility, including turning radii, bridge weight limits, and local regulations. For overseas installations - such as Arctic bridge systems in Russia or industrial structures in Southeast Asia - Zhongda Steel also manages international freight logistics, port handling, and customs procedures. This end-to-end logistical planning ensures the safe and timely delivery of girders, minimizing delays and maintaining project momentum.
On-Site Assembly and Erection
Once on location, the prefabricated steel box girder segments are assembled using a combination of high-strength bolted connections and final field welding. This hybrid approach provides structural integrity while allowing for efficient alignment and load transfer. Zhongda Steel utilizes advanced total station surveying and laser alignment systems to ensure dimensional accuracy and seamless segment joining. Compared to conventional construction methods, this approach reduces on-site construction time by up to 50%, significantly lowering labor demands and weather-related risks. The result is a robust, precision-engineered structure ready for decades of reliable service.
Conclusion
The construction of steel box girders is a complex process that demands expertise, precision, and innovation at every stage. From initial design to final installation, companies like Zhongda Steel are pushing the boundaries of what's possible in bridge engineering. By leveraging advanced materials, cutting-edge manufacturing techniques, and efficient construction methods, modern steel box girders are setting new standards for durability, efficiency, and sustainability in infrastructure development.
