Roof Horizontal Bracing: The Diagonals That Keep Your Steel Frame Square

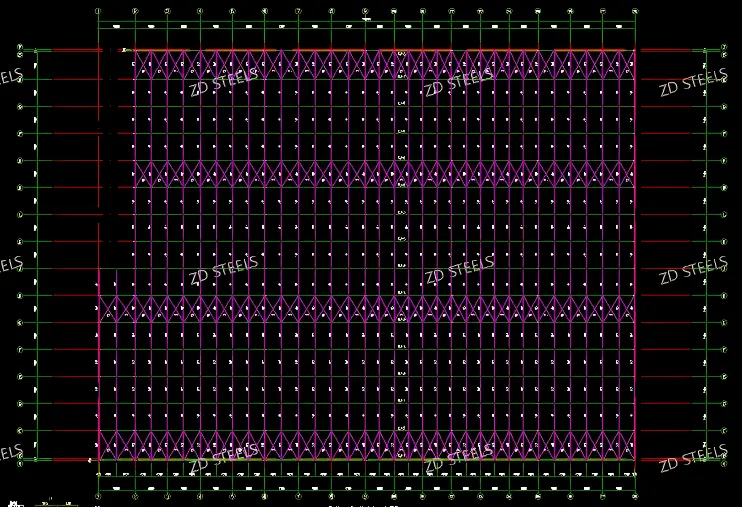

Roof horizontal bracing is the diagonal steelwork at roof level that prevents the building from racking sideways under wind or seismic load. Below is data from an actual roof bracing layout drawing.

---

Basic Specs



Item	Value
Bracing type	Cross horizontal bracing
Arrangement	Multiple bays at roof level
Connection type	Bolted, M16 bolts
End plate	10 mm thick
Weld	8 mm fillet weld

---

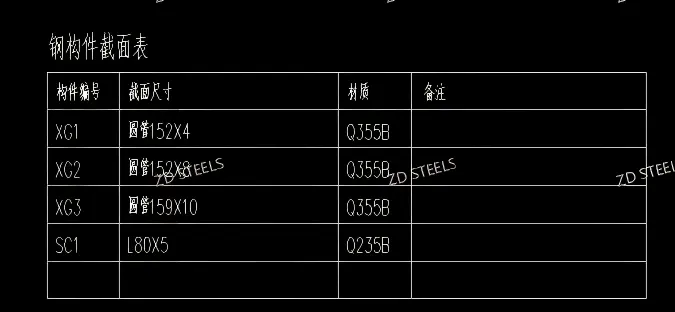

Member Schedule



Member	Section	Type	Material
XG1	CHS 152×4	Tie rod	Q355B
XG2	CHS 152×8	Tie rod	Q355B
XG3	CHS 159×10	Tie rod	Q355B
SC1	L80×5 angle	Cross brace	Q235B

---

How It Works

The bracing system forms horizontal trusses at roof level:

• Tie rods (XG): circular tubes connect column tops along building length
• Cross braces (SC): diagonal angles form X-shape in plan
• Function: transfers wind and seismic forces to vertical bracing and foundations

---

Advantages

1. Prevents racking — keeps rectangular building frame square under lateral load
2. Cost efficient — angle and tube bracing is cheap compared to moment frames
3. Lightweight — small sections, low added weight to roof
4. Easy to install — bolted connections, no welding on site
5. Proven technology — used in every steel building for 100+ years

---



Disadvantages / Limitations

1. Blocks interior space — diagonal braces occupy roof space below
2. Not aesthetic from below — visible diagonals ruin clean ceiling look
3. Tension-only design — angle braces work in tension, buckle in compression
4. Needs careful layout — must align with doors, windows and openings
5. Not for seismic zones only — high seismic zones need moment frames instead

---

Typical Applications

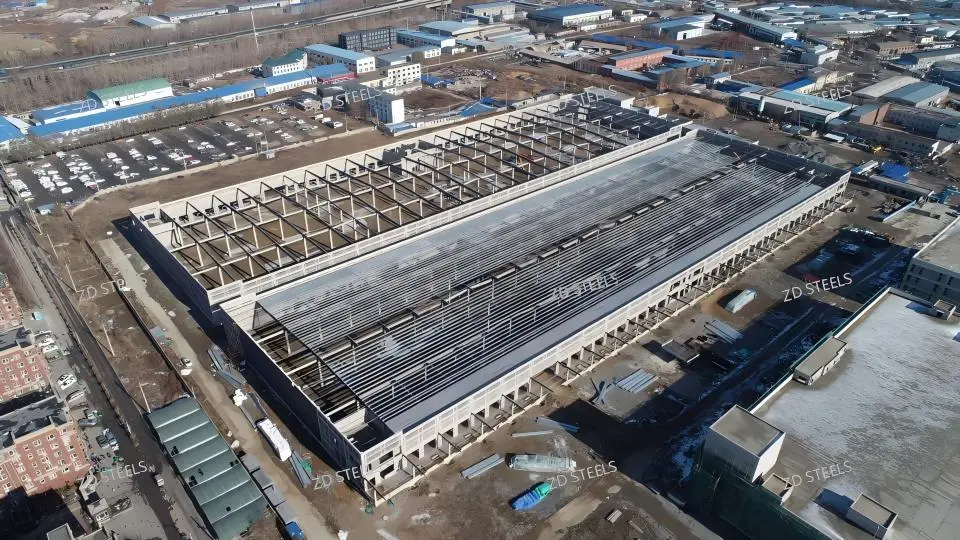

1. Industrial factory roofs — standard bracing in portal frame buildings
2. Warehouse roofs — longitudinal stability for long buildings
3. Steel structure workshops — crane load lateral distribution
4. Canopy & awning roofs — small canopy bracing systems
5. Agricultural buildings — livestock shed roof bracing

---

Installation Notes

• Braces bolted to gusset plates welded on rafters
• Turnbuckle (if any) adjusts tension after installation
• Cross braces installed at every 4th–5th column line per design
• Tighten bolts to specified torque, then inspect after first wind load
