What Customization Services Are Available for Lattice Columns?

Lattice columns, particularly Q355B welded H-section lattice columns, offer a wide range of customization options to meet diverse project requirements. At Zhongda Steel, we provide comprehensive customization services for lattice columns, including size customization, advanced processing techniques, surface treatments, and technical support. Our flexibility in design allows for non-standard cross-sections, with web widths ranging from 100-900mm and flange widths from 50-400mm, all maintained within a ±3% tolerance. We offer cutting, welding, bending, and punching services to accommodate complex node requirements. Surface treatments such as galvanizing, sandblasting, or painting with epoxy zinc or alkyd paints are available to suit various environmental conditions, from coastal high-salt areas to industrial corrosive settings.

Tailored Dimensions and Structural Optimization

Precision in Size Customization

At Zhongda Steel, we understand that every project has unique requirements. Our advanced manufacturing capabilities allow us to offer precise size customization for lattice columns. We can produce non-standard cross-sections with web widths ranging from 100mm to 900mm and flange widths from 50mm to 400mm. This flexibility ensures that our lattice columns can be tailored to fit specific architectural designs and structural needs. Our commitment to quality is evident in our tight tolerance control, maintaining dimensions within ±3% of specifications. This precision is crucial for ensuring proper fit and alignment during assembly, reducing on-site adjustments and speeding up construction timelines.

Structural Engineering Expertise

Our team of experienced engineers utilizes cutting-edge software such as CAD, Tekla, and 3D3S to design and optimize lattice column structures. This advanced approach allows us to:

- Analyze load distributions and stress points

- Optimize material usage for cost-effectiveness

- Enhance overall structural integrity

We also offer support for Z-direction performance steel, such as Q355BZ15 and Q355BZ25, which significantly improves resistance to lamellar tearing. This feature is particularly valuable in structures subjected to multi-directional stresses or in seismic-active regions.​​​​​​​

BIM-Driven Prefabrication

Leveraging our expertise in Building Information Modeling (BIM), we optimize the prefabrication process for lattice columns. This approach ensures:

- Improved accuracy in component manufacturing

- Enhanced coordination between design and production phases

- Reduced material waste and construction time

Our 120,000 m² state-of-the-art facility, equipped with modern machinery, allows us to handle large-scale prefabrication projects efficiently, maintaining our annual capacity of 60,000 tons.

Advanced Processing and Fabrication Techniques

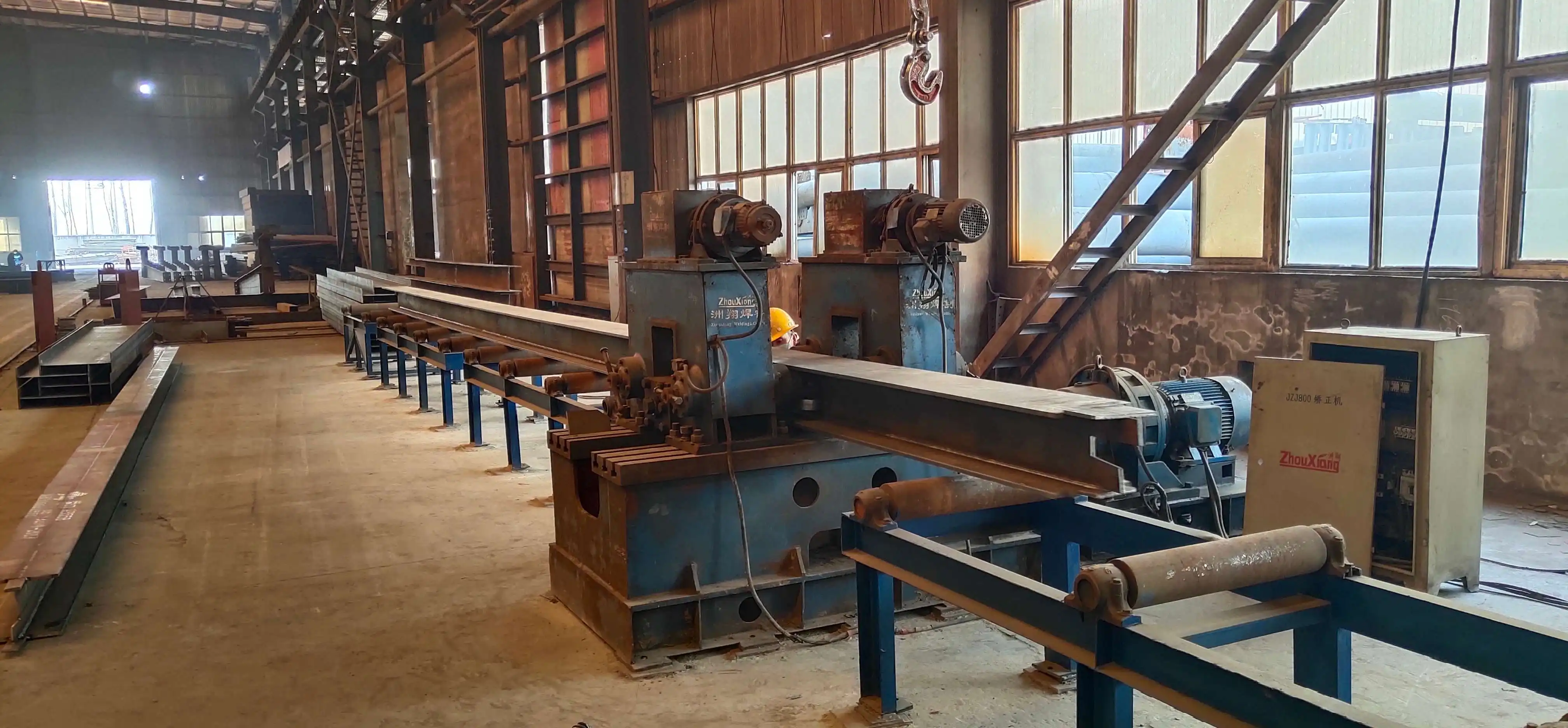

Cutting-Edge Welding Technologies

Our welding processes for Q355B H-section lattice columns employ the latest technologies to ensure superior joint strength and durability. We utilize:

- Automated welding systems for consistent, high-quality welds

- Non-destructive testing methods to verify weld integrity

- Specialized techniques for thick plate welding, crucial for heavy-duty lattice columns

Our welders are certified to international standards, ensuring that every weld meets or exceeds industry specifications.

Precision Cutting and Forming

Zhongda Steel's ultra-thick plate cutting technology achieves an impressive accuracy of ±0.2mm, allowing for precise fabrication of lattice column components. Our advanced machinery includes:

- CNC plasma and laser cutting systems for intricate designs

- Large-capacity press brakes for accurate bending of thick plates

- Automated punching machines for consistent hole placement

This level of precision is essential for creating lattice columns that assemble seamlessly and perform optimally under load.

Specialized Node Fabrication

Complex node connections are often the most critical parts of a lattice column structure. Our specialized fabrication services for these areas include:

- Custom jig design for complex geometries

- Multi-axis machining for precise fit-up

- Advanced welding techniques for high-stress areas

By focusing on the quality of node fabrication, we ensure the overall integrity and load-bearing capacity of the lattice column structure.

Surface Treatments and Environmental Adaptations

Corrosion Protection Systems

To enhance the durability of lattice columns, especially in challenging environments, we offer a range of surface treatments:

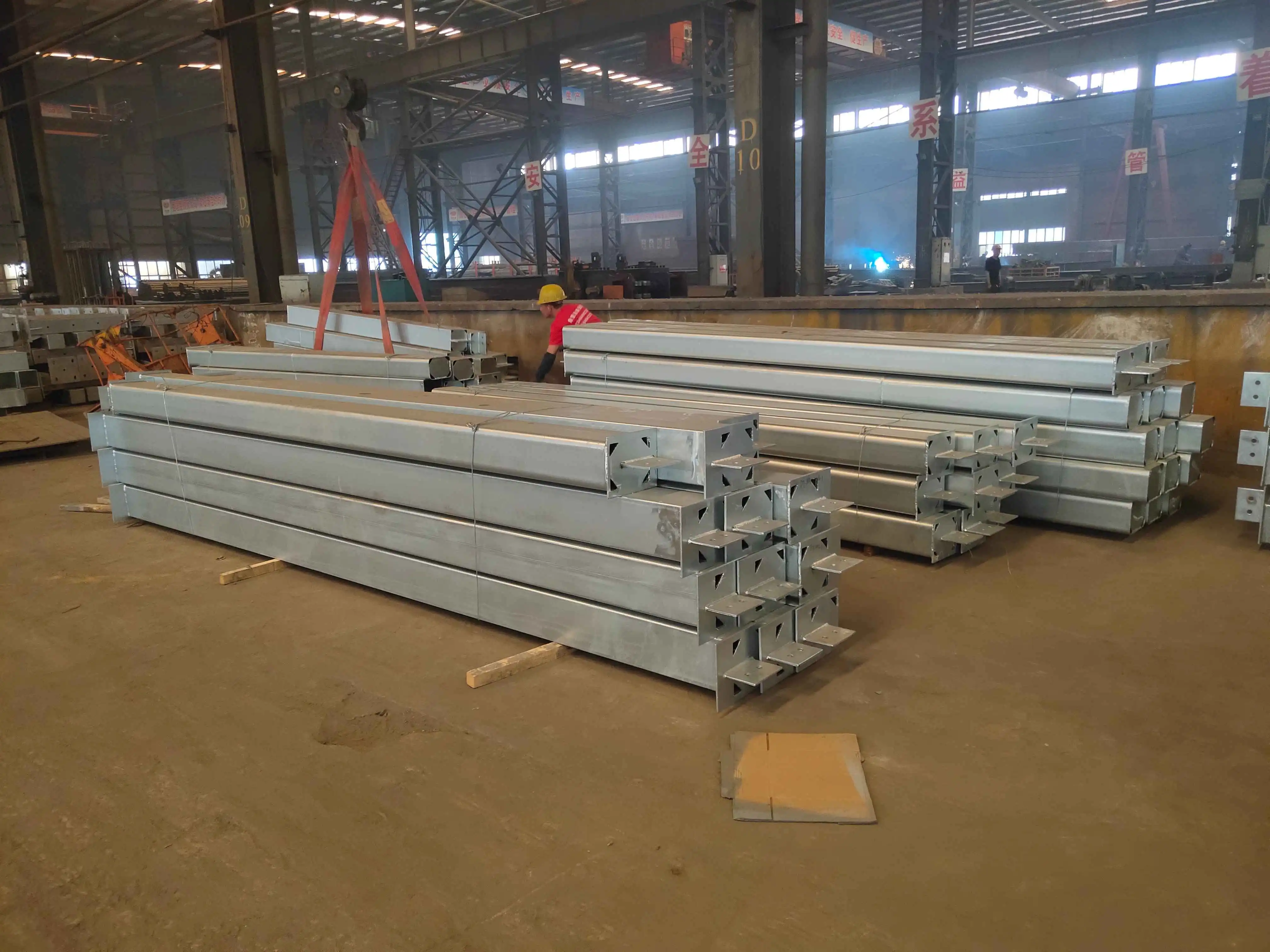

- Hot-dip galvanizing for long-term corrosion resistance

- Epoxy zinc coatings for industrial and marine applications

- Alkyd paint systems for general-purpose protection

Our -60°C Weathering Steel Anti-corrosion Technology is particularly suitable for extreme climate conditions, offering superior protection against corrosion in Arctic or sub-zero environments.

Aesthetic Finishes

Beyond functional protection, we provide aesthetic finishing options to meet architectural requirements:

- Powder coating in a wide range of colors

- Textured finishes for enhanced visual appeal

- Clear coatings to preserve the natural look of the steel

These options allow lattice columns to blend seamlessly with various architectural styles or stand out as design features.

Environmental Adaptations

Our customization services extend to adapting lattice columns for specific environmental challenges:

- Enhanced coatings for high-salinity coastal areas

- Chemical-resistant treatments for industrial settings

- Fire-resistant coatings for increased safety in high-risk environments

By tailoring the surface treatment to the specific project location and requirements, we ensure optimal performance and longevity of the lattice column structures.

Conclusion

Zhongda Steel's comprehensive customization services for lattice columns encompass every aspect of design, fabrication, and finishing. From precise dimensional control to advanced welding techniques and specialized surface treatments, we offer solutions tailored to meet the most demanding project requirements. Our commitment to innovation, quality, and customer satisfaction positions us as a leader in the steel structure industry, capable of delivering exceptional results for projects worldwide.

Contact Us

Experience the Zhongda Steel difference in lattice column customization. Our engineering excellence and global impact are backed by international certifications and a track record of successful projects across diverse environments. Whether your project requires a standard solution or a highly specialized Q355B welded H-section lattice column we have the expertise to deliver. For more information on how we can tailor our lattice column solutions to your specific needs, contact us at Ava@zd-steels.com. Let's build a stronger, more resilient future together.
