Applications of Steel Plate Girders in Bridge Construction

Steel plate girders are the backbone of modern bridge construction, offering unparalleled strength, versatility, and efficiency. These robust structural elements, expertly crafted by industry leaders like Shenyang Zhongda Steel Structure Engineering Co., Ltd., play a crucial role in creating durable, long-spanning bridges across various terrains. From highway overpasses to railway bridges, steel plate girders provide the essential support needed to withstand heavy loads and harsh environmental conditions. Their adaptability to different designs and ability to be customized make them ideal for both simple and complex bridge projects, ensuring safe and reliable infrastructure for generations to come.

Advantages of Steel Plate Girders in Bridge Design

Superior Strength-to-Weight Ratio

Steel plate girders boast an impressive strength-to-weight ratio, allowing bridge designers to create longer spans with less material. This characteristic not only reduces overall project costs but also minimizes the environmental impact of bridge construction. The high-strength steel used in these girders, such as Q420qE steel with -40℃ impact resistance ≥34J (GB/T 714), ensures optimal performance even in extreme conditions.

Flexibility in Design and Fabrication

The versatility of steel plate girders allows for remarkable flexibility in bridge design. Manufacturers like Zhongda Steel utilize advanced laser cutting technology with precision up to ±0.5mm, enabling the production of girders with flange thicknesses ranging from 14 to 80mm. This level of customization ensures that each girder perfectly fits the unique requirements of individual bridge projects, from simple highway overpasses to complex long-span structures.

Durability and Longevity

Steel plate girders are engineered for exceptional durability, making them ideal for bridges that must withstand harsh environmental conditions. With advanced anti-corrosion treatments, such as double-layer protection (spray + topcoat, GB/T 30790), these girders can resist deterioration caused by moisture, salt, and other corrosive elements. This enhanced longevity translates to reduced maintenance costs and extended bridge lifespans, providing significant long-term value for infrastructure investments.

Key Applications in Bridge Construction

Highway and Freeway Bridges

Steel plate girders are extensively used in highway and freeway bridge construction, where their strength and efficiency shine. These girders enable the creation of long, clear spans that minimize the need for support piers, reducing construction costs and environmental impact. The rapid assembly of bolted connections, which can improve efficiency by up to 60%, allows for quicker project completion and reduced traffic disruptions. Notable projects like the Jingha Expressway expansion showcase the effectiveness of steel plate girders in enhancing connectivity and traffic flow.

Railway Bridges

The exceptional load-bearing capacity of steel plate girders makes them ideal for railway bridges, which must support the immense weight and dynamic loads of passing trains. These girders can be designed to accommodate the specific requirements of rail traffic, including considerations for vibration dampening and track alignment. The precision engineering offered by manufacturers like Zhongda Steel ensures that railway bridges built with steel plate girders meet the stringent safety and performance standards of the rail industry.

Pedestrian and Bicycle Bridges

While often associated with heavy-duty applications, steel plate girders also excel in the construction of lighter pedestrian and bicycle bridges. Their adaptability allows designers to create aesthetically pleasing structures that blend seamlessly with urban or natural environments. The use of weathering steel options, certified to standards like ASTM A709 Gr.50W, ensures these bridges remain attractive and structurally sound for decades, even in challenging weather conditions.

Innovative Techniques in Steel Plate Girder Bridge Construction

Advanced Fabrication Methods

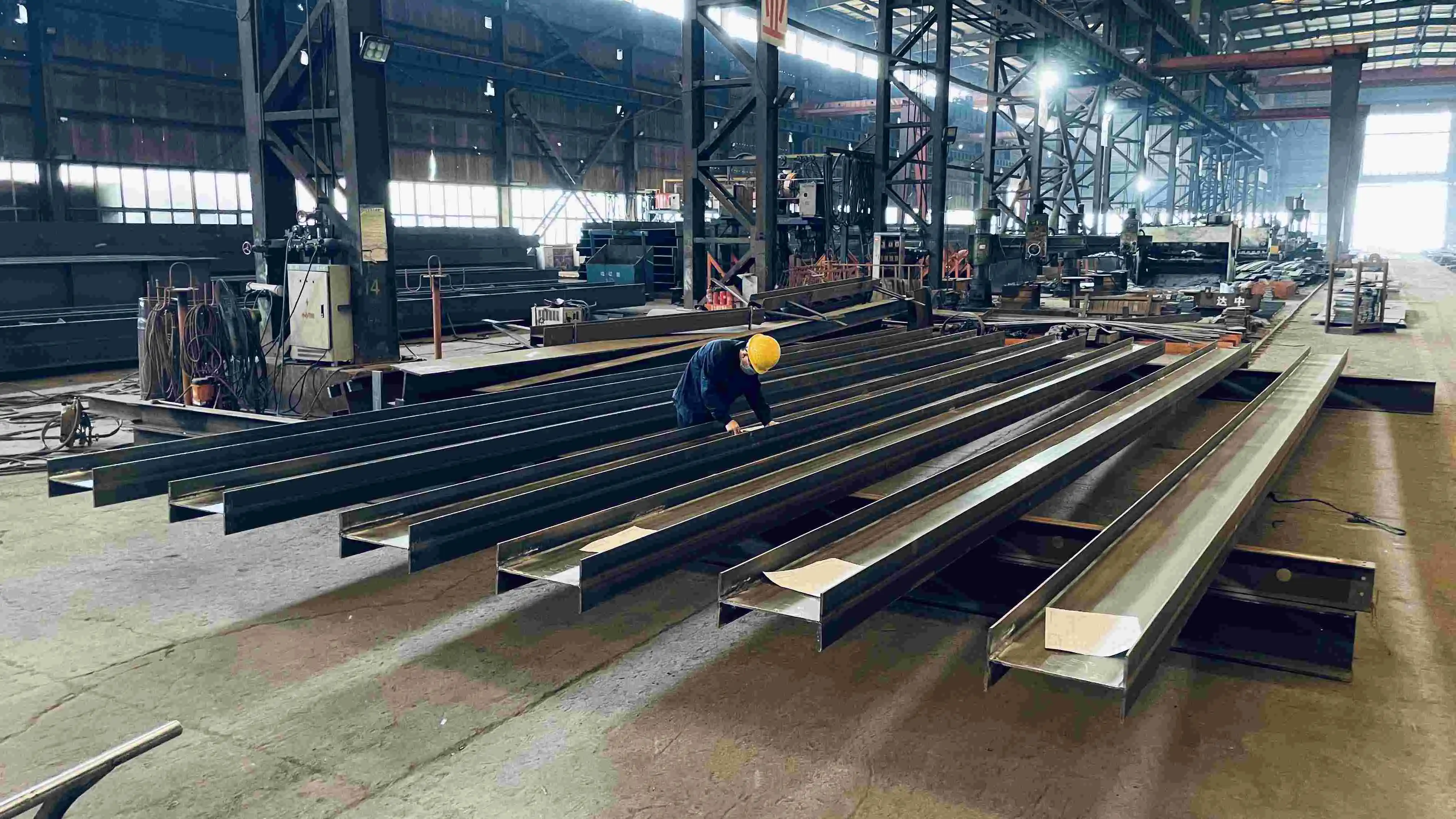

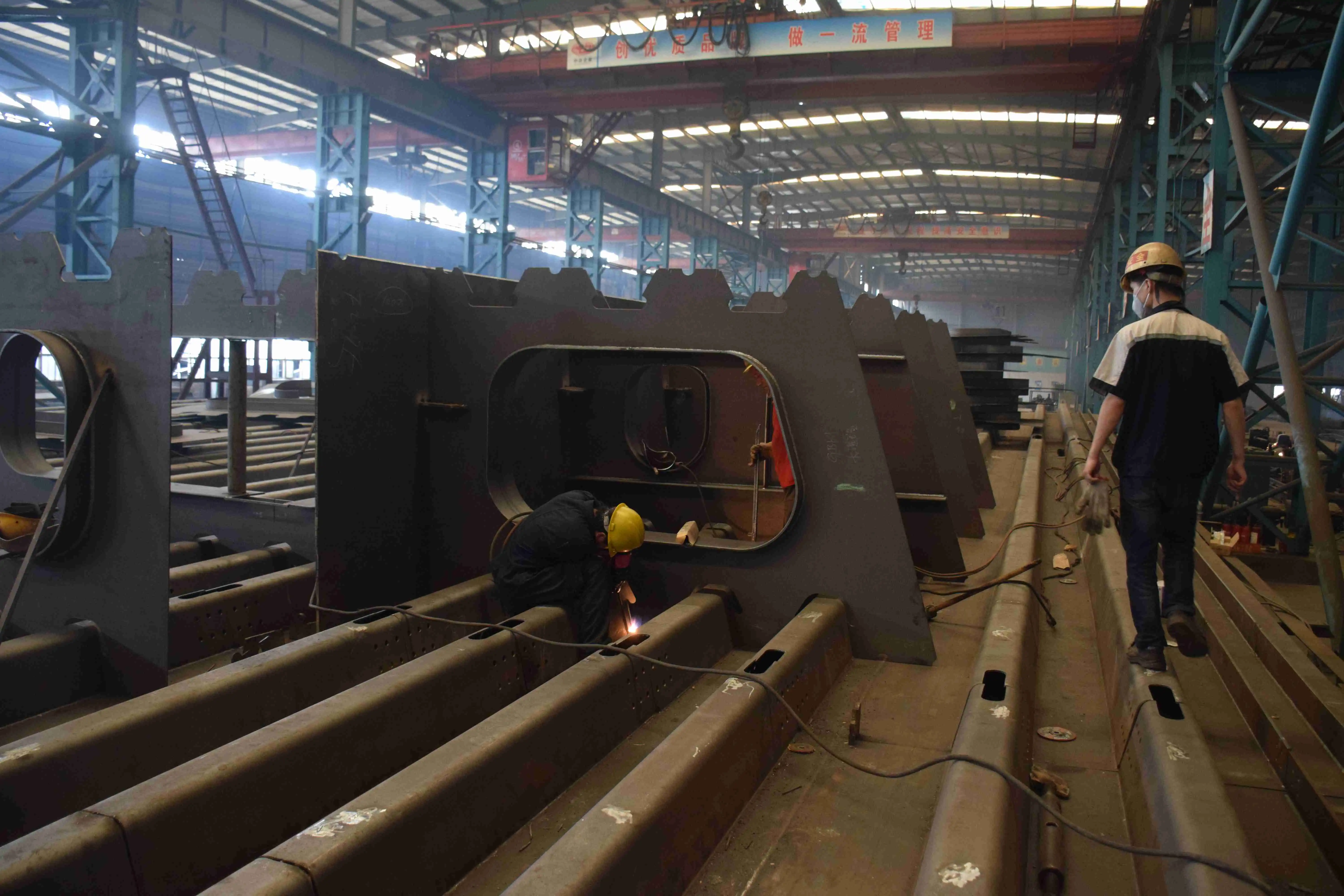

The bridge construction industry has seen significant advancements in steel plate girder fabrication techniques. State-of-the-art CNC machinery and automated welding lines, like those employed by Zhongda Steel, ensure precise fabrication that meets the most demanding project specifications. These advanced methods not only improve the quality and consistency of girders but also reduce production time, allowing for faster project completion. The ability to deliver standard specifications within 30 days and special orders within 60 days demonstrates the efficiency of modern fabrication processes.

Composite Construction Techniques

Innovative composite construction techniques that combine steel plate girders with concrete decks have revolutionized bridge design. This approach leverages the strengths of both materials, with steel providing tensile strength and concrete offering compressive strength. The result is a more efficient structure that can span greater distances while using less material. Zhongda Steel's expertise in complex, large-scale projects makes them an ideal partner for implementing these advanced composite construction methods.

Sustainable and Eco-Friendly Solutions

As environmental concerns become increasingly important, the bridge construction industry is adopting more sustainable practices. Steel plate girder manufacturers are at the forefront of this movement, developing eco-friendly solutions that minimize environmental impact. The use of high-strength steels allows for lighter structures that require less material, while the recyclability of steel ensures that these bridges have a lower carbon footprint over their lifecycle. Zhongda Steel's ISO 14001:2015 Environmental Management System certification underscores their commitment to sustainable manufacturing practices.

Conclusion

Steel plate girders have proven to be indispensable in modern bridge construction, offering a perfect blend of strength, versatility, and efficiency. Their applications span a wide range of bridge types, from massive highway structures to elegant pedestrian crossings. As technology advances and environmental concerns grow, the role of steel plate girders in creating sustainable, long-lasting infrastructure continues to evolve. With industry leaders like Shenyang Zhongda Steel Structure Engineering Co., Ltd. at the forefront of innovation, the future of bridge construction looks brighter and more efficient than ever.

FAQs

What makes steel plate girders ideal for bridge construction?

Steel plate girders offer high strength-to-weight ratios, design flexibility, and durability, making them perfect for various bridge types.

How do steel plate girders contribute to faster bridge construction?

Their bolted connections and prefabrication capabilities can improve efficiency by up to 60%, significantly reducing on-site assembly time.

Can steel plate girders withstand extreme weather conditions?

Yes, with proper treatments like double-layer anti-corrosion protection, they can endure harsh environments, including -40℃ temperatures.

Why Choose Zhongda Steel for Your Bridge Construction Project?

Shenyang Zhongda Steel Structure Engineering Co., Ltd. stands out as a premier supplier, factory, and manufacturer of steel plate girders for bridge construction. With our 60,000-ton annual production capacity, advanced laser cutting technology, and ability to deliver projects in extreme environments like Alaska and Nordic countries, we're your ideal partner for robust, efficient bridge solutions. Experience our engineering excellence and worldwide impact. Contact us at Ava@zd-steels.com for unparalleled steel structure expertise.

References

American Institute of Steel Construction. (2022). Steel Bridge Design Handbook.

Bai, Y., & Burkett, W. R. (2020). Advances in Steel-Concrete Composite Structures for Bridge Engineering.

European Committee for Standardization. (2021). Eurocode 3: Design of steel structures - Part 2: Steel Bridges.

International Association for Bridge and Structural Engineering. (2023). Innovations in Bridge Engineering: Steel Plate Girder Applications.

National Steel Bridge Alliance. (2022). Best Practices for Steel Bridge Design and Construction.

Transportation Research Board. (2021). NCHRP Report 962: Proposed Modifications to AASHTO Cross-Frame Analysis and Design.
