Shenyang Zhongda Steel Structure Engineering Co., Ltd. Prefabricated steel structure workshop & warehouse product information
Product information is generated from industry-standard benchmarks; exact specifications are subject to the company's final quotation.
Material and process details
Main Frame

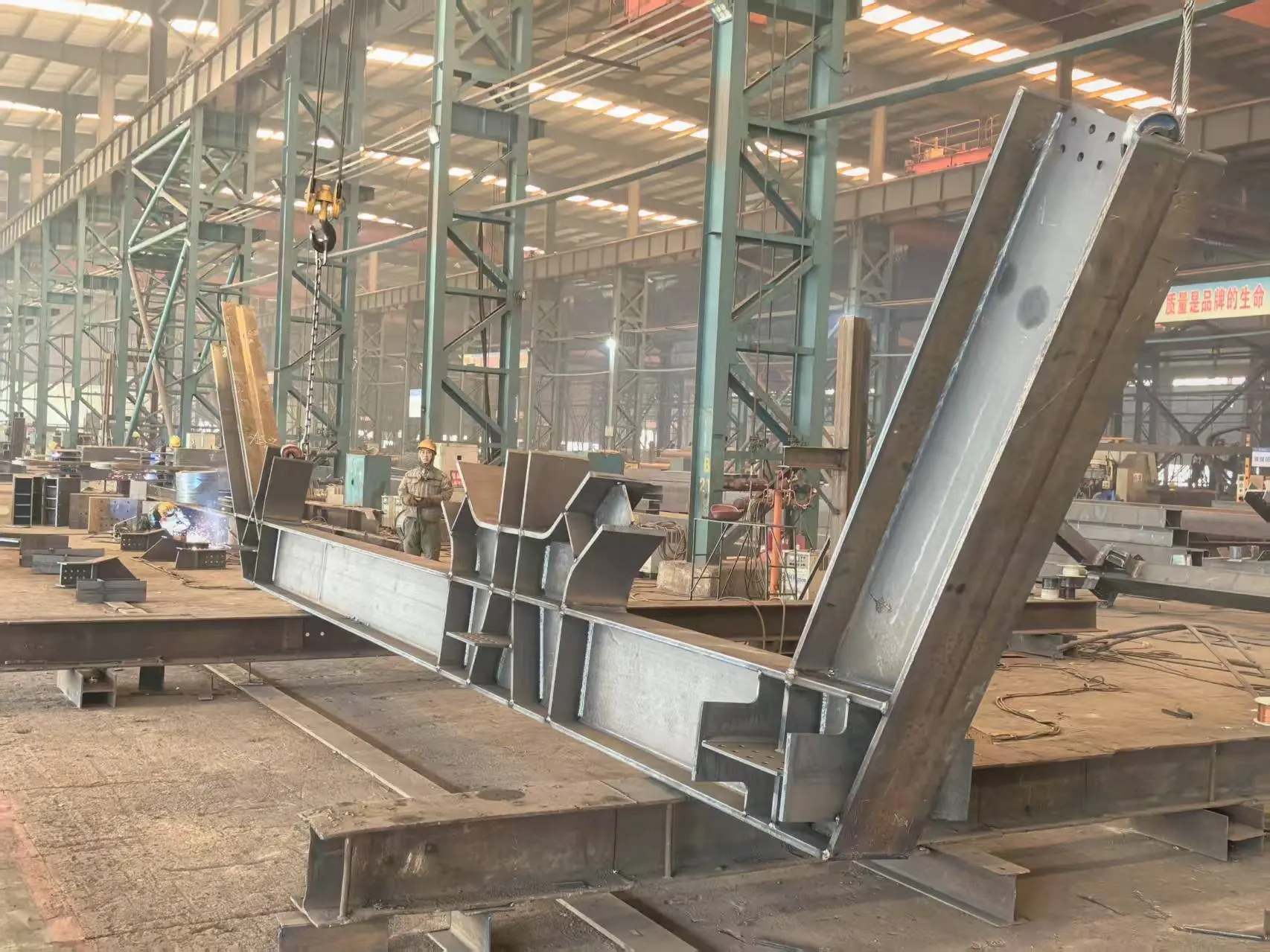

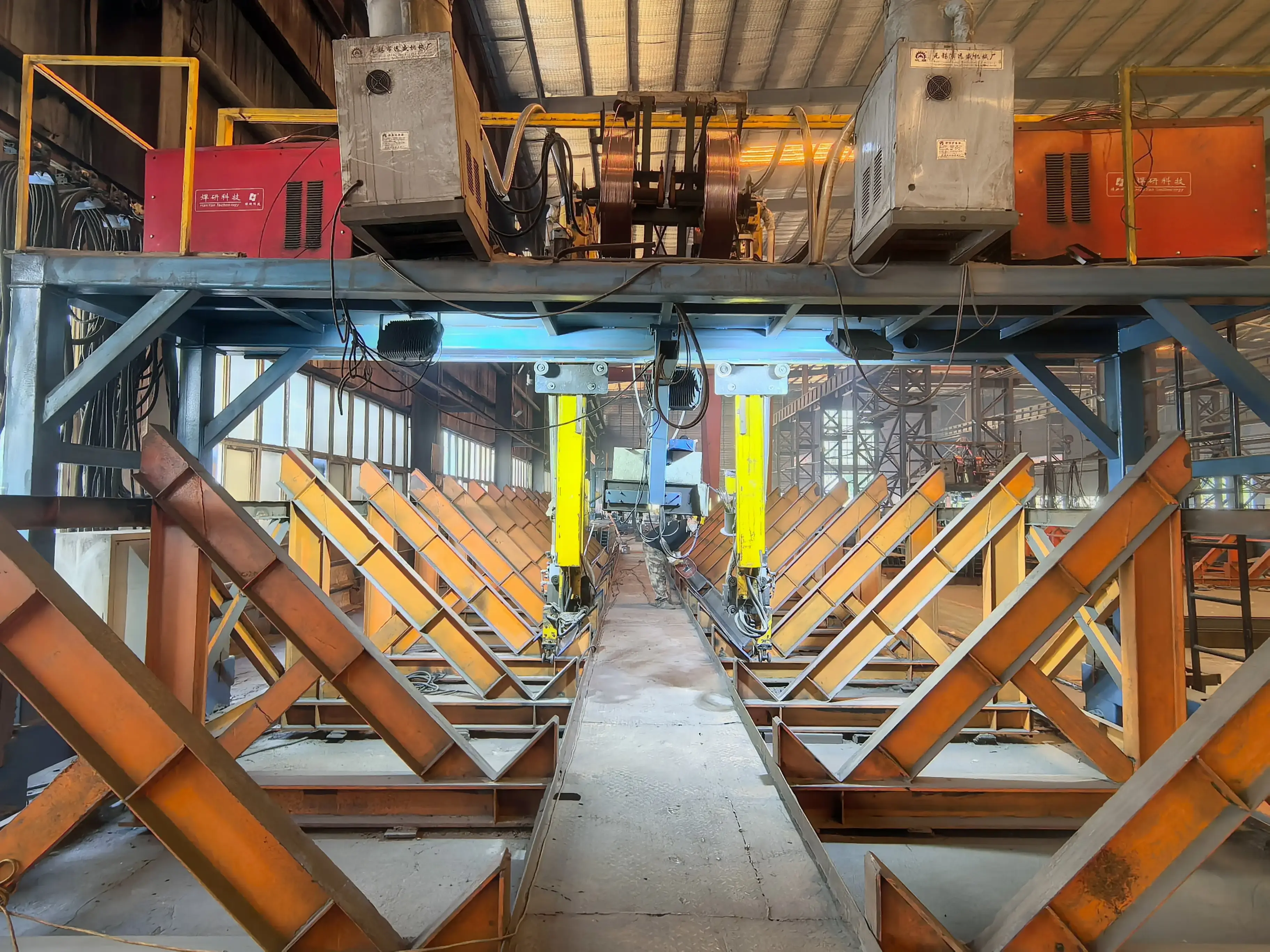

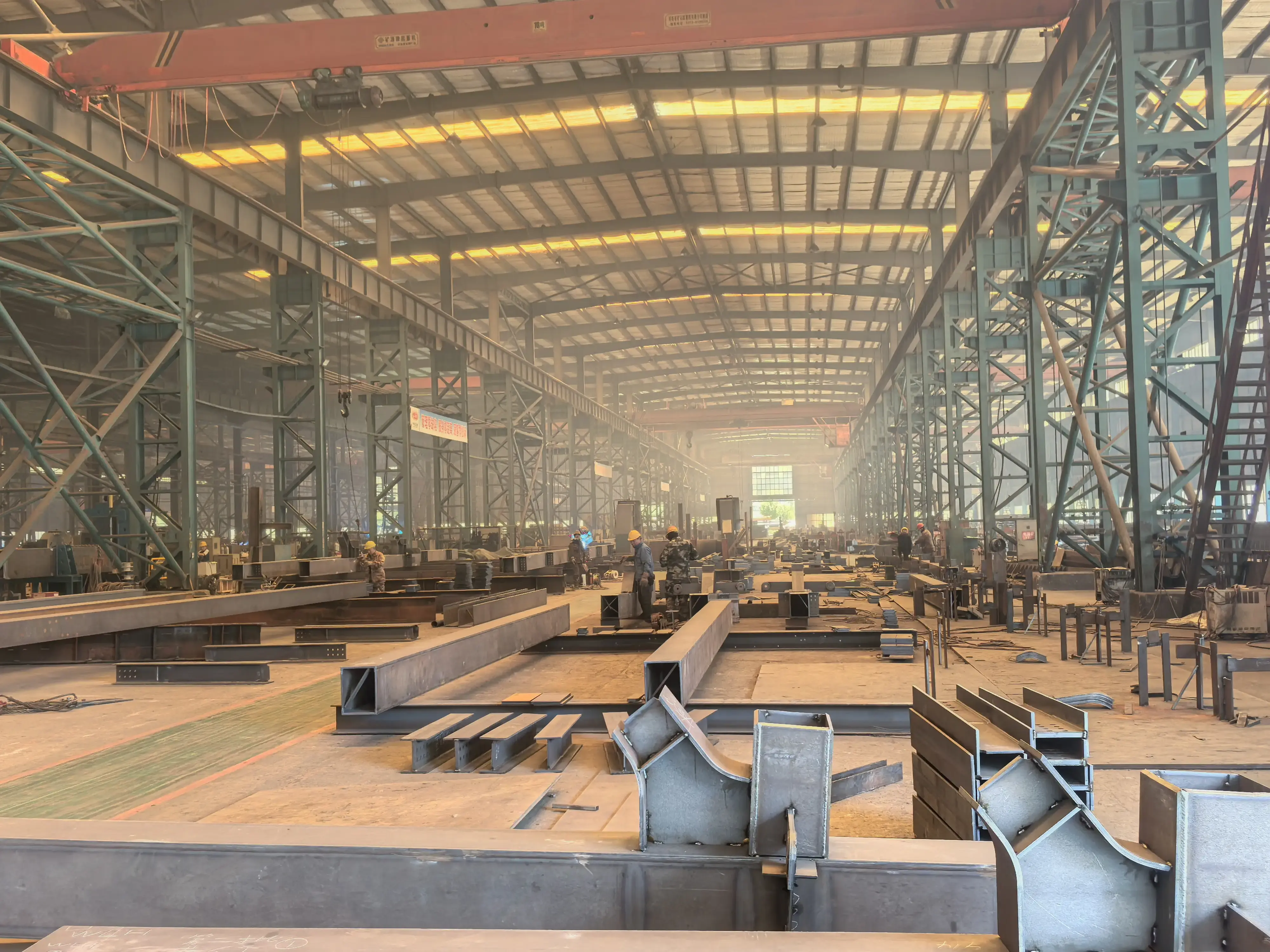

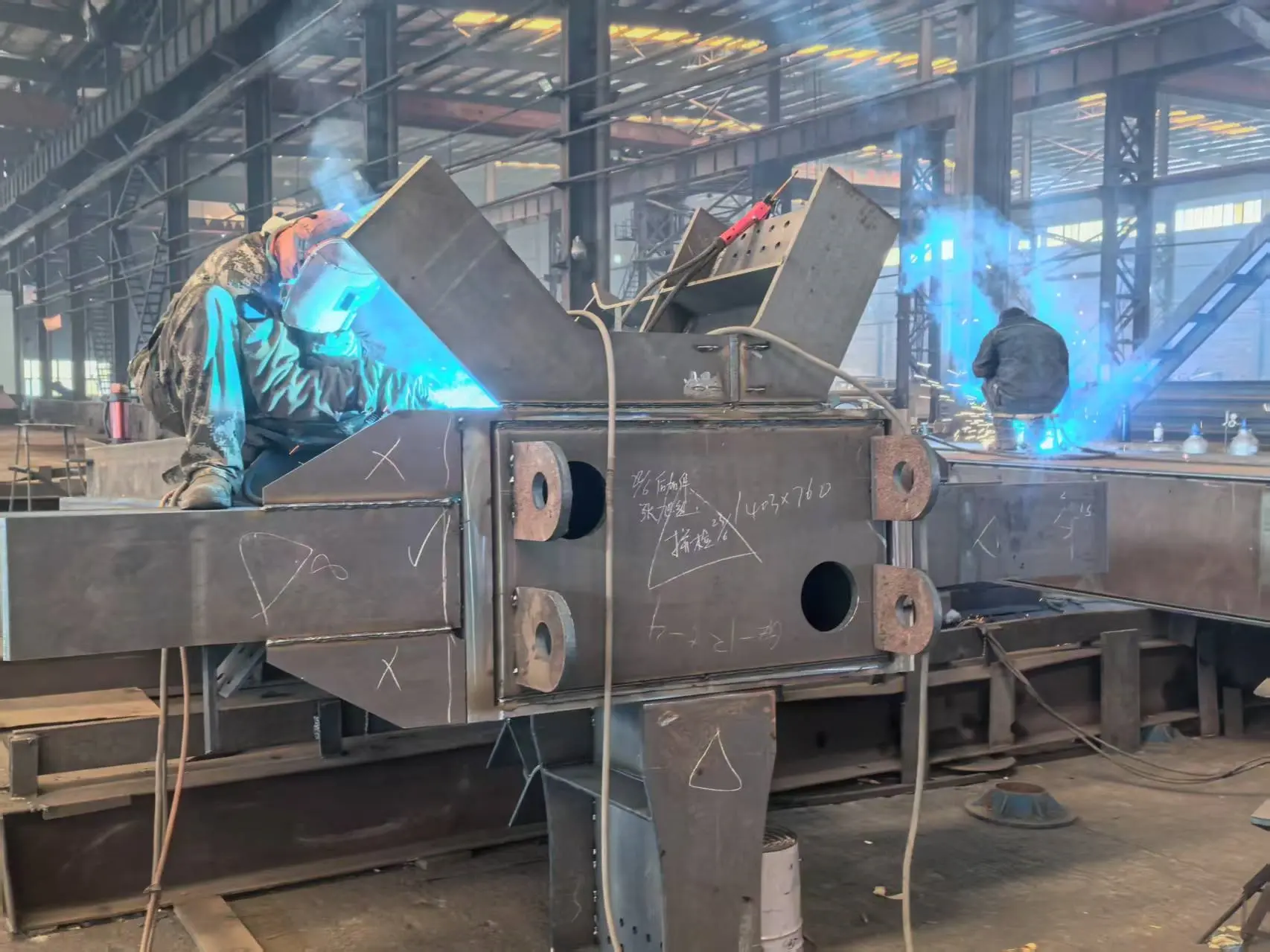

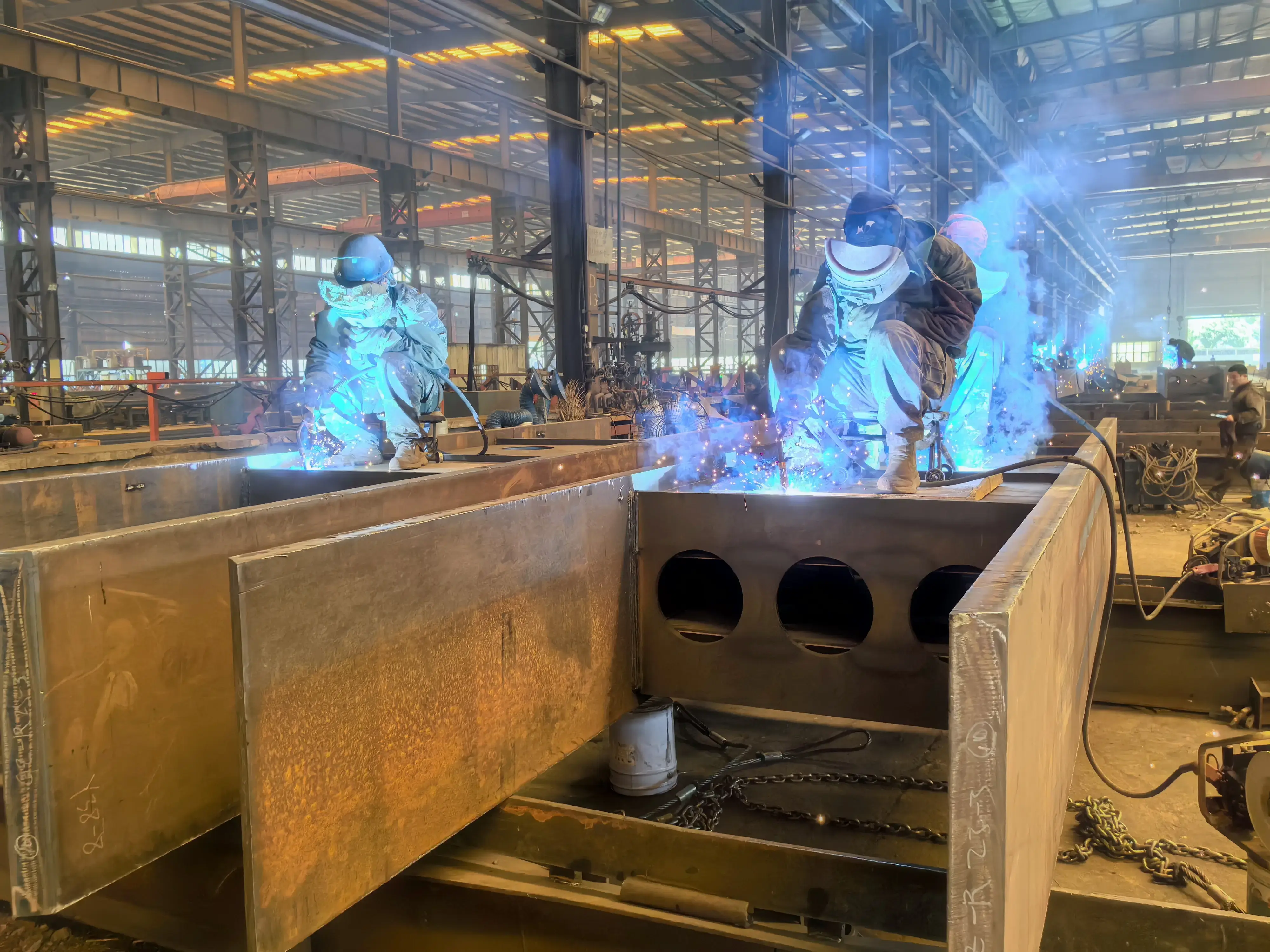

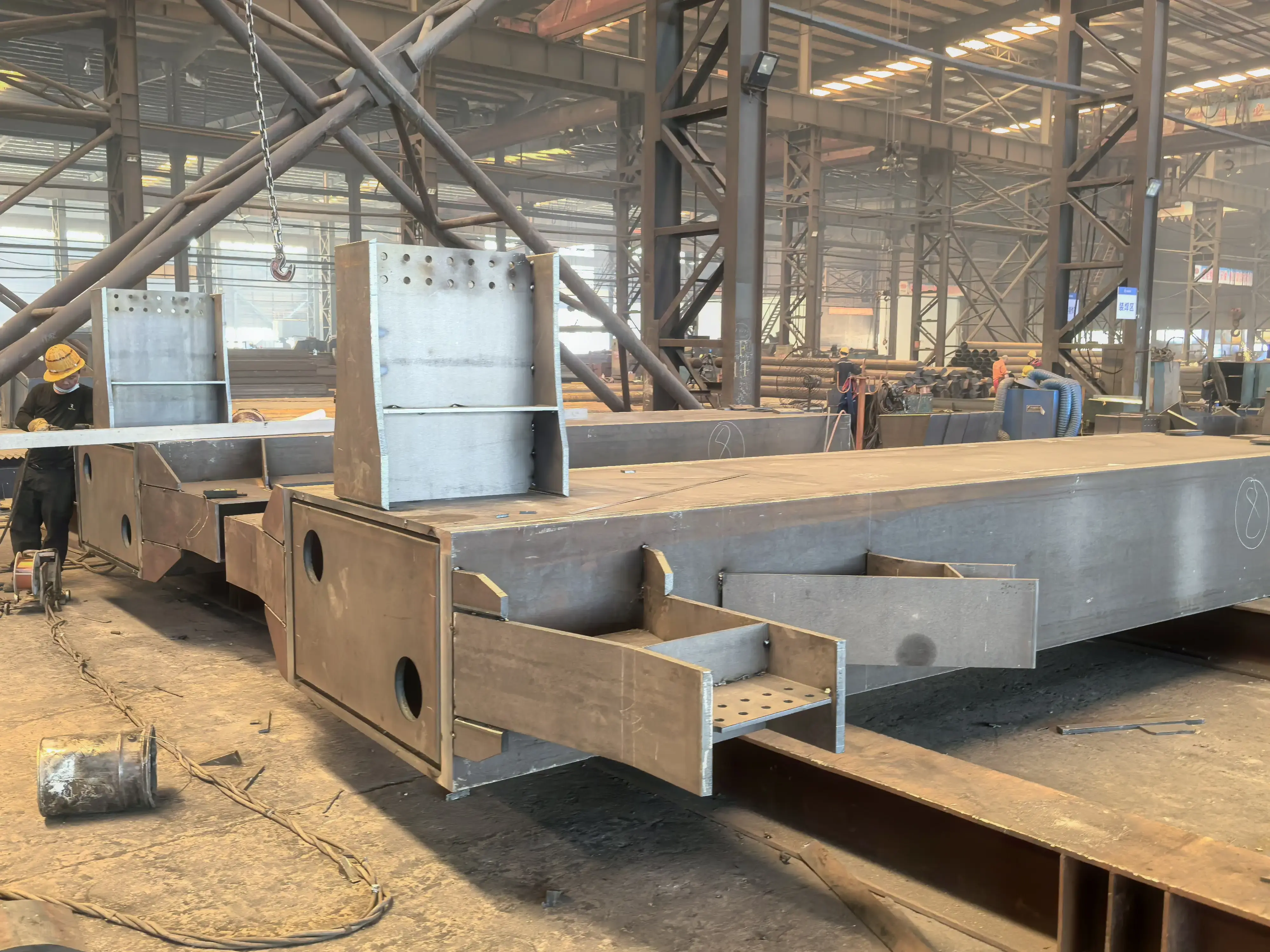

Steel Component Fabrication: 100% factory prefabrication, utilizing CNC cutting and H-beam assembly machine welding, with welding quality meeting GB/T 12469-2016 standards. Surface treatment includes shot blasting (Sa2.5 grade), epoxy zinc-rich primer (80μm), and acrylic topcoat (60μm), providing a rust-resistant lifespan of over 15 years.
Envelope Options
|
Type
|
Material
|
Thickness
|
Performance
|
Typical Use
|
|
Single-skin panel
|
0.3–0.8 mm color-coated steel (Baosteel/Shougang)
|
0.3mm-0.8mm
|
Waterproof & wind-resistant, low insulation
|
Temporary storage
|
|
Rock-wool sandwich
|
50–200 mm rock-wool core + steel facings
|
50mm-200mm
|
Fire rating A, λ ≤ 0.04 W/m·K
|
Industrial plants, food/pharma warehouses
|
|
PUR sandwich
|
50–150 mm polyurethane core + steel facings
|
50mm-150mm
|
λ ≤ 0.024 W/m·K, superior waterproofing
|
Cold storage, precision workshops
|
Performance Highlights & Competitive EdgesStructural Performance
- Seismic fortification intensity: 8 degrees,Wind load resistance: 0.55–0.75 kN/m² (adapted to Northeast China climate),Design service life: 50 years
- Lightweight & Large-Span Advantages：60 % lighter than concrete; 30 m clear-span achievable, increasing usable space by ≥ 20 %
Customization & Speed

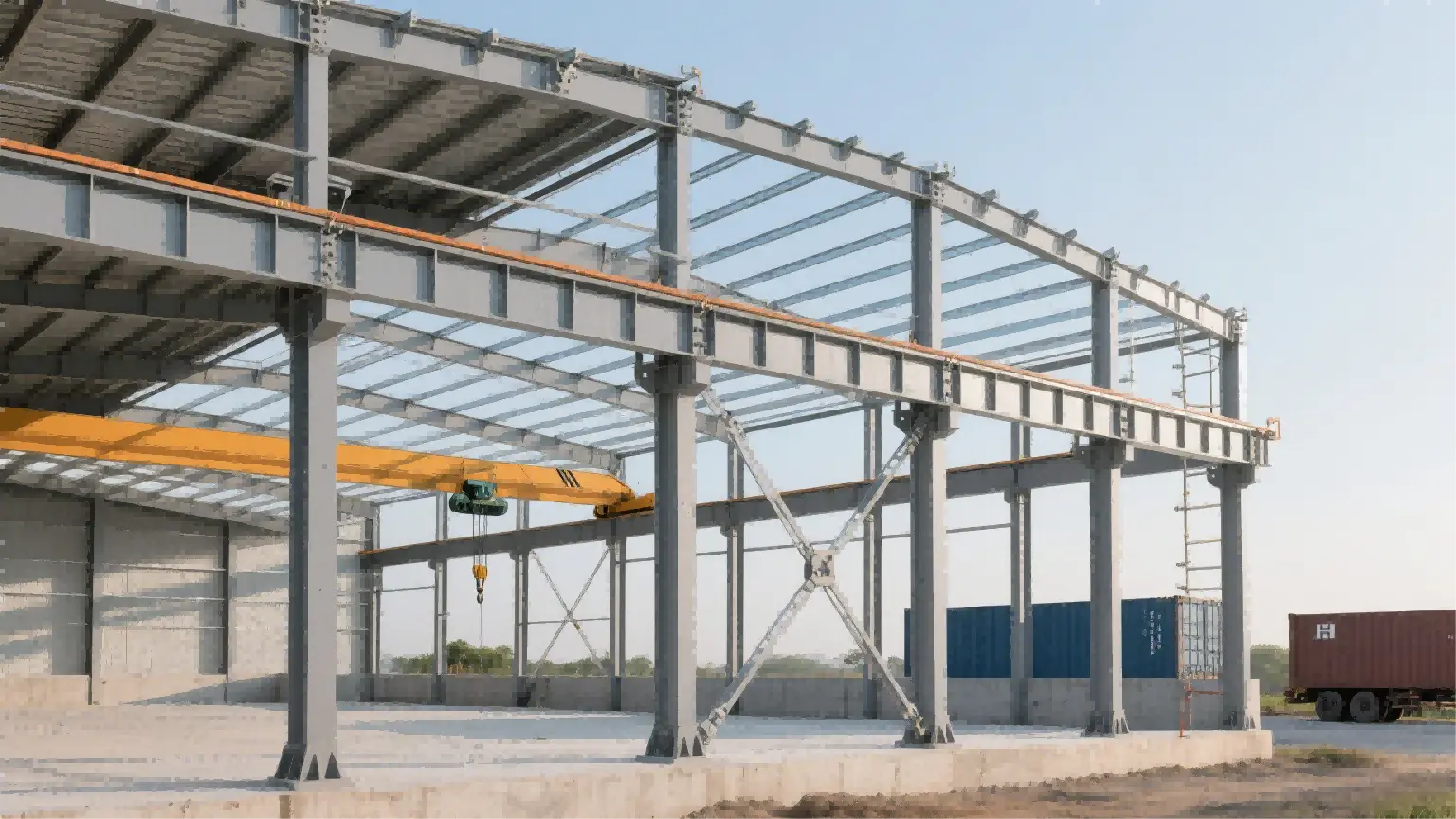

- Flexible design: accept client drawings; free preliminary 3-D concept; optional crane beams, ventilating skylights, firefighting systems
- Fast delivery: 15–25 days production for standard items; erection of 1,000 m² in 7–10 days; overall schedule 50 % shorter than concrete
Certification & Quality Control
- International: CE (EN 1090), ISO 9001; mill certificates available for all materials
- QC pipeline: raw material spectral test → three in-process inspections → pre-shipment load test; 100 % pass rate
Supplier service guarantee
Service Process
One-stop service: demand communication → solution design → quotation confirmation → contract signing → production and manufacturing → logistics distribution → installation guidance → after-sales quality assurance.
After-sales and warranty
- Warranty period: 10 years for the main structure, 5 years for the enclosure system, and lifelong technical support.
- Customer satisfaction: The customer satisfaction rate of the past three years is 98.5%, and the repeat order rate is 65% (data source: internal company statistics).
If you need a detailed quotation or customized solution, please provide your specific requirements (area, span, purpose, etc.) and our technical team will issue a preliminary solution within 24 hours.
Core Specifications & Pricing
Area-based Pricing Tiers
|
Area (m²)
|
USD/m²
|
CNY/m² (reference)
|
MOQ
|
|
1000-1999㎡
|
42-44
|
300-320
|
1000㎡
|
|
2000-4999㎡
|
38-39
|
270-290
|
2000㎡
|
|
≥5000㎡
|
33-34
|
240-260
|
5000㎡
|
|
Note: Price includes main frame (steel columns & beams), envelope system (color-coated or sandwich panels), foundation anchor bolts, and installation guidance. Civil foundation, transportation, and on-site erection are excluded. For every additional 1,000 m² ordered, the unit price can be reduced by 2–3 %.
|
|||
Structural parameters and customization range
- Span: Single span 8m-30m, maximum span for multiple spans 60m (e.g., 30m + 30m), column spacing 6m-9m.
- Eaves Height: 4m-12m (standard), custom heights up to 15m possible (load requirements required).
- Load Capacity: Roof load 0.3-1.0kN/㎡, wall load 0.5kN/㎡, crane load 5-50 tons (to be specified in advance).
- Steel Specifications: Main structure utilizes Q235B (standard)/Q345B (high-strength), purlins utilize Q235 cold-formed steel, plate thickness 6mm-20mm, and steel consumption per square meter 18-45kg
