How to Design a Steel Structure for a Sports Stadium?

When designing a steel structure stadium, high-strength structural frameworks like H-beams, trusses, and space frames are put together to make big sports arenas that combine the vision of the builder with the accuracy of the engineer. To do the job right, you need to carefully look at the loads, choose materials that meet standards like ASTM A992 or Q355B, and plan ahead for external forces. This method creates venues with higher strength-to-weight ratios, shorter construction times, and better seismic resilience. This makes steel the first choice for commercial developers, government contractors, and infrastructure experts looking for long-lasting, low-cost options for stadiums, arenas, and public gathering areas.

Understanding the Concept and Benefits of Steel Structure Stadiums

What Makes Steel the Optimal Choice for Modern Stadiums?

Steel structure stadiums are a big change in how we build large-scale sports facilities. These places use high-tech metal frames to build spans longer than 100 meters without using intermediate beams. This lets people in the sitting bowl see everything clearly. The qualities of the material solve a number of important problems that buying workers and tech teams face every day.

The edge in strength to weight is clear right away. High-strength low-alloy steel types have yield values of 355 MPa or higher, which means that base loads can be cut by 30 to 40 percent compared to concrete options. This means big savings on geotechnical work, especially when the ground is hard and deep piles would normally make the job cost a lot more.

Durability That Withstands Decades of Service

When you look at steel's long-term value, you can see how resilient it is in many performance areas. Modern rust protection systems, such as marine-grade epoxy coats and hot-dip galvanizing with zinc layers thicker than 85 micrometers, make things last longer than 50 years, even in coastal areas. These high-tech surface treatments are normal on all of our projects, and we've put them in places with tough climates, from Southeast Asian rainy regions to Pacific Rim earthquake-prone zones.

Careful attention is paid to fire protection by using intumescent coatings that get REI 120 scores and meet strict international safety standards. The malleability of structural steel is very important for releasing energy during earthquakes so that the structure can bend without breaking completely. This feature was very important at a recent venue we built for 75,000 people in a Mercalli VIII earthquake zone, where safety of the people inside was the most important design factor.

Accelerated Construction Timelines for Event-Driven Projects

For clients with tight event dates, timeline reduction may be the most appealing benefit. Usually, it takes 24 to 36 months from the start of traditional concrete stadium building to the end. Prefabrication of steel changes this situation in a big way. With our modular method, projects are finished in 12 to 18 months by preparing the site and making the modules in the building at the same time.

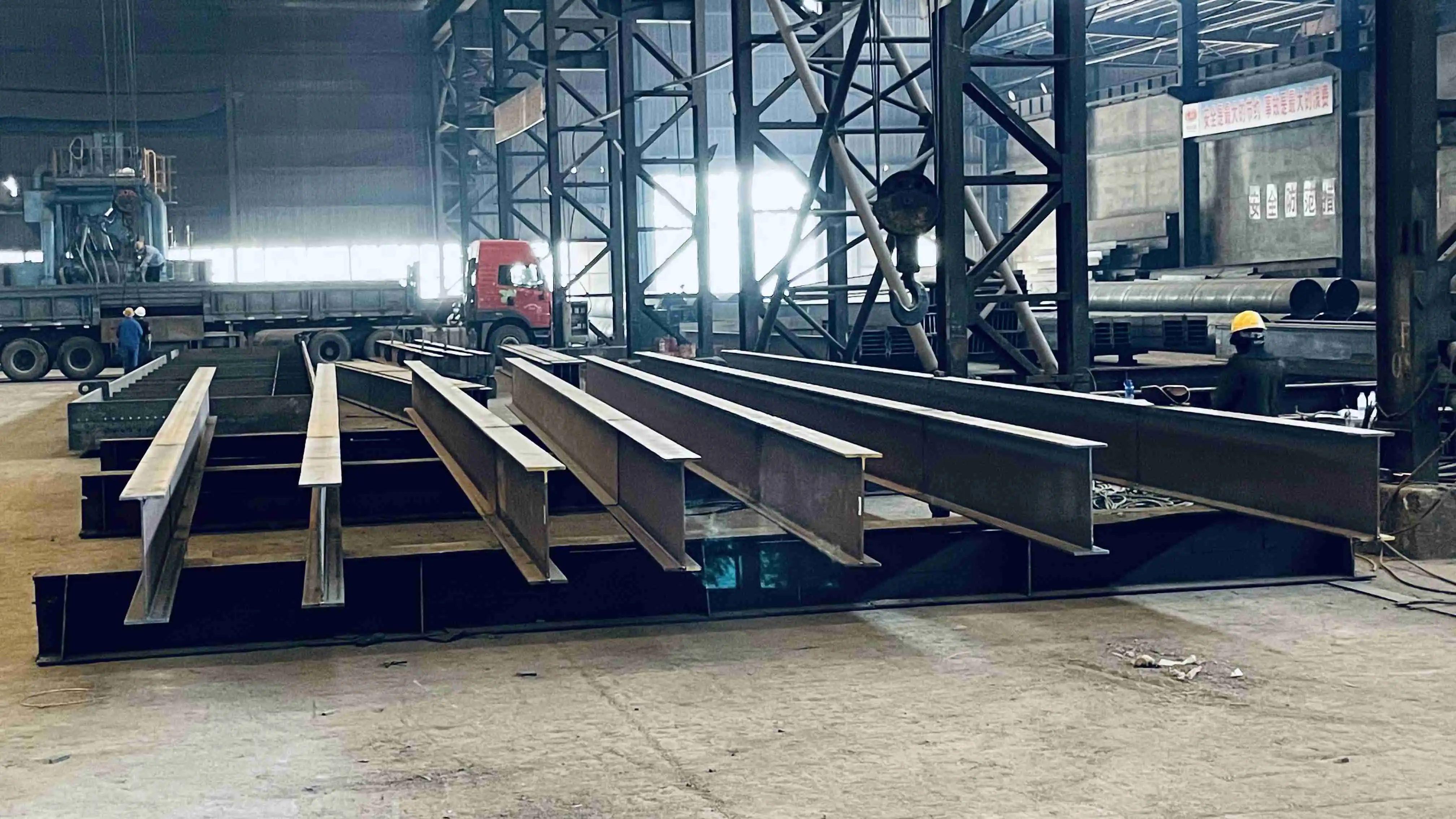

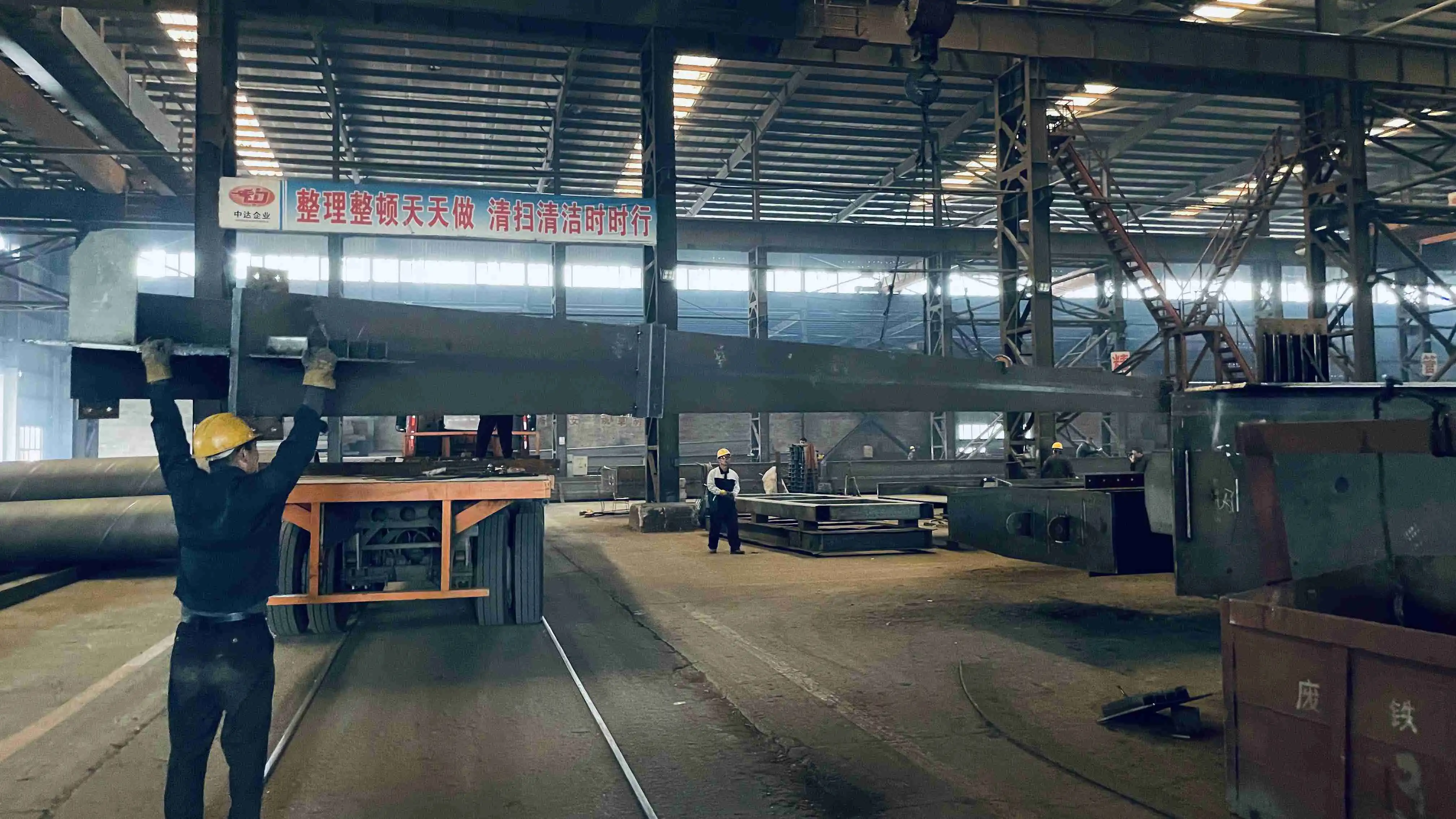

The process starts while the digging goes on. Our 120,000-square-meter factory in Shenyang uses 100-ton bridge cranes to build complicated truss assemblies and cut very thick plates very accurately, to within ±0.2mm standards. When parts arrive at the building site, they are already put together. This cuts down on weather delays and the need for on-site labor. A recent project in Southeast Asia was finished six months early, even though the monsoons caused problems. This shows how resilient this method is.

Core Principles in Designing Steel Structure Stadiums

Requirements Analysis and Capacity Planning

A thorough needs analysis that turns the client's idea into engineering parameters is the first step to good design. Figuring out a building's capacity is more than just counting seats; it also involves looking at how people move around, how to get out in case of an emergency, and making sure the building meets ADA or similar mobility standards. We work closely with builders and event planners to set up useful zones like service areas, concourses, and luxury seats that guide the layout of the building's grid.

Every choice about the structure is based on crowd safety. During synced events like shows and sports games, live loads from onlookers create dynamic forces. Design rules usually say that seating areas should have 5 kPa and standing platforms should have 7.5 kPa. However, our method includes extra safety factors based on the type of site and how it will be used. This cautious approach guards the identities of both the residents and our clients.

Load Factors and Environmental Considerations

A thorough load study is the basis of safe and effective design for a steel structure stadium. There are dead loads from the roof, heating systems, and the building itself, as well as changeable live loads from snow buildup, repair access, and equipment that hangs from the ceiling, such as scoreboards and sound systems. When it comes to large-span roofs, where airflow coefficients change a lot depending on the shape, wind loading estimates are very important.

Our engineering teams use computational fluid dynamics modeling to improve wind pressure patterns. This makes sure that designs can withstand speeds of up to 200 km/h without deforming too much. When designing for earthquakes, you use capacity-based ideas to make sure there are clear load lines from the roof to the ground and controlled shifting devices built in. The choice of material has to balance these needs. For main parts, we usually use Q355B or ASTM A572 Gr.50 steel, and better types are only used for links that are very important and are under a lot of stress.

Sustainable Design Integration

As more clients try to get LEED approval or other green building standards, environmental responsibility plays a bigger role in design choices. Steel can be recycled 90% of the time, which is an instant benefit for sustainability, but our method goes further. Solar-ready roof structures have extra dead load capacity for solar panels, which lets places offset the energy they use for running their business. Adding rainwater collection systems to roof drains lowers the amount of water that cities need for things like watering plants and making drinks.

Thermal performance is carefully considered by using insulation methods that balance how much energy is saved with the depth limits of the structure. We were able to successfully install hard insulation boards within the depths of roof trusses, getting R-values that meet strict climate-specific standards without blocking views from the outside. Compared to traditional concrete construction, these steps save more than 23% over the course of the building's life. This number strikes a chord with government buying teams that are working with tight budgets.

Step-by-Step Steel Structure Stadium Design Process

Site Analysis and Feasibility Assessment

The planning process starts on the ground, where geotechnical investigations show how much weight the dirt can hold, how much water is in the ground, and how seismic the site is. We work closely with civil engineers to plan foundations. For strong soils, we use spread footings, and for weaker situations, we use driven piles or dug shafts. Topographic studies are used to make grade plans that balance cut-and-fill amounts and set the best viewing points for spectators.

Environmental effect studies find limits, like protected areas, cultural resources, and travel patterns, that affect how designs are made. Working with government companies and public infrastructure projects has taught us how important it is to involve stakeholders early on and address their concerns about noise, shadows, and visual effect before design ideas become solid. This cautious method stops expensive redesigns from happening during the permit stages.

Detailed Engineering with Advanced Technologies

Building Information Modeling and computer-aided design tools turn ideas into documents that are ready for building. Our BIM-driven process lets people from the structural, design, and MEP fields work together in real time, finding problems before they are built. Finite element analysis checks how loads are distributed across complicated shapes and makes sure that deflections stay within the span/400 limits that keep architectural finishes from sagging or breaking.

Connection design needs extra care in steel structure stadiums where strong forces move from one member to another. We choose between bonded and high-strength fixed joints based on how they will be assembled in the field and how they will handle wear. In our manufacturing plant, 100% ultrasonic testing is done on full-penetration welds, and magnetic particle screening is used to make sure the surface is intact. Because we follow these strict quality rules, we have ISO 9001 approval and clients like China Railway and CSCEC trust us.

Procurement Strategy and Supply Chain Management

Strategic buying of raw materials and finished parts is how effective procurement combines cost, quality, and schedule. We work directly with recognized steel mills to make sure that all of our heats of steel have traceable mill test records that show their chemical makeup and mechanical features. Managing lead times is very important. For example, if you want to avoid schedule problems, you need to order long-lead items like custom connection tools or building covering systems early.

The fact that we are both a producer and a provider makes this process easier. With the ability to handle 60,000 tons per year and improved operations, we can arrange deliveries to fit construction plans. When parts come just-in-time, they don't need to be stored on-site, which keeps the work going. A newly built 50,000-seat FIFA-certified venue was able to be finished in just 14 months thanks to this combined method.

Installation Best Practices and Quality Control

Field construction carefully orders operations to turn parts that have been made into finished buildings. Our installation monitoring teams work with general builders to set up temporary shoring systems that keep the structure stable while it is being put together piece by piece. Tower cranes or mobile cranes are used to place the main truss pieces, and survey crews make sure they are lined up within 2 millimeters of perfection before the final link is tightened.

Quality verification goes all the way through installation. Skidmore-Wilhelm testing makes sure that friction-grip nuts are properly tightened, and coating thickness scales make sure that touch-up paint in the field meets the requirements of the specifications. We keep track of every step with digital photos and daily reports, making "as-built" records that help site management teams for as long as the building is in use. Being open and honest builds trust, which turns hesitant possibilities into long-term partners.

Comparing Steel Structure Stadiums to Other Structural Types

Steel Versus Concrete: Performance Metrics That Matter

The argument over whether to use steel or concrete depends on more than just the original cost of building a steel structure stadium. Concrete is naturally resistant to fire and has a lot of heating mass, which are both useful in some climates. However, building usually takes 40–50% longer than planned because of drying times and weather issues. Form-intensive processes make it harder to reach sustainable goals because they require a lot of work and make a lot of trash.

Steel speeds up project completion through prefabrication, lowers structural costs by reducing base loads, and allows for design freedom that lets upgrades happen in the future. Maintenance needs are lower when steel is properly protected; over decades, steel needs little attention, but concrete flaking and support rust need expensive fixes every so often. Lifecycle cost studies always show that steel is better for large-span uses where artistic expression and security of plan are the most important factors.

Alternative Materials: Wood and Aluminum Considerations

Engineered wood systems are becoming more popular for smaller places that want to focus on both physical warmth and carbon reduction stories. Wood's lower strength makes it harder to span, and its poor fire resistance means that expensive safety systems are needed. Aluminum alloys don't rust, but they're not strong enough or stiff enough to be used for main structural parts. They're usually only used for covering or secondary frame.

When clients compare these options to high-strength structural steel, the research shows that steel is better for places with more than 20,000 seats. The material has a history of working well in Olympic sites, World Cup grounds, and Premier League facilities for many years, even in the toughest situations. Our collection includes projects ranging from community halls with 5,000 seats to mega-venues with 100,000 seats, showing that our materials can be used on a large scale that other materials can't.

Choosing Steel Structure Stadium Suppliers and Ensuring Quality

Essential Supplier Selection Criteria

Choosing the right factory partner has a direct effect on how well the steel structure stadium project turns out. Industry qualifications are the basis. For example, ISO 9001 quality management, ISO 14001 environmental systems, and OHSAS 45001 workplace safety standards show that a company is dedicated to doing its best. Certifications like EN 1090 and AISC show that you have certain skills in making structural steel, which is important for projects that need to follow both European and North American building codes.

Capability range can be seen in portfolio depth. We tell potential clients to look at finished projects that are about the same size and level of difficulty as the place they want to build. Our collection includes Arctic bridge structures in Russia, mining support infrastructure in Australia, and industrial sites all over Southeast Asia. This shows that we can work in a variety of climates and situations. Testimonials from clients at government agencies and international companies are an independent way to confirm that the delivery was successful and the technical skills were sufficient.

Procurement Process Optimization

Clear price frameworks keep bad shocks from happening during the project's completion. Material prices, manufacturing work, surface treatments, transportation, and installation assistance should all be broken out into different line items in detailed bids. This openness makes it possible to have value engineering conversations that find the best standards without sacrificing safety or efficiency.

To handle lead times effectively, you need to have a true view of your factory's production ability and current task. Our production planning teams set firm delivery dates based on promises to buy materials and set approval goals for shop drawings. Regular reports on progress keep everyone involved in the project updated. If there are any delays, they can be dealt with ahead of time by speeding up processes or finding other sources of materials when necessary.

After-Sales Support and Maintenance Programs

Finishing a project doesn't mean the end of a relationship; it means the start of a long-term one. Supervision during installation makes sure that the right methods are used, and help during finishing makes sure that the structure works the way it was meant to. We give you detailed operation and maintenance guides that include review plans, steps for touching up the finish, and methods for checking the connection pressure.

Scheduled repair programs make structures last longer by inspecting them on a regular basis and finding small problems before they get worse. Our service teams do thorough checks using ultrasonic thickness gauging to check for rust, dye penetrant tests to find stress cracks, and bolt tension checking to make sure the link stays strong. This proactive method gets the best return on infrastructure investments, which is important for government departments that are in charge of assets that taxpayers pay for.

Conclusion

When designing a steel structure stadium, you have to find a balance between technical brilliance and real-world usability. The steps described here have been shown to be effective in completing projects: starting with a needs analysis, moving on to load estimates, advanced engineering, strategic buying, and installation with a focus on quality. Due to its natural strengths in being strong, easy to work with, and long-lasting, steel is the best material for modern sports equipment. When you work with experienced makers who know both technical principles and the difficulties of building in the real world, you can be sure that your place will meet the highest standards and provide great value for money for as long as it is used.

FAQ

What are the key advantages of steel for stadium construction?

Steel has a high strength-to-weight ratio that lets it hold big clear spans. Its malleable behavior makes it very resistant to earthquakes and 90% of it can be recycled, which helps meet green goals. Steel buildings that are properly protected don't need much upkeep over their 50-year or more work lives, which lowers their lifetime costs compared to concrete alternatives.

How long does steel stadium construction typically take?

Compared to standard concrete building, steel structure stadiums usually take 12 to 18 months to finish, from the time the plan is finalized to the time they are put into use. Preparing the site and making the parts in the plant at the same time shortens plans, which is important for projects that are based on events and have set due dates.

What certifications should I verify when selecting a supplier?

Some important certificates are ISO 9001 for quality control, EN 1090 for structural steel manufacturing, and AISC compliance for work in North America. Full mill test papers for materials certified to ASTM A992 or Q355B make it possible to track them. Ask for portfolio proof that shows similar project size and complexity to make sure that the person can actually carry out the work, in addition to paper qualifications.

How do environmental factors influence design decisions?

Extreme temperatures, wind loads, snow buildup, and earthquakes all have a direct effect on the size and design of structures and connections. Galvanizing or marine-grade finishes are needed to protect against rust better in coastal areas. Our engineering teams use computer modeling to make sure that plans are the best they can be for each site. They also make sure that safety gaps are higher than the minimum requirements set by code while keeping material quantities in check.

Partner with Zhongda for Your Next Stadium Project

With 20 years of experience, Zhongda Steel can handle complicated steel structure stadium projects that need to be finished quickly and with the highest quality. We have an ISO-certified factory in Shenyang that uses a 100-ton bridge crane and BIM-driven prefabrication processes to make unique structural parts that meet ASTM, EN, and GB standards. We help government contractors, business developers, and infrastructure experts with solutions that are made for earthquake zones, seaside areas, and plans that are based on events, from the initial planning to overseeing the installation. Get in touch with our team at Ava@zd-steels.com to talk about your needs with a reliable steel structure stadium maker.

References

American Institute of Steel Construction. (2016). Specification for Structural Steel Buildings (AISC 360-16). Chicago: AISC.

Chen, W.F., & Lui, E.M. (2005). Handbook of Structural Engineering (2nd ed.). Boca Raton: CRC Press.

European Committee for Standardization. (2005). Eurocode 3: Design of Steel Structures - Part 1-1: General Rules and Rules for Buildings. Brussels: CEN.

Geschwindner, L.F., Disque, R.O., & Bjorhovde, R. (2010). Load and Resistance Factor Design of Steel Structures. Upper Saddle River: Prentice Hall.

International Organization for Standardization. (2011). ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles. Geneva: ISO.

Salmon, C.G., Johnson, J.E., & Malhas, F.A. (2009). Steel Structures: Design and Behavior (5th ed.). Upper Saddle River: Pearson Prentice Hall.
