How to Design Steel Box Girders for Long Spans?

Designing steel box girders for long spans requires a combination of structural engineering expertise, material science knowledge, and innovative construction techniques. The key lies in creating a fully welded box structure that outperforms traditional I-beams, utilizing high-strength materials like Q345D steel, and implementing variable cross-sections to optimize weight and span capabilities. At Shenyang Zhongda Steel Structure Engineering Co., Ltd., we've perfected this process, offering customizable solutions that can achieve spans up to 420 meters while reducing weight by 20% and construction time by 50%. Our approach combines advanced prefabrication methods, on-site assembly techniques, and superior anti-corrosion treatments to ensure longevity and performance in even the most demanding environments.

Structural Design Principles for Long-Span Steel Box Girders

Optimizing Cross-Sectional Geometry

The cross-sectional geometry of a steel box girder plays a crucial role in its performance over long spans. A well-designed cross-section distributes stress evenly, minimizes deflection, and resists torsional forces effectively. Variable cross-sections, ranging from 1.25 to 8 meters in height, allow engineers to tailor the girder's profile to the specific load requirements along its length. This approach not only optimizes material usage but also enhances the structure's overall efficiency.

Enhancing Torsional Rigidity

Long-span bridges are particularly susceptible to torsional forces, especially in windy conditions or under asymmetrical loading. The closed box design of steel box girders inherently provides superior torsional rigidity compared to open sections. Incorporating internal diaphragms and stiffeners further enhances this property, ensuring the girder maintains its shape and integrity under various load conditions.

Implementing Corrugated Steel Webs

An innovative approach to further optimize steel box girders involves the use of corrugated steel webs. This design feature can reduce the girder's weight by up to 20% without compromising its structural integrity. The corrugations increase the web's buckling resistance, allowing for thinner plate sections and consequently lighter overall structures. This weight reduction not only saves material costs but also enables longer spans and easier transportation and installation.

Material Selection and Engineering for Maximum Performance

Utilizing High-Strength Steel Grades

The choice of steel grade significantly impacts the performance and span capabilities of box girders. High-strength steels like Q345D for main components and Q420D for critical joints offer superior strength-to-weight ratios, allowing for longer spans and reduced material usage. These advanced materials, with yield strengths of ≥345MPa and ≥420MPa respectively, provide the necessary tensile and compressive strength to withstand the complex stress distributions in long-span structures.

Optimizing Weld Quality and Fatigue Resistance

In fully welded steel box girders, the quality of welds is paramount to the structure's integrity and longevity. Advanced welding techniques, including automated welding systems and precise quality control measures, ensure consistent, high-quality welds throughout the girder. Special attention to weld details and the use of fatigue-resistant design principles help mitigate stress concentrations and enhance the structure's resistance to cyclic loading, a critical factor in long-span bridge applications.

Incorporating Weathering Steel for Durability

For projects in challenging environments, the use of weathering steel can provide additional durability and reduced maintenance requirements. This specialized steel forms a protective patina when exposed to the atmosphere, slowing the rate of corrosion. When combined with advanced coating systems, weathering steel can significantly extend the service life of steel box girders, making them ideal for long-span bridges in coastal or industrial areas.

Construction and Assembly Techniques for Efficient Implementation

Leveraging Prefabrication for Quality and Speed

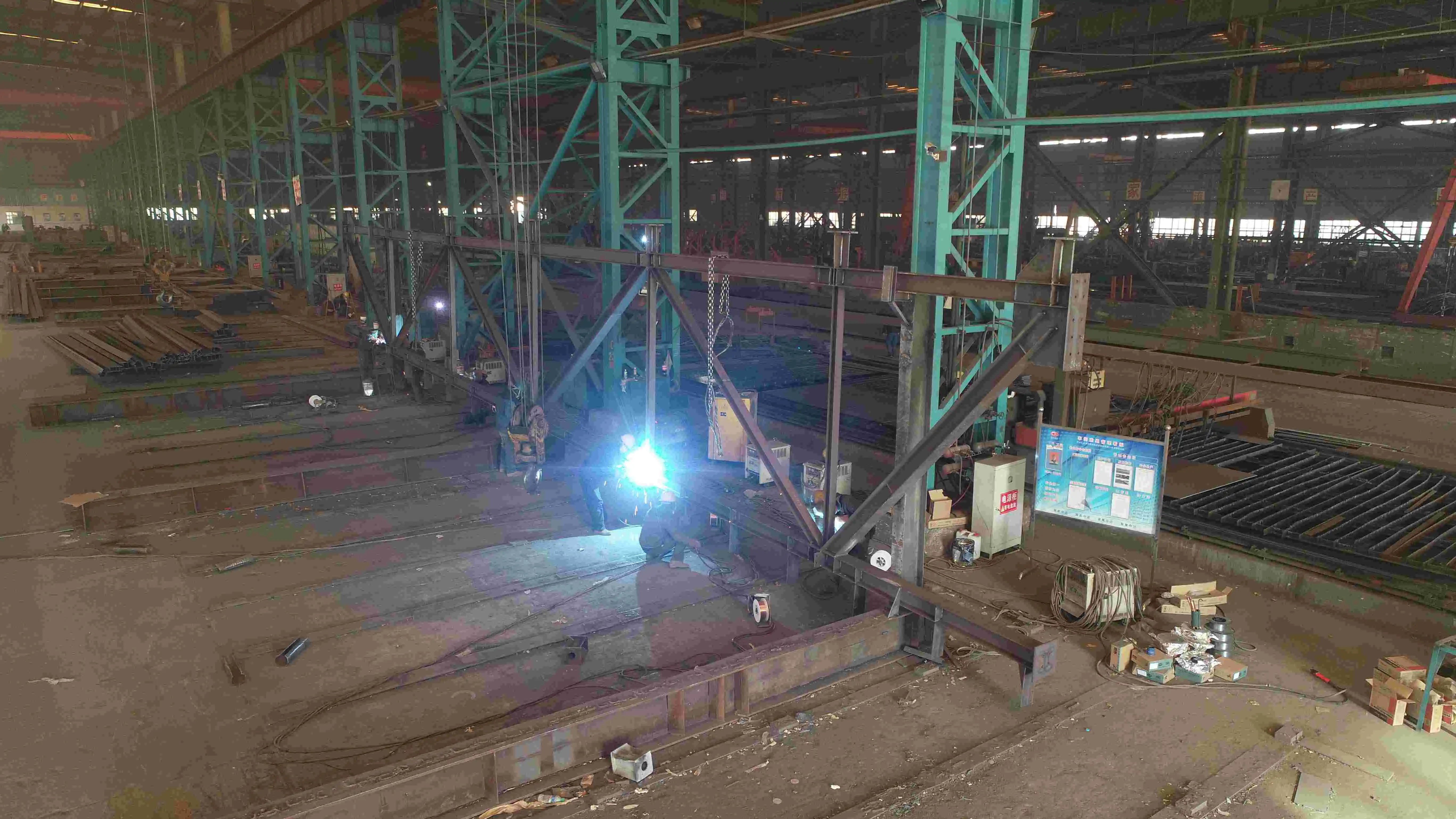

Prefabrication is a game-changer in the construction of long-span steel box girders. By manufacturing large sections (12-30 meters) in controlled factory environments, we can ensure higher quality, reduce on-site work, and significantly accelerate project timelines. Our advanced manufacturing facilities, equipped with CNC cutting and automated welding systems, allow for precise fabrication of complex geometries and ensure consistent quality across all components.

Implementing Modular Assembly Methods

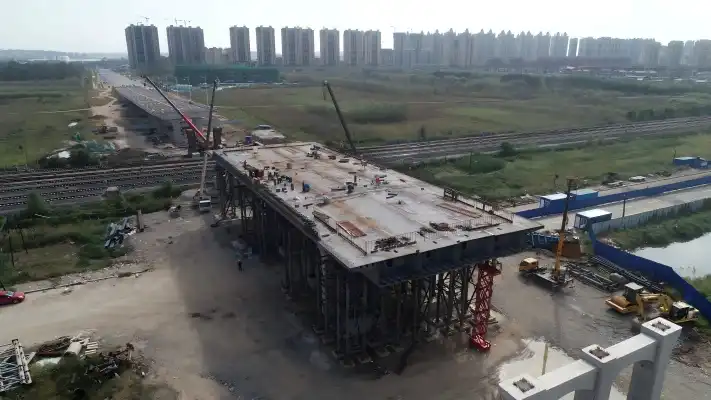

Modular assembly techniques revolutionize the on-site construction process of long-span bridges. By dividing the girder into manageable sections that can be easily transported and assembled, we reduce the need for heavy lifting equipment and minimize disruption to surrounding areas. This approach not only speeds up construction but also enhances safety and reduces environmental impact. Our expertise in modular design and assembly has enabled us to reduce overall project timelines by up to 50%.

Applying Advanced Anti-Corrosion Treatments

Long-term durability is crucial for steel box girders, especially in aggressive environments. Our double-layer anti-corrosion system, utilizing either hot-dip galvanizing or high-performance spray coatings, provides robust protection against corrosion. This advanced treatment ensures a service life of 30 years or more, even in challenging conditions. The selection of the most appropriate anti-corrosion strategy is tailored to each project's specific environmental conditions and maintenance requirements.

Conclusion

Designing steel box girders for long spans is a complex process that demands expertise in structural engineering, material science, and construction techniques. By optimizing cross-sectional geometry, utilizing high-strength materials, and implementing innovative construction methods, it's possible to create bridges that span incredible distances while maintaining structural integrity and efficiency. The combination of advanced design principles, cutting-edge materials, and sophisticated fabrication and assembly techniques enables the creation of long-span structures that are not only structurally sound but also economically viable and environmentally sustainable.

FAQs

What is the maximum span achievable with steel box girders?

With our advanced design and manufacturing capabilities, we can achieve spans of up to 420 meters for single steel box girders.

How does the weight of steel box girders compare to traditional designs?

Our optimized designs, including corrugated steel webs, can reduce the weight of steel box girders by up to 20% compared to conventional designs.

What measures are taken to ensure the longevity of steel box girders in corrosive environments?

We employ a double-layer anti-corrosion system, either through galvanizing or high-performance coatings, ensuring a service life of 30 years or more in challenging conditions.

Expert Steel Box Girder Solutions | Zhongda Steel

At Shenyang Zhongda Steel Structure Engineering Co., Ltd., we specialize in delivering cutting-edge steel box girder solutions for long-span bridges and complex infrastructure projects. Our state-of-the-art manufacturing facility, with a 60,000-ton annual capacity, combines advanced BIM-driven prefabrication techniques with -60°C weathering steel technology to create durable, high-performance structures. From Arctic bridges to industrial hubs, our expertise ensures unparalleled quality and efficiency in every project. For tailored steel box girder solutions that meet your specific needs, contact us at Ava@zd-steels.com.

References

Chen, W. F., & Duan, L. (Eds.). (2014). Bridge Engineering Handbook: Superstructure Design. CRC Press.

Hambly, E. C. (1991). Bridge Deck Behaviour. CRC Press.

Kolář, V. (2015). Design of Steel Box Girder Bridges. IABSE Symposium Report, 104(4), 1-8.

Nie, J., & Fan, J. (2018). Experimental Study on Flexural Behavior of Corrugated Steel Web Girders. Journal of Structural Engineering, 144(5), 04018030.

Pearson, C., & Foley, C. M. (2001). Fatigue Performance of Steel Box Girder Bridge Details. Transportation Research Record, 1770(1), 29-37.

Wolchuk, R. (2015). Steel Box Girder Bridges. In W. F. Chen & L. Duan (Eds.), Handbook of International Bridge Engineering (pp. 501-538). CRC Press.
