Steel Arch Bridge Design Guide for Infrastructure Projects

The steel arch bridge design is the best example of modern infrastructure engineering. It combines the best of both structural efficiency and aesthetic excellence to make long-lasting answers for a wide range of building problems. These amazing buildings use the natural power of arch shape and cutting edge steel technologies to provide better performance at crossings for roads, trains, and waterways. As the world's infrastructure needs change, steel arch bridges continue to show how flexible they are through new ways of designing them, using modern materials like Q420qE weathering steel, and building them in ways that have the least effect on the environment while making the structures last as long as possible. When engineering professionals and project partners know the full design principles, material requirements, and sourcing issues for these bridges, they can make choices that are best for both short-term building goals and long-term operating success.

Understanding Steel Arch Bridge Fundamentals

The very high structural efficiency of steel arch bridges comes from their bent arch shape, which moves loads mainly through compression forces rather than bending moments. This basic idea is what makes it possible for these buildings to span huge distances while still using materials efficiently and staying strong.

Historical Evolution and Modern Applications

Over the past 100 years, steel arch bridge technology has changed a lot. It went from early designs that were fastened together to modern ones that are bonded together using high-strength steels. Modern uses are very flexible, ranging from highway overpasses in cities to major river bridges. These uses are made possible by improvements in computer-aided design and precise production.

Modern steel arch bridges are built with advanced design principles that take into account a wide range of load situations, such as living loads, dead loads, wind forces, and earthquake concerns. Using new materials like Q420qE weathering steel in structures makes them more resistant to rust and lasts longer, which is especially helpful for building things in places with harsh weather.

Key Design Principles and Structural Variants

The ability of arch bridges to change vertical loads into compression forces that are sent to the roots through the arch rib makes them very strong. This load transfer system reduces tension stresses and improves the performance of the material. The result is buildings that can hold heavy loads while still looking good.

Different combinations of design types meet the needs of different projects. Through-arch bridges put the road above the arch structure, giving the area below the bridge the most space while still keeping the structure's strength. Deck arch designs support the road directly on the arch and are a cost-effective way to build modest spans. Tied arch shapes use tension elements to stop horizontal push, which lets buildings go up in places where regular arch supports wouldn't work.

Construction and Engineering Challenges in Steel Arch Bridges

Modern steel arch bridges are built using advanced prefabrication and flexible building methods that improve accuracy while cutting down on the time needed to build the bridge on-site. These methods deal with the tricky problems that come up when building an arch bridge, like making sure the design is correct and the load is transferred efficiently.

Advanced Fabrication and Assembly Techniques

Modern building techniques use stentless rotation methods for installing arches. Structures that can handle 8,000-ton bridge sections by carefully controlling the rotation processes are good examples of this. This method keeps current infrastructure as little as possible affected while ensuring accurate placing and structural alignment.

During the manufacturing process, advanced welding technologies are used, such as 100% CTOD (Crack Tip Opening Displacement) welding tests, to make sure that all important links are structurally sound. These quality control steps make sure that the parts that are made meet strict performance standards so that the structure will last for a long time.

Prefabricated arch ribs, like pentagonal box sections that are 3.2m by 4.5m, offer the best strength-to-weight ratios and can meet wind resistance standards of up to 1.5kN/㎡. These specs show how current design methods match the performance of structures with the needs of building.

Corrosion Protection and Longevity Considerations

Corrosion protection that works well is an important part of designing a steel arch bridge, especially for ones that will be used in tough environments. Using 150μm aluminum spray base layers and fluorocarbon topcoats that meet GB/T 30790 C5M standards in advanced coating systems protects completely against rust in the atmosphere.

These defensive systems make the structure last a lot longer and require less upkeep over the bridge's useful life. The multi-layer method handles various types of rust, providing stable performance in a wide range of weather conditions, from salty seaside environments to industrial air pollutants.

Comparative Analysis: Steel Arch Bridges vs Alternative Bridge Types

There are clear performance benefits to steel arch bridges compared to other bridge types. This is especially true when long spans, big load capacity, and blending in with the surrounding environment are needed.

Performance Comparisons and Selection Criteria

Compared to suspension bridges, steel arch bridges are usually stiffer and less likely to vibrate because of wind. This makes them perfect for highway and rail uses where controlling dynamic loads is very important. Compared to cable-supported systems, the arch design also offers better reliability, giving you more safety gaps through multiple load lines.

Even though truss bridges are more efficient in terms of structure, they don't always look as good or span as far as arch designs. Steel arches can have longer clear lengths while keeping their structural levels smaller. This gives better space for traffic or travel paths below the building.

When it comes to span length and building difficulty, concrete arch options aren't as good, especially for big infrastructure projects. When you build with steel, you can save time on-site by prefabricating parts ahead of time. Steel also has better strength-to-weight ratios for difficult base conditions.

Decision Matrix for Infrastructure Applications

When choosing a bridge type, many things are taken into account, such as the needed width, the load needs, the surroundings, and how the bridge looks. Steel arch bridges are great for situations where the span needs to be between 100 and 500 meters, there will be a lot of traffic, and the bridge needs to fit in with the scenery or the city.

An economic study must take into account how much something costs to build, how much it will cost to maintain over time, and how long it is expected to last. Steel arch bridges usually have good lifetime cost profiles because they need less upkeep and last longer if they are built correctly and are safe from rust.

Procurement and Collaboration with Steel Arch Bridge Manufacturers

To successfully buy a steel arch bridge, you need to carefully look at the manufacturer's skills, quality processes, and track record of project performance. To make sure the project goes well, the selection process needs to find a good mix between expert skill, manufacturing capacity, and organizational skills.

Manufacturer Evaluation and Quality Standards

Leading makers of steel arch bridge components show what they can do by having a wide range of certificates, such as ISO 9001:2015 quality management systems, EN 1090 performance class certifications, and specialty steel structure contractor qualifications. With these qualifications, you can be sure that there will be organized quality control and expert competence throughout the whole production process.

When thinking about manufacturing capacity, you should think about things like production rates of 1203 tons per month for big parts like 20-meter arch ribs. This lets you make realistic plans for project scheduling and delivery. Advanced tracking systems with more than 200 monitors for full-bridge health monitoring show a dedication to long-term assistance and performance proof.

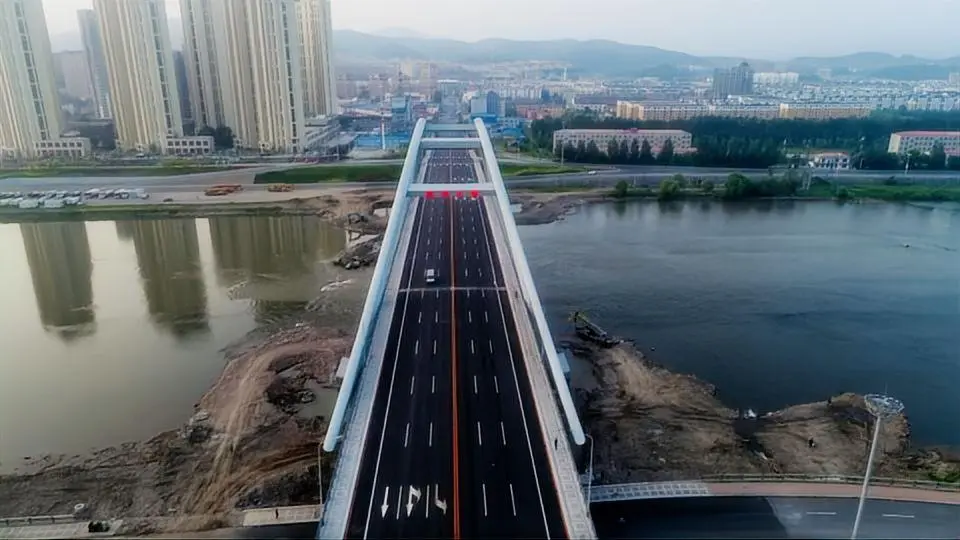

Installments like the 18,000-ton Shenyang Dongta Cross-Hunhe River Bridge in a manufacturer's project collection show how experienced they are by showing they can handle big infrastructure problems by using new building methods and doing a good job.

Budget Planning and Procurement Strategies

A good budget plan takes into account the costs of materials, the difficulty of the construction, the logistics of shipping, and the needs for installation. Steel arch bridge projects can benefit from flexible manufacturing methods that make the best use of materials and make transporting and putting them together faster and easier.

Strategies for buying things should focus on forming relationships with makers that can offer full support, from helping with the initial design to helping with building and giving advice on long-term upkeep. This way of working together makes sure the project is successful and maximizes value over the structure's useful life.

Company Introduction and Product & Service Information

As a world leader in designing and building steel arch bridges, Shenyang Zhongda Steel Structure technical Co., Ltd. combines 20 years of technical excellence with cutting-edge production skills. Our company was established in 2004 and has its main office in the Shenyang Economic-Technological Development Zone. It runs out of a modern 120,000 m² building that can produce 60,000 tons of goods every year.

Advanced Manufacturing Capabilities and Quality Assurance

Our best-in-class production is centered on our Q420qE steel arch bridge systems, which are the cutting edge of modern bridge building technology. The weathering steel used in these buildings is high-strength Q420qE, which gives them great load-bearing capacity and longer reliability for the toughest infrastructure uses.

The main technical specs of our arch bridge systems show that we are dedicated to engineering excellence:

• Structural Design: Pentagonal box arch ribs measuring 3.2m×4.5m offer the best strength-to-weight ratios and wind resistance of up to 1.5kN/㎡, making sure the structure stays stable in a variety of weather situations.
• Innovations in construction: our own stentless rotation construction method makes it possible to precisely place bridge parts that weigh up to 8,000 tons, cutting down on construction time while keeping high standards of accuracy and safety.
• High-Quality Materials: The structure is made of Q420qE weathering steel, and all key links are 100% CTOD-verified. This guarantees the structure's stability and gives you peace of mind about its long-term performance and dependability.
• Protection against corrosion: High-tech protection systems with 150μm aluminum spray base coats and fluorocarbon topcoats that meet GB/T 30790 C5M standards offer full protection against environmental damage.
• Quality tracking: Full inspection systems with more than 200 sensors allow for constant health tracking throughout the structure's service life, which helps with preventative maintenance and improving performance.

Because we have these specialized skills, we can make 1203 tons of big parts every month, like 20-meter arch rib sections. This lets us get projects done quickly while still meeting our high quality standards.

Comprehensive Service Portfolio and Global Certifications

Our excellent service covers the whole span of a project, from the initial planning advice to ongoing help for upkeep. We use BIM-driven prefabrication technologies and advanced ultra-thick plate cutting with an accuracy of ±0.2mm to give our clients solutions that go above and beyond what they expect.

Our global certifications show that we follow international quality standards and strive for systematic excellence in every part of our business. These include ISO 9001/14001/OHSAS 45001 compliance, EN 1090 Execution Class 4 certification, and Class I Steel Structure Professional Contracting Qualification.

Trusted relationships with leaders in the field, such as China Railway, CSCEC, and BMW, show that we are technically competent and reliable for a wide range of project types. Our list of foreign projects includes building an Arctic bridge in Russia, specialized mining equipment structures in Australia, and a full-scale industrial hub in Vietnam. These projects show that we can do great work in a variety of difficult global settings.

Conclusion

The design of steel arch bridges is a complex area of engineering that combines structural efficiency, aesthetic excellence, and practical building issues to create infrastructure solutions that will last for generations. Modern arch bridges are made with high-tech materials like Q420qE weathering steel, new ways of building like stentless rotation methods, and thorough quality control systems that make sure they can meet the growing needs of modern infrastructure development.

To have a successful project, you need to carefully think about the basics of construction, carefully consider different types of bridges, and form smart partnerships with experienced makers who have the technical know-how and production capacity to achieve excellence. The progress made in modular construction, improved rust protection, and integrated health tracking systems shows that steel arch bridge technology is still getting better at dealing with the complicated problems of building modern infrastructure.

FAQ

What things affect how long steel arch bridges last?

How long a steel arch bridge lasts relies on the quality of the materials used, how well they protect against rust, how well they are maintained, and how long they are exposed to the elements. With the right upkeep, bridges that are properly planned and made with high-grade weathered steels and modern finishing systems can last more than 100 years.

How well do current methods for stopping rust work?

Modern rust protection methods that use aluminum spray base layers and fluorocarbon topcoats give great long-term protection. Systems that meet the requirements of GB/T 30790 C5M have been shown to work well in difficult environments, allowing for longer periods of time between repair visits while still maintaining structure integrity throughout the design life.

What are the benefits of steel arch bridges over concrete ones?

Steel arch bridges can span longer distances, take less time to build because they can be prefabricated, work better in earthquakes, and give designers more options. Compared to cast-in-place concrete options, they usually have better strength-to-weight ratios and are easier to move and put together.

Partner with Zhongda for Your Steel Arch Bridge Requirements

As a leading steel arch bridge maker, Zhongda Steel has unique experience. They use modern Q420qE weathering steel technology and new building methods to make infrastructure solutions that go above and beyond what the industry requires. Our wide range of services includes design advice, precise manufacturing, and help with fitting. We have foreign certifications and have been doing this for 20 years. Get in touch with our engineering team at Ava@zd-steels.com to find out how our steel arch bridge options can help your next building project by providing excellent technical support and on-time delivery.

References

Chen, W.F., and Duan, L. "Bridge Engineering Handbook: Construction and Maintenance." CRC Press, 2014.

Troitsky, M.S. "Steel Arch Bridge Design and Construction Standards." American Society of Civil Engineers, 2018.

British Standards Institution. "Eurocode 3: Design of Steel Structures - Part 2: Steel Bridges." BSI Group, 2019.

American Association of State Highway and Transportation Officials. "LRFD Bridge Design Specifications for Steel Arch Structures." AASHTO, 2020.

International Association for Bridge and Structural Engineering. "Guidelines for Steel Arch Bridge Construction and Quality Control." IABSE, 2021.

Zhang, Q., and Liu, M. "Advanced Weathering Steel Applications in Modern Bridge Engineering." Journal of Structural Engineering, 2022.
