The Anatomy and Benefits of Steel Box Girders
Structural Components of Steel Box Girders
Steel box girders are composed of several key elements that work together to create a robust and versatile structural system. The main components include:
- Top flange: The upper horizontal plate that resists compressive forces
- Bottom flange: The lower horizontal plate that handles tensile stresses
- Webs: Vertical or inclined plates connecting the top and bottom flanges
- Internal diaphragms: Transverse stiffeners that maintain the box shape and distribute loads
- External diaphragms: Additional supports at girder ends and intermediate points
At Zhongda Steel, we utilize advanced welding techniques and high-strength materials like Q345D and Q420D steel to ensure optimal performance and longevity of our box girder structures.
Advantages of Steel Box Girder Design
The unique configuration of steel box girders offers numerous benefits for bridge construction:
- Enhanced strength-to-weight ratio, allowing for longer spans and reduced material usage
- Superior torsional rigidity, ideal for curved bridge alignments
- Improved aerodynamic performance, crucial for wind-resistant designs
- Increased resistance to lateral buckling compared to plate girders
- Versatility in accommodating various deck types and utilities within the box section
Our expertise in variable cross-section design allows for further optimization, with beam heights ranging from 1.25 to 8 meters to suit specific project requirements.
Applications in Modern Infrastructure
Steel box girders find extensive use in a wide range of bridge types:
- Long-span highway and railway bridges
- Urban viaducts and elevated roadways
- Pedestrian and cycle bridges
- Cable-stayed and suspension bridge decks
- Arch bridges and trusses
Zhongda Steel's innovative solutions have been implemented in projects spanning from Arctic regions to tropical climates, demonstrating the adaptability and resilience of our steel box girder systems.
Weathering Steel: The Future of Durable Bridge Construction
Understanding Weathering Steel Technology
Weathering steel, also known as Cor-Ten steel, is a remarkable alloy that forms a protective rust-like patina when exposed to the elements. This self-healing layer significantly enhances corrosion resistance, making it an ideal choice for bridge construction in challenging environments. Key features of weathering steel include:
- Exceptional durability with minimal maintenance requirements
- Natural aesthetics that blend with surrounding landscapes
- Reduced life-cycle costs compared to traditional painted steel structures
- Environmentally friendly due to eliminated need for toxic paint systems
Zhongda Steel's weathering steel box girders incorporate advanced -60°C anti-corrosion technology, ensuring optimal performance even in extreme climates.
Benefits of Weathering Steel Box Girders
The combination of weathering steel and box girder design offers unique advantages:
- Extended service life, with our products designed for a minimum 33-year lifespan
- Reduced inspection and maintenance costs over the bridge's lifetime
- Improved sustainability through decreased material replacement and repainting needs
- Enhanced structural integrity due to uniform corrosion patterns
Our commitment to innovation has led to the development of customized weathering steel solutions that maximize these benefits for each project.
Case Studies: Weathering Steel Success Stories
Zhongda Steel has implemented weathering steel box girders in numerous high-profile projects:
- Arctic bridge in Russia, withstanding extreme temperature fluctuations
- Long-span highway viaduct in Vietnam, resisting tropical humidity
- Pedestrian bridge in an urban park, seamlessly integrating with nature
These examples showcase the versatility and reliability of our weathering steel box girder systems across diverse environments and applications.
Innovative Manufacturing and Construction Techniques
Advanced Fabrication Processes
Zhongda Steel employs cutting-edge manufacturing technologies to ensure precision and quality in our steel box girder production:
- CNC-controlled plasma cutting for ultra-thick plates with ±0.2mm accuracy
- Automated welding systems for consistent, high-strength joints
- 3D modeling and BIM integration for optimized design and fabrication
- Rigorous quality control measures, including ultrasonic and magnetic particle testing

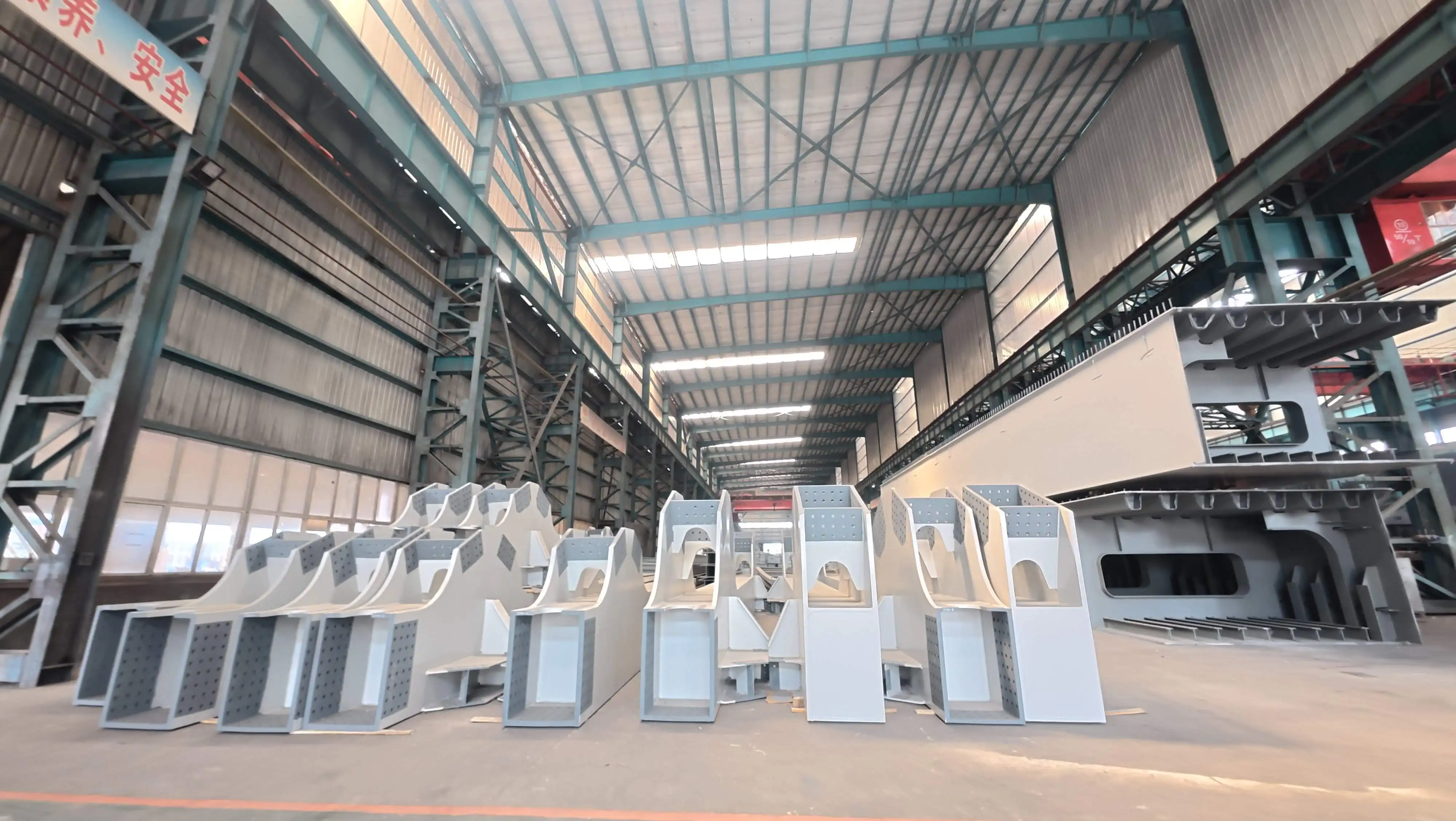

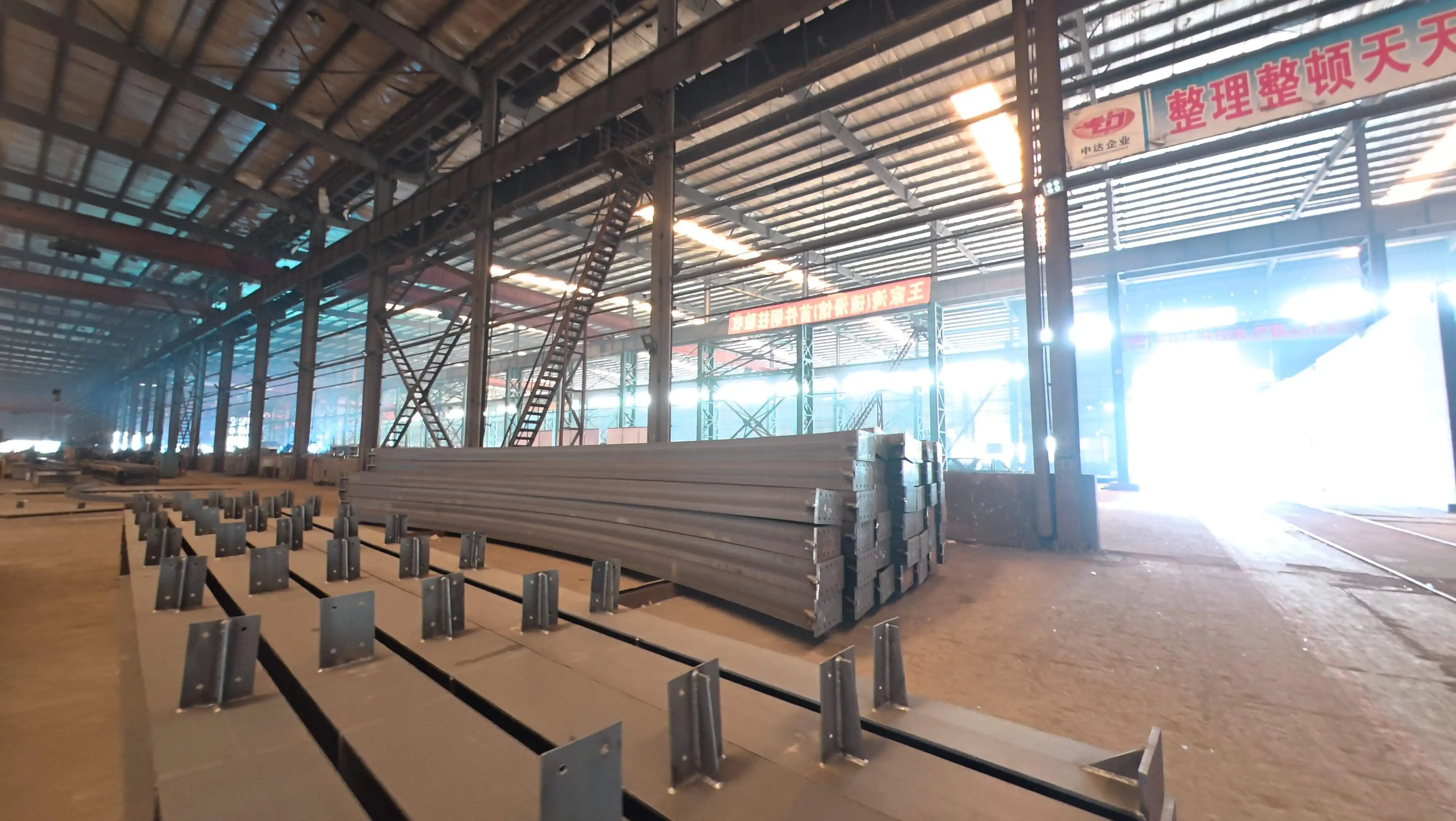

Our 120,000 m² state-of-the-art facility enables us to produce up to 60,000 tons of steel structures annually, meeting the demands of large-scale infrastructure projects.
Efficient Construction Methods
To streamline on-site assembly and reduce construction timelines, we focus on:
- Prefabrication of large segments (12-30 meters) for rapid installation
- Modular design principles to facilitate transportation and erection
- Innovative connection systems for quick and secure field assembly
- Collaboration with contractors to develop optimal erection sequences
These approaches have enabled us to achieve up to 50% reduction in on-site construction time for our clients.
Quality Assurance and Certification
Zhongda Steel maintains the highest standards of quality and compliance:
- ISO 9001, ISO 14001, and OHSAS 45001 certified management systems
- EN 1090 certification for structural steel and aluminum components
- Comprehensive material traceability and documentation
- Continuous training and development of our skilled workforce
Our commitment to excellence has earned us the trust of major clients such as China Railway, CSCEC, and BMW, as well as numerous international partners.
Conclusion
Steel box girders, particularly those crafted from weathering steel, represent the pinnacle of modern bridge engineering. Their exceptional strength, durability, and versatility make them ideal for a wide range of infrastructure projects. At Zhongda Steel, we combine innovative design, advanced manufacturing techniques, and unwavering quality control to deliver steel box girder solutions that set new standards in the industry. By choosing our products, you're not just building a bridge – you're investing in a sustainable, efficient, and long-lasting future for transportation infrastructure.
