When it comes to big building projects, picking the right basic parts can make or break your budget and scheduling. When building a bridge or other big structure, choosing a steel box girder is one of the most important choices you'll have to make. These designed structural elements are the backbone of modern infrastructure. They offer the best strength-to-weight ratios and longest lifespan for a wide range of projects, from highway overpasses to huge industrial complexes. How you define, find, and buy customized steel box girders will have a direct effect on the success, schedule, and long-term performance of your project.
Understanding Steel Box Girders: Fundamentals and Types
Box girders made of steel are hollow structural members with rectangular or trapezoidal cross-sections. They are made to handle complicated loads in large-span uses. Compared to regular I-beams, these girders have better twisting resistance and better structural economy. This makes them perfect for projects that need to maximize both strength and weight.
Primary Applications and Design Benefits
The main benefit of box girder design is that its cross-sectional shape is closed. This form better spreads out the weight than open parts, so less material is needed to keep the structure strong. When it comes to long-span bridges (with spans of more than 420 meters), the fully welded box design works better than I-beams.
These days, they are used in many places, like manufacturing sites, highway bridges, and rail structures. The sealed form also has useful advantages, like making it easier to do upkeep and making it more resistant to weather factors.
Single-Cell vs. Multi-Cell Configurations
For buying choices, it's important to know the difference between single-cell and multi-cell types. Single-cell girders have one section inside, and they work well for shorter lengths and light loads. Multi-cell designs, which have more than one internal chamber, help spread the load better and are necessary for big building projects that need the most efficient structures possible.
By changing the beam heights along the span length from 1.25m to 8m, variable cross-section designs for steel box girder let engineers get the most out of the materials they use. With this ability to customize, up to 20% less weight can be saved compared to constant-section options, while still meeting structural performance standards.
Critical Factors to Consider When Ordering Customized Steel Box Girders
To be successful at buying, you need to carefully consider a number of professional and business factors that have a direct effect on the results of the project. Modern infrastructure is very complicated, so it's important to be very careful when meeting specifications and choosing suppliers.
Material Selection and Performance Requirements
The function of a girder depends on the steel grade that is used. The main building material is high-strength Q345D steel (≥345MPa), which is easy to weld and doesn't wear down easily. For better load capacity, Q420D steel is usually needed at critical connection places and high-stress areas. These choices about materials have a direct effect on the girder's ability to hold design loads while keeping safety gaps throughout the structure's life.
Both steady and dynamic loading factors must be taken into account when figuring out the load capacity. When choosing the right beam specs, it's important to think about dead loads, live loads, external forces, and stress. When building with premade parts, where making changes in the field can be expensive and take a long time, dimension margins become very important.
Environmental and Durability Considerations
Protecting against corrosion is an important investment for long-term success. Double anti-corrosion methods, like welding or using special sprays, can make something last longer than 30 years, even in tough settings. This longer resilience lowers the structure's lifetime costs and keeps upkeep down to a minimum during its operating period.
During the design step for steel box girder, environmental stress factors like changes in temperature, exposure to wetness, and exposure to chemicals must be looked at. These things have a direct effect on the choice of material, the need for protection coatings, and the planning of upkeep strategies.
Comparing Steel Box Girders with Alternative Solutions
Knowing what the competition is like helps buying teams make smart choices based on the needs and limits of the particular project.
Steel Box Girders vs. Traditional Alternatives
When it comes to speed of building and weight, steel box girders are much better than concrete girders. With prefabrication, parts between 12 and 30 meters can be made off-site, which cuts building times by half compared to cast-in-place concrete options.
Traditional I-beam designs are cheaper for shorter spans, but they can't compete with the strength and efficiency of box girder designs when it comes to twisting resistance. The closed cross-section works better in situations where there are horizontal forces or eccentric loads.
Truss frame systems are more efficient with materials than other types, but they need more complicated links and better access for upkeep. Box girders make it easier to build and keep up over time, and they also have better design lines for uses that people can see.
Lifecycle Cost Analysis
A full cost analysis must take into account the original costs of manufacturing, the logistics of shipping, the speed of installation, and the ongoing upkeep needs. Even though steel box girders may cost more at first, they usually have better lifetime economics because they last longer and don't need as much upkeep.
Being able to prefabricate big areas cuts down on the need for field work and delays caused by bad weather. This building speed directly leads to lower project costs and more reliable schedules, which are things that become more important as infrastructure projects get more complicated.
Step-by-Step Guide to Ordering Customized Steel Box Girders
A methodical approach to buying steel box girder lowers risks and guarantees the success of projects. To get the best results from the buying process, the planning, procurement, and building teams need to work together.
Project Requirements and Specification Development
The buying process starts with detailed recording of what the project needs. Structural engineers have to set performance standards, load requirements, span lengths, and physical limits. All future purchasing choices and seller reviews are based on this technical basis.
The design and buying teams work together to make sure that the specs match what the market can do and the budget. Early interaction with suppliers can help find ways to improve performance and possible technology issues before the final design standards are set.
Manufacturer Selection and Evaluation
Reputable makers should show that they have the right qualifications, knowledge, and a track record of success in related uses. Audits of factories can teach you a lot about how to handle resources, how to make things, and how to control quality.
Certification requirements, such as ISO 9001, EN 1090, and AWS norms, make sure that quality standards around the world are met. These certificates give buyers trust in the making process and the quality of the products they buy in large quantities.
Lead time management becomes critical in complex projects. Understanding the steps needed to make something, when to get materials, and how to ship them helps make sure that girder delivery fits in with building plans. Depending on how complicated the design is and how much can be made, wait times are usually between 6 and 12 weeks.
Zhongda Steel: Your Partner in High-Performance Infrastructure Solutions
Shenyang Zhongda Steel Structure Engineering Co., Ltd. has been in the world infrastructure market for more than twenty years, specializing in products such as steel box girder, and we are a widely recognized leader in precise steel products. We were founded in 2004 and have our main office in the Shenyang Economic-Technological Development Zone.
Advanced Manufacturing Capabilities

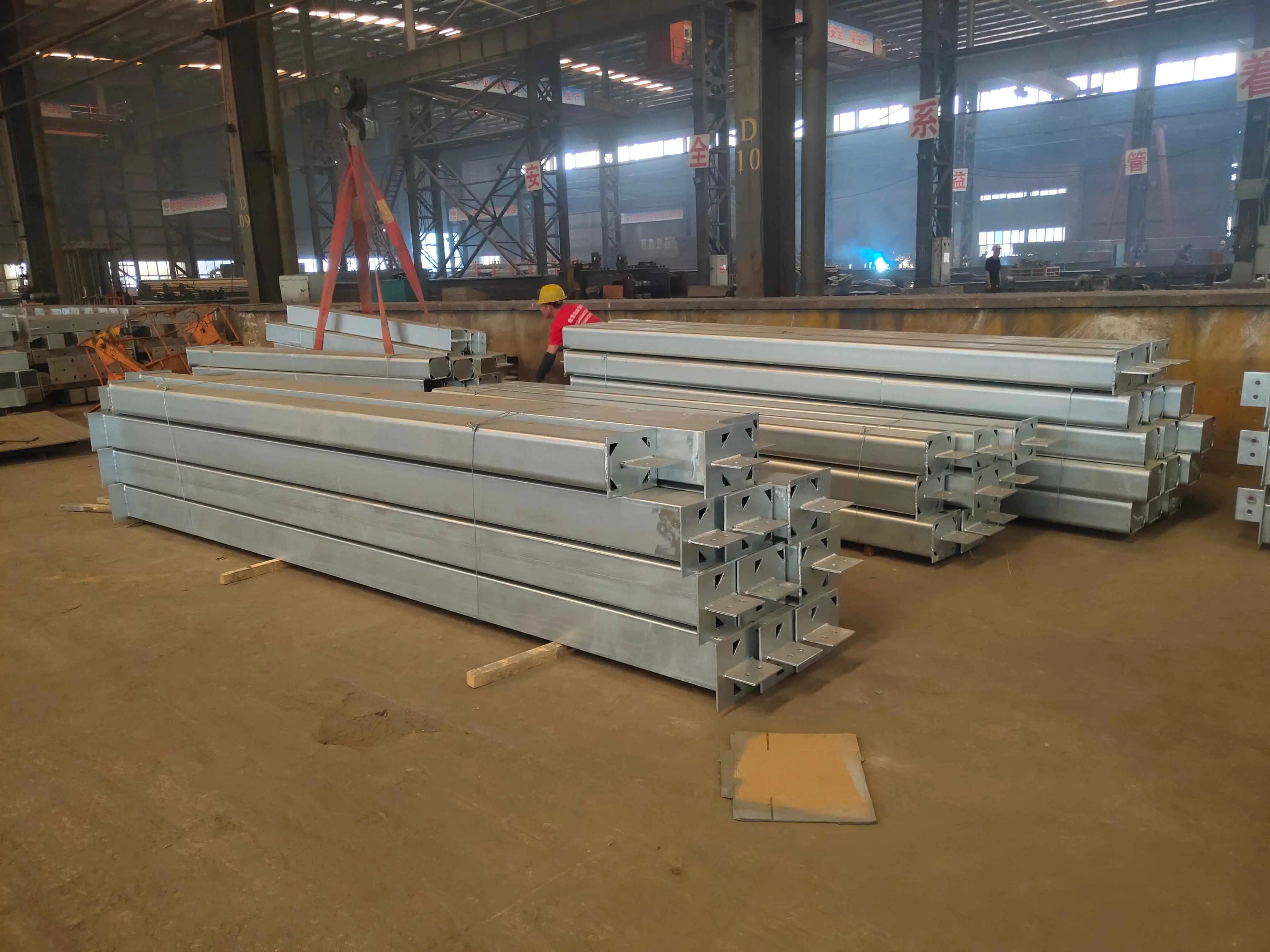

Our brand-new, 120,000 m² building has cutting-edge production tools like CNC ultra-thick plate cutting systems that are accurate to within 0.2 mm and automatic welding lines. Our modern industrial infrastructure helps us keep quality standards high while we produce 60,000 tons of goods every year.
By using BIM-driven prefabrication technology, we can make plans better and production run more smoothly. Our tech team works closely with clients to create custom solutions that improve performance, cut costs, and speed up the building process.
Proven Track Record and Global Reach

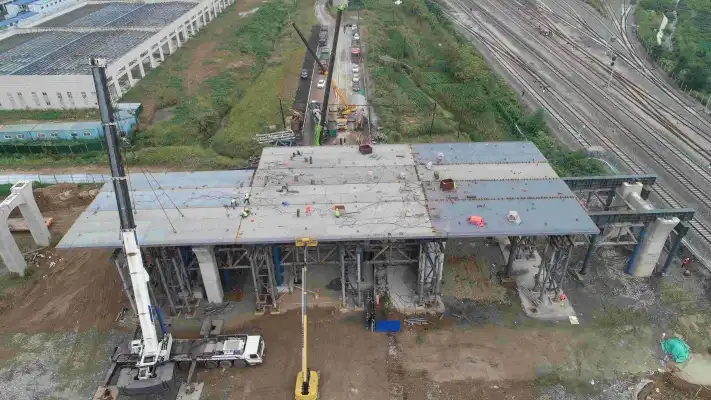

The 18,000-ton Shenyang Dongta Cross-Hunhe River Bridge and several long-span railway bridges across China are among the most important building projects we've worked on. We've been able to work on projects in Russia, Australia, and Vietnam thanks to partnerships with global EPC firms.
China Railway, CSCEC, and BMW are just a few of the big names in our business that trust us to handle complicated, large-scale projects. We've also kept our 70% client renewal rate. Our many certificates, such as ISO 9001, ISO 14001, OHSAS 45001, and EN 1090, make sure that we meet foreign standards.
We offer a wide range of customization choices, such as changeable cross-section design, optimized curved steel webs, and a maximum single span length of 420 meters. Our custom anti-corrosion solutions and BIM-based design integration make it easy to coordinate projects at all stages of their lives.
Conclusion
To get customized steel box girders, you need to pay close attention to technical specs, the manufacturer's skills, and the needs of your particular project. Putting in the time and effort to write good specifications and choose the right suppliers will pay off in the end with better project performance, on-time delivery, and long-term durability. Procurement experts can make sure that projects meet both technical and financial goals by learning about the basic features of box girder building, weighing important procurement factors, and working with experienced makers.
FAQs
What are the usual wait times for steel box girders that are made to order?
Depending on how complicated the customization is, the size of the project, and the manufacturer's capacity, lead times are usually between 6 and 12 weeks. These dates may be longer if the plans are more complicated or if there are special needs for rust protection. Getting makers involved early on in the planning process helps make shipping plans work better.
How do you make sure that the quality meets foreign standards?
Manufacturer approvals that meet EN and ASTM standards, thorough quality control methods in the plant, and third-party review procedures are all important for quality assurance. Reliable makers keep their ISO 9001 certification up to date and provide thorough paperwork for all of their parts' material tracking.
Can steel box girders be changed to fit big bridge projects?
Yes, modern steel box girders can support spans of up to 420 meters and come in a range of cross-sections and sizes. Modern welding methods and processes that prevent rust make it possible to adapt structures to different environments and load needs while still keeping their strength and performance standards.
Partner with Zhongda for Your Next Infrastructure Project
Zhongda Steel is ready to help you reach your building goals with our advanced steel box girder making skills and full project support services. Our team of experienced engineers and buying experts can help you make sure that your specs are the best they can be in terms of performance and cost. We are a reliable steel box girder seller with experience working all over the world. We can give your projects the quality, dependability, and technical know-how they need. Email us at Ava@zd-steels.com to talk about your unique needs and find out how our custom solutions can help your next building project.
References
American Institute of Steel Construction. "Steel Box Girder Design Guide for Bridges." AISC Design Guide Series, 2019.
Chen, W.F. and Duan, L. "Bridge Engineering Handbook: Construction and Maintenance." CRC Press, 2014.
Federal Highway Administration. "Steel Bridge Fabrication Technologies and Practices." U.S. Department of Transportation, 2018.
Eurocode 3: Design of Steel Structures - Part 1-5: Plated Structural Elements. European Committee for Standardization, 2016.
Taly, Narendra. "Highway Bridge Superstructure Engineering: LRFD Approaches to Design and Analysis." CRC Press, 2015.
American Association of State Highway and Transportation Officials. "AASHTO LRFD Bridge Design Specifications." 8th Edition, 2017.
