Steel Arch Bridge vs Beam Bridge: Which Is Better?

When deciding between steel arch bridge designs and beam bridge configurations, the best choice relies on the needs of your project. Steel arch bridges are great because they can span longer distances with fewer supports. This makes them perfect for deep slopes or wide rivers where the cost of foundations is too high. Their bent structure spreads weight evenly through compression, which makes it possible for them to reach amazing spans of up to 500 meters. Even though beam bridges are easier to build, they work best for shorter lengths with easy-to-reach support places. Depending on the site conditions, load needs, and personal taste in style, each plan has its own benefits.

Understanding the Fundamental Differences

The way these two types of bridges are built shows three main differences that affect how well the projects turn out:

Ways to Spread Out the Load:

Arch bridges move weight mostly by applying compression forces along the structure's curves. By sending forces to the supports at each end, this system makes it possible for the bridge to hold heavy loads. For beam bridges to work, the deck and supporting girders have to be able to bend without breaking.

Needs for the Foundation:

The supports of a steel arch bridge have to be able to handle both vertical loads and the pushing forces that come from the arch itself. Most of the time, these supports need a lot of weight or grounding systems. Beam bridges mostly cause vertical effects, which makes designing the base easier and cuts down on the amount of digging that needs to be done.

How Hard It Is to Build:

Building an arch often needs special ways to be put together, like using temporary supports or new ideas like rotating the structure. Beam bridges are easier to put together and can be done with standard lifting tools.

When you need to cross deep water or environmentally sensitive places with few supports in between, arch bridges are the best option. For jobs that need to be built quickly with normal tools, beam bridges are a good choice.

Span Capabilities and Load Capacity Analysis

Modern steel arch bridge building optimizes the shape of the structure to make it possible for spans to be very long. New test results from Q420qE steel arch projects show that single buildings with spans of 400 meters or more can hold more than 8,000 tons of weight.

Performance of the Arch Bridge Span:

• 200 to 500 meters is the longest affordable span.
• 85 to 95% of the load is spread out through compression.
• 15–30% less steel is used than for similar beam lengths.
• Characteristics of deflection: Not very much under service loads.

No Limits on Beam Bridge Span:

• 50 to 150 meters is the practical width limit for steel building.
• Load capacity: based on the depth of the frame and the grade of the material.
• Needs for materials: More steel to support longer spans.
• Controlling deflection is very important for spans longer than 100 meters.

Field data from finished arch projects show that deflection values are always less than L/1000 at full design loads. Comparable beam bridges, on the other hand, usually have deflection values between L/500 and L/300.

In order to reach spans longer than 200 meters with little deformation, arch designs are the best choice. Beam designs are a cost-effective way to cross normal highways and railroads that are less than 100 meters long.

Construction Methods and Timeline Considerations

Several new methods are used to build steel arch bridges, which can have a big effect on project plans and site logistics.

Advanced Methods for Building Arches

The stentless rotation method is a big step forward in arch bridge building. As part of this method, the arch ribs are built horizontally on temporary supports and then rotated into place. Major arch components have been installed at rates of 1,203 tons per month on projects that used this method.

Traditional Building with Beams

When putting together a steel arch bridge, mobile cranes and launching systems are used according to standard processes. Construction usually moves in a straight line, which makes planning schedules and allocating resources easier.

Comparisons of timelines:

• Making an arch bridge takes 6 to 12 months for the longer spans.
• Arch erection: 2 to 4 months if you use rotation ways.
• Building a beam bridge takes 4 to 8 months for the same amount of weight.
• Beam installation: 1-3 months using conventional methods.

To keep an eye on quality while an arch is being built, you need special tracking tools. Full-bridge tracking with more than 200 sensors makes sure that the structure works the way it's supposed to throughout the building process.

If you want to keep building from getting in the way of current traffic or river passage, arch bridges with rotation erection are a great choice. Beam bridges are easy to build for jobs where standard building methods work with the tools and knowledge that are available.

Material Requirements and Cost Analysis

The differences in how efficiently materials are used in arch and beam configurations have a direct effect on the cost and long-term performance of the project.

Performance Data for Q420qE Steel

According to tests done in a lab, Q420qE steel has a yield strength of 420 MPa and is very easy to weld. This strong material lets you make the best arch rib designs with pentagonal box parts that are 3.2m x 4.5m and have a wind resistance of 1.5kN/⎡.

Efficiency in the use of materials:

• Arch structures: 0.8-1.2 tons steel per square meter of deck.
• Beam structures: 1.2 to 1.8 tons of steel per square meter for lengths that are the same.
• Needs for welding: Full CTOD testing for all important arch links.
• Arch shapes are harder to make, while beam systems are easier.

Cost factors to think about

Steel arch bridge styles with longer lengths are more cost-effective because they use less material. Specialized manufacturing and assembly tools, on the other hand, can make the beginning costs of a job 15–25% higher than with regular beam building.

The point where arch material savings equalize building complexity costs usually happens around 150-meter lengths.

Arch bridges are good for the economy in the long run because they make the best use of materials for big building projects. Beam bridges are a great choice for projects that need to cut costs right away more than they need to save money on materials.

Durability and Maintenance Requirements

The long-term performance qualities of both types of bridges have a big effect on their lifetime costs.

Systems that stop corrosion

150 m aluminum spray treatments with fluorocarbon topcoats that meet GB/T 30790 C5M standards are part of advanced anti-corrosion systems for steel arch bridges. In difficult environments, this security device needs to be serviced every 25 to 30 years.

Access for Inspection

Because they are bent and have different heights, arch bridges are harder to check regularly. But compared to beam systems, their compression-dominant load routes make wear less of a problem.

Planning for maintenance:

• Arch bridges need a lot of work every 25 to 30 years.
• Beam bridges need regular upkeep every 15 to 20 years.
• Inspections happen every two years for both kinds.
• Monitoring of critical parts: Better methods for building arches.

Adding health tracking systems to steel arch bridge designs gives continuous performance data that lets maintenance plans plan ahead and lowers the cost of repairs that come up out of the blue.

Arched bridges are better for operations if you need buildings that don't need to be maintained as often and can be monitored in advance. For jobs where standard upkeep methods work with current infrastructure management systems, beam bridges are a good choice.

Aesthetic and Environmental Considerations

Bridges are often chosen for important sites and sensitive ecosystems based on how they look and how well they fit in with their surroundings.

Appeal to the Eye

The beauty of steel arch bridges makes them landmarks that improve the surroundings around them. People in towns that want to build famous infrastructure like the building's smooth curves and high spans.

Effects on the Environment

Fewer piers are needed for arch spans, which means less damage to water habitats and less trouble with travel. With single-span crosses, there are no more structures in the middle that can change the way water flows and harm marine environments.

Integration in cities

Arch shapes look good with traditional buildings and provide current structural performance. The higher headroom that is common in arch designs makes room for future traffic and growth needs.

If you need buildings that will be landmarks in your community and have little effect on the environment, arch bridges are a great choice. Beneath beam bridges are useful options for projects where function is more important than appearance.

Conclusion

Whether to use a steel arch bridge or a beam bridge design relies on the needs of the balanced span, the conditions of the site, and your long-term performance goals. Arch bridges are great for crossing large rivers and creating landmarks because they can span longer distances with less material and less damage to the environment. For normal uses, beam bridges are easy to build and do not require any special upkeep. Both styles have been shown to work well when they are properly designed and built with high-quality materials and cutting-edge manufacturing methods.

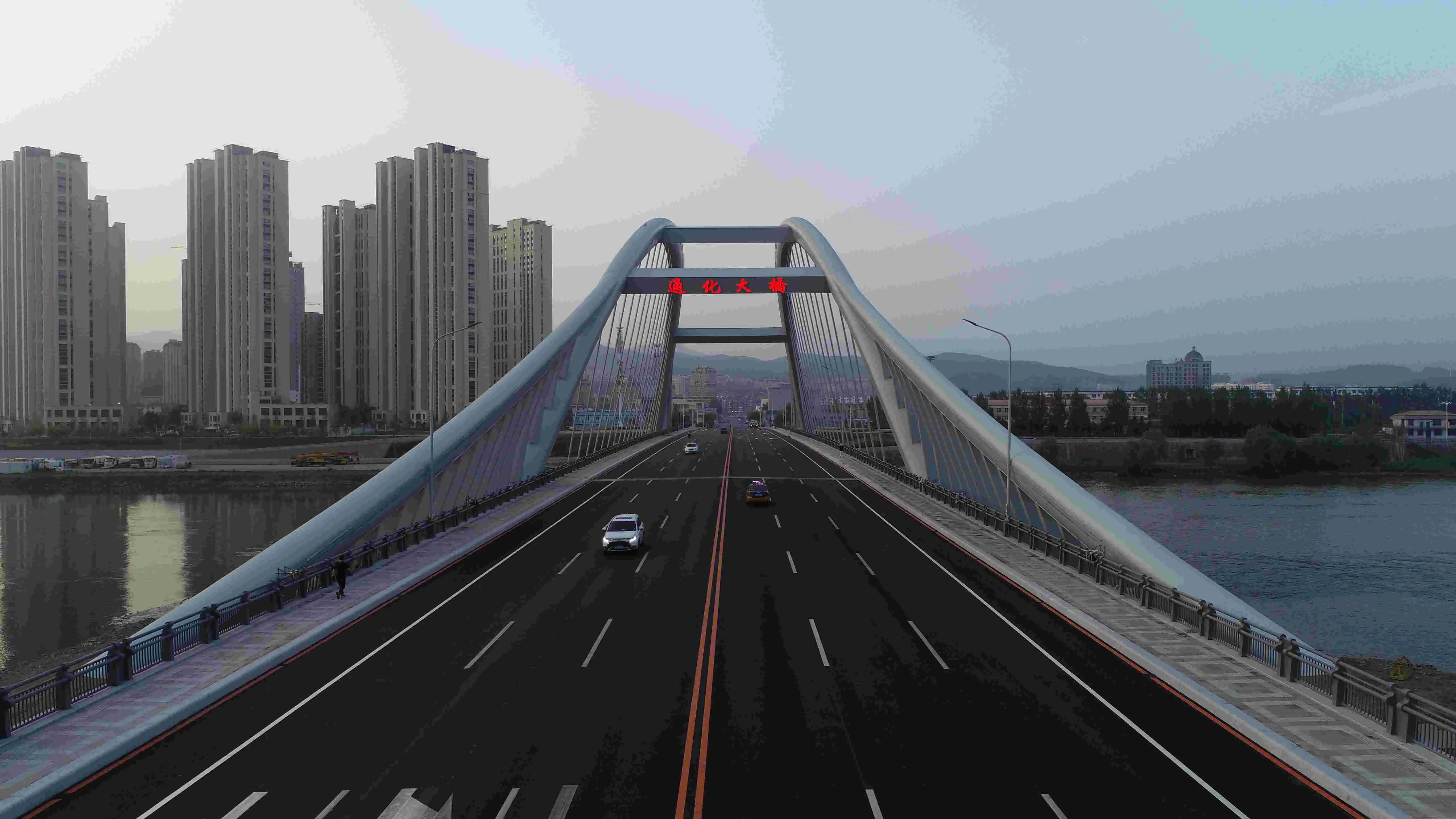

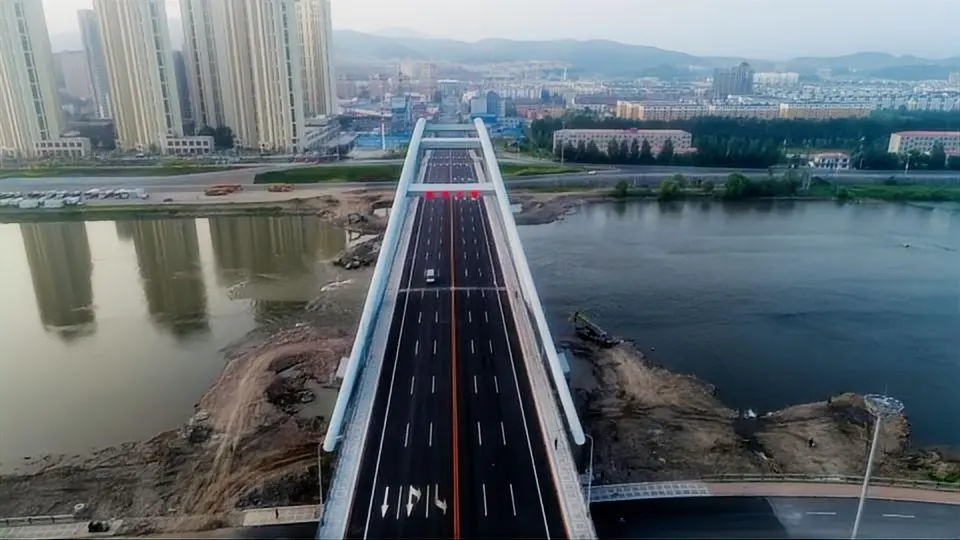

Partner with Zhongda Steel for Superior Steel Arch Bridge Solutions

With 20 years of experience, Zhongda Steel Structure Engineering can help with complicated steel arch bridge jobs all over the world. Our advanced Q420qE steel manufacturing skills, along with our precise cutting tolerances of ±0.2mm and full quality standards such as ISO 9001 and EN 1090, guarantee top-notch results for tough infrastructure projects. As a reputable steel arch bridge builder, we offer creative solutions for regions ranging from the Arctic to the tropics. To talk about your next big stretching project, email our engineering team at Ava@zd-steels.com.
