Structural Superiority of Box-Section Lattice Columns
Enhanced Load-Bearing Capacity
Box-section lattice columns excel in supporting immense vertical loads, a crucial factor in high-rise construction. Their unique design, featuring a hollow square or rectangular cross-section with internal stiffeners, distributes forces evenly across the structure. This configuration allows for optimal material utilization, resulting in a lighter yet stronger column compared to traditional solid columns. For instance, Zhongda Steel's box-section lattice columns, crafted from high-grade Q345C steel, offer dimensions ranging from 200×200mm to 600×600mm with wall thicknesses of 10-40mm. This versatility enables engineers to tailor the columns to specific load requirements, ensuring structural integrity without unnecessary weight.
Resistance to Bending and Torsional Forces
In tall buildings, lateral forces such as wind loads and seismic activity pose significant challenges. Box-section lattice columns shine in this aspect, offering superior resistance to bending and torsional forces. The closed box shape provides excellent rigidity in all directions, minimizing deformation under stress. Internal stiffeners further enhance this property, creating a robust structural element that maintains its shape even under extreme conditions. This resistance is particularly valuable in regions prone to earthquakes, with Zhongda Steel's columns offering seismic resistance up to Grade 8 earthquake protection.
Customizable Strength and Stability
One of the most significant advantages of box-section lattice columns is their customizability. Engineers can fine-tune the column's properties by adjusting dimensions, wall thickness, and internal stiffener configurations. This flexibility allows for optimized designs that meet specific project requirements without overengineering. Zhongda Steel's multi-cavity composite sections cater to complex designs, offering enhanced structural stability where needed. Additionally, the option for concrete filling can further boost fire resistance and overall structural performance, making these columns adaptable to various architectural and safety demands.
Efficiency and Cost-Effectiveness in Construction
Reduced Material Usage

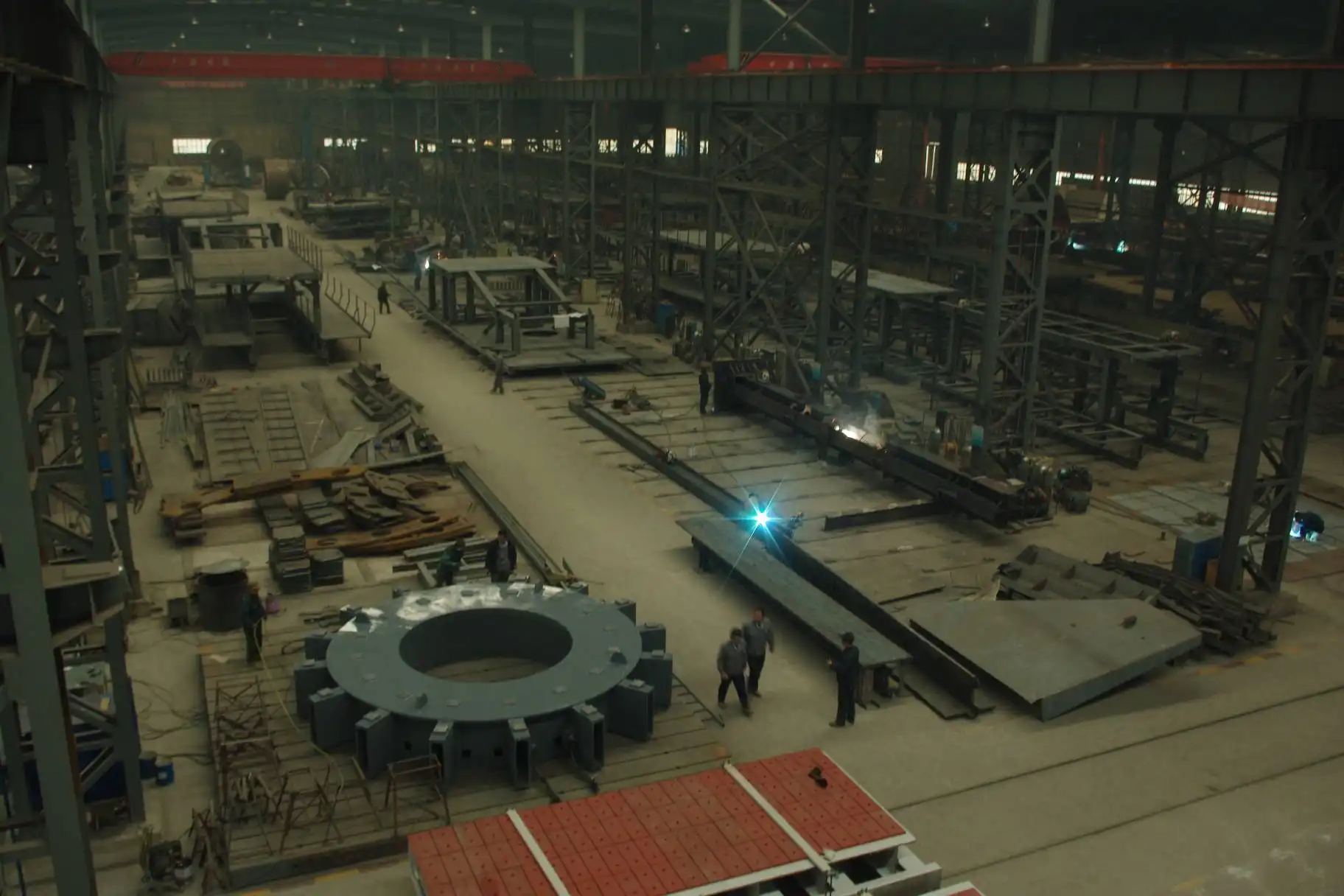

Box-section lattice columns achieve remarkable strength with less material than solid columns of comparable capacity. This efficient use of steel not only reduces the overall weight of the structure but also translates to significant cost savings. The hollow design minimizes material waste while maximizing structural performance, allowing for taller buildings with a smaller ecological footprint. Zhongda Steel's advanced manufacturing processes, including CNC ultra-thick plate cutting and automated welding lines, ensure precise fabrication that optimizes material usage without compromising strength.
Faster Construction Time
The prefabricated nature of box-section lattice columns significantly accelerates the construction process. These columns can be manufactured off-site to exact specifications, then quickly assembled on-site. This approach reduces on-site labor, minimizes construction errors, and shortens project timelines. Zhongda Steel's state-of-the-art facility, with its 60,000-ton annual capacity, can produce these columns efficiently, offering standard delivery times of 30 days and express options of 22 days for urgent projects. The streamlined production and assembly process contribute to faster project completion, reducing overall construction costs and allowing for earlier occupancy.
Versatility in Design and Application
Box-section lattice columns offer architects and engineers unprecedented design flexibility. Their slim profile compared to traditional columns allows for more usable floor space, a critical factor in high-rise buildings where every square meter counts. These columns can be seamlessly integrated into various architectural styles, from sleek modern designs to more complex, futuristic structures. Their versatility extends to applications beyond super high-rise buildings, including heavy industrial factory columns and bridges, as evidenced by Zhongda Steel's involvement in projects like the 18,000-ton Shenyang Dongta Cross-Hunhe River Bridge.
Long-Term Performance and Sustainability
Durability and Reduced Maintenance
The robust construction of box-section lattice columns contributes to their exceptional durability. The closed design protects the internal structure from environmental factors, reducing the risk of corrosion and degradation over time. This inherent protection means less frequent maintenance and longer service life compared to traditional column designs. Zhongda Steel's commitment to quality, evidenced by their ISO certifications and rigorous quality control processes, ensures that each column meets the highest standards of durability. The use of advanced welding techniques, including fully automated submerged arc welding, results in Grade 1 weld quality, further enhancing the column's long-term performance.
Energy Efficiency in Buildings
Box-section lattice columns play a crucial role in enhancing the overall energy efficiency of high-rise buildings. Their superior strength-to-weight ratio allows for more slender structural elements, reducing thermal bridging and improving the building's insulation properties. This characteristic contributes to lower heating and cooling costs over the building's lifecycle. Additionally, the ability to incorporate these columns into various facade designs enables architects to optimize natural lighting and ventilation, further improving energy performance. Zhongda Steel's expertise in BIM-driven prefabrication allows for precise integration of these columns into energy-efficient building designs.
Adaptability to Future Needs
The inherent strength and versatility of box-section lattice columns make them ideal for buildings designed with future adaptability in mind. As urban needs evolve, these robust structures can accommodate changes in use, additional floors, or retrofitting with new technologies without compromising structural integrity. This adaptability extends the useful life of buildings, contributing to more sustainable urban development. Zhongda Steel's commitment to innovation, including their -60°C Weathering Steel Anti-corrosion Technology, ensures that their columns are prepared for future challenges, from extreme weather conditions to changing architectural trends.
Conclusion
Box-section lattice columns have emerged as a game-changing technology in high-rise construction, offering a perfect blend of strength, efficiency, and versatility. Their superior load-bearing capacity, coupled with resistance to complex forces, makes them ideal for pushing the boundaries of architectural possibilities. The efficiency in material use, faster construction times, and long-term durability contribute to more sustainable and cost-effective building practices. As urban landscapes continue to evolve, these innovative structural elements will play a pivotal role in shaping the skylines of tomorrow, enabling safer, taller, and more ambitious architectural marvels.
Contact Us
Ready to elevate your high-rise project with cutting-edge box-section lattice columns? Zhongda Steel offers unparalleled expertise in precision-engineered structural solutions. Our advanced manufacturing processes and commitment to quality ensure you receive the best products for your construction needs. Contact us today at Ava@zd-steels.com to discuss how our box-section lattice columns can bring unrivaled strength and efficiency to your next megastructure.
