Understanding Steel Plate Girders and Steel Trusses
Composition and Design of Steel Plate Girders

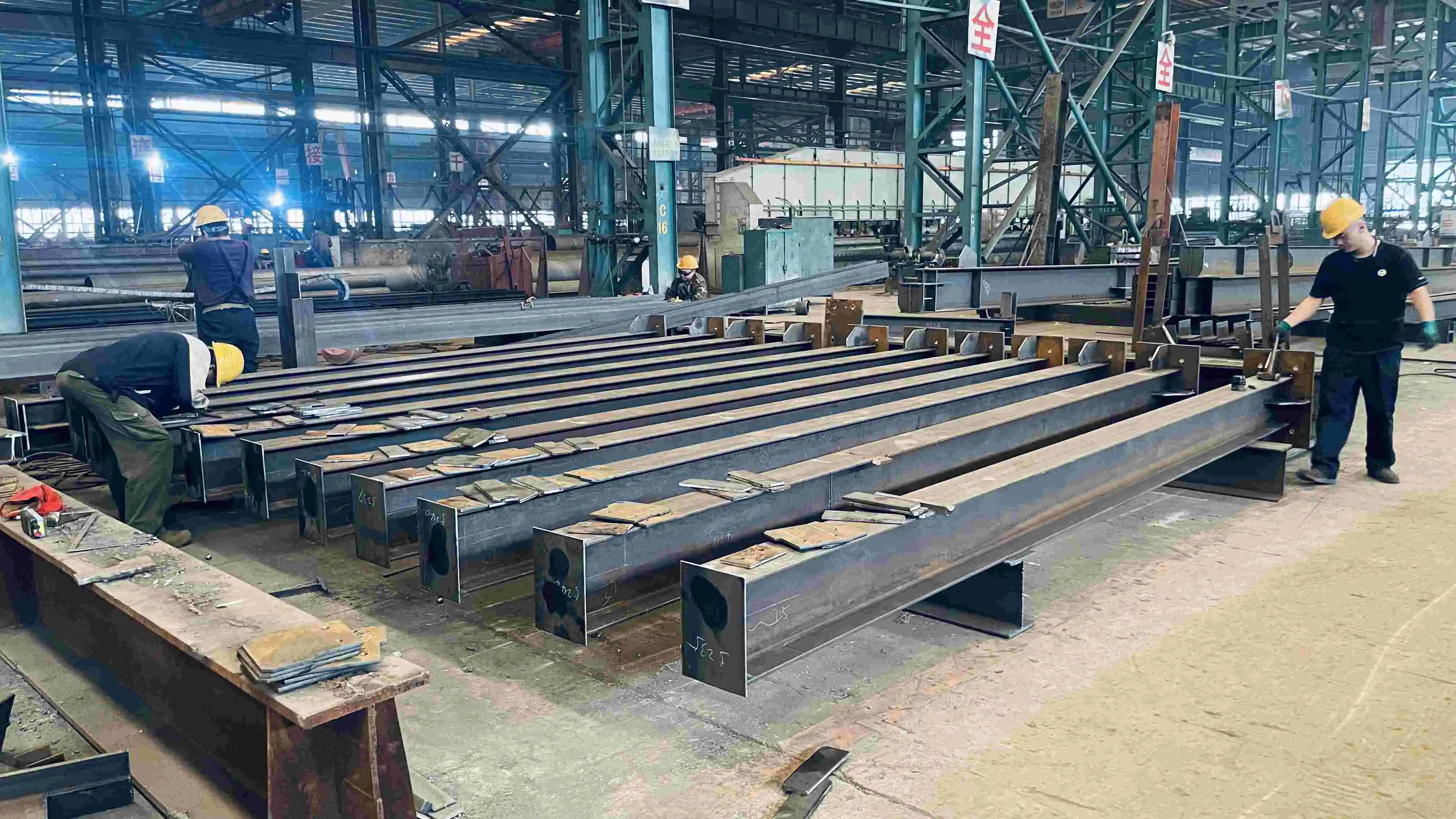

Steel plate girders are robust structural elements composed of steel plates welded or bolted together to form an I-shaped cross-section. These girders typically consist of a vertical web plate and horizontal flanges at the top and bottom. At Zhongda Steel, we utilize advanced laser cutting technology to achieve precise dimensions, with flange thicknesses ranging from 14 to 80mm and a tolerance of ±0.5mm. This precision ensures optimal performance and structural integrity.
The design of steel plate girders allows for customization in terms of depth, width, and thickness, making them adaptable to various load requirements and span lengths. Our engineering team employs state-of-the-art BIM-driven prefabrication techniques to optimize the design for each specific project, ensuring maximum efficiency and cost-effectiveness.
Structure and Functionality of Steel Trusses
Steel trusses are structural frameworks composed of interconnected elements, typically forming triangular units. These units work together to distribute loads efficiently across the entire structure. Trusses can be designed in various configurations, such as Warren, Pratt, or Howe trusses, each suited for different applications.
The open design of steel trusses allows for easy integration of mechanical and electrical systems, making them particularly useful in industrial and commercial buildings. At Zhongda Steel, we leverage our expertise in ultra-thick plate cutting (±0.2mm precision) to fabricate truss components that ensure perfect fit and optimal load distribution.
Comparative Strengths and Limitations
Steel plate girders excel in situations requiring high load-bearing capacity and streamlined designs. They're particularly effective for short to medium spans and can be fabricated to precise specifications. Our plate girders, made from high-grade Q420qE steel, offer excellent performance even in extreme environments, with impact resistance of ≥34J at -40℃.
Steel trusses, on the other hand, are ideal for long-span structures where weight reduction is crucial. They provide excellent stability and are often more economical for larger spans. However, they may require more vertical space and can be more complex to fabricate and assemble.
Factors Influencing the Choice Between Steel Plate Girders and Steel Trusses
Span Length and Load Requirements
The span length of your project is a critical factor in choosing between steel plate girders and trusses. Steel plate girders are typically more efficient for shorter spans, generally up to 100 feet. They can handle substantial loads while maintaining a relatively slim profile. Our plate girders, with their precision-engineered design, can be optimized for maximum efficiency within this range.
For longer spans, especially those exceeding 100 feet, steel trusses often become the more economical choice. Their open structure allows for greater depth without excessive weight, making them ideal for bridges, large industrial buildings, and stadiums. Zhongda Steel's expertise in fabricating both systems allows us to recommend the most suitable option based on your specific span and load requirements.
Architectural and Aesthetic Considerations
The visual impact of your structural system can significantly influence the overall aesthetics of your project. Steel plate girders offer a clean, streamlined appearance that can be easily concealed or integrated into modern architectural designs. Their smooth surfaces can be easily painted or treated for corrosion resistance, with our double protection system (spray + topcoat) meeting GB/T 30790 standards.
Steel trusses, with their open and often intricate designs, can become a prominent architectural feature, adding visual interest to the structure. They're particularly popular in industrial-style designs or where the structural elements are intended to be visible. Our precision fabrication ensures that even exposed trusses maintain a high-quality, aesthetically pleasing appearance.
Cost and Construction Efficiency
Cost considerations go beyond just material expenses. Steel plate girders, while potentially using more steel by weight, can offer significant savings in fabrication and erection costs. Our bolted connection system for plate girders can increase on-site assembly efficiency by up to 60%, reducing overall project timelines and labor costs.
Steel trusses may use less steel overall, especially for longer spans, potentially reducing material costs. However, they can be more complex to fabricate and erect, which may increase labor costs. At Zhongda Steel, our advanced manufacturing facilities and experienced team help optimize the fabrication process for both systems, ensuring cost-effectiveness regardless of your choice.
Applications and Case Studies
Ideal Scenarios for Steel Plate Girders
Steel plate girders shine in applications where high load-bearing capacity and streamlined design are crucial. They're extensively used in bridge construction, particularly for highway overpasses and railway bridges. The Shenyang Dongta Cross-Hunhe River Bridge, featuring an 18,000-ton steel structure, exemplifies the capabilities of our plate girders in creating seamless river crossings.
In building construction, steel plate girders are ideal for creating large, open spaces in commercial and industrial buildings. They're particularly useful in multi-story parking structures, where their slim profile maximizes available headroom. Our plate girders, certified to ASTM A709 Gr.50W standards and backed by comprehensive fatigue test reports, ensure long-term reliability in these demanding applications.
Optimal Uses for Steel Trusses
Steel trusses excel in projects requiring long spans with minimal intermediate support. They're the go-to choice for large-scale structures like airport terminals, sports arenas, and exhibition halls. Our involvement in projects like the Jingha Expressway expansion demonstrates how steel trusses can be effectively used in long-span bridge construction.
In industrial settings, steel trusses are invaluable for creating large, column-free spaces. They're widely used in warehouse roofs, manufacturing facilities, and hangar buildings. The Australian mining crushing stations we've supplied with custom-designed heavy-duty trusses showcase their adaptability to harsh industrial environments.
Hybrid Solutions and Innovative Applications
At Zhongda Steel, we recognize that some projects benefit from a combination of steel plate girders and trusses. Our expertise allows us to develop hybrid solutions that leverage the strengths of both systems. For instance, in multi-story buildings, we might use plate girders for the main floor supports and trusses for the roof structure, optimizing both load-bearing capacity and span capabilities.
Our work on the Alaska Polar Highway Bridge and Nordic Fjord Heavy-Load Bridges demonstrates our ability to innovate in extreme environments. By combining our weather-resistant steel plate girders with strategically placed truss elements, we've created structures capable of withstanding harsh Arctic conditions and corrosive marine environments while maintaining optimal performance.
Conclusion
The choice between steel plate girders and steel trusses depends on a careful analysis of your project's specific requirements. Factors such as span length, load requirements, aesthetic considerations, and construction efficiency all play crucial roles in this decision. At Zhongda Steel, our extensive experience in both technologies, coupled with our advanced manufacturing capabilities and commitment to innovation, positions us to provide the optimal solution for your project, regardless of its complexity or environmental challenges.
