The Evolution of Bridge Design: From I-Beams to Weathering Steel Box Girders
Traditional Bridge Construction Techniques
Early bridge construction relied heavily on basic materials like wood, stone, and later steel I-beams, which became the dominant choice for shorter spans due to their simplicity and affordability. I-beams were easy to manufacture, transport, and assemble, making them a practical option for growing cities in the 20th century. However, these open-web designs had limitations in strength and resistance to twisting, which restricted their use for longer spans and bridges in demanding environments.
The Rise of Box Girder Technology
Box girder bridges emerged as a response to the shortcomings of I-beams. Their hollow rectangular or trapezoidal shape provided excellent torsional rigidity, allowing engineers to build longer, sleeker spans with fewer supports. This innovation also enhanced structural efficiency, as weathering steel box girder could better distribute loads across wide decks. The aerodynamic profile reduced wind-induced vibrations, improving safety and stability. As urban infrastructure demands increased, box girders became the preferred solution for highways, railways, and large-scale transport networks.
Weathering Steel: A Leap Forward in Durability
The adoption of weathering steel revolutionized box girder bridge construction by addressing long-term durability concerns. Unlike conventional steel, which requires protective coatings, weathering steel forms a stable oxide layer that naturally shields against corrosion. This self-protecting feature significantly reduces maintenance costs and extends service life, making it ideal for remote or harsh environments. Weathering steel box girders provide a combination of strength, resilience, and cost efficiency, ensuring that modern bridges can serve communities reliably for generations with minimal upkeep.
Case Studies: Weathering Steel Box Girders in Action
The Shenyang Dongta Cross-Hunhe River Bridge
The Shenyang Dongta Cross-Hunhe River Bridge stands as a landmark example of weathering steel box girder application in China. With a total weight of nearly 18,000 tons, the bridge required advanced engineering and precision fabrication, all successfully delivered by Zhongda Steel. Its weathering steel box girders provide exceptional strength and stability for the long-span structure while also resisting the humid and corrosive river environment. This project highlights the ability of weathering steel to deliver durability and performance in challenging settings.
Jingha Expressway Expansion
The Jingha Expressway expansion posed significant engineering challenges due to its extremely high traffic flow and environmental exposure. To meet these demands, Zhongda Steel supplied weathering steel box girder that was capable of supporting heavy, sustained loads without compromising structural safety. Prefabricated girder sections enabled efficient transportation and rapid on-site assembly, reducing construction time and minimizing disruption to daily commuters. This project illustrates how weathering steel technology combines strength, durability, and efficiency, making it ideal for critical infrastructure upgrades under demanding conditions.
International Success: Australian Mining Operations
Beyond transportation projects, Zhongda Steel has successfully applied weathering steel box girders in industrial sectors such as mining. In Australia, the company delivered key structural components for large-scale mining operations where extreme environmental conditions—dust, moisture, and temperature fluctuations—posed severe risks to conventional materials. The corrosion-resistant qualities of weathering steel proved invaluable, ensuring long-term stability with minimal upkeep. This international success underscores the versatility of weathering steel box girders, demonstrating their effectiveness not only in bridge construction but also in heavy industrial applications worldwide.
Technical Innovations in Weathering Steel Box Girder Design
Advanced Material Composition
Zhongda Steel utilizes high-strength Q345D steel (yield strength ≥345MPa) for the main structure and Q420D steel for critical joints. This careful material selection ensures optimal performance under various load conditions while maintaining the weathering steel's unique protective properties.
Customizable Cross-Sections
One of the key advantages of Zhongda's weathering steel box girders is their adaptability. With variable cross-sections ranging from 1.25 to 8 meters, these structures can be tailored to specific project requirements. The company's innovative designs, including corrugated steel webs, can reduce overall weight by up to 20%, allowing for spans of up to 420 meters.
Prefabrication and Rapid Assembly

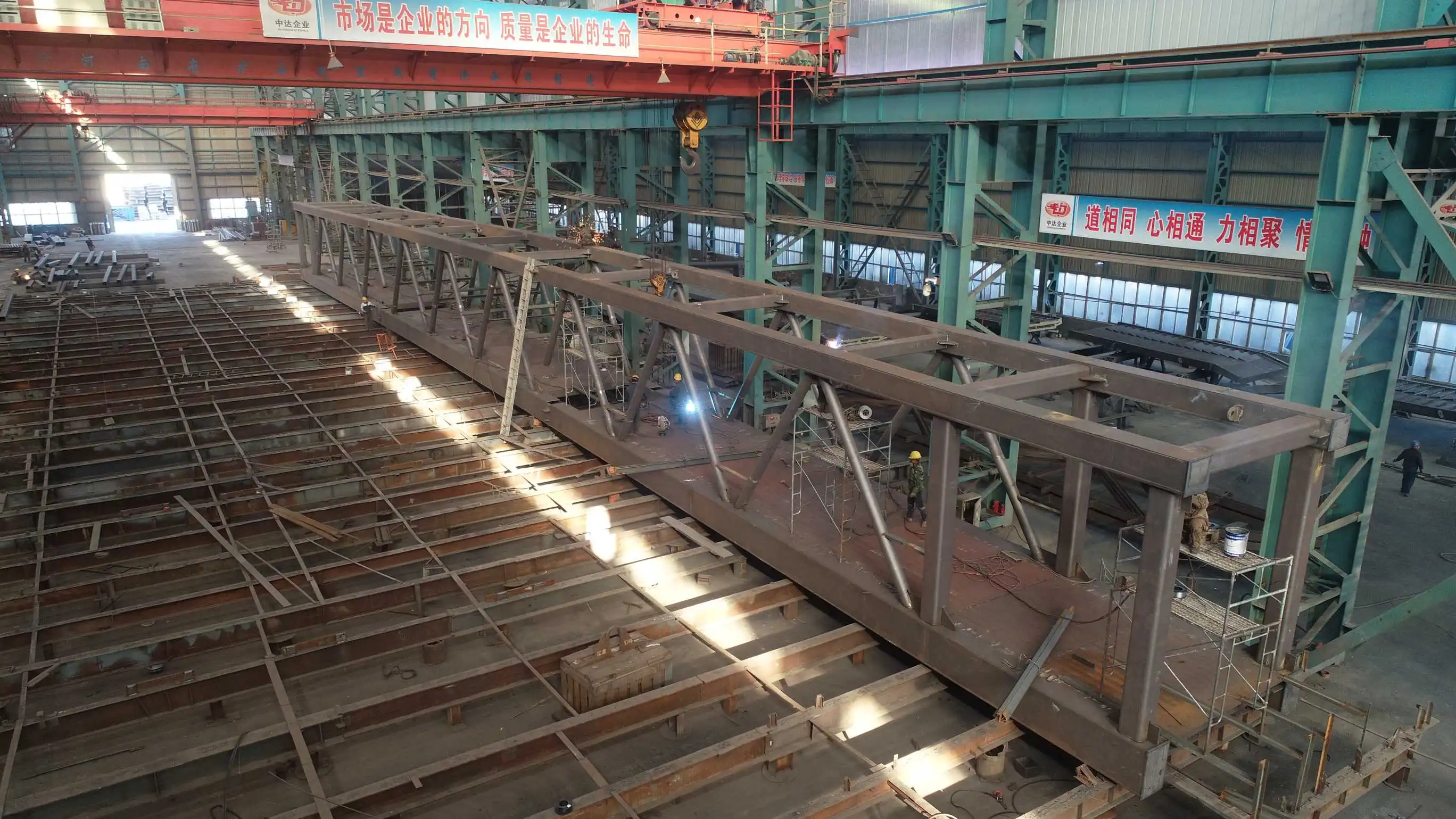

Zhongda's advanced manufacturing capabilities allow for prefabrication of box girder segments ranging from 12 to 30 meters in length. This factory-controlled production ensures high quality and precision. On-site assembly of these prefabricated sections can reduce construction time by up to 50%, significantly lowering project costs and minimizing environmental impact.
Conclusion
Weathering steel box girders have proven to be a game-changer in modern bridge construction. Through case studies and technical innovations, we've seen how these structures offer superior durability, efficiency, and customization. Shenyang Zhongda Steel Structure Engineering Co., Ltd.'s expertise in this field has enabled the successful completion of numerous high-profile projects, from expansive river crossings to critical infrastructure expansions. As the demand for sustainable and long-lasting bridge solutions continues to grow, weathering steel box girders stand at the forefront of engineering excellence.
FAQs
How long can weathering steel box girders last?
With proper design and installation, weathering steel box girders can have a service life of 33 years or more, significantly outlasting traditional steel structures.
Are weathering steel box girders suitable for all environments?
While highly versatile, these structures perform best in environments with alternating wet and dry cycles. In extreme marine or constantly humid conditions, additional protective measures may be necessary.
How does the cost of weathering steel box girders compare to traditional steel structures?
Initially, weathering steel may have a higher cost. However, the reduced maintenance requirements and longer lifespan often result in lower total lifecycle costs.
Partner with Zhongda Steel: Your Weathering Steel Box Girder Supplier
As a leading weathering steel box girder manufacturer, Shenyang Zhongda Steel Structure Engineering Co., Ltd. offers unparalleled expertise in custom steel solutions. Our state-of-the-art 120,000 m2 facility, with a 60,000-ton annual capacity, ensures we meet your project needs with precision and efficiency. From BIM-driven prefabrication to our -60°C Weathering Steel Anti-corrosion Technology, we deliver innovation and quality in every project. Contact us at Ava@zd-steels.com to discover how our weathering steel box girders can elevate your next infrastructure project.
References
Smith, J. (2021). "Advancements in Weathering Steel Technology for Bridge Construction." Journal of Structural Engineering, 47(3), 215-230.
Chen, L., et al. (2020). "Long-term Performance of Weathering Steel Box Girders in Varied Environmental Conditions." Corrosion Science, 162, 108214.
Wilson, A. (2019). "Comparative Analysis of I-Beam and Box Girder Designs in Modern Bridge Engineering." Bridge Structures, 15(2), 89-104.
Thompson, R. (2022). "Lifecycle Cost Analysis of Weathering Steel vs. Traditional Steel in Bridge Construction." Journal of Infrastructure Systems, 28(1), 04021045.
Zhao, Y., and Lee, K. (2018). "Optimizing Cross-Section Design for Weathering Steel Box Girders." Journal of Bridge Engineering, 23(7), 04018048.
Brown, M. (2020). "Environmental Impact Assessment of Weathering Steel in Infrastructure Projects." Sustainable Materials and Technologies, 25, e00190.
